Model Details

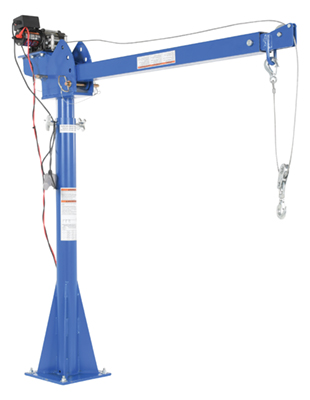

WTJ-20-4-DC

WTJ-20-4-DC

Steel DC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity Blue

A power lift Jib crane is designed for material handling applications on docks, in warehouses or in truck beds. This intermittent unit uses crane feature rotation hand brakes that offer unlimited positioning. The mast mounts permanently. Boom adjusts in one (1) foot increments and can be positioned at four (4) elevations. Folds for storage. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Total Ship Wt.(lbs.): 260 (only 1 package) Size: 13.5"W x 63.8125"L x 68.8125"H Color: Blue

Uniform Capacity (lb.): 2,000 Boom Reach (in.): 51-1/4 to 87-1/4 Boom Height (in.): 59-1/2 to 106-1/2
Rotation Degree: 360 Boom Adjustment Increments (in.): 12 Cable Length (ft.): 46
Cable Diameter (in.): 3/16 DC (volts): 12 Horsepower (HP): 1
Mounting Plate Length (in.): 12 Mounting Plate Width (in.): 12 Capacity at 59-1/2" Fully Retracted (lbs.): 1,100
Capacity at 59-1/2" Second Position (lbs.): 800 Capacity at 59-1/2" Third Position (lbs.): 600 Capacity at 59-1/2" Fully Extended (lbs.): 250
Capacity at 78-1/4" Fully Retracted (lbs.): 1,500 Capacity at 78-1/4" Second Position (lbs.): 1,200 Capacity at 78-1/4" Third Position (lbs.): 1,000
Capacity at 78-1/4" Fully Extended (lbs.): 600 Capacity at 94-1/2" Fully Retracted (lbs.): 1,850

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WTJ-20-4-DC


WTJ-20-4-DC

Steel DC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity Blue

A power lift Jib crane is designed for material handling applications on docks, in warehouses or in truck beds. This intermittent unit uses crane feature rotation hand brakes that offer unlimited positioning. The mast mounts permanently. Boom adjusts in one (1) foot increments and can be positioned at four (4) elevations. Folds for storage. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
Dimensions: 13.5"W x 63.8125"L x 68.8125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215048354 GTIN: 00691215048354
Warranty: -- Shipping Weight: 260 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Boom Reach (in.): 51-1/4 to 87-1/4 Boom Height (in.): 59-1/2 to 106-1/2
Rotation Degree: 360 Boom Adjustment Increments (in.): 12 Cable Length (ft.): 46
Cable Diameter (in.): 3/16 DC (volts): 12 Horsepower (HP): 1
Mounting Plate Length (in.): 12 Mounting Plate Width (in.): 12 Capacity at 59-1/2" Fully Retracted (lbs.): 1,100
Capacity at 59-1/2" Second Position (lbs.): 800 Capacity at 59-1/2" Third Position (lbs.): 600 Capacity at 59-1/2" Fully Extended (lbs.): 250
Capacity at 78-1/4" Fully Retracted (lbs.): 1,500 Capacity at 78-1/4" Second Position (lbs.): 1,200 Capacity at 78-1/4" Third Position (lbs.): 1,000
Capacity at 78-1/4" Fully Extended (lbs.): 600 Capacity at 94-1/2" Fully Retracted (lbs.): 1,850
