Model Details

WP-3737-FD-84B

Printer Friendly
WP-3737-FD-84B

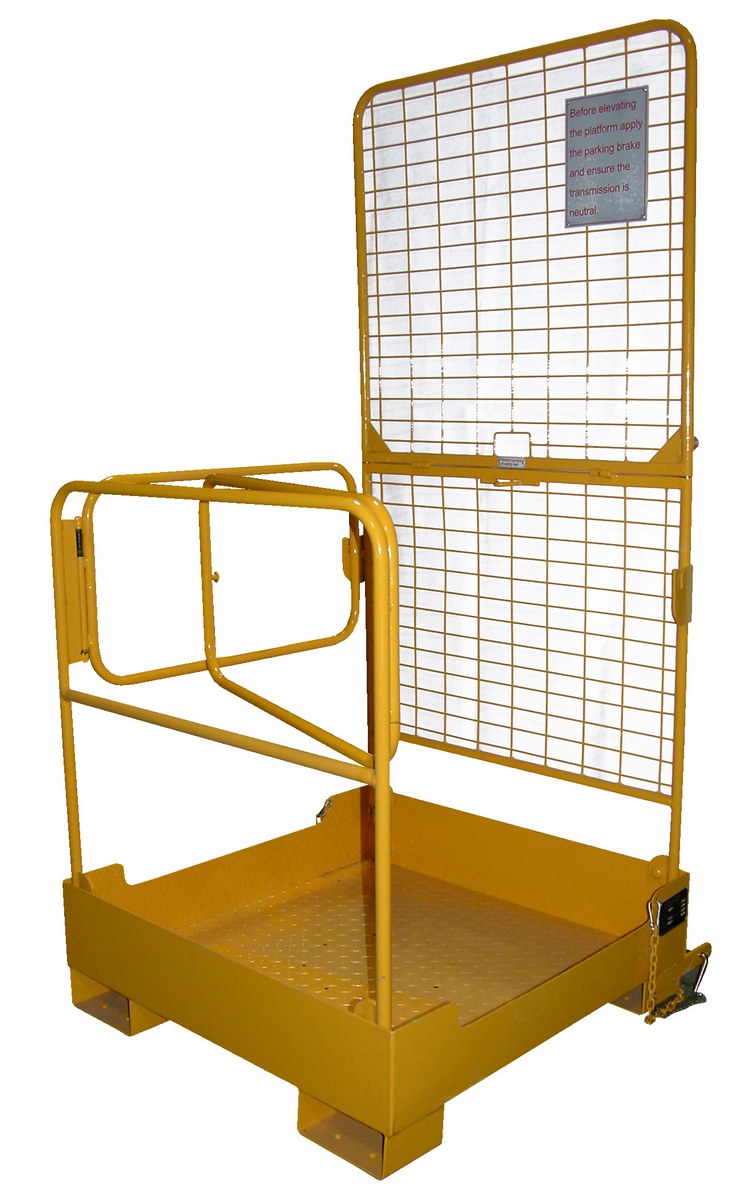

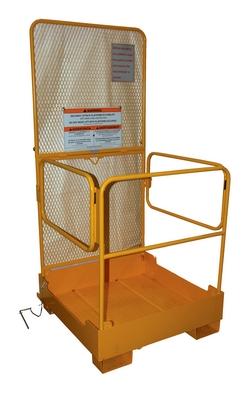

Steel Fold Down Steel Work Platform With 84 In. Expanded Back 37 In. x 37 In. 600 Lb. Capacity Yellow

Elevate personnel to overhead racks and shelving for safe and convenient access with a fold down work platform. When not in use, unit can be folded down and moved out of the way by just one person. Unit stores conveniently in a bottom base. Dual handrails on three sides. High expanded metal backing on fourth side. Meets California OSHA specifications. Includes checker floor plate platform, tine lock, and a safety restraint to attach platform to fork truck. Powder coat yellow finish. Steel construction.

  • Two gate platform allows access on each side
  • Fork truck safety restraint secures work platform to fork truck
  • Tread plate floor provides a safe non-slip grip

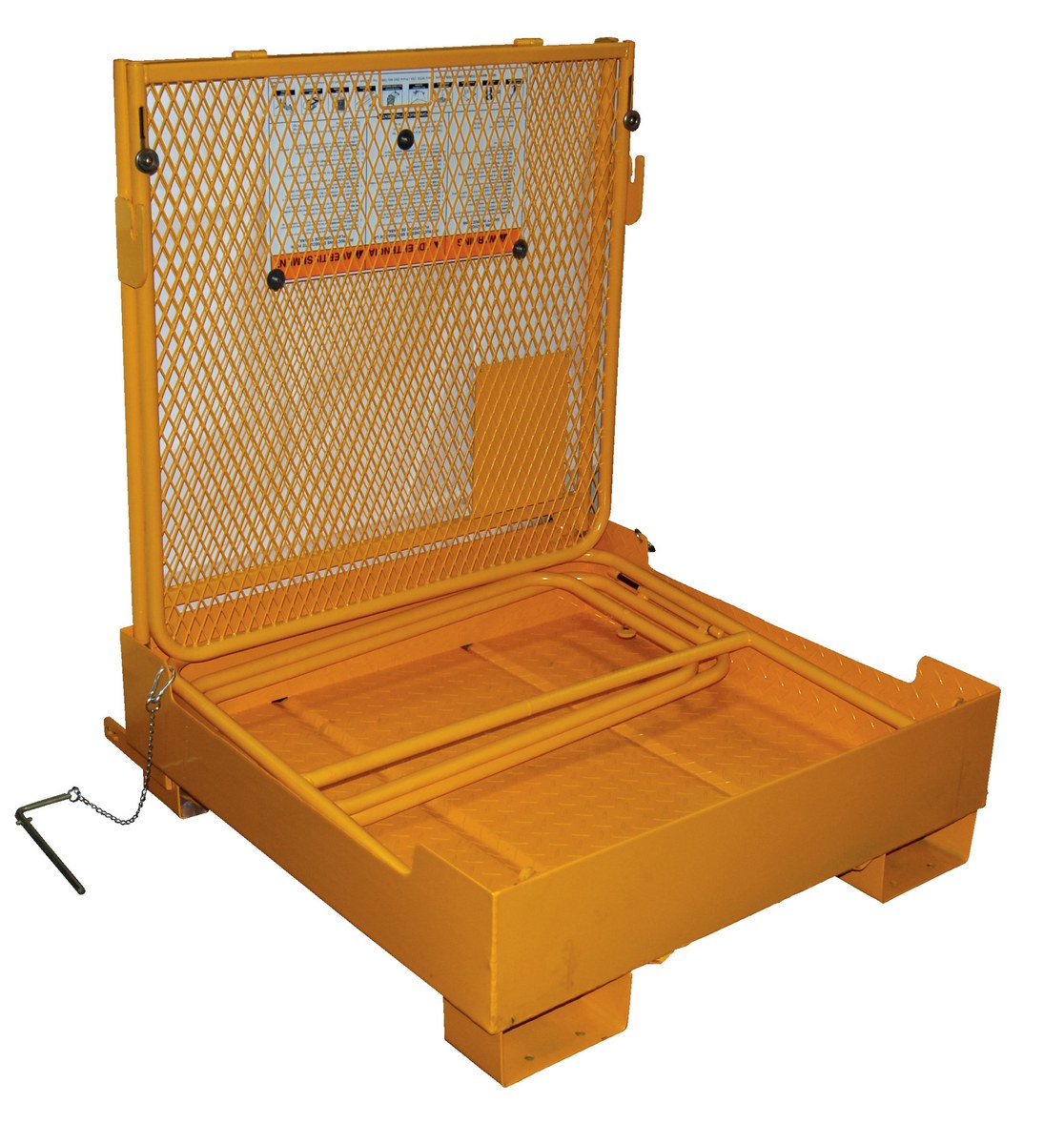

  • Unique folds-down design takes up little storage space when not in use
Total Ship Wt.(lbs.): 245 (only 1 package) Size: 38"W x 38"L x 89.5"H Color: Yellow

Uniform Capacity (lb.): 600 Base Depth for Storage (in.): 4 Top Rail Height (in.): 38
Mid Rail Height (in.): 23-1/2 Fork Pocket Width (in.): 7-7/8 Fork Pocket Height (in.): 3-3/8
Fork Pocket Center (in.): 27-3/4 Folded Width (in.): 38 Folded Length (in.): 38
Folded Height (in.): 11-5/8 Handrail Design: Fixed Door Width (in.): 35
Platform Width (in.): 37 Platform Length (in.): 37 High Back Height (in.): 84
Anchor Point Capacity (lbs.): 350

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: WP-3737-FD-84B
WP-3737-FD-84B

Steel Fold Down Steel Work Platform With 84 In. Expanded Back 37 In. x 37 In. 600 Lb. Capacity Yellow

Elevate personnel to overhead racks and shelving for safe and convenient access with a fold down work platform. When not in use, unit can be folded down and moved out of the way by just one person. Unit stores conveniently in a bottom base. Dual handrails on three sides. High expanded metal backing on fourth side. Meets California OSHA specifications. Includes checker floor plate platform, tine lock, and a safety restraint to attach platform to fork truck. Powder coat yellow finish. Steel construction.

  • Two gate platform allows access on each side
  • Fork truck safety restraint secures work platform to fork truck
  • Tread plate floor provides a safe non-slip grip
  • Unique folds-down design takes up little storage space when not in use
Dimensions: 38"W x 38"L x 89.5"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215096805 GTIN: 00691215096805
Warranty: -- Shipping Weight: 245 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 600 Base Depth for Storage (in.): 4 Top Rail Height (in.): 38
Mid Rail Height (in.): 23-1/2 Fork Pocket Width (in.): 7-7/8 Fork Pocket Height (in.): 3-3/8
Fork Pocket Center (in.): 27-3/4 Folded Width (in.): 38 Folded Length (in.): 38
Folded Height (in.): 11-5/8 Handrail Design: Fixed Door Width (in.): 35
Platform Width (in.): 37 Platform Length (in.): 37 High Back Height (in.): 84
Anchor Point Capacity (lbs.): 350
