Model Details

WALL-S

WALL-S

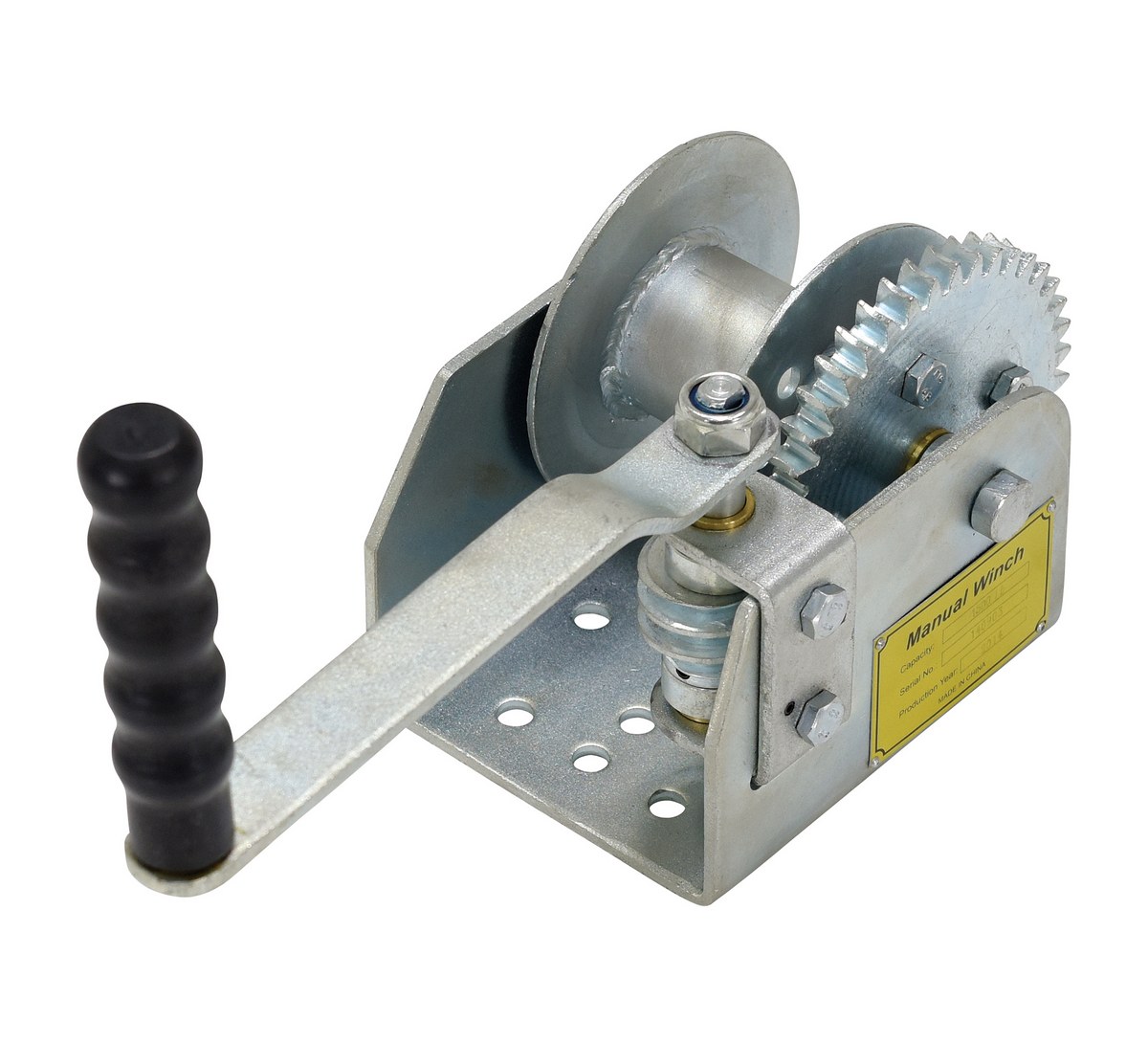

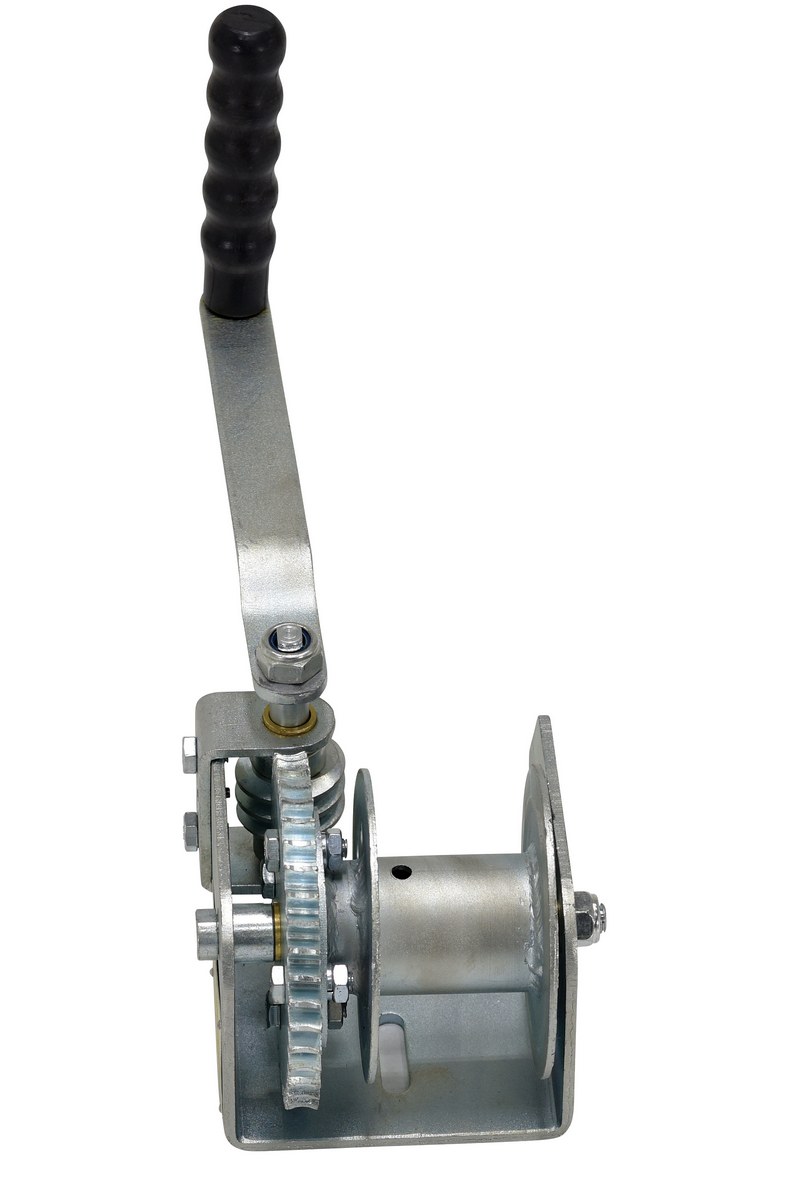

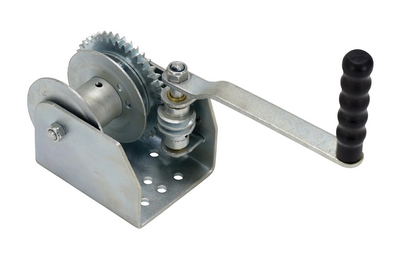

Steel Single Wall Mounted Hand Winch 1500 Lb. Capacity Silver

Industrial winches are pulling devices that use a wire, rope or cable to move heavy loads. This single wall mounted hand winch is constructed of steel worm gear drives with zinc plated finish. Pinion gear shaft with lubricated down bushings provide smooth operation and long life. Available in single or dual drum models.

  • Industrial winches are pulling devices that move heavy loads
  • Hand winch is double wall mounted with zinc plated finish for maximum efficiency
  • Pinion gear shaft with lubricated down bushings provide smooth operation and long life
  • Available in single or dual drum models for ideal operation

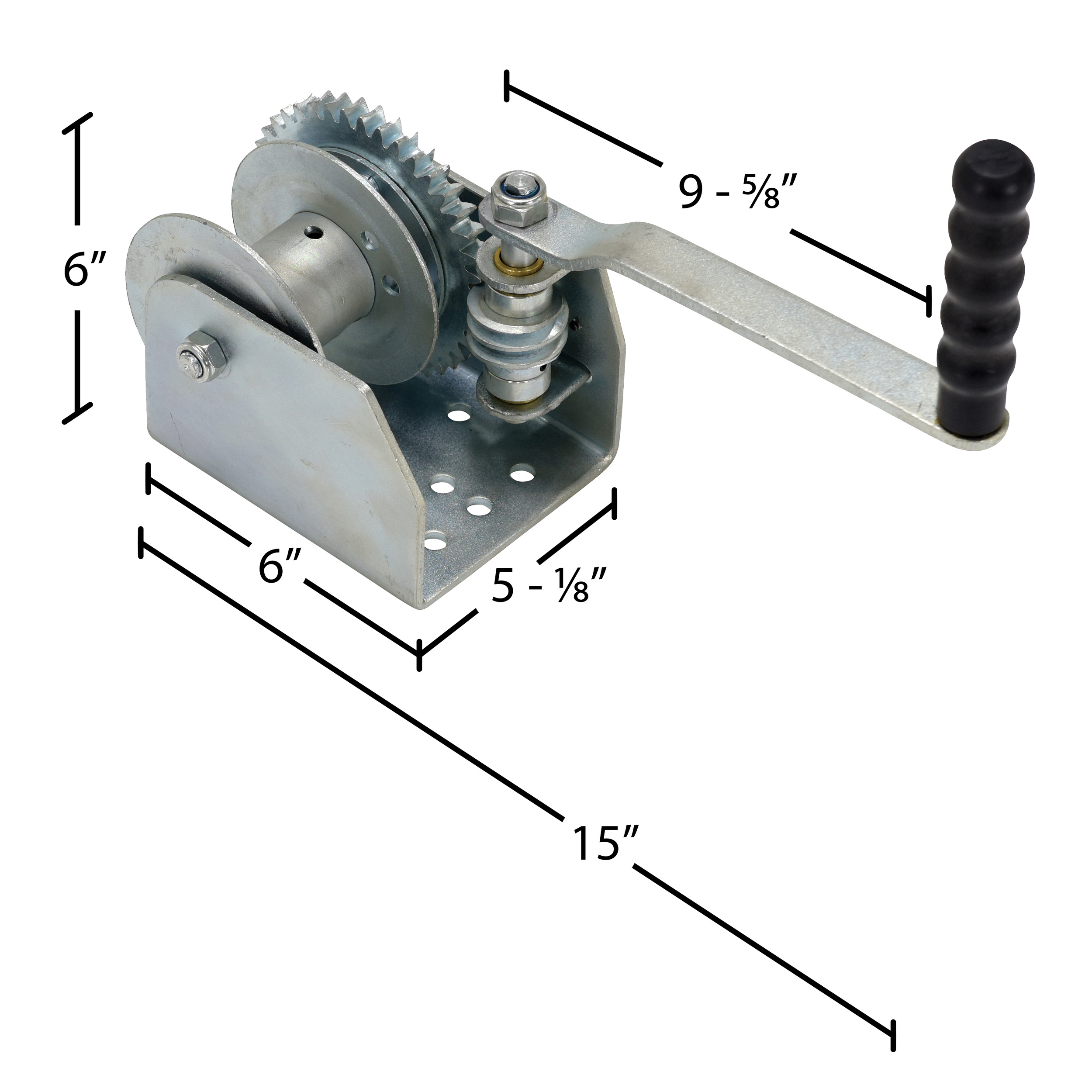

Total Ship Wt.(lbs.): 12 (only 1 package) Size: 6"W x 15"L x 6"H Color: Silver

Uniform Capacity (lb.): 1,500 Handle Length (in.): 9.6 Gear Ratio: 41:1
Operation: Manual Accepts Cable Diameter (in.): 1/4 Accepts Cable Length (ft.): 32

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: WALL-S


WALL-S

Steel Single Wall Mounted Hand Winch 1500 Lb. Capacity Silver

Industrial winches are pulling devices that use a wire, rope or cable to move heavy loads. This single wall mounted hand winch is constructed of steel worm gear drives with zinc plated finish. Pinion gear shaft with lubricated down bushings provide smooth operation and long life. Available in single or dual drum models.

  • Industrial winches are pulling devices that move heavy loads
  • Hand winch is double wall mounted with zinc plated finish for maximum efficiency
  • Pinion gear shaft with lubricated down bushings provide smooth operation and long life
  • Available in single or dual drum models for ideal operation
Dimensions: 6"W x 15"L x 6"H Sell UOM: EA-Each Color: Silver
Material: Steel UPC: 691215096621 GTIN: 00691215096621
Warranty: -- Shipping Weight: 12 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,500 Handle Length (in.): 9.6 Gear Ratio: 41:1
Operation: Manual Accepts Cable Diameter (in.): 1/4 Accepts Cable Length (ft.): 32
