Model Details

VENT-H

Printer Friendly
VENT-H

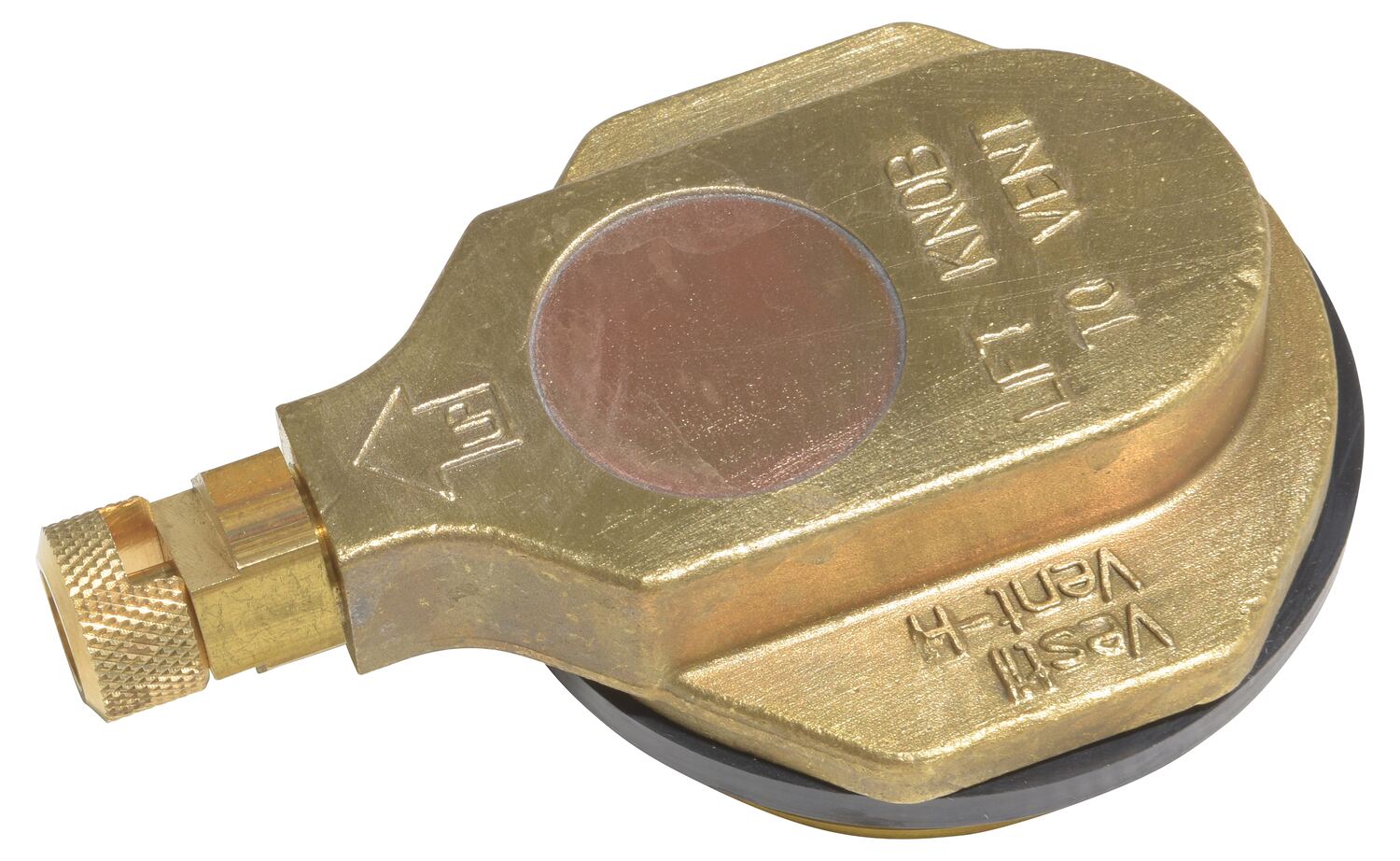

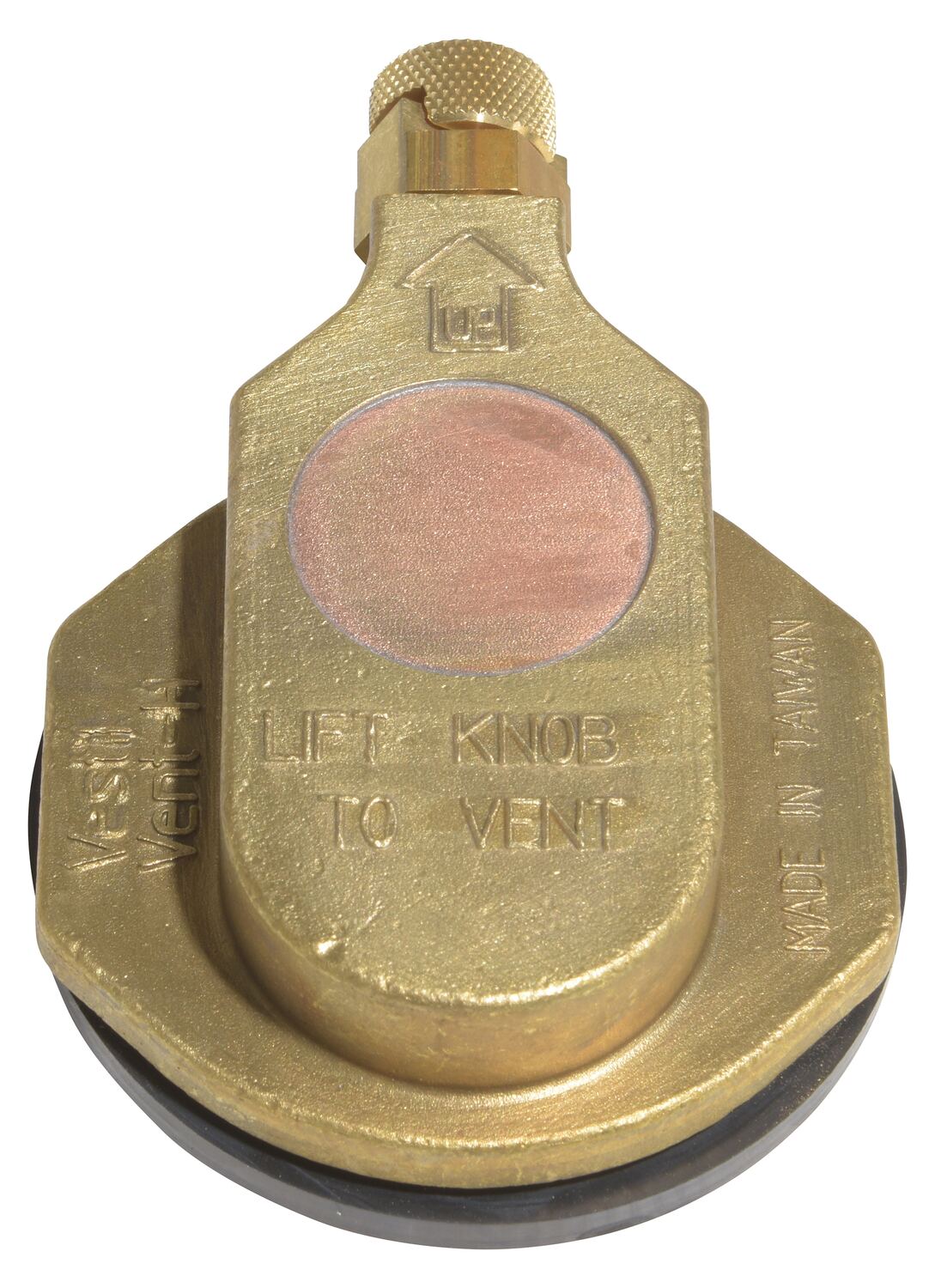

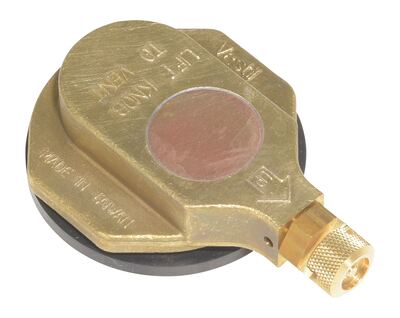

Brass Horizontal Drum Vent Fits 30 & 55 Gallon Drum Capacity Gold

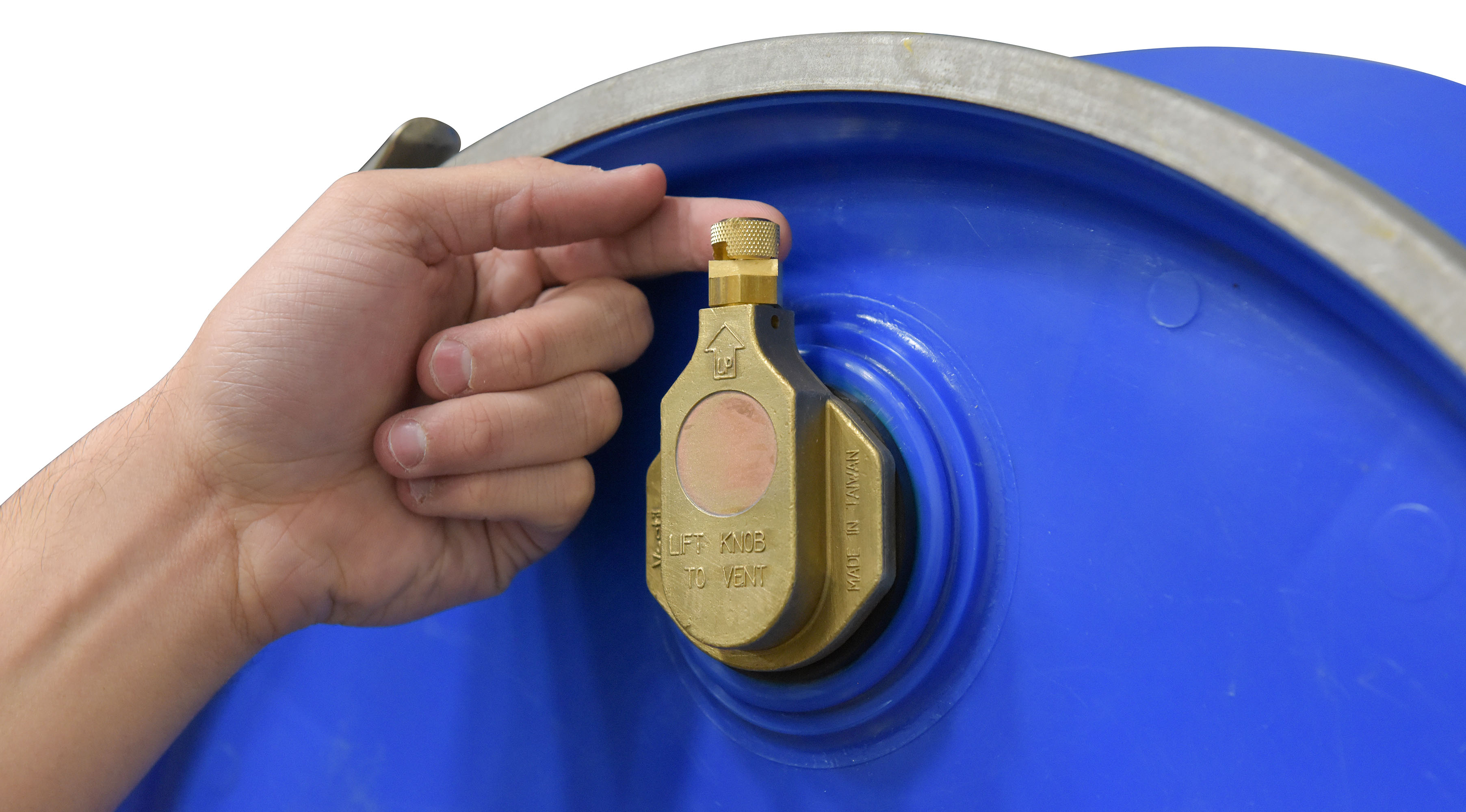

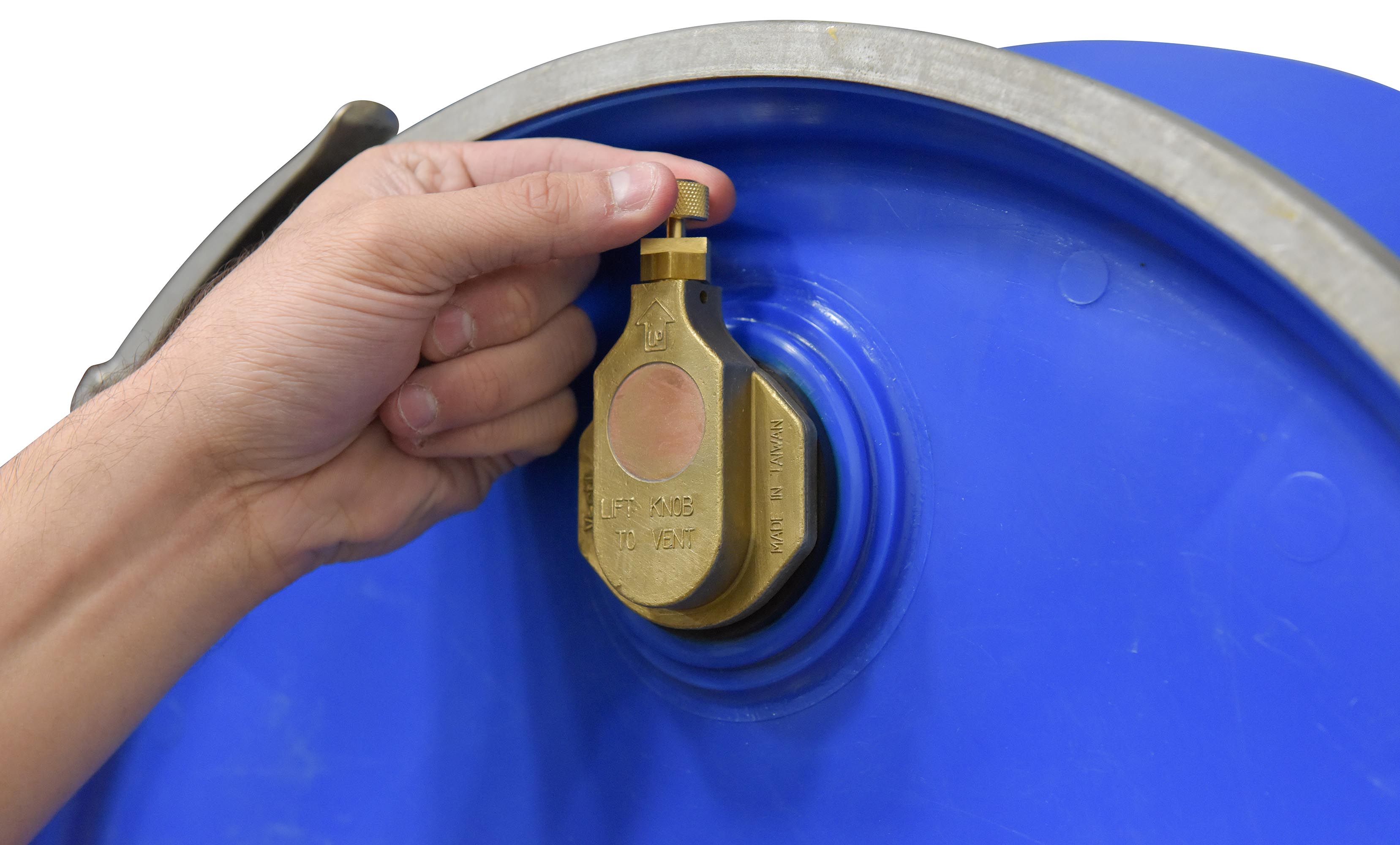

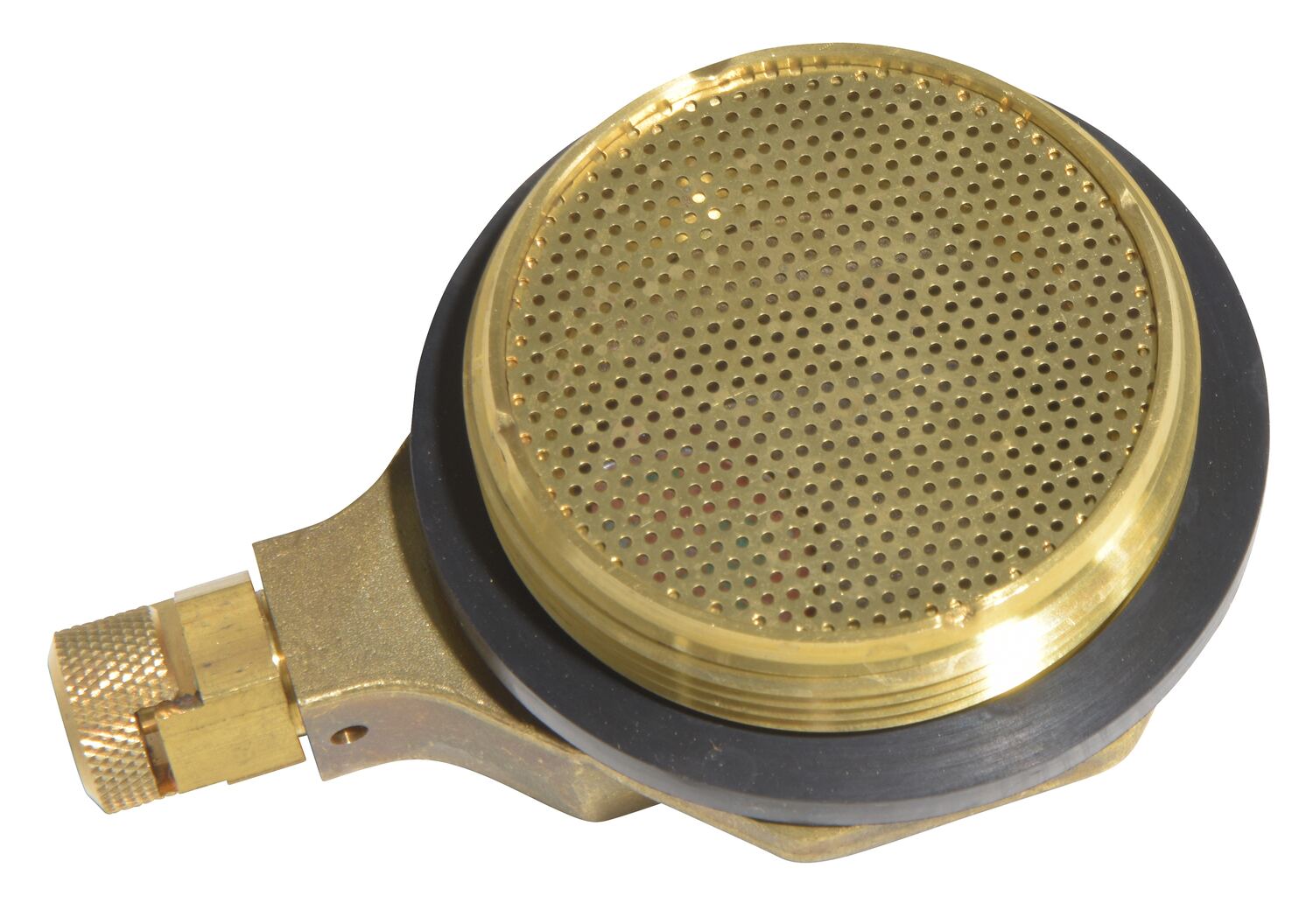

Drum vent available for use with drums in horizontal position. Use with standard drum plug openings. Each vent includes a flash arrestor for safety. Vacuum relief is obtained by lifting and rotating valve stem. Fusible emergency relief plug will melt, venting pressure and preventing drum rupture in case of fire. FM approved.

  • Drum vent available for use with drums in horizontal position
  • Ideal for standard drum plug openings for ideal operation
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results

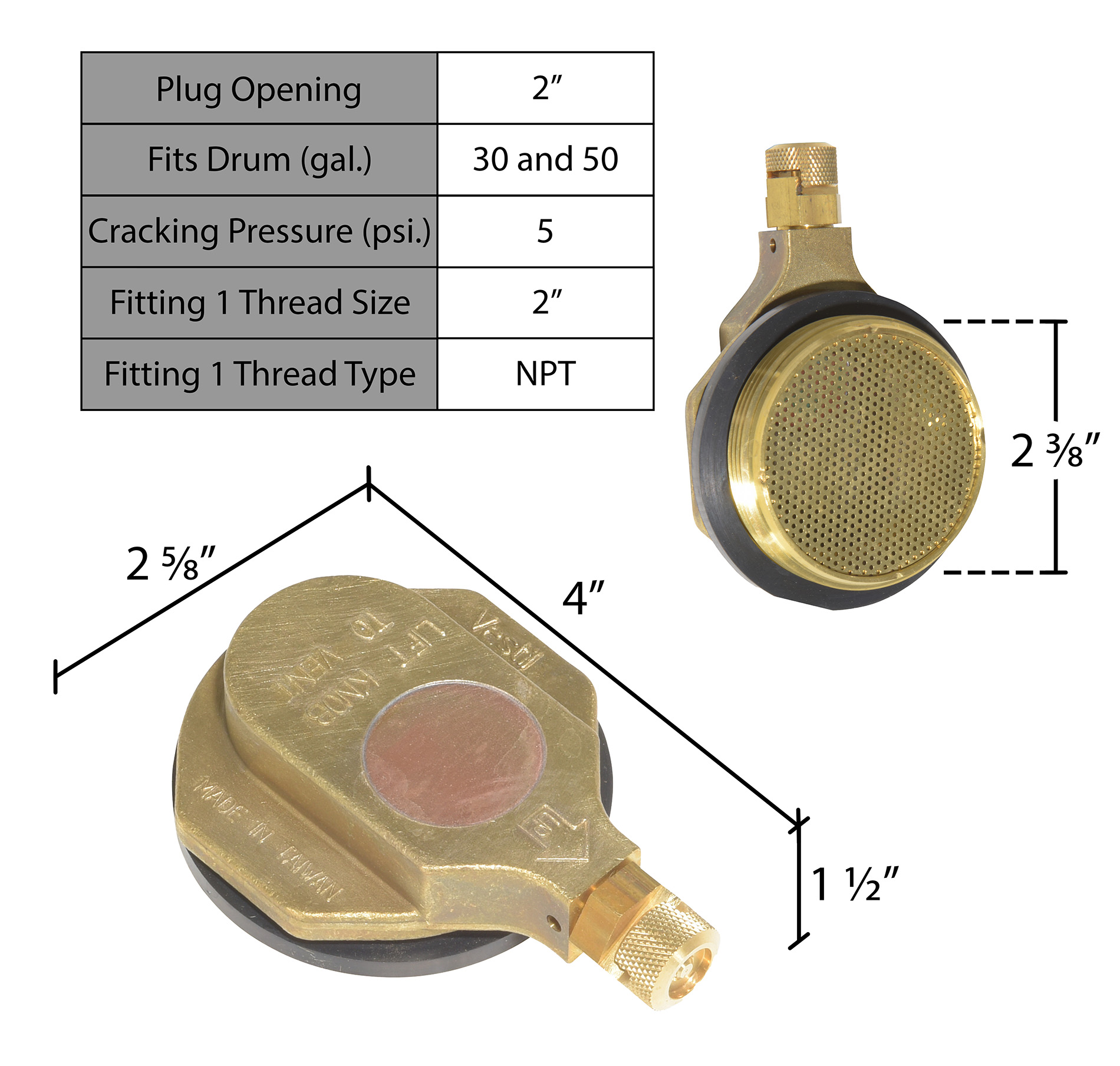

Total Ship Wt.(lbs.): 2 (only 1 package) Size: 3.25"W x 3"L x 3.5"H Color: Gold

Plug Opening (in.): 2 Fits Drum (gal.): 30 and 55 Cracking Pressure (psi): 5
Fitting 1 Thread Size (in.): 2 Fitting 1 Thread Type: NPT Includes: Flashback Arrestors
Approximate Melting Temperature (Fahrenheit): 1900

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: VENT-H
VENT-H

Brass Horizontal Drum Vent Fits 30 & 55 Gallon Drum Capacity Gold

Drum vent available for use with drums in horizontal position. Use with standard drum plug openings. Each vent includes a flash arrestor for safety. Vacuum relief is obtained by lifting and rotating valve stem. Fusible emergency relief plug will melt, venting pressure and preventing drum rupture in case of fire. FM approved.

  • Drum vent available for use with drums in horizontal position
  • Ideal for standard drum plug openings for ideal operation
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Dimensions: 3.25"W x 3"L x 3.5"H Sell UOM: EA-Each Color: Gold
Material: Brass UPC: 691215054041 GTIN: 00691215054041
Warranty: -- Shipping Weight: 2 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Plug Opening (in.): 2 Fits Drum (gal.): 30 and 55 Cracking Pressure (psi): 5
Fitting 1 Thread Size (in.): 2 Fitting 1 Thread Type: NPT Includes: Flashback Arrestors
Approximate Melting Temperature (Fahrenheit): 1900
