V-TRACK-ES

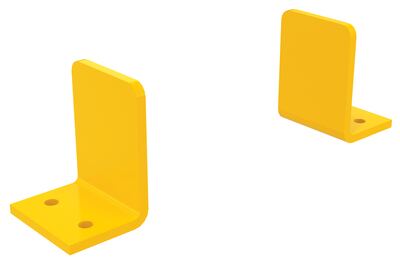

Steel Gantry Crane V-Groove Track End Stops 5 in. High Yellow

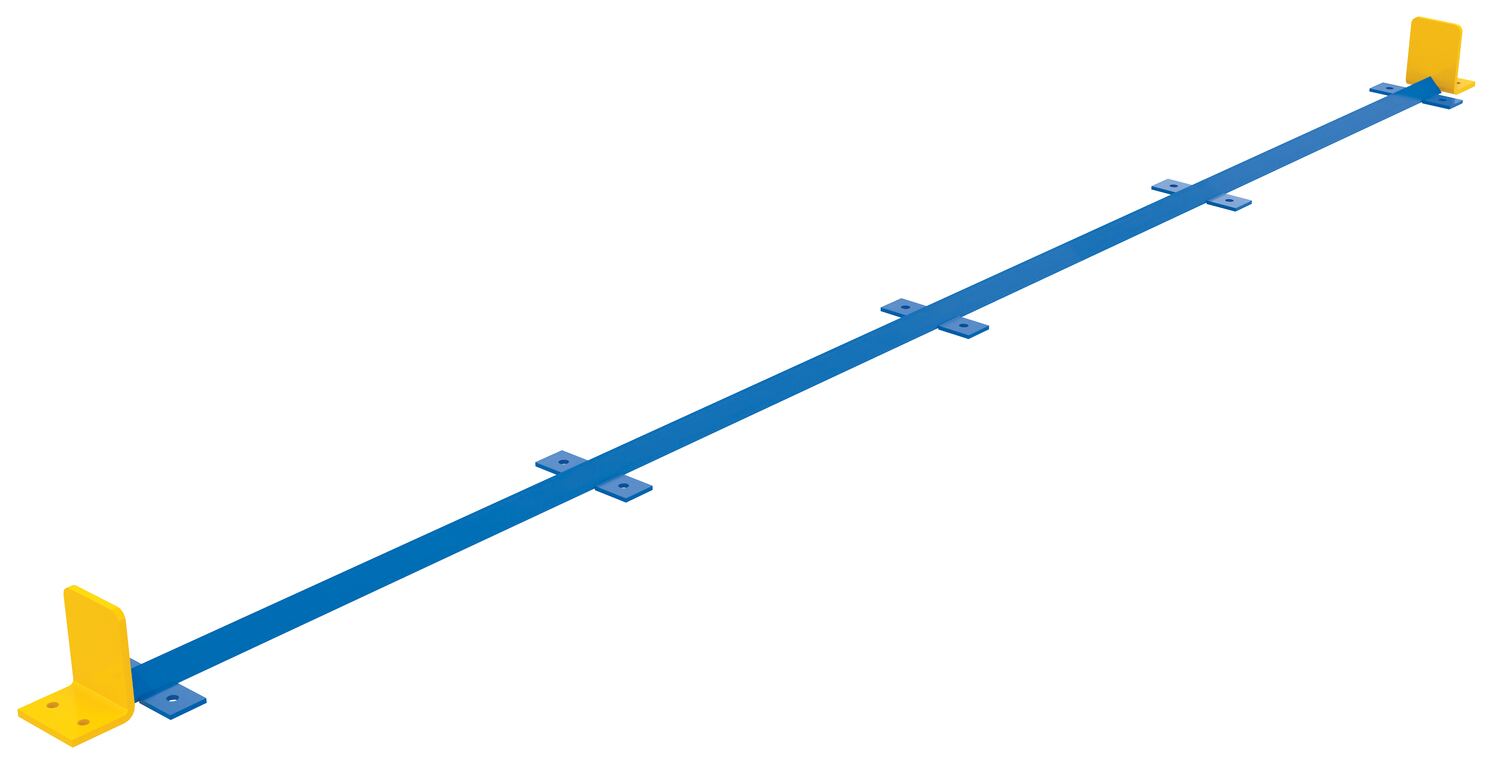

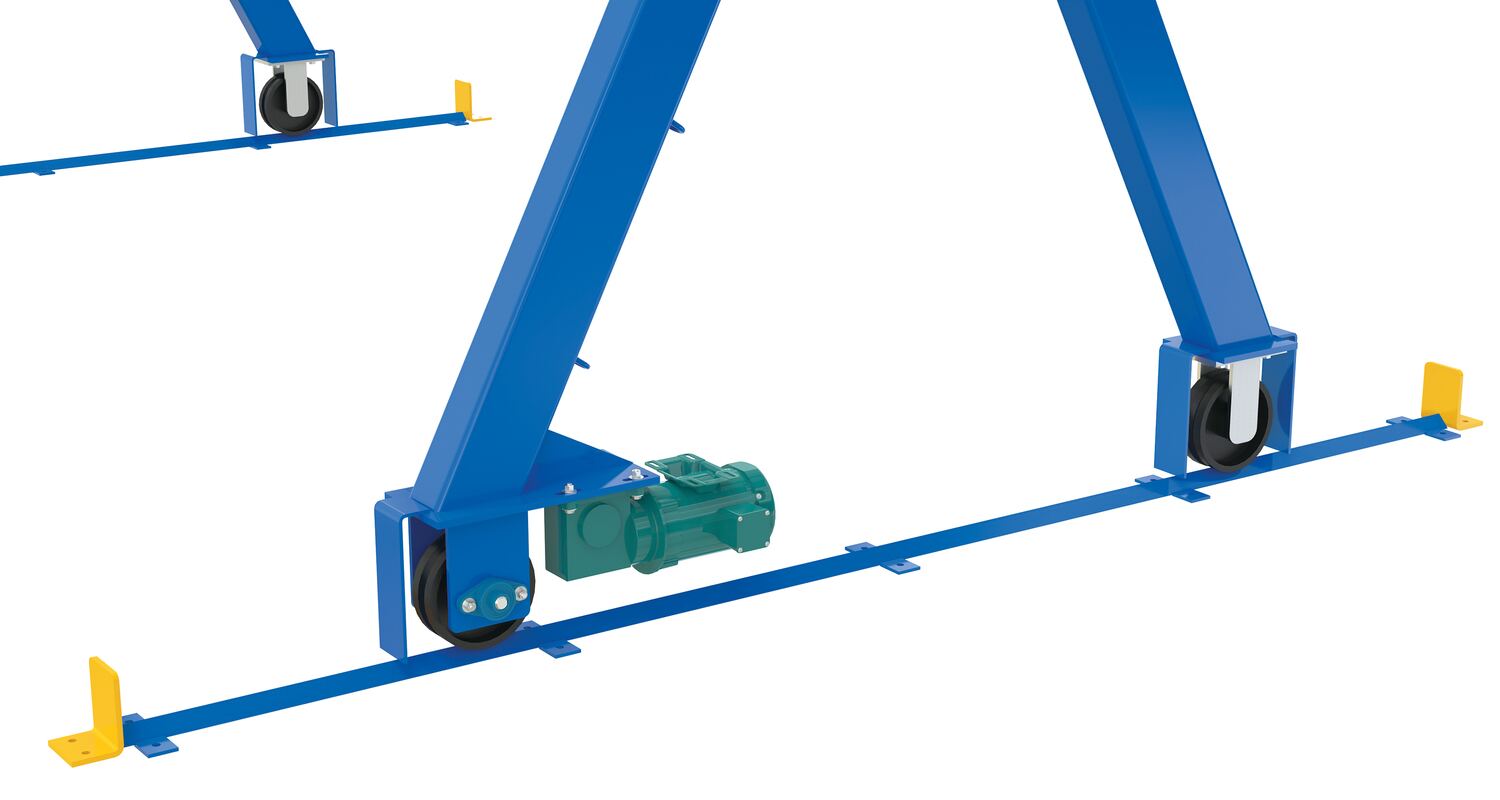

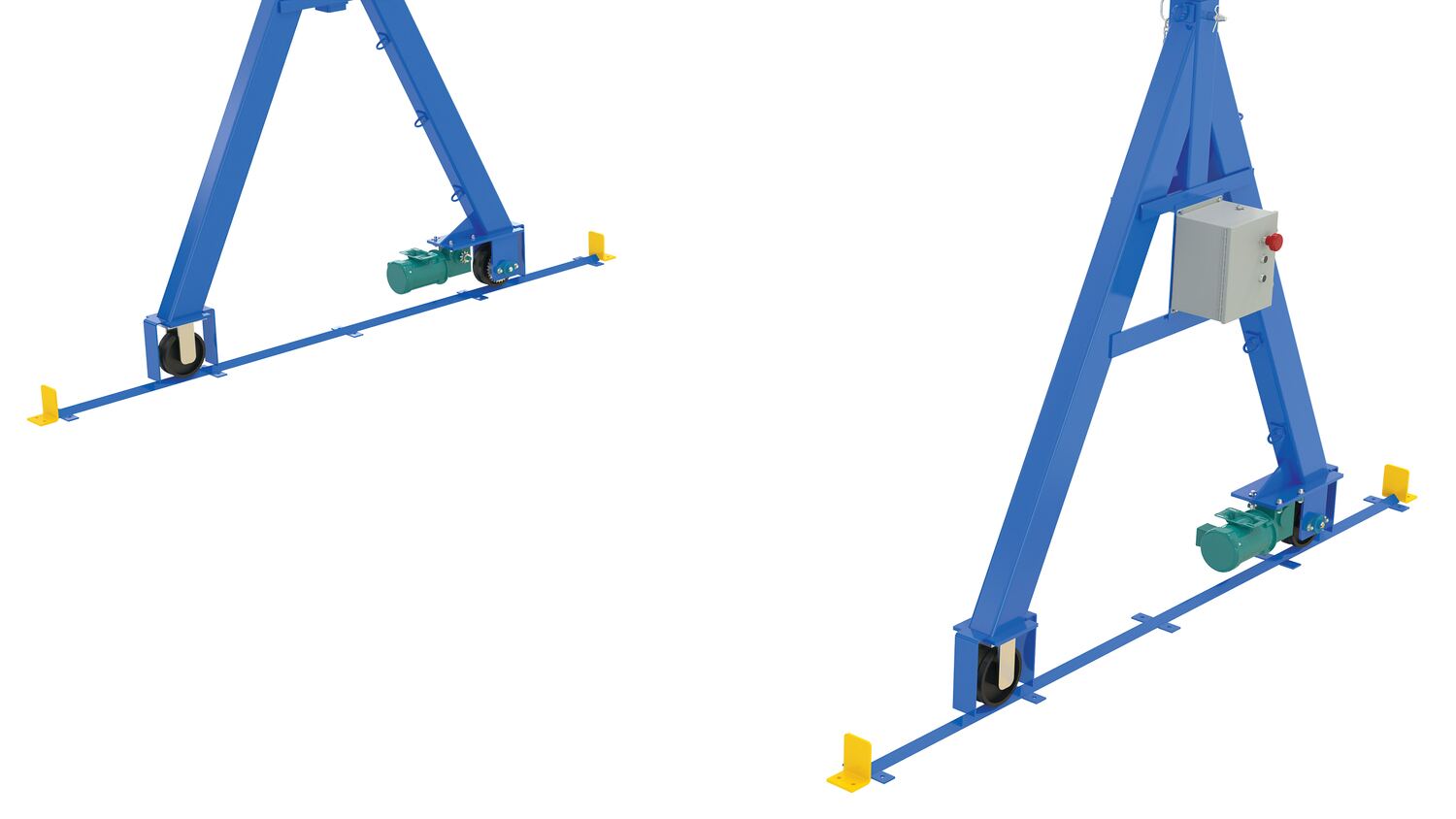

End stops for the gantry crane V-track are much needed accessories. The end stops work as a barrier, preventing the gantry crane from traveling too far and leaving the V-track. The stops stand 5" tall and have mounting holes with a diameter of 11/16". Hardware is not included.

  • Two pre drilled mounting holes
  • Liquid painted yellow
  • Constructed of 3/8" steel
  • Sold in pairs
Total Ship Wt.(lbs.): 7 (only 1 package) Size: 5"W x 3"L x 5"H Color: Yellow

Mounting Hole Qty.: 2 Mounting Hole Dia. (In.): 0.6875 Steel Thickness (In.): 0.375
Hardware Included: No Distance Between Mounting Holes (In.): 3

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: V-TRACK-ES
V-TRACK-ES

Steel Gantry Crane V-Groove Track End Stops 5 in. High Yellow

End stops for the gantry crane V-track are much needed accessories. The end stops work as a barrier, preventing the gantry crane from traveling too far and leaving the V-track. The stops stand 5" tall and have mounting holes with a diameter of 11/16". Hardware is not included.

  • Two pre drilled mounting holes
  • Liquid painted yellow
  • Constructed of 3/8" steel
  • Sold in pairs
Dimensions: 5"W x 3"L x 5"H Sell UOM: PR-Pair Color: Yellow
Material: Steel UPC: 691215372251 GTIN: 00691215372251
Warranty: -- Shipping Weight: 7 Quickship Item? --
Can It Ship UPS? -- Option? Y Origin: United States
Assembly: Assembled Packaging: PACK_OR_INNER_PACK Drawing Required? N
Mounting Hole Qty.: 2 Mounting Hole Dia. (In.): 0.6875 Steel Thickness (In.): 0.375
Hardware Included: No Distance Between Mounting Holes (In.): 3
