Model Details

TT-18-4

TT-18-4

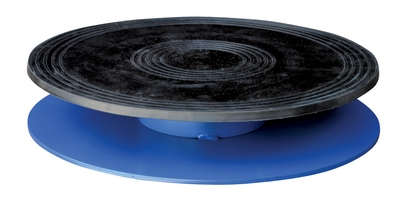

Steel Turntable 18 In. Diameter 3-7/16 In. Height 500 Lb. Capacity

The heavy-duty manual turntable maximizes workspace and allows workers to rotate an item from a single position. Bench top turntables allow workers to stay in one position and rotate items for access from all sides. No need to walk around the table to access areas out of view. Easy and smooth bearing motion. Used in hundreds of applications; displays, paint spraying, assembly units, repairs, etc. The rugged steel construction has an easy, smooth rotation that won't jostle delicate parts.

  • Manually rotated turntable allows easy ergonomic positioning
  • Heavy-duty steel turntable provides added strength and durability

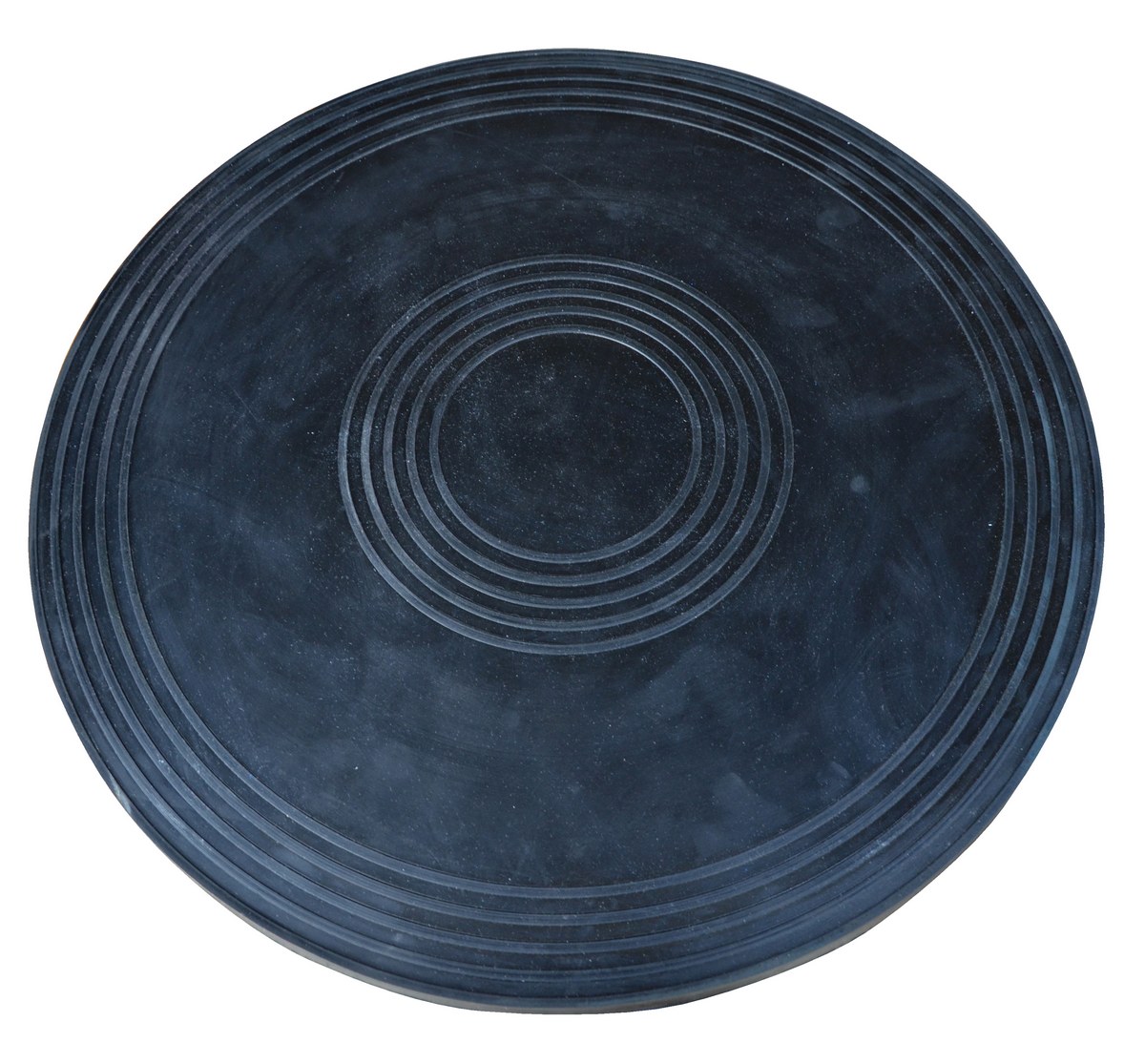

  • Rubber top surface provides added grip while turning product
  • Turntable motion allows access to areas out of view without walking around
Total Ship Wt.(lbs.): 75 (only 1 package) Size: 18"W x 18"L x 3.4375"H Color: Black / Silver

Uniform Capacity (lb.): 500 Turntable Diameter (in.): 18 Height Range Fixed (in.): 3-7/16
Steel Plate Height (in.): 5/16

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: TT-18-4


TT-18-4

Steel Turntable 18 In. Diameter 3-7/16 In. Height 500 Lb. Capacity

The heavy-duty manual turntable maximizes workspace and allows workers to rotate an item from a single position. Bench top turntables allow workers to stay in one position and rotate items for access from all sides. No need to walk around the table to access areas out of view. Easy and smooth bearing motion. Used in hundreds of applications; displays, paint spraying, assembly units, repairs, etc. The rugged steel construction has an easy, smooth rotation that won't jostle delicate parts.

  • Manually rotated turntable allows easy ergonomic positioning
  • Heavy-duty steel turntable provides added strength and durability
  • Rubber top surface provides added grip while turning product
  • Turntable motion allows access to areas out of view without walking around
Dimensions: 18"W x 18"L x 3.4375"H Sell UOM: EA-Each Color: Black / Silver
Material: Steel UPC: 691215044172 GTIN: 00691215044172
Warranty: -- Shipping Weight: 75 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Turntable Diameter (in.): 18 Height Range Fixed (in.): 3-7/16
Steel Plate Height (in.): 5/16
