TM-20-AC

Steel Tilt Master AC Powered 2,000 Lb. Capacity Blue

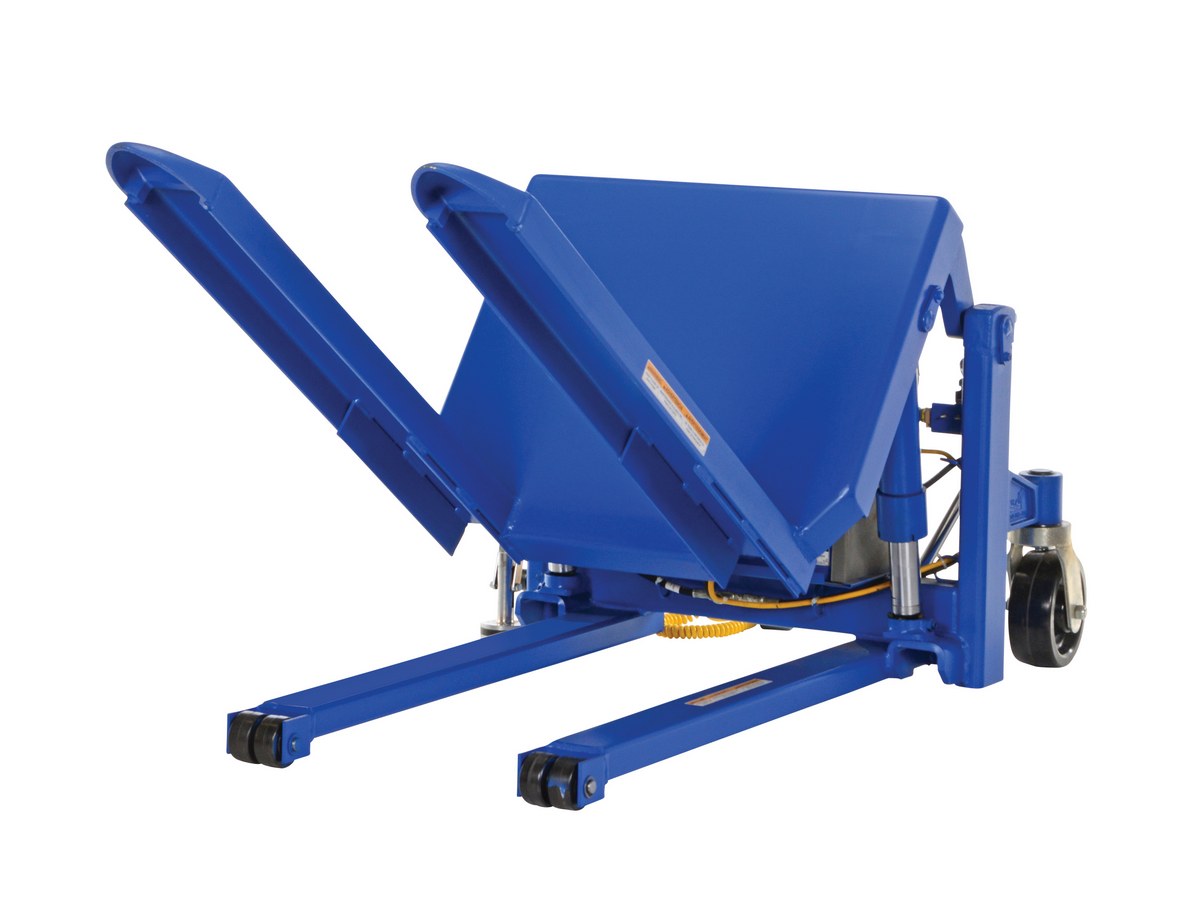

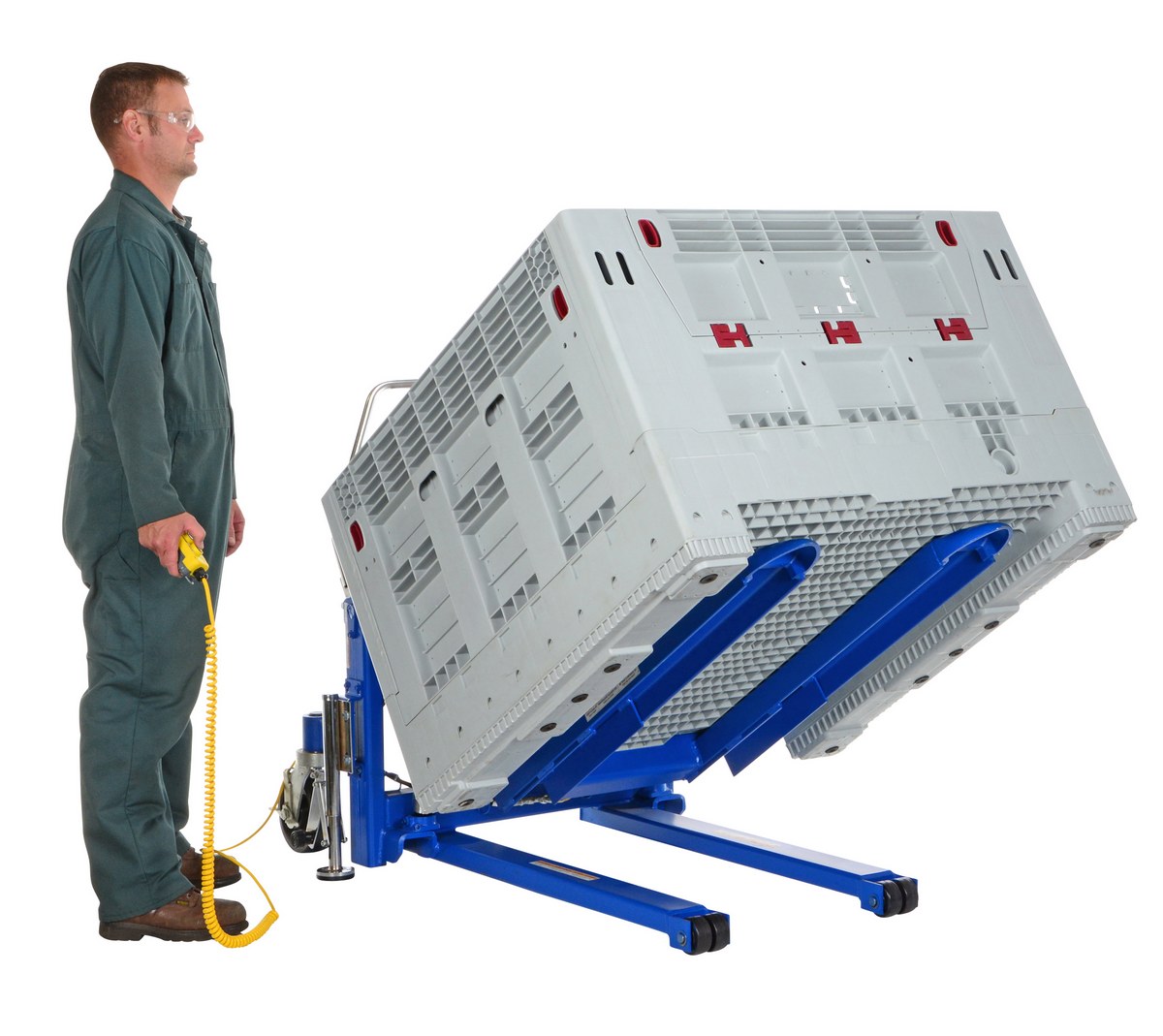

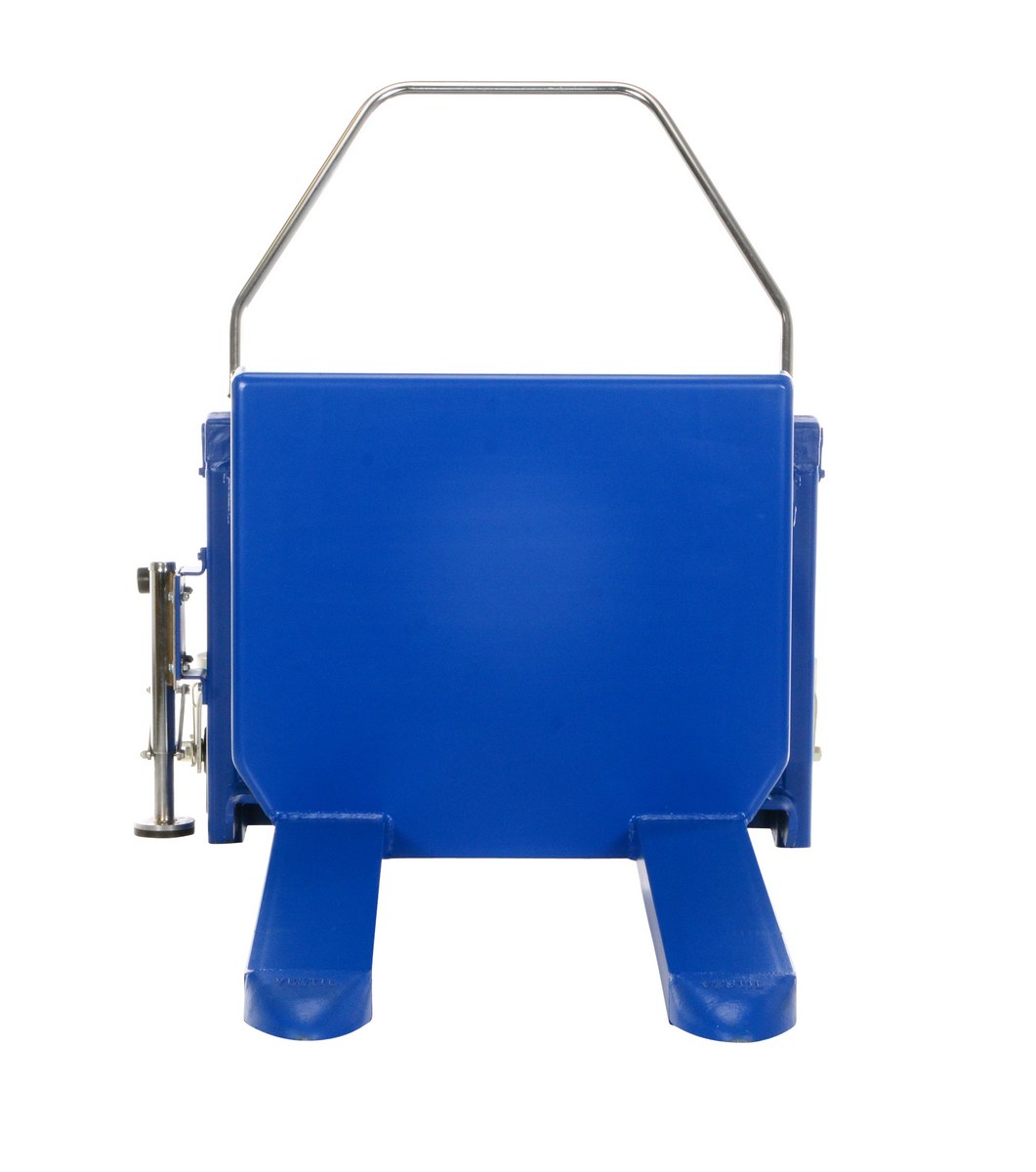

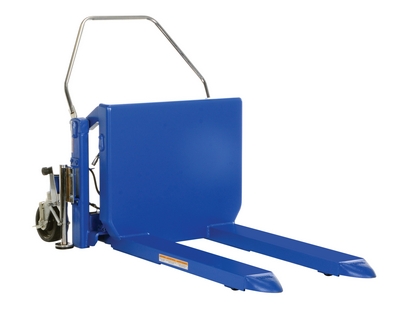

The tilt master lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. The lift has a thin profile to allow the user to get as close to the load as possible, a standard floor lock and rolls easily on the phenolic steering wheels. It is designed to be used with open bottom pallets or skids. This unit is powered by an electric AC motor. The lift also comes standard with a push-button hand control on a coil cord.

  • Folding ergonomic handle
  • Two rigid and two swivel casters provide smooth and efficient mobility
  • 90 Degrees tilt angle allows for better ergonomic access
  • Ergonomic push handle folds down when not needed for better access
Total Ship Wt.(lbs.): 664 (only 1 package) Size: 41.0625"W x 75.25"L x 76.3125"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 2000 Fork Adjustment (in.): Fixed at 26 (OD) Operator Reach (in.): 7-1/4
Fork Width (in.): 6 Fork Length (in.): 38-1/8 Rotated Height (in.): 33
Lowered Height (in.): 3-5/8 Maximum Tilt Degree: 90 Power: 115V / 1 PH
Wheel Diameter (in.): 8 Wheel Width (in.): 3 Wheel Type: Phenolic
Folding Handle Length (in.): 20 Load Center (in.): 20

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: TM-20-AC
TM-20-AC

Steel Tilt Master AC Powered 2,000 Lb. Capacity Blue

The tilt master lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. The lift has a thin profile to allow the user to get as close to the load as possible, a standard floor lock and rolls easily on the phenolic steering wheels. It is designed to be used with open bottom pallets or skids. This unit is powered by an electric AC motor. The lift also comes standard with a push-button hand control on a coil cord.

  • Folding ergonomic handle
  • Two rigid and two swivel casters provide smooth and efficient mobility
  • 90 Degrees tilt angle allows for better ergonomic access
  • Ergonomic push handle folds down when not needed for better access
Dimensions: 41.0625"W x 75.25"L x 76.3125"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215042208 GTIN: 00691215042208
Warranty: -- Shipping Weight: 664 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 2000 Fork Adjustment (in.): Fixed at 26 (OD) Operator Reach (in.): 7-1/4
Fork Width (in.): 6 Fork Length (in.): 38-1/8 Rotated Height (in.): 33
Lowered Height (in.): 3-5/8 Maximum Tilt Degree: 90 Power: 115V / 1 PH
Wheel Diameter (in.): 8 Wheel Width (in.): 3 Wheel Type: Phenolic
Folding Handle Length (in.): 20 Load Center (in.): 20
