SSG-7-WT

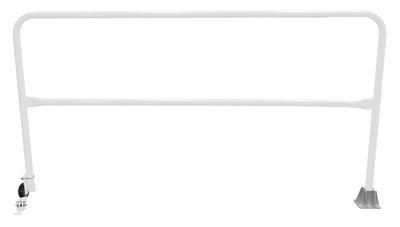

Steel Dock Safety Swing Gate 7 Ft. Length White

Economical safety swing gates are an economical way to protect people from dock falls. Durable railings are constructed from schedule 10 pipe (1-5/8" O.D.). Units have a top rail height of 46-1/4" and a 25" mid-rail. 4" poly-on-poly wheel allows units to be swung out of the way. Cast single socket is included.

  • Ideal for loading docks, floor openings, and mezzanines
  • Pre-drilled base plate mounting holes
  • White powder coat finish
  • Foot release lock keeps railing from moving when in use
Total Ship Wt.(lbs.): 70 (only 1 package) Size: 6.5"W x 88.0625"L x 46.25"H Color: White Non-Returnable

Hardware Included: Yes Base Plate Mounting Hole Qty: 4 Base Plate LxW (in.): 4-1/2 x 4-1/2
Base Plate Mounting Hole Diameter (in.): 3/8 Base Plate Thickness (in.): 1/4 Handrail LxH (in.): 84 x 46-1/4
Midrail Height (in.): 25-3/4 Rigid Caster (qty.): 1 Rigid Caster Diameter (in.): 4
Rigid Caster Width (in.): 1-1/4 Caster Material: Polyurethane Caster Color: Black

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SSG-7-WT
SSG-7-WT

Steel Dock Safety Swing Gate 7 Ft. Length White

Economical safety swing gates are an economical way to protect people from dock falls. Durable railings are constructed from schedule 10 pipe (1-5/8" O.D.). Units have a top rail height of 46-1/4" and a 25" mid-rail. 4" poly-on-poly wheel allows units to be swung out of the way. Cast single socket is included.

  • Ideal for loading docks, floor openings, and mezzanines
  • Pre-drilled base plate mounting holes
  • White powder coat finish
  • Foot release lock keeps railing from moving when in use
Dimensions: 6.5"W x 88.0625"L x 46.25"H Sell UOM: EA-Each Color: White
Material: Steel UPC: 691215362092 GTIN: 00691215362092
Warranty: -- Shipping Weight: 70 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Hardware Included: Yes Base Plate Mounting Hole Qty: 4 Base Plate LxW (in.): 4-1/2 x 4-1/2
Base Plate Mounting Hole Diameter (in.): 3/8 Base Plate Thickness (in.): 1/4 Handrail LxH (in.): 84 x 46-1/4
Midrail Height (in.): 25-3/4 Rigid Caster (qty.): 1 Rigid Caster Diameter (in.): 4
Rigid Caster Width (in.): 1-1/4 Caster Material: Polyurethane Caster Color: Black
