Model Details

SSG-10

Printer Friendly

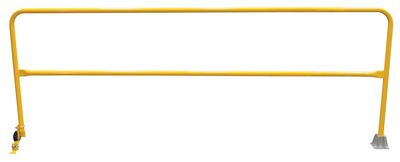

SSG-10

Steel Dock Safety Swing Gate 10 Ft. Length Yellow

Economical safety swing gates are an economical way to protect people from dock falls. Durable railings are constructed from schedule 10 pipe (1-5/8" O.D.). Units have a top rail height of 46-1/4" and a 25" mid-rail. 4" poly-on-poly wheel allows units to be swung out of the way. Cast single socket is included.

  • Ideal for loading docks, floor openings, and mezzanines
  • Pre-drilled base plate mounting holes
  • Yellow powder coat finish
  • Foot release lock keeps railing from moving when in use
Total Ship Wt.(lbs.): 84 (only 1 package) Size: 6.5"W x 124.0625"L x 46.25"H Color: Yellow / Blue

Wheel Quantity/Diameter/Width (in.): (1) 4 x 1-1/4 Wheel Material: Poly-on-Poly Steel Pipe (Schedule): 10
Pipe O.D. (in.): 1-5/8 Midrail (in.): 25 Weight (lbs.): 84

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SSG-10
SSG-10

Steel Dock Safety Swing Gate 10 Ft. Length Yellow

Economical safety swing gates are an economical way to protect people from dock falls. Durable railings are constructed from schedule 10 pipe (1-5/8" O.D.). Units have a top rail height of 46-1/4" and a 25" mid-rail. 4" poly-on-poly wheel allows units to be swung out of the way. Cast single socket is included.

  • Ideal for loading docks, floor openings, and mezzanines
  • Pre-drilled base plate mounting holes
  • Yellow powder coat finish
  • Foot release lock keeps railing from moving when in use
Dimensions: 6.5"W x 124.0625"L x 46.25"H Sell UOM: EA-Each Color: Yellow / Blue
Material: Steel UPC: 691215361736 GTIN: 00691215361736
Warranty: -- Shipping Weight: 84 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Wheel Quantity/Diameter/Width (in.): (1) 4 x 1-1/4 Wheel Material: Poly-on-Poly Steel Pipe (Schedule): 10
Pipe O.D. (in.): 1-5/8 Midrail (in.): 25 Weight (lbs.): 84
