SP-TOP-BEAM

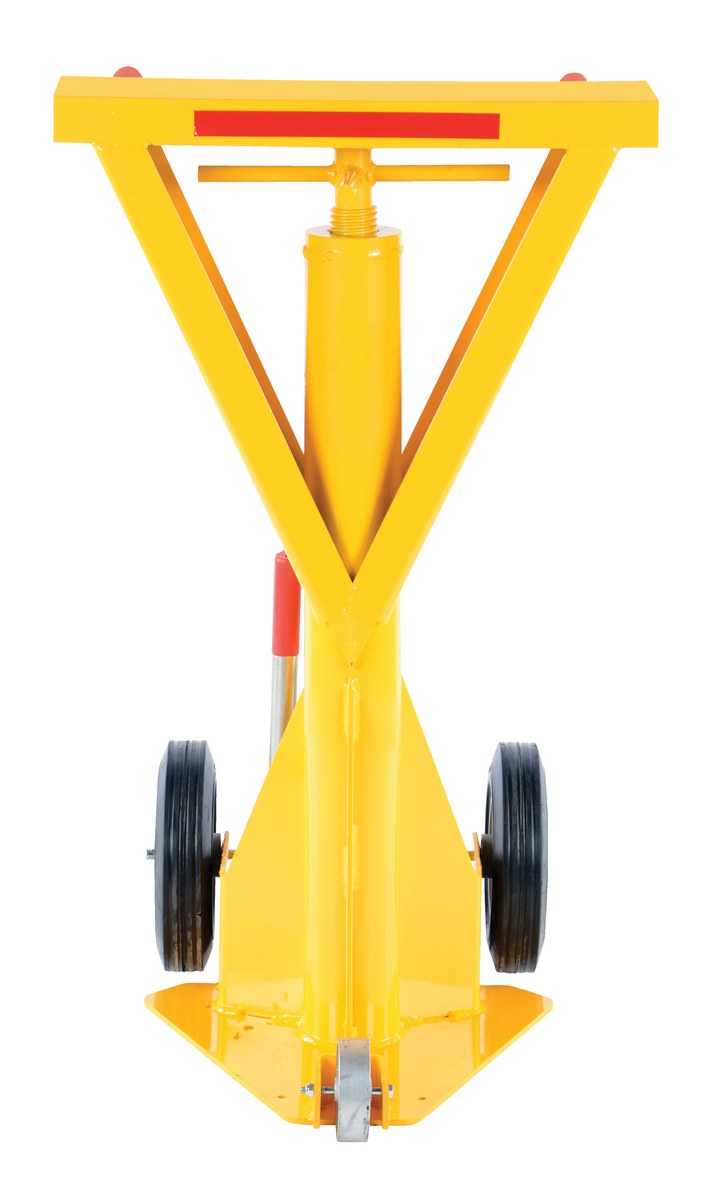

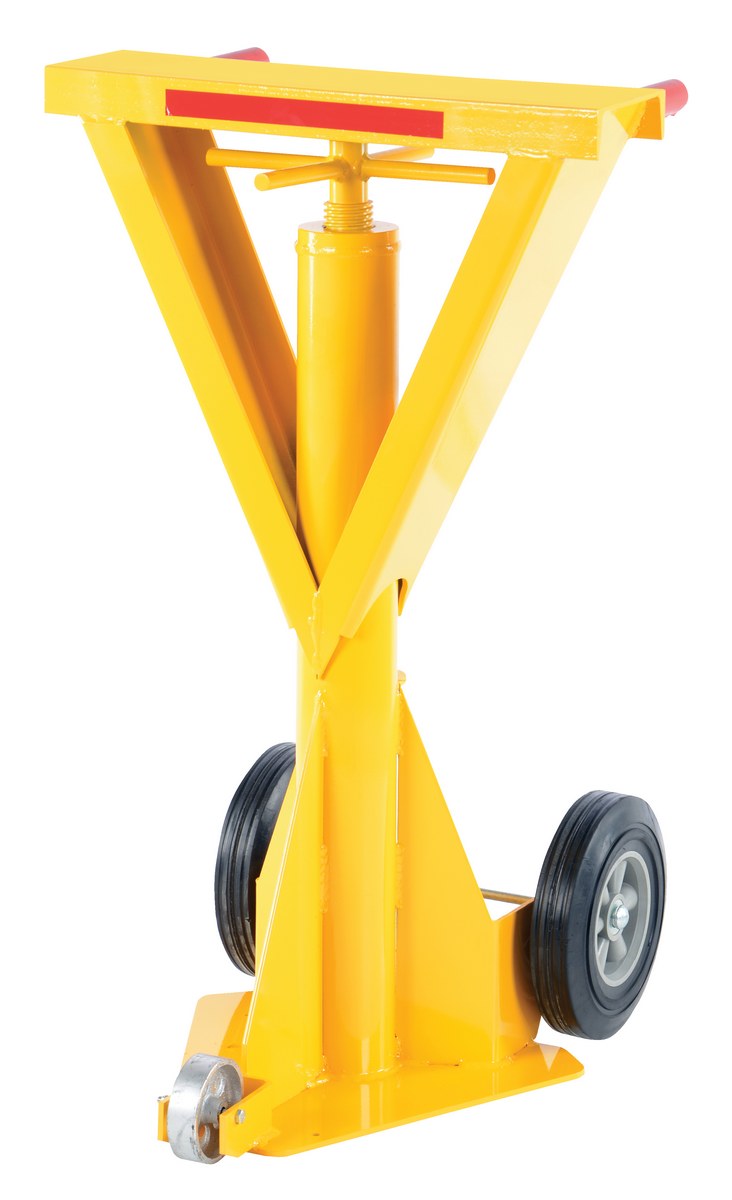

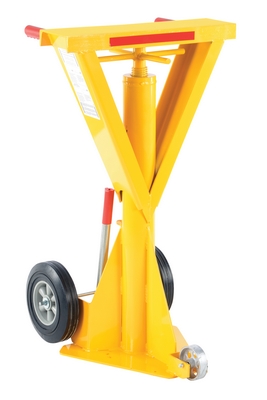

Steel Trailer Stabilizing Spin Top Beam Jack 26-11/16 In. x 23-3/4 In. x 40 In. 40,000 Lb. Lifting Capacity Yellow

Trailer stabilizing jacks are used to prevent up-ending of semi-trailers when they are not connected to a tractor during loading and unloading operations. Throughout the loading and unloading process it is always recommended to use two jacks, one on each side of the front of the trailer. The trailer must be situated on a flat, stable and improved (preferably concrete) surface, while the jack sits perpendicular to the underside of the trailer. Every jack is built of a high strength steel construction with a flush-type Zerk fitting for lubricating ACME screw. A yellow powder coat finish is included. **The color of handles included with models may vary between red and black**.

  • Meets OSHA regulations when used with wheel chocks
  • Manual raising and lowering mechanism
  • Rectangle top plate
  • Reflective collar for great visibility at night
Total Ship Wt.(lbs.): 200 (only 1 package) Size: 23.75"W x 26.6875"L x 40"H Color: Yellow

Uniform Static Capacity (lb.): 100,000 Uniform Lifting Capacity (lb.): 40,000 Lowered Height (in.): 40
Raised Height (in.): 51 Wheel Quantity/Diameter/Width (in.): (2) 10 x 2 Wheel Type: Hard Rubber
Front Wheel Quantity/Diameter/Width (in.): (1) 4 x 1-1/2 Front Wheel Type: Steel

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SP-TOP-BEAM
SP-TOP-BEAM

Steel Trailer Stabilizing Spin Top Beam Jack 26-11/16 In. x 23-3/4 In. x 40 In. 40,000 Lb. Lifting Capacity Yellow

Trailer stabilizing jacks are used to prevent up-ending of semi-trailers when they are not connected to a tractor during loading and unloading operations. Throughout the loading and unloading process it is always recommended to use two jacks, one on each side of the front of the trailer. The trailer must be situated on a flat, stable and improved (preferably concrete) surface, while the jack sits perpendicular to the underside of the trailer. Every jack is built of a high strength steel construction with a flush-type Zerk fitting for lubricating ACME screw. A yellow powder coat finish is included. **The color of handles included with models may vary between red and black**.

  • Meets OSHA regulations when used with wheel chocks
  • Manual raising and lowering mechanism
  • Rectangle top plate
  • Reflective collar for great visibility at night
Dimensions: 23.75"W x 26.6875"L x 40"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215078917 GTIN: 00691215078917
Warranty: -- Shipping Weight: 200 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Static Capacity (lb.): 100,000 Uniform Lifting Capacity (lb.): 40,000 Lowered Height (in.): 40
Raised Height (in.): 51 Wheel Quantity/Diameter/Width (in.): (2) 10 x 2 Wheel Type: Hard Rubber
Front Wheel Quantity/Diameter/Width (in.): (1) 4 x 1-1/2 Front Wheel Type: Steel
