Model Details

SJ-35

Printer Friendly
SJ-35

Steel Economy Stabilizing Jack with Round Base 16-5/8 In. x 16-5/8 In. x 44 In. 5,000 Lb. Lifting Capacity Yellow

Trailer stabilizing jacks are used to prevent up-ending of semi-trailers when they are not connected to a tractor during loading and unloading operations. Throughout the loading and unloading process it is always recommended to use two jacks, one on each side of the front of the trailer. The trailer must be situated on a flat, stable and improved (preferably concrete) surface, while the jack sits perpendicular to the underside of the trailer. Every jack is built of a high strength steel construction with a flush-type Zerk fitting for lubricating ACME screw. A yellow powder coat finish and a reflective collar for visibility at night are both included. Each jack meets OSHA regulations when used with wheel chocks. **The color of handles included with models may vary between red and black**.

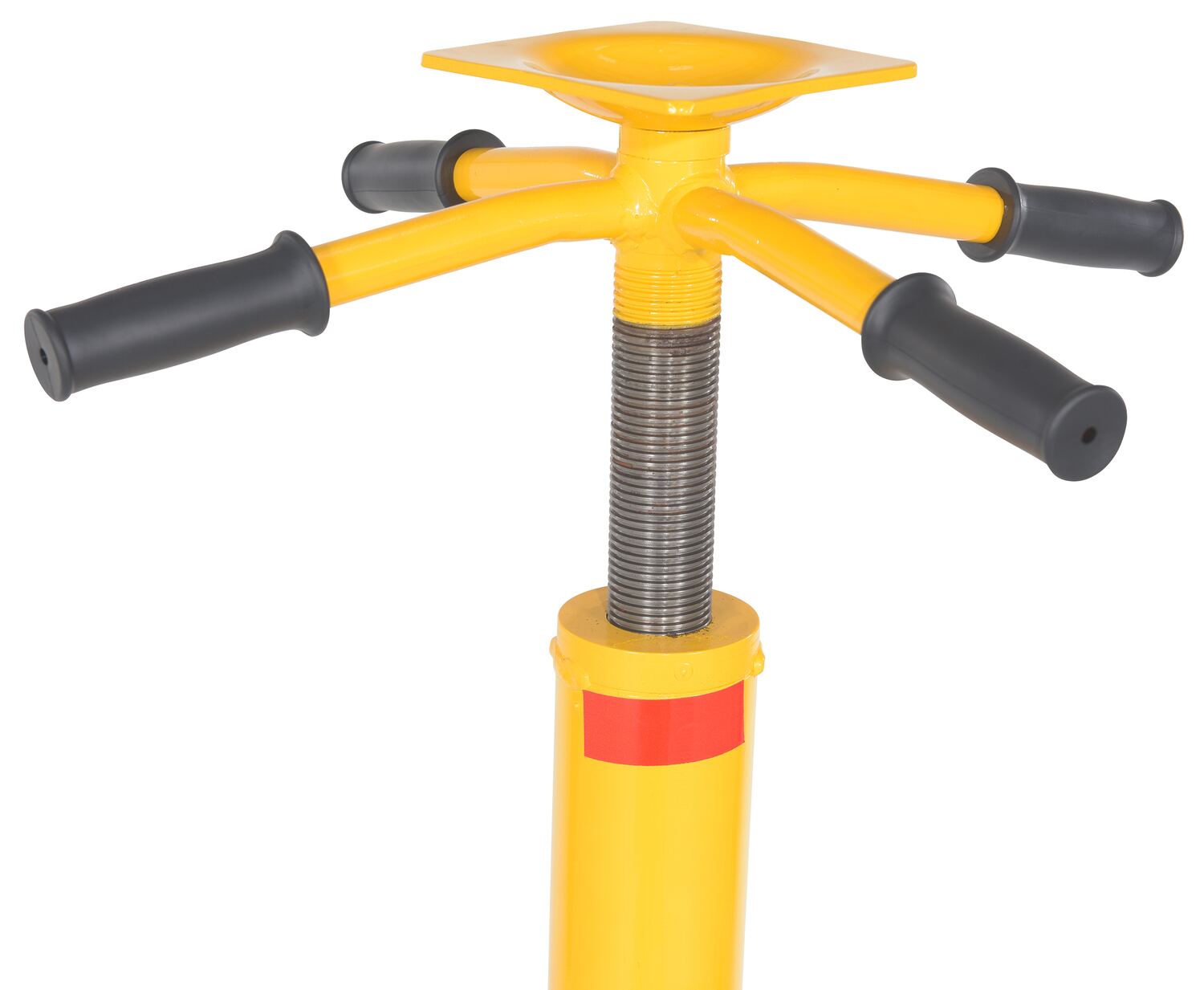

  • Square top plate
  • Reflective collar increases visibility at night
  • Manual raising and lowering mechanism
  • Meets OSHA regulations when used with wheel chocks
Total Ship Wt.(lbs.): 39 (only 1 package) Size: 16.625"W x 16.625"L x 44"H Color: Yellow

Uniform Static Capacity (lb.): 50,000 Uniform Lifting Capacity (lb.): 5,000 Lowered Height (in.): 44
Raised Height (in.): 51 Base Type: Rounded/Economical Handles (qty.): 4
Saddle Size (in.): 4-15/16 ACME Threads OD (in.): 1-1/2 ACME Threads Per Inch: 8

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: SJ-35
SJ-35

Steel Economy Stabilizing Jack with Round Base 16-5/8 In. x 16-5/8 In. x 44 In. 5,000 Lb. Lifting Capacity Yellow

Trailer stabilizing jacks are used to prevent up-ending of semi-trailers when they are not connected to a tractor during loading and unloading operations. Throughout the loading and unloading process it is always recommended to use two jacks, one on each side of the front of the trailer. The trailer must be situated on a flat, stable and improved (preferably concrete) surface, while the jack sits perpendicular to the underside of the trailer. Every jack is built of a high strength steel construction with a flush-type Zerk fitting for lubricating ACME screw. A yellow powder coat finish and a reflective collar for visibility at night are both included. Each jack meets OSHA regulations when used with wheel chocks. **The color of handles included with models may vary between red and black**.

  • Square top plate
  • Reflective collar increases visibility at night
  • Manual raising and lowering mechanism
  • Meets OSHA regulations when used with wheel chocks
Dimensions: 16.625"W x 16.625"L x 44"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215036085 GTIN: 00691215036085
Warranty: -- Shipping Weight: 39 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Static Capacity (lb.): 50,000 Uniform Lifting Capacity (lb.): 5,000 Lowered Height (in.): 44
Raised Height (in.): 51 Base Type: Rounded/Economical Handles (qty.): 4
Saddle Size (in.): 4-15/16 ACME Threads OD (in.): 1-1/2 ACME Threads Per Inch: 8
