SBM-80

SBM-80

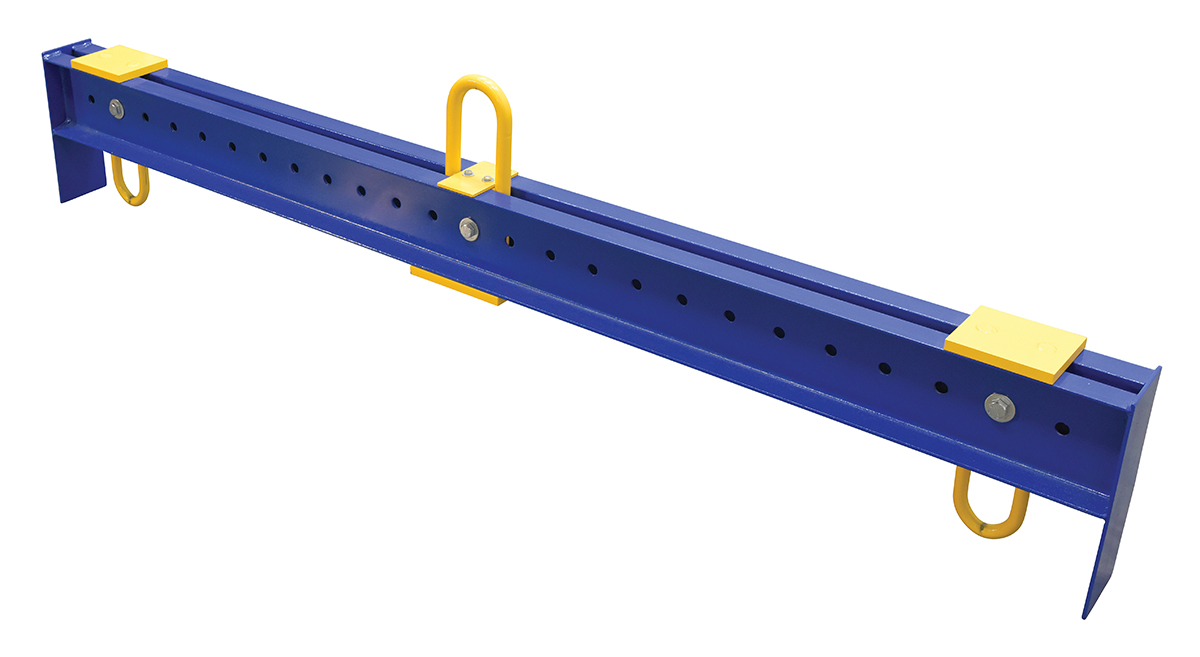

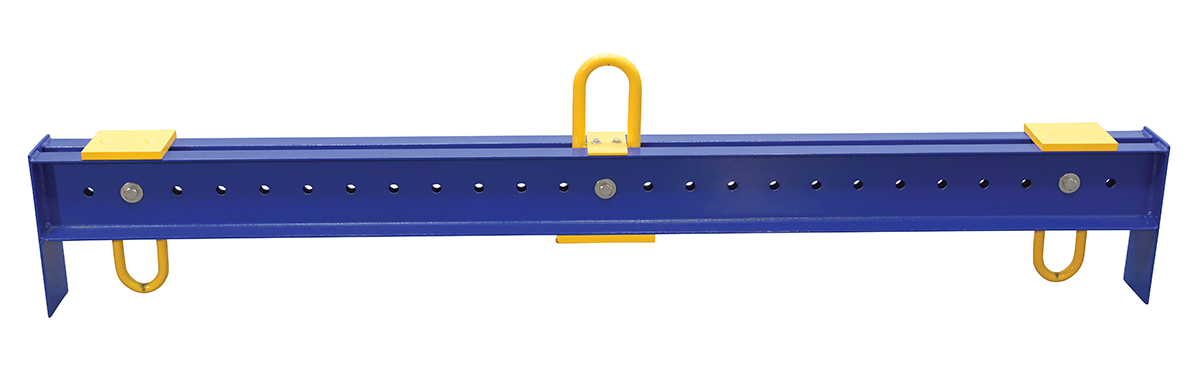

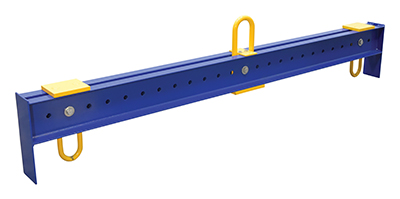

Steel Adjustable Spreader Beam 104-1/2 In Length 8,000 Lb. Capacity Blue

The adjustable spreader beam is ideal for the manufacturing and maintenance facilities. The steel construction keeps the unit durable and strong for a lifetime of use. The beam is shipped with a test certificate.

  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards
  • Includes two lower bails and one upper bail standard for added versatility
  • Welded steel construction for heavy duty performance
Total Ship Wt.(lbs.): 336 (only 1 package) Size: 6"W x 104.5"L x 24.5"H Color: Blue

Uniform Capacity (lb.): 8,000 Headroom (in.): 20-3/4 Minimum Spread (in.): 8
Maximum Spread (ft,): 8 Upper Bail Width/Height (in): 4 x 7-1/4 Lower Bail Width/Height (in.): 3 x 5-1/4
Upper/Lower Bail Thickness (in.): 1-1/4; 1 ASME: B30.20-1993 C-Channel Height (in.): 8
Overall Height (in.): 24-1/2 Overall Width (in.): 6 Overall Length (in.): 104-1/2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: SBM-80


SBM-80

Steel Adjustable Spreader Beam 104-1/2 In Length 8,000 Lb. Capacity Blue

The adjustable spreader beam is ideal for the manufacturing and maintenance facilities. The steel construction keeps the unit durable and strong for a lifetime of use. The beam is shipped with a test certificate.

  • Designed to lift and move uneven and awkward loads
  • Complies with ASME B30.20-1993 standards
  • Includes two lower bails and one upper bail standard for added versatility
  • Welded steel construction for heavy duty performance
Dimensions: 6"W x 104.5"L x 24.5"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215035019 GTIN: 00691215035019
Warranty: -- Shipping Weight: 336 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 8,000 Headroom (in.): 20-3/4 Minimum Spread (in.): 8
Maximum Spread (ft,): 8 Upper Bail Width/Height (in): 4 x 7-1/4 Lower Bail Width/Height (in.): 3 x 5-1/4
Upper/Lower Bail Thickness (in.): 1-1/4; 1 ASME: B30.20-1993 C-Channel Height (in.): 8
Overall Height (in.): 24-1/2 Overall Width (in.): 6 Overall Length (in.): 104-1/2
