S-2CB-62

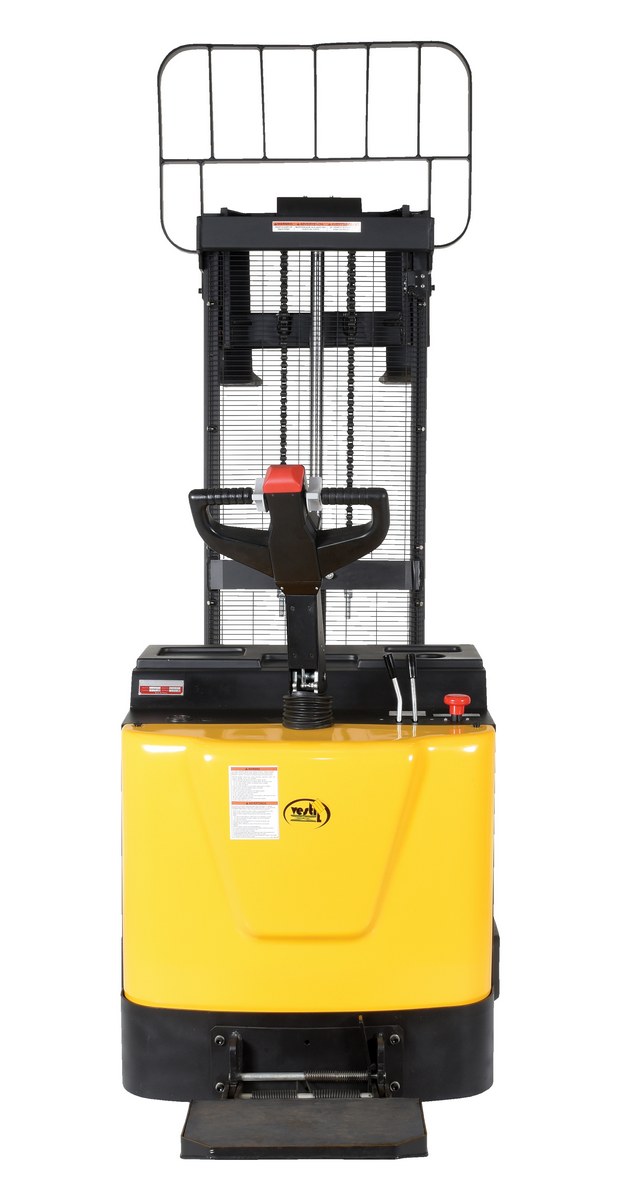

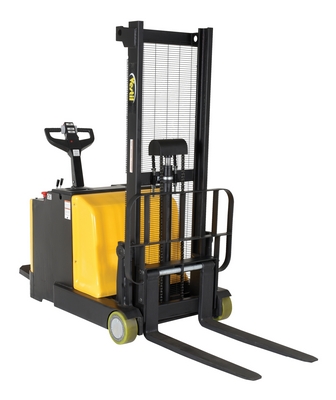

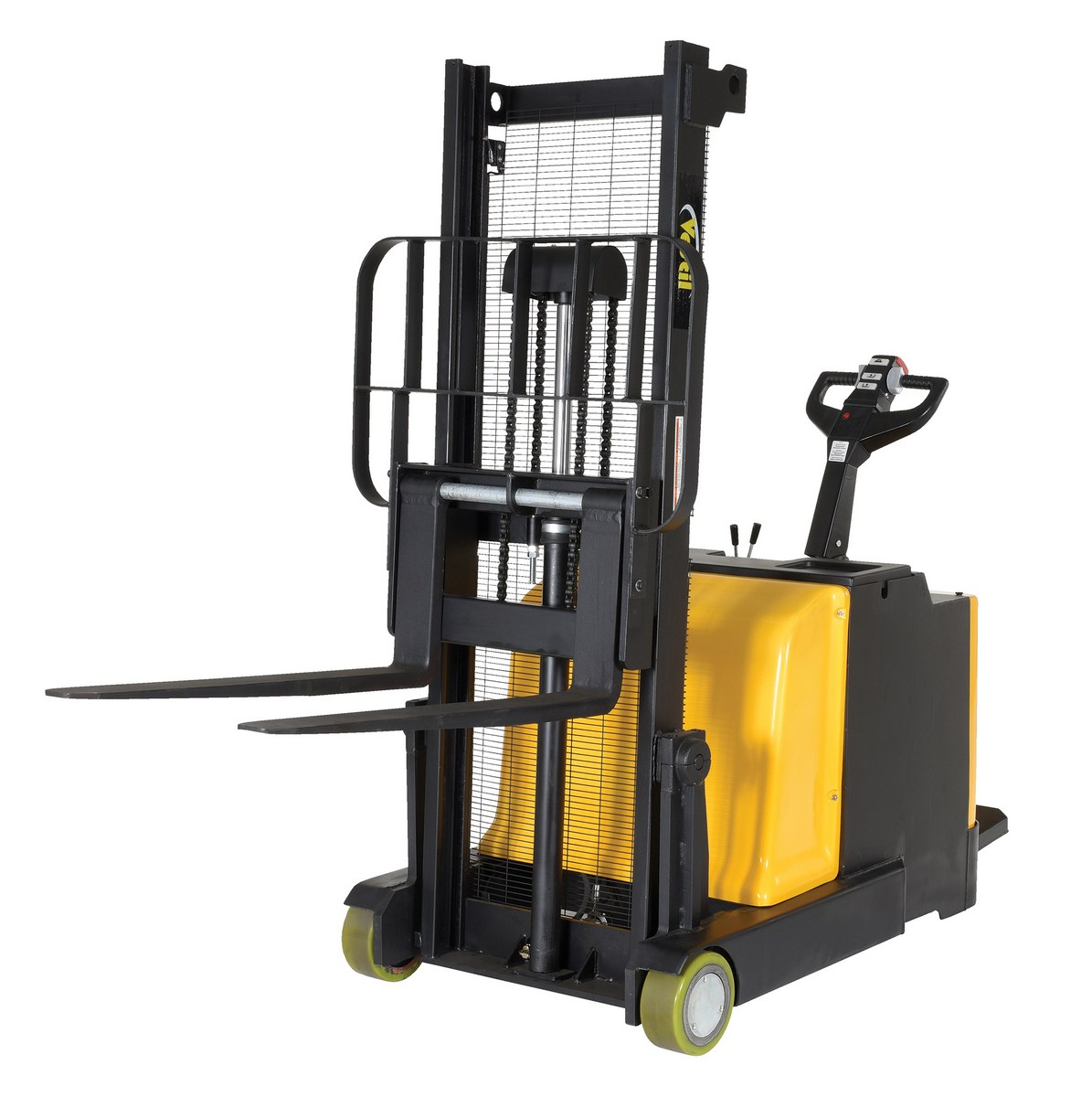

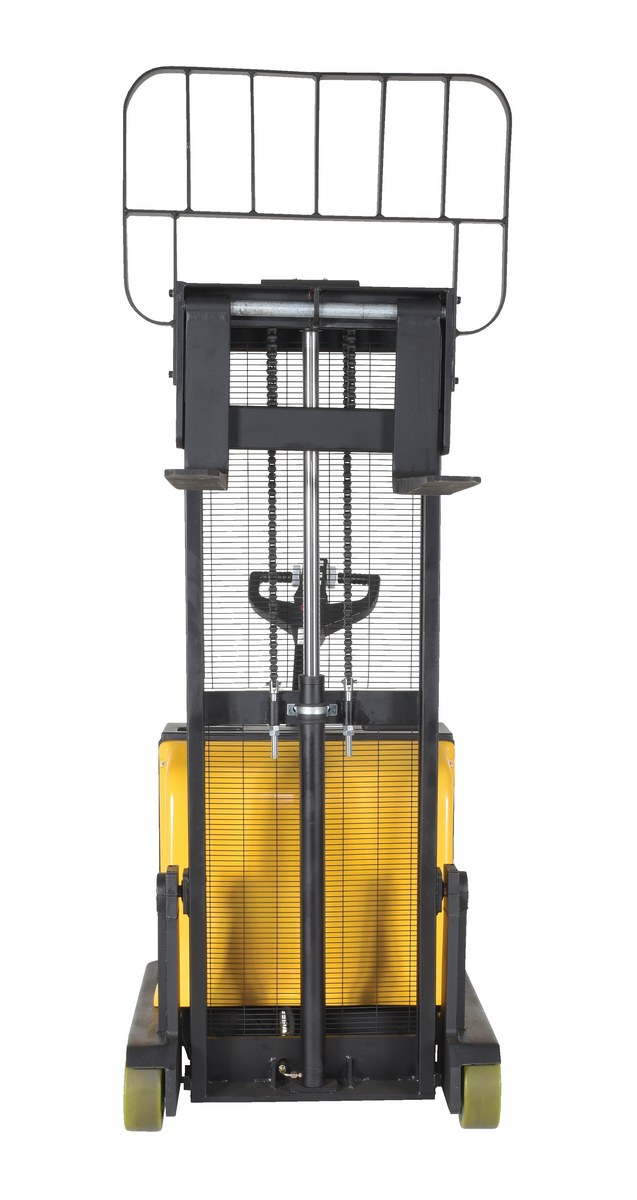

Steel Counter Balanced Powered Lift 2 In. to 62 In. Raised Height 2,000 Lb. Capacity Black / Yellow

Counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases, the handle. Powered lift also includes batteries, an integral battery charger, and battery level gauge. Adjustable forks suitable for different pallets. A high level of serviceability simplifies maintenance and prolongs equipment life. Easy access battery compartment simplifies battery maintenance.

  • Simple controls for quick movement
  • Walk behind style for ergonomic posture
  • Ability to raise to high levels of workspace
  • Poly-on-steel steer and load wheels
Total Ship Wt.(lbs.): 2496 (only 1 package) Size: 35.5"W x 110"L x 78"H Color: Black / Yellow

Uniform Capacity (lb.): 2000 Fork Length (in.): 36-1/4 Fork Width Minimum/Maximum (in.): 8-3/8 to 23-1/4
Individual Fork Width (in.): 4 Lowered Height (in.): 2 Raised Height (in.): 62
Drive Motor: 24V Lift Motor: 24V Battery Quantity/Volts: (4) 6V
Battery Charger: 120V Input, 24V/12 amp Operation at Full Charge (hrs.): 3-4 Operation at Full Charge when Used Intermittently (hrs.): 8
Platform Ground Clearance (in.): 1-1/2 Load Center (in.): 19 Mast Style: Fixed
Lift Speed (Inches Per Seconds): 4.2/sec

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: S-2CB-62
S-2CB-62

Steel Counter Balanced Powered Lift 2 In. to 62 In. Raised Height 2,000 Lb. Capacity Black / Yellow

Counter balance design is ideal for die loading, machine feeding, and for loading and unloading trucks. High torque drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases, the handle. Powered lift also includes batteries, an integral battery charger, and battery level gauge. Adjustable forks suitable for different pallets. A high level of serviceability simplifies maintenance and prolongs equipment life. Easy access battery compartment simplifies battery maintenance.

  • Simple controls for quick movement
  • Walk behind style for ergonomic posture
  • Ability to raise to high levels of workspace
  • Poly-on-steel steer and load wheels
Dimensions: 35.5"W x 110"L x 78"H Sell UOM: EA-Each Color: Black / Yellow
Material: Steel UPC: 691215117050 GTIN: 00691215117050
Warranty: -- Shipping Weight: 2496 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2000 Fork Length (in.): 36-1/4 Fork Width Minimum/Maximum (in.): 8-3/8 to 23-1/4
Individual Fork Width (in.): 4 Lowered Height (in.): 2 Raised Height (in.): 62
Drive Motor: 24V Lift Motor: 24V Battery Quantity/Volts: (4) 6V
Battery Charger: 120V Input, 24V/12 amp Operation at Full Charge (hrs.): 3-4 Operation at Full Charge when Used Intermittently (hrs.): 8
Platform Ground Clearance (in.): 1-1/2 Load Center (in.): 19 Mast Style: Fixed
Lift Speed (Inches Per Seconds): 4.2/sec
