Model Details

RP-90RT

Printer Friendly
RP-90RT

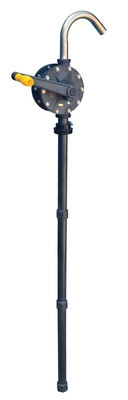

Polyphenylene Sulfide Manual Rotary Drum Pump 10 In. 8 In. x 12 In. Black

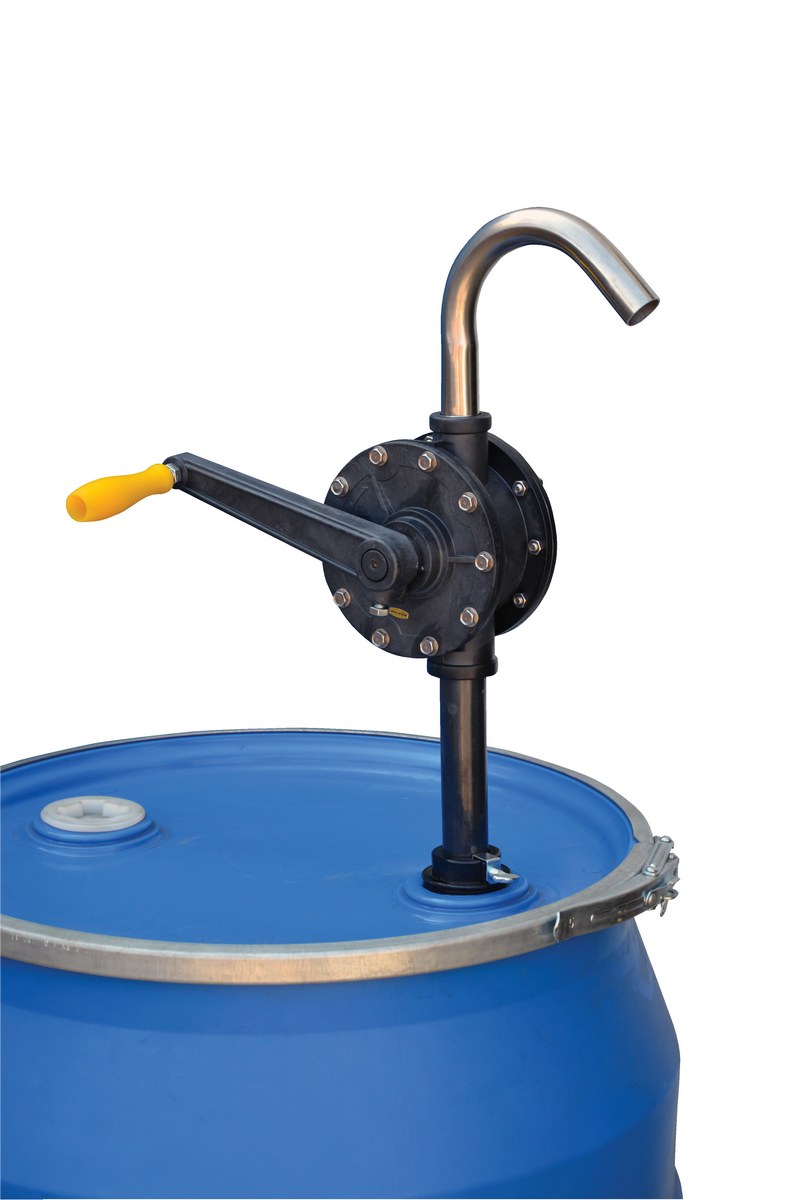

The manual drum pump is designed for dispensing and transferring liquids out of fifty-five (55) gallon drum. It is ideal for transferring soluble, corrosive, volatile and aggressive chemicals. Suitable for use with acetone and ad-blue.

  • Designed for dispensing liquids out of fifty-five (55) gallon drum
  • Outlet spout is made from 304 stainless steel
  • Ideal for transferring soluble, corrosive, volatile and aggressive chemicals
  • Suitable for use with acetone and ad-blue

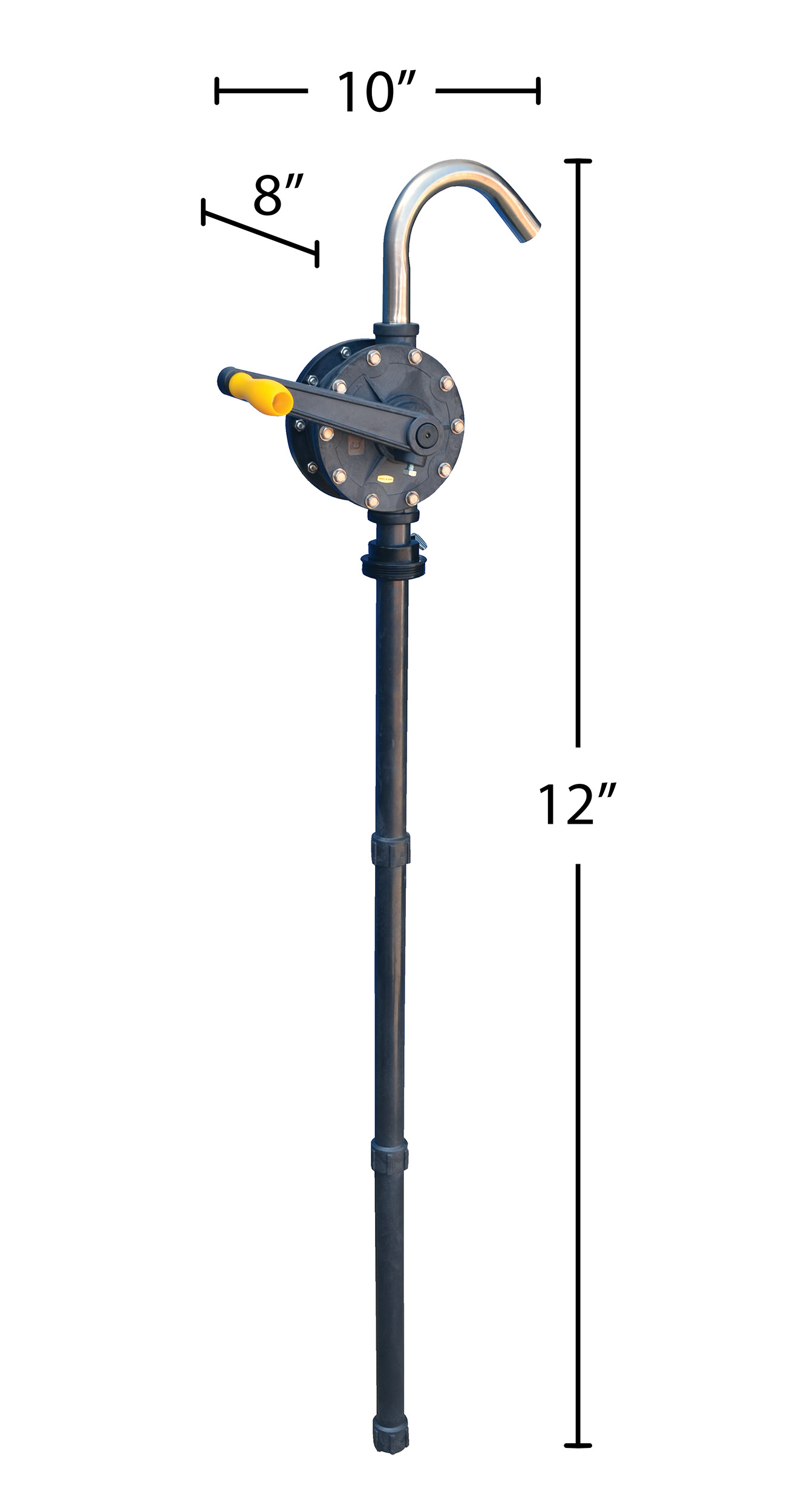

Total Ship Wt.(lbs.): 6 (only 1 package) Size: 8"W x 10"L x 12"H Color: Black

Pump Type: Rotary - Vane Flow Dispense Per Stroke (ml): 300 Maximum Fluid Temperature Degrees (Fahrenheit / Celsius): 140 Degrees Fahrenheit / 60 Degrees Celsius
MNPT Bung Size (in.): 2 Suction Tube Length Maximum (in.): 42 Inlet Outside Diameter (in.): 1-1/4
Outlet Curved Spot Outside Diameter (in.): 1 Maximum Viscosity (SSU): 2000 Seal Construction: PTFE
Vane Construction: PTFE Suction Tube Construction: PPS (Polyphenylene sulfide) Adjustable Outlet Degrees: 0 - 360
Application Liquids: acid, alkali, gasoline, diesel, machine oil, water, alcohol, thinner, Acetone, Ad-Blue, MEK and other chemical liquids Component Materials: PPS, PTFE Nitric Acid Resistance Percentage: 40
Displacement per Stroke (ounces): 10.14 Pump Motor Type: Crank Pump Mounting: Bung
Self-Priming: Yes

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: RP-90RT
RP-90RT

Polyphenylene Sulfide Manual Rotary Drum Pump 10 In. 8 In. x 12 In. Black

The manual drum pump is designed for dispensing and transferring liquids out of fifty-five (55) gallon drum. It is ideal for transferring soluble, corrosive, volatile and aggressive chemicals. Suitable for use with acetone and ad-blue.

  • Designed for dispensing liquids out of fifty-five (55) gallon drum
  • Outlet spout is made from 304 stainless steel
  • Ideal for transferring soluble, corrosive, volatile and aggressive chemicals
  • Suitable for use with acetone and ad-blue
Dimensions: 8"W x 10"L x 12"H Sell UOM: EA-Each Color: Black
Material: PPS (Polyphenylene sulfide) UPC: 691215102742 GTIN: 00691215102742
Warranty: -- Shipping Weight: 6 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Pump Type: Rotary - Vane Flow Dispense Per Stroke (ml): 300 Maximum Fluid Temperature Degrees (Fahrenheit / Celsius): 140 Degrees Fahrenheit / 60 Degrees Celsius
MNPT Bung Size (in.): 2 Suction Tube Length Maximum (in.): 42 Inlet Outside Diameter (in.): 1-1/4
Outlet Curved Spot Outside Diameter (in.): 1 Maximum Viscosity (SSU): 2000 Seal Construction: PTFE
Vane Construction: PTFE Suction Tube Construction: PPS (Polyphenylene sulfide) Adjustable Outlet Degrees: 0 - 360
Application Liquids: acid, alkali, gasoline, diesel, machine oil, water, alcohol, thinner, Acetone, Ad-Blue, MEK and other chemical liquids Component Materials: PPS, PTFE Nitric Acid Resistance Percentage: 40
Displacement per Stroke (ounces): 10.14 Pump Motor Type: Crank Pump Mounting: Bung
Self-Priming: Yes
