Model Details

PLDL-ADJ-10PN

PLDL-ADJ-10PN

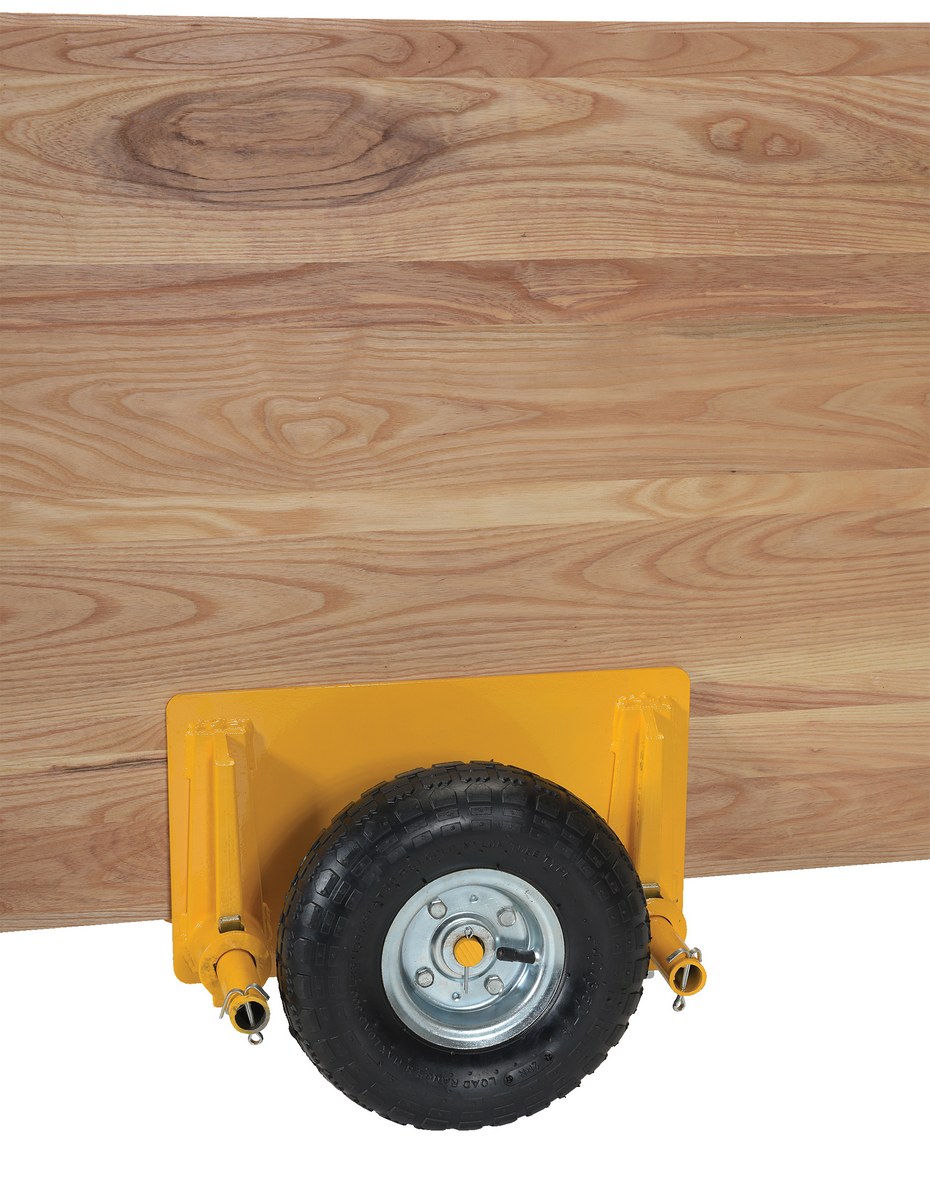

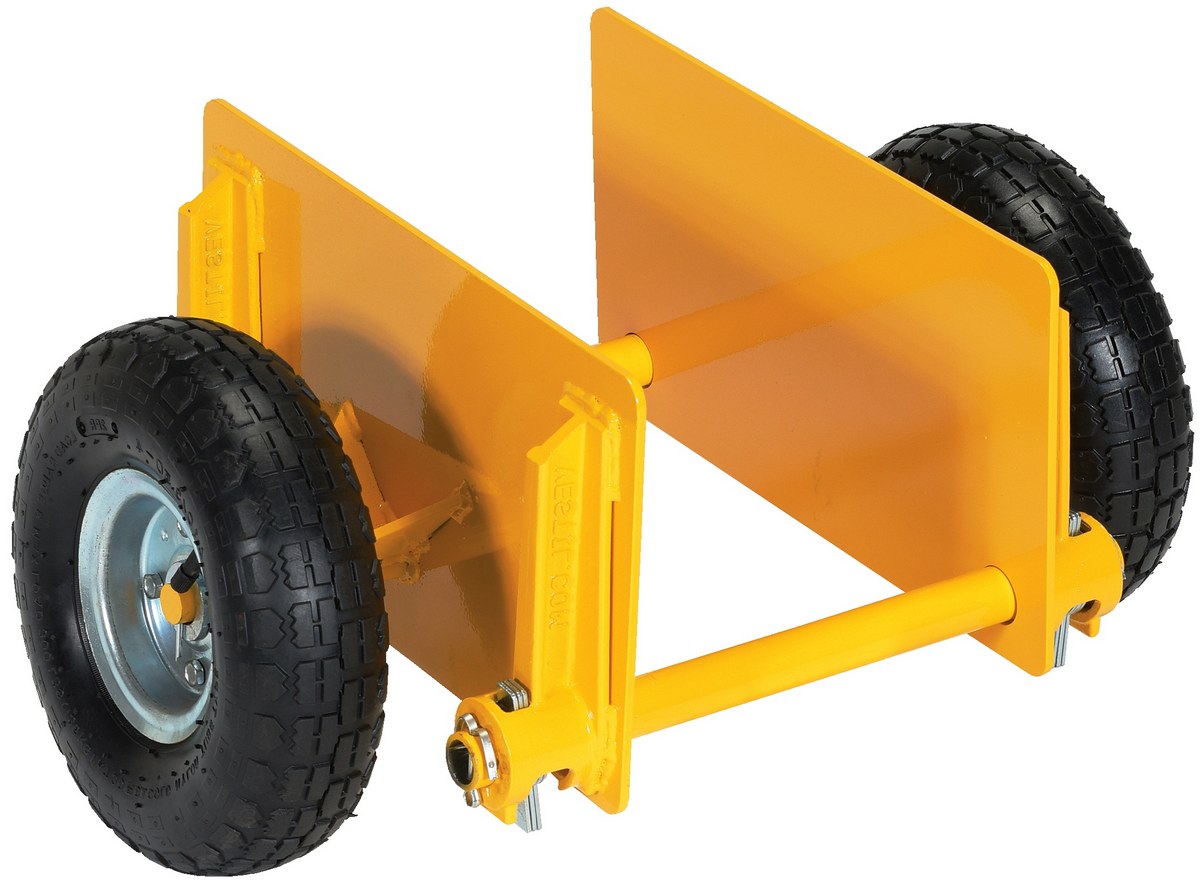

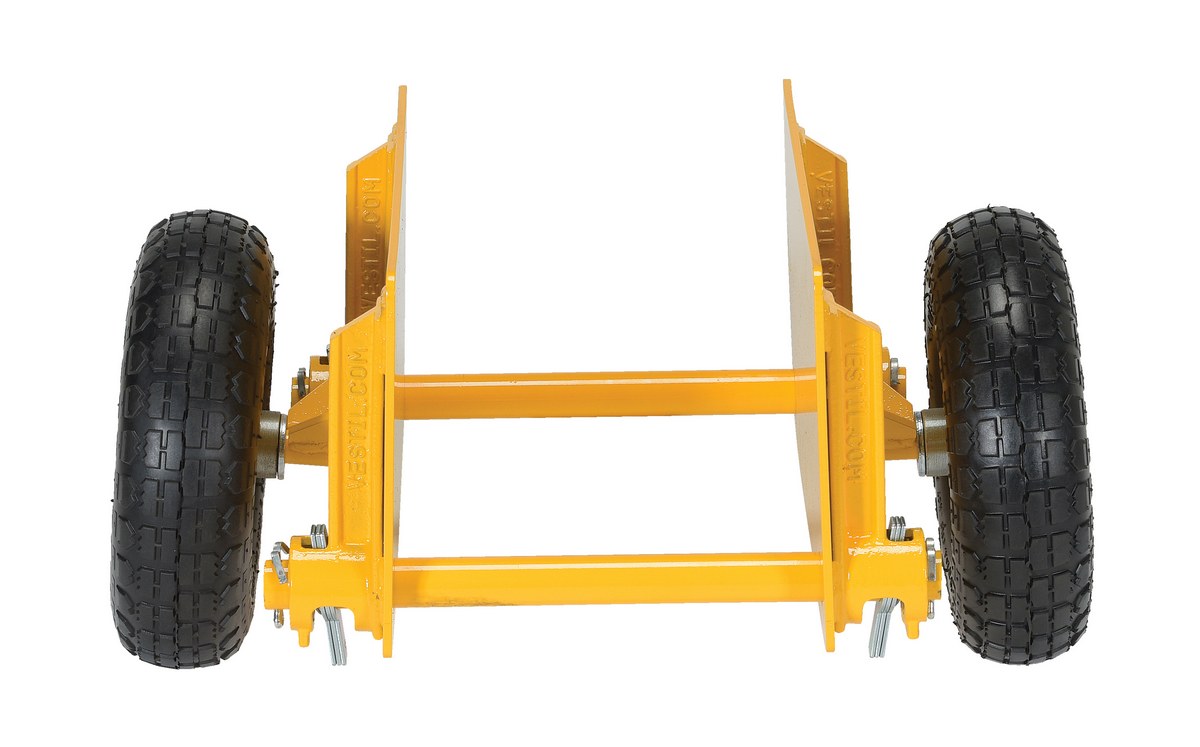

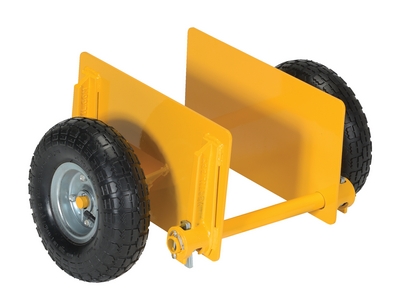

Steel Adjustable Panel Dolly With Pneumatic Wheels 20-7/8 In. x 15 In. x 11-1/2 In. 600 Lb. Capacity Yellow

The heavy-duty adjustable panel dolly is infinitely adjustable with positive locking clutch plates that allow for easier release and adjustment.

  • Adjustable with positive locking clutch plates
  • Clutch plates allow for easier release and adjustment
  • Includes 10" pneumatic wheels
  • Steel construction with powder coat yellow finish
Total Ship Wt.(lbs.): 37 (only 1 package) Size: 15"W x 20.875"L x 11.5"H Color: Yellow

Uniform Capacity (lb.): 600 Caster Quantity/Diameter/Width (in.): (2) 10 x 3-1/4 Caster Material: Pneumatic
Caster Type: Rigid Usable Width Minimum/Maximum (in.): 0 to 9 Plate Surface Length (in.): 15
Plate Surface Height (in.): 6-3/4 Support Arm Inside Dimension Length (in.): 11 For Use With: Panels
Platform Style: Open

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: PLDL-ADJ-10PN


PLDL-ADJ-10PN

Steel Adjustable Panel Dolly With Pneumatic Wheels 20-7/8 In. x 15 In. x 11-1/2 In. 600 Lb. Capacity Yellow

The heavy-duty adjustable panel dolly is infinitely adjustable with positive locking clutch plates that allow for easier release and adjustment.

  • Adjustable with positive locking clutch plates
  • Clutch plates allow for easier release and adjustment
  • Includes 10" pneumatic wheels
  • Steel construction with powder coat yellow finish
Dimensions: 15"W x 20.875"L x 11.5"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215099691 GTIN: 00691215099691
Warranty: -- Shipping Weight: 37 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 600 Caster Quantity/Diameter/Width (in.): (2) 10 x 3-1/4 Caster Material: Pneumatic
Caster Type: Rigid Usable Width Minimum/Maximum (in.): 0 to 9 Plate Surface Length (in.): 15
Plate Surface Height (in.): 6-3/4 Support Arm Inside Dimension Length (in.): 11 For Use With: Panels
Platform Style: Open
