Model Details

PG-C-100

Printer Friendly
PG-C-100

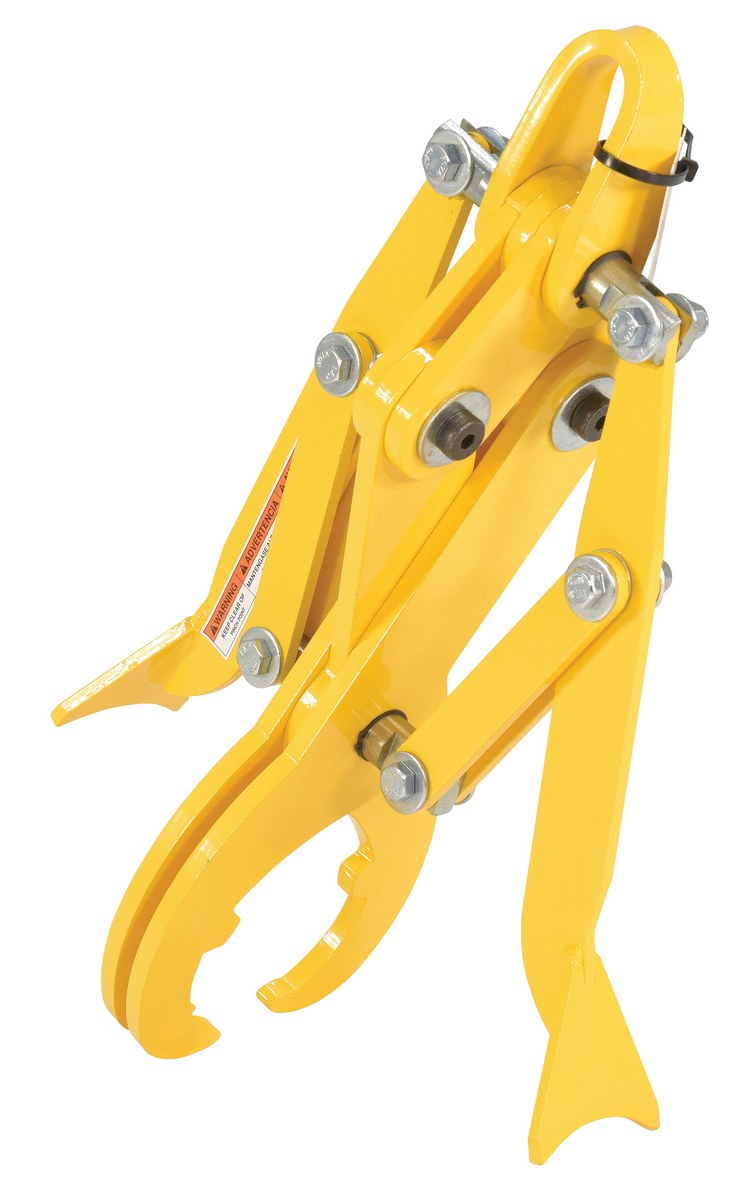

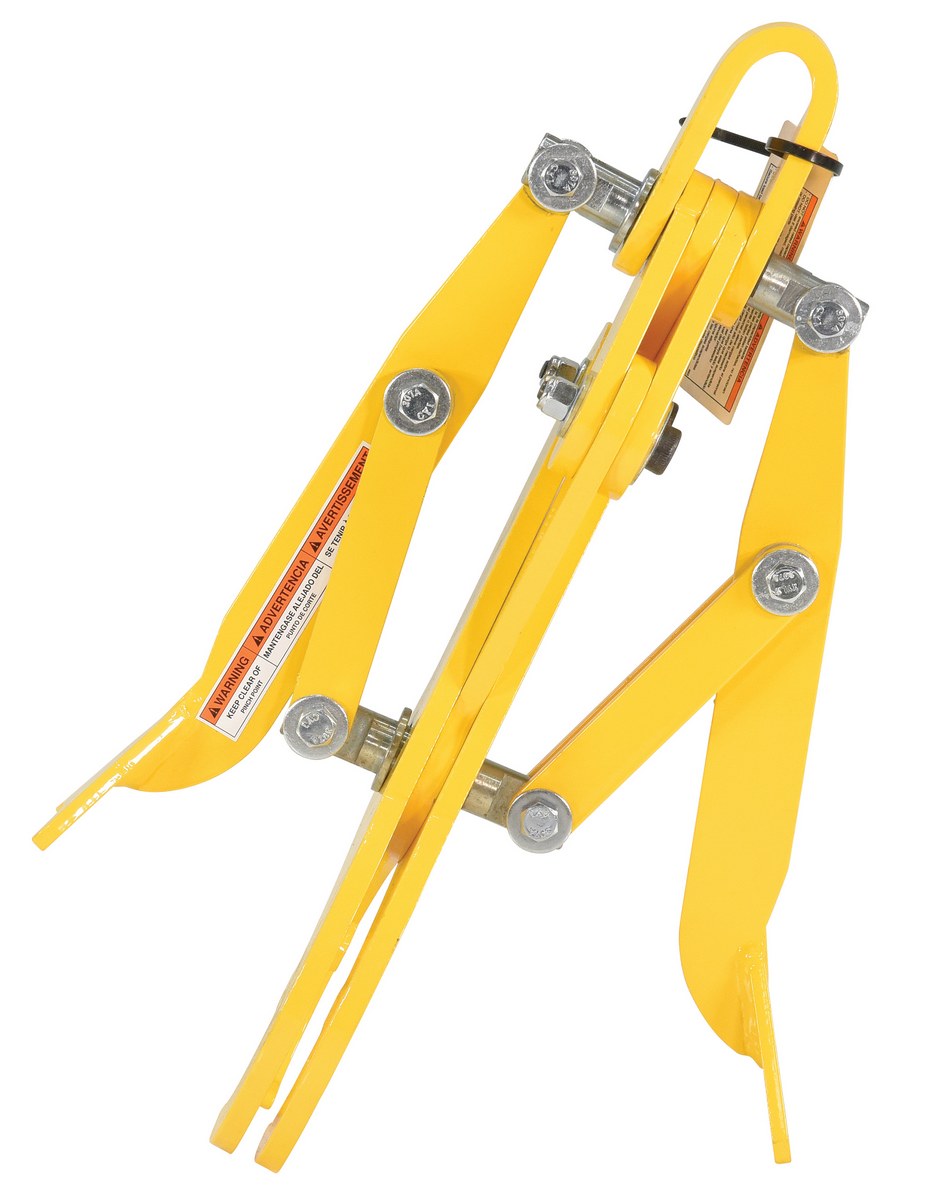

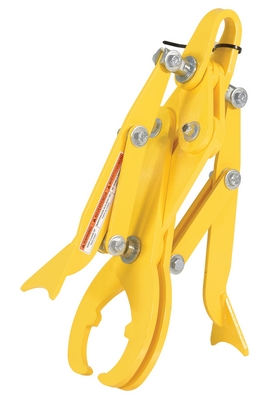

Steel Heavy Duty Pipe Grab 37 In. x 13-1/4 In. x 24-5/8 In. 1000 Lb. Capacity Yellow

The heavy-duty pipe grip is ideal for the manufacturing and material handling facilities. The bright colored design enables the unit to be distinguished for clear discernibility from both near and far. The unit is powder coated for smooth finish that minimizes deterioration of unit over a prolonged time of use.

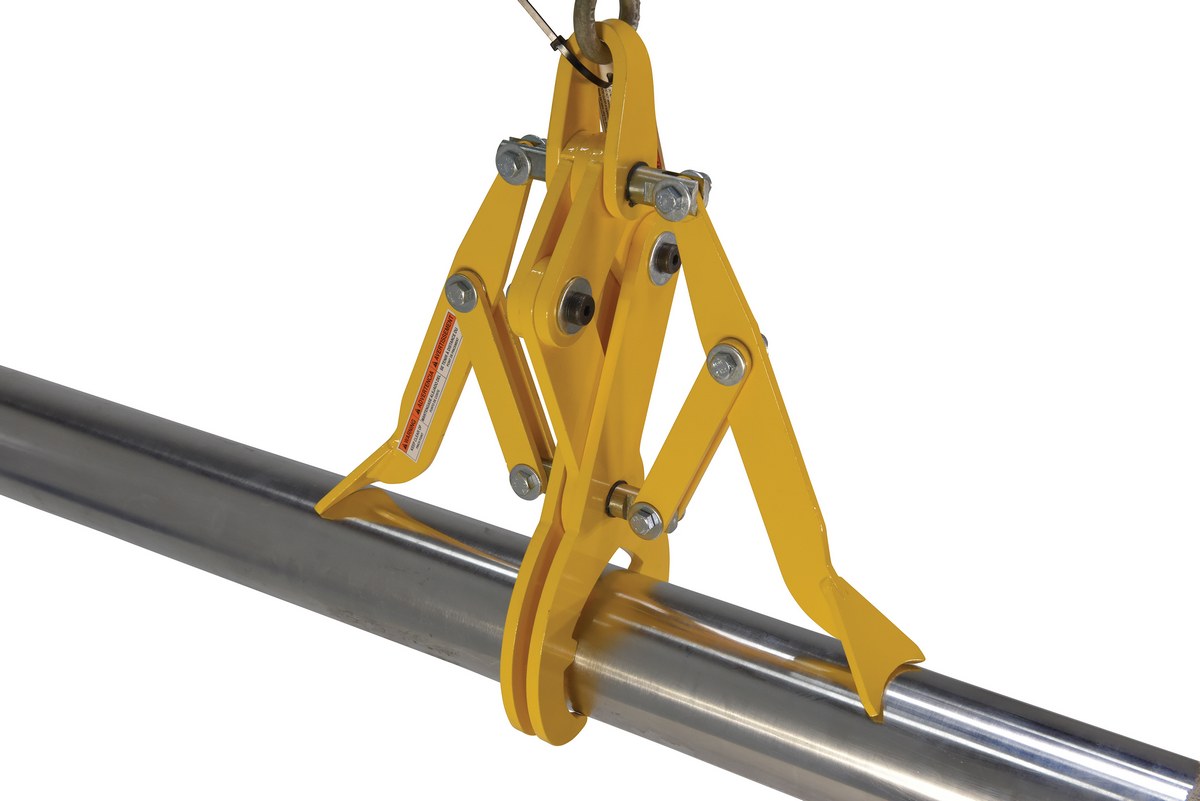

  • Designed for lifting cast iron pipe with overhead lifting device
  • Automatic operation allows for easy use by anyone
  • Loads must be centered and guided during lifting operations
  • Heavy-duty steel construction for strength & durability
Total Ship Wt.(lbs.): 26 (only 1 package) Size: 13.25"W x 37"L x 24.625"H Color: Yellow

Uniform Working Load Limit (lb.): 1,000 Works with Pipe (O.D.): 5-1/2 to 7 Designed For Use With: Cast Iron
Lifting Clamp Style: Horizontal Jaw Depth (in.): 6-1/2 Minimum Jaw Opening Height (in.): 4-1/2
Includes: Clamp Lock Mechanism Overall Thickness (in.): 3/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: PG-C-100
PG-C-100

Steel Heavy Duty Pipe Grab 37 In. x 13-1/4 In. x 24-5/8 In. 1000 Lb. Capacity Yellow

The heavy-duty pipe grip is ideal for the manufacturing and material handling facilities. The bright colored design enables the unit to be distinguished for clear discernibility from both near and far. The unit is powder coated for smooth finish that minimizes deterioration of unit over a prolonged time of use.

  • Designed for lifting cast iron pipe with overhead lifting device
  • Automatic operation allows for easy use by anyone
  • Loads must be centered and guided during lifting operations
  • Heavy-duty steel construction for strength & durability
Dimensions: 13.25"W x 37"L x 24.625"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215054683 GTIN: 00691215054683
Warranty: -- Shipping Weight: 26 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Working Load Limit (lb.): 1,000 Works with Pipe (O.D.): 5-1/2 to 7 Designed For Use With: Cast Iron
Lifting Clamp Style: Horizontal Jaw Depth (in.): 6-1/2 Minimum Jaw Opening Height (in.): 4-1/2
Includes: Clamp Lock Mechanism Overall Thickness (in.): 3/8
