Model Details

ML-22

ML-22

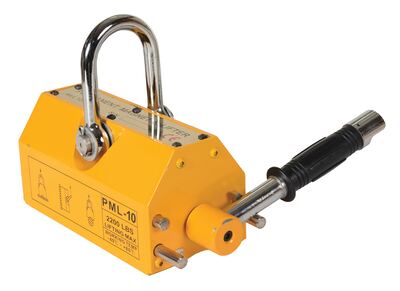

Steel and Neodymium Magnetic Lifter 10-3/8 In. x 6-5/8 In. x 6-5/8 In. 2,200 Lb. Capacity Yellow

A magnetic lifter makes lifting heavy objects simple and effective. Pick up sheets of material by use of overhead crane or chain with the permanent magnetic lifter. Lifter is lightweight, so transporting from work area to work area is convenient.

  • Magnet is activated or deactivated by rotating lever
  • Shackle included for additional lifting support
  • Smooth surface minimizes abrasions and scuffs during lifting
  • Compact design for storage
Total Ship Wt.(lbs.): 115 (only 1 package) Size: 6.625"W x 10.375"L x 6.625"H Color: Yellow

Uniform Flat Surface Capacity (lbs): 2,200 Uniform Round Surface Capacity (lbs): 990 Min. Working Temperature (degrees celcius): -40
Max. Working Temperature (degrees celcius): 80 Handle Length (in): 11.0236 Base Plate Width (in.): 5.70866
Base Plate Length (in.): 10.236 Max. Breakaway Force (lbs): 7716

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: ML-22


ML-22

Steel and Neodymium Magnetic Lifter 10-3/8 In. x 6-5/8 In. x 6-5/8 In. 2,200 Lb. Capacity Yellow

A magnetic lifter makes lifting heavy objects simple and effective. Pick up sheets of material by use of overhead crane or chain with the permanent magnetic lifter. Lifter is lightweight, so transporting from work area to work area is convenient.

  • Magnet is activated or deactivated by rotating lever
  • Shackle included for additional lifting support
  • Smooth surface minimizes abrasions and scuffs during lifting
  • Compact design for storage
Dimensions: 6.625"W x 10.375"L x 6.625"H Sell UOM: EA-Each Color: Yellow
Material: Steel and Neodymium UPC: 691215375467 GTIN: 00691215375467
Warranty: -- Shipping Weight: 115 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Flat Surface Capacity (lbs): 2,200 Uniform Round Surface Capacity (lbs): 990 Min. Working Temperature (degrees celcius): -40
Max. Working Temperature (degrees celcius): 80 Handle Length (in): 11.0236 Base Plate Width (in.): 5.70866
Base Plate Length (in.): 10.236 Max. Breakaway Force (lbs): 7716
