Model Details

LPDT

LPDT

Steel Manual Low Profile Hydraulic Drum Truck 37 In. x 34 In. x 60 In. 600 Lb. Capacity Yellow

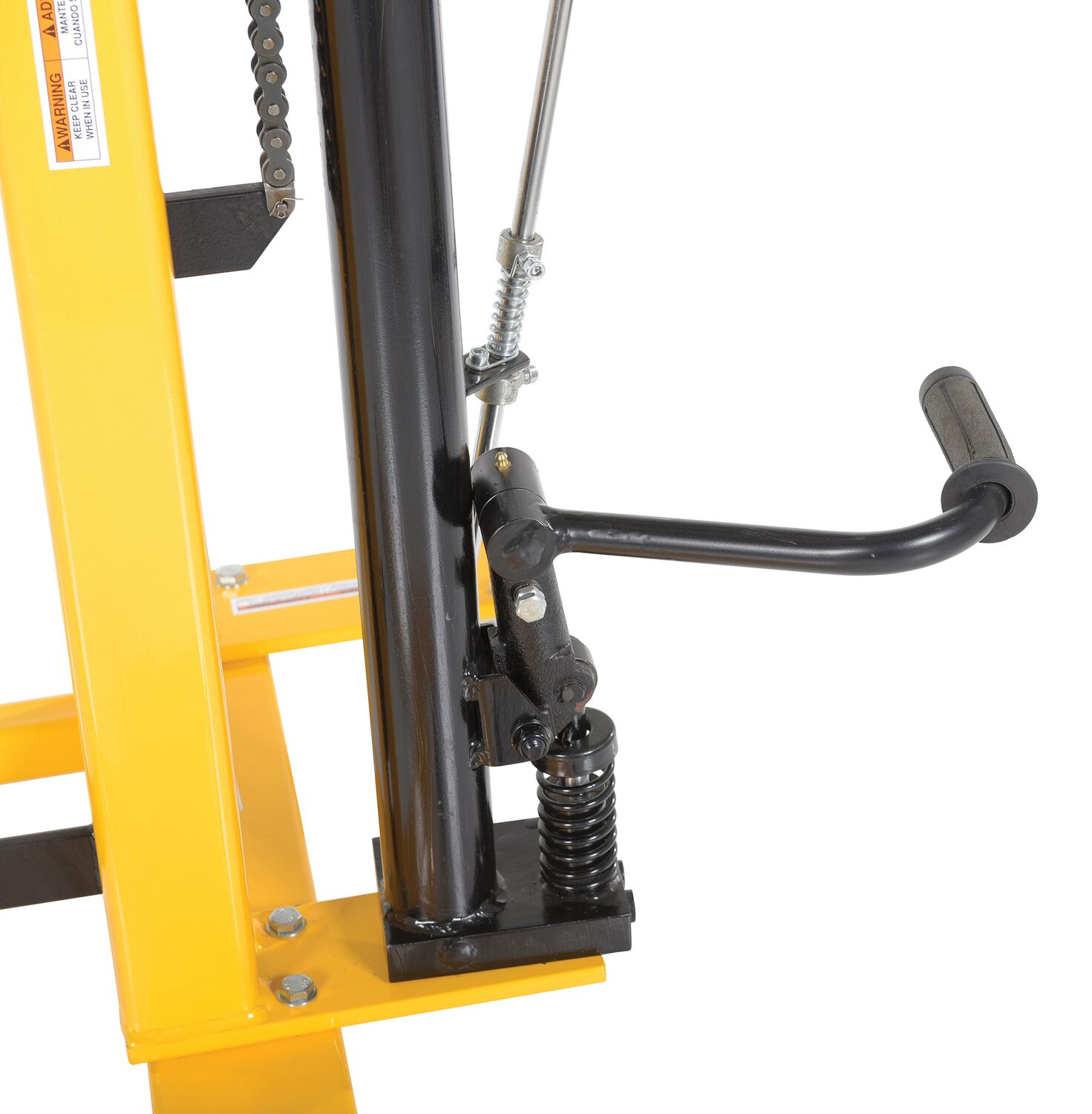

Ideal for loading and unloading steel drums when no fork truck is available. This manual Low Profile Hydraulic drum truck allows a single operator to engage elevated drums as well as to transport and position drums. A spring-loaded clamp securely grasps the rim of a drum. To elevate the rim clamp the truck incorporates a foot-operated hydraulic pump. Truck is easy to assemble/disassemble for storage.

  • Manual low profile hydraulic drum truck transports and positions drums efficiently
  • Load and unload steel drums for ideal operation

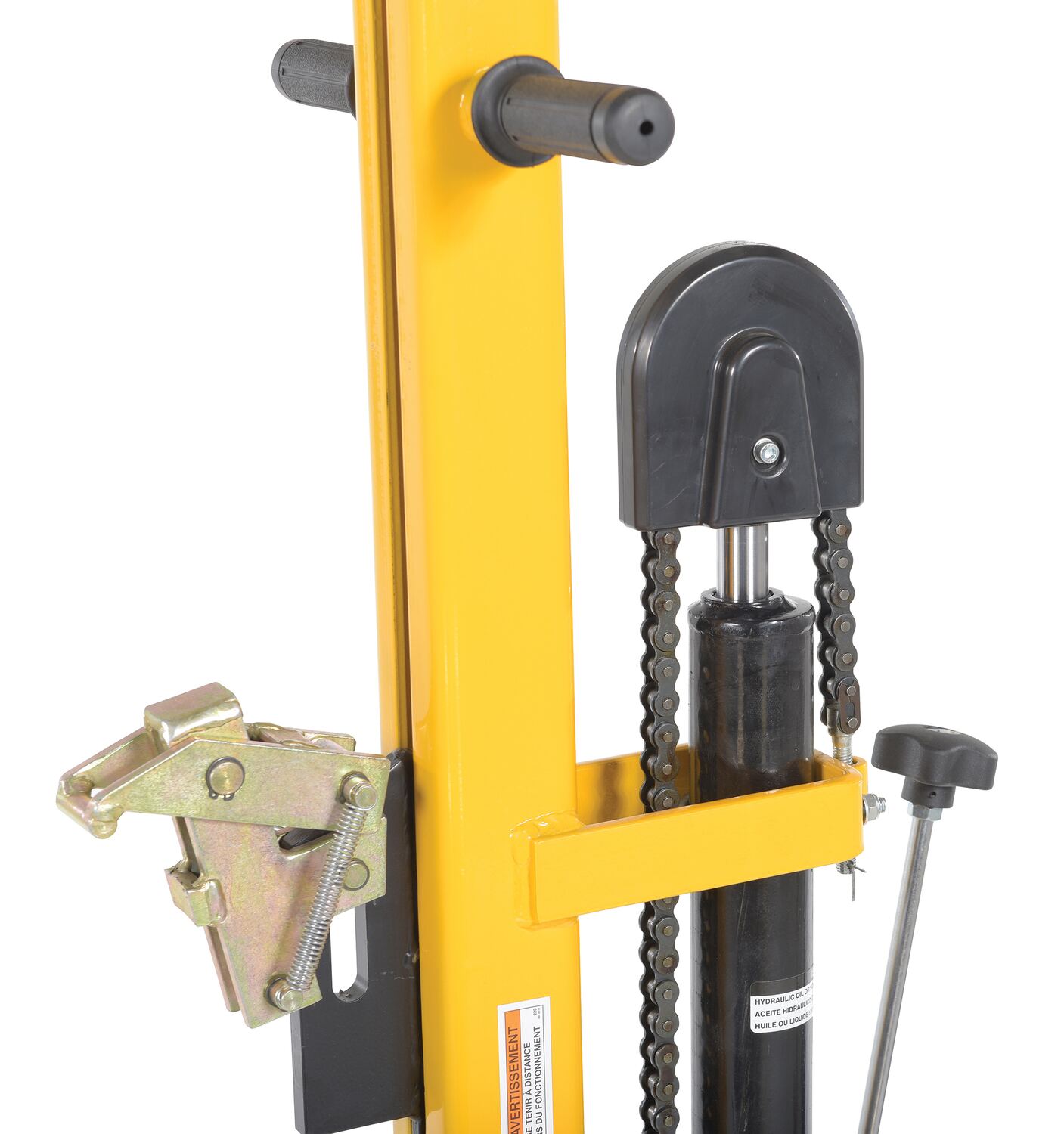

  • Features a spring-loaded clamp which securely grasps the rim of a drum for transport
  • Accepts one 55 gallon drum
Total Ship Wt.(lbs.): 185 (only 1 package) Size: 34"W x 37"L x 60"H Color: Yellow

Uniform Capacity (lb.): 600 Lowered Height (in.): 32-7/8 Raised Height (in.): 64-1/2
Accepts Drum Size/Diameter: 55 gallon / 22-1/2" Maximum Rim Clamp Height (in.): 60 Rigid Front Wheel Diameter (in.): 2-1/2
Rigid Front Wheel Width (in.): 1-1/2 Rigid Front Wheel (qty.): 2 Rear Swivel with Brake Wheel Diameter (in.): 3-3/16
Rear Swivel with Brake Wheel Width (in.): 1-1/4 Poly Rear Wheel (quantity): 2 Outrigger Width (in.): 2-1/4
Overall Outriggers Width (in.): 37-5/8 Minimum Front Wheel Clearance (in.): 2-1/2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LPDT


LPDT

Steel Manual Low Profile Hydraulic Drum Truck 37 In. x 34 In. x 60 In. 600 Lb. Capacity Yellow

Ideal for loading and unloading steel drums when no fork truck is available. This manual Low Profile Hydraulic drum truck allows a single operator to engage elevated drums as well as to transport and position drums. A spring-loaded clamp securely grasps the rim of a drum. To elevate the rim clamp the truck incorporates a foot-operated hydraulic pump. Truck is easy to assemble/disassemble for storage.

  • Manual low profile hydraulic drum truck transports and positions drums efficiently
  • Load and unload steel drums for ideal operation
  • Features a spring-loaded clamp which securely grasps the rim of a drum for transport
  • Accepts one 55 gallon drum
Dimensions: 34"W x 37"L x 60"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215077484 GTIN: 00691215077484
Warranty: -- Shipping Weight: 185 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 600 Lowered Height (in.): 32-7/8 Raised Height (in.): 64-1/2
Accepts Drum Size/Diameter: 55 gallon / 22-1/2" Maximum Rim Clamp Height (in.): 60 Rigid Front Wheel Diameter (in.): 2-1/2
Rigid Front Wheel Width (in.): 1-1/2 Rigid Front Wheel (qty.): 2 Rear Swivel with Brake Wheel Diameter (in.): 3-3/16
Rear Swivel with Brake Wheel Width (in.): 1-1/4 Poly Rear Wheel (quantity): 2 Outrigger Width (in.): 2-1/4
Overall Outriggers Width (in.): 37-5/8 Minimum Front Wheel Clearance (in.): 2-1/2
