Model Details

LOW-2P

Printer Friendly
LOW-2P

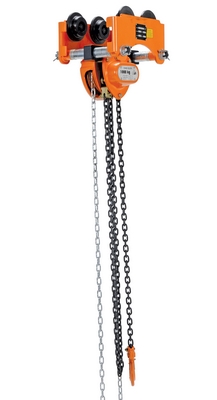

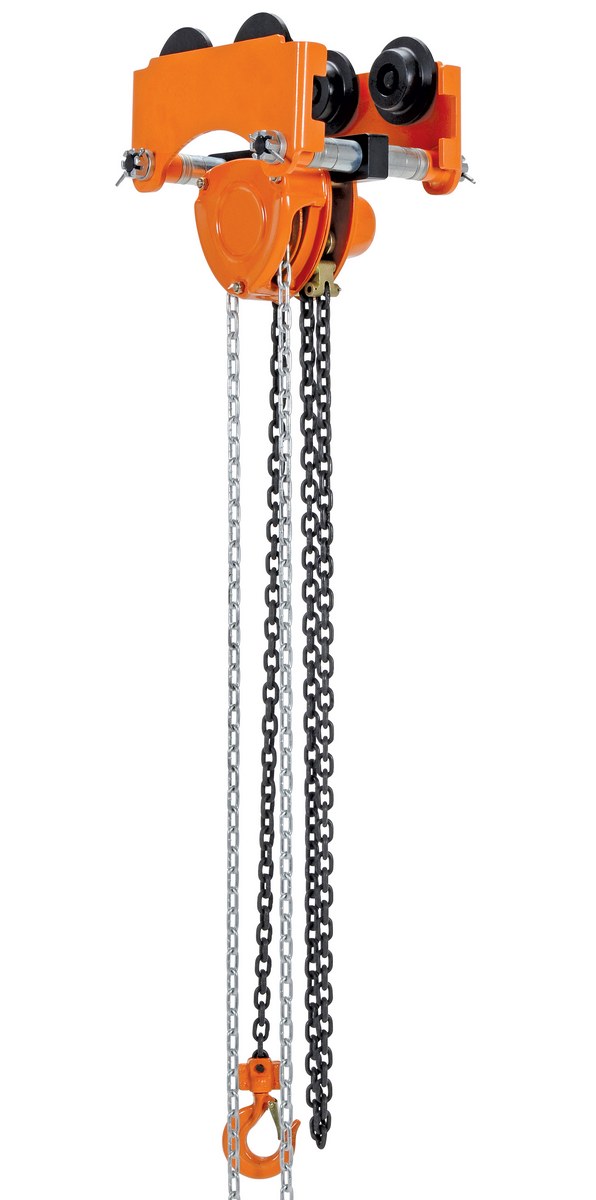

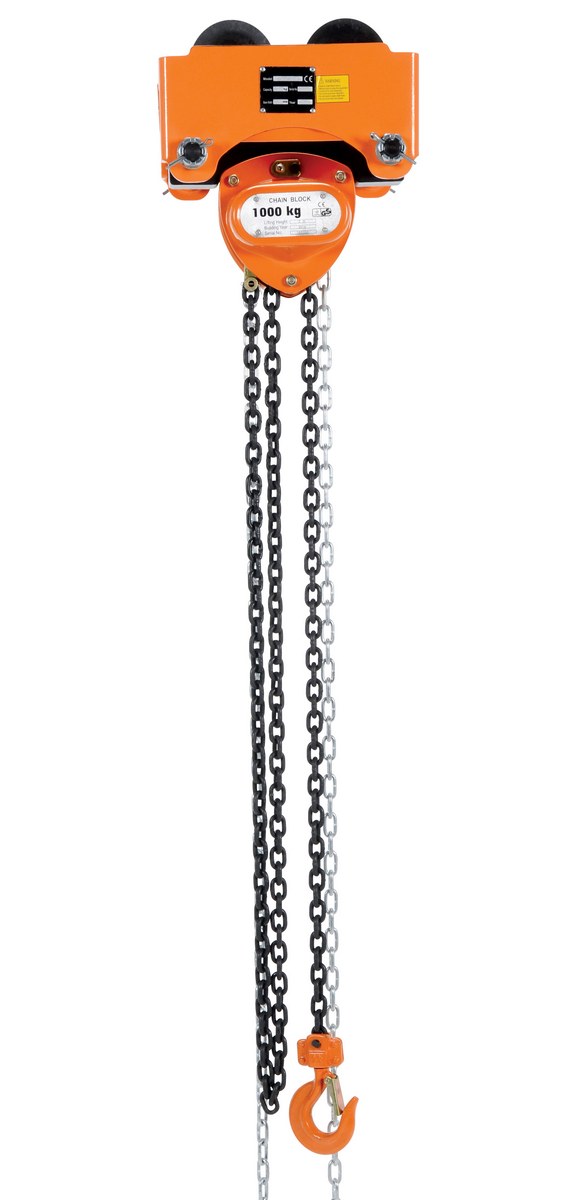

Steel Low Headroom Chain Hoist Push Trolley 12 In. x 10-1/2 In. x 10 In. 2,000 Lb. Capacity Orange

Use this low headroom Chain Hoist geared trolley to gain additional raised hook height. Chain hoist hook travel is ten (10) feet. Fits on wide flange or S-type I-beam.

  • Compact design works well in locations where more headroom is required
  • Heavy-duty industrial steel construction provides long lasting use
  • Chain hoist features ten foot of vertical lift
  • Bright orange color for strong visibility

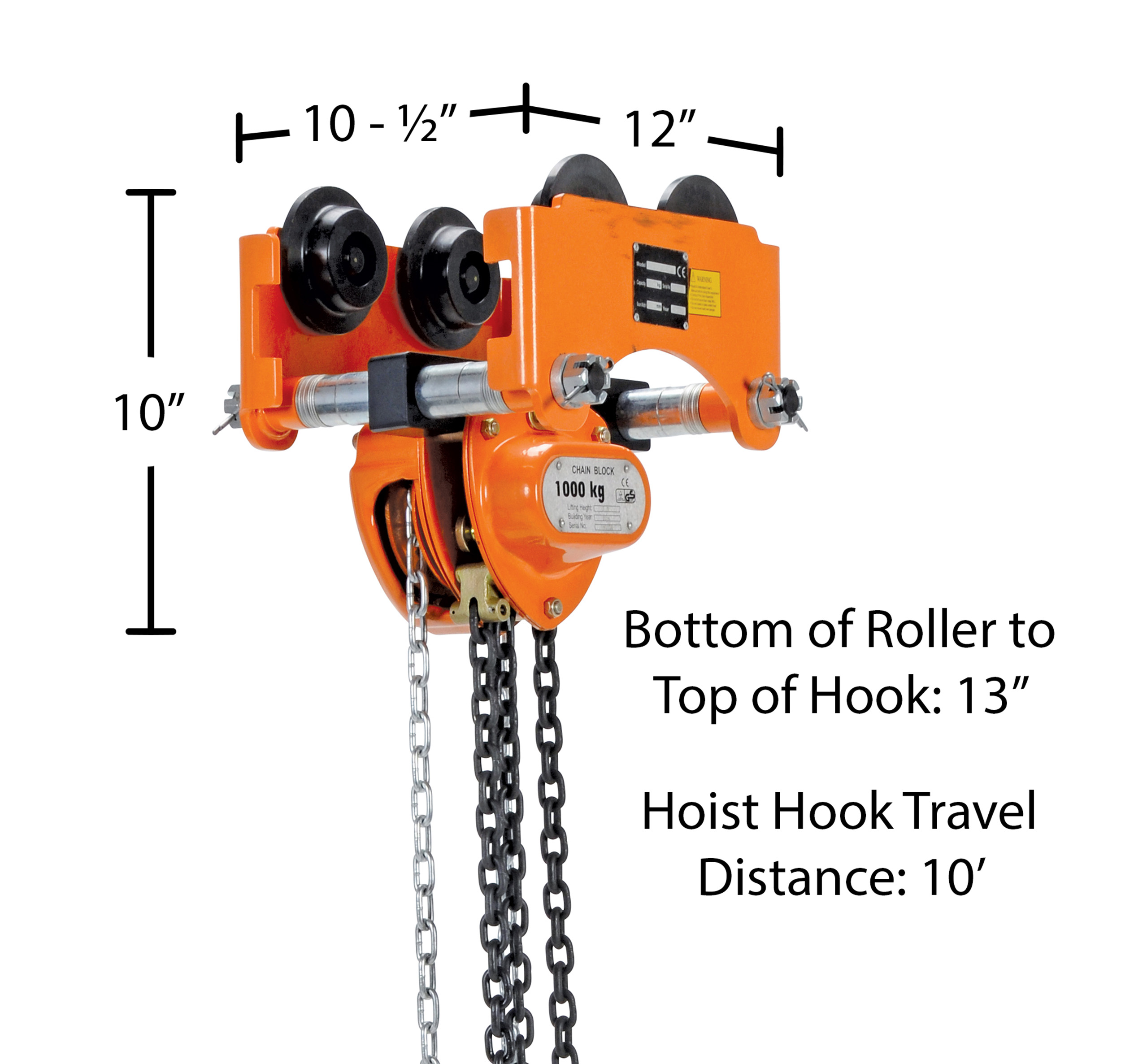

Total Ship Wt.(lbs.): 63 (only 1 package) Size: 10.5"W x 12"L x 10"H Color: Orange

Uniform Capacity (lb.): 2,000 Fits Beam Flange Width (in.): 2-1/2 to 8 Bottom of Roller to Top of Hook (in.): 13
Hoist Hook Travel Distance (ft,): 10 Operation: Manual Push Wheel on I-Beam Diameter (in.): 2-1/2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: LOW-2P
LOW-2P

Steel Low Headroom Chain Hoist Push Trolley 12 In. x 10-1/2 In. x 10 In. 2,000 Lb. Capacity Orange

Use this low headroom Chain Hoist geared trolley to gain additional raised hook height. Chain hoist hook travel is ten (10) feet. Fits on wide flange or S-type I-beam.

  • Compact design works well in locations where more headroom is required
  • Heavy-duty industrial steel construction provides long lasting use
  • Chain hoist features ten foot of vertical lift
  • Bright orange color for strong visibility
Dimensions: 10.5"W x 12"L x 10"H Sell UOM: EA-Each Color: Orange
Material: Steel UPC: 691215077422 GTIN: 00691215077422
Warranty: -- Shipping Weight: 63 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 2,000 Fits Beam Flange Width (in.): 2-1/2 to 8 Bottom of Roller to Top of Hook (in.): 13
Hoist Hook Travel Distance (ft,): 10 Operation: Manual Push Wheel on I-Beam Diameter (in.): 2-1/2
