Model Details

LM-HP4-S

Printer Friendly
LM-HP4-S

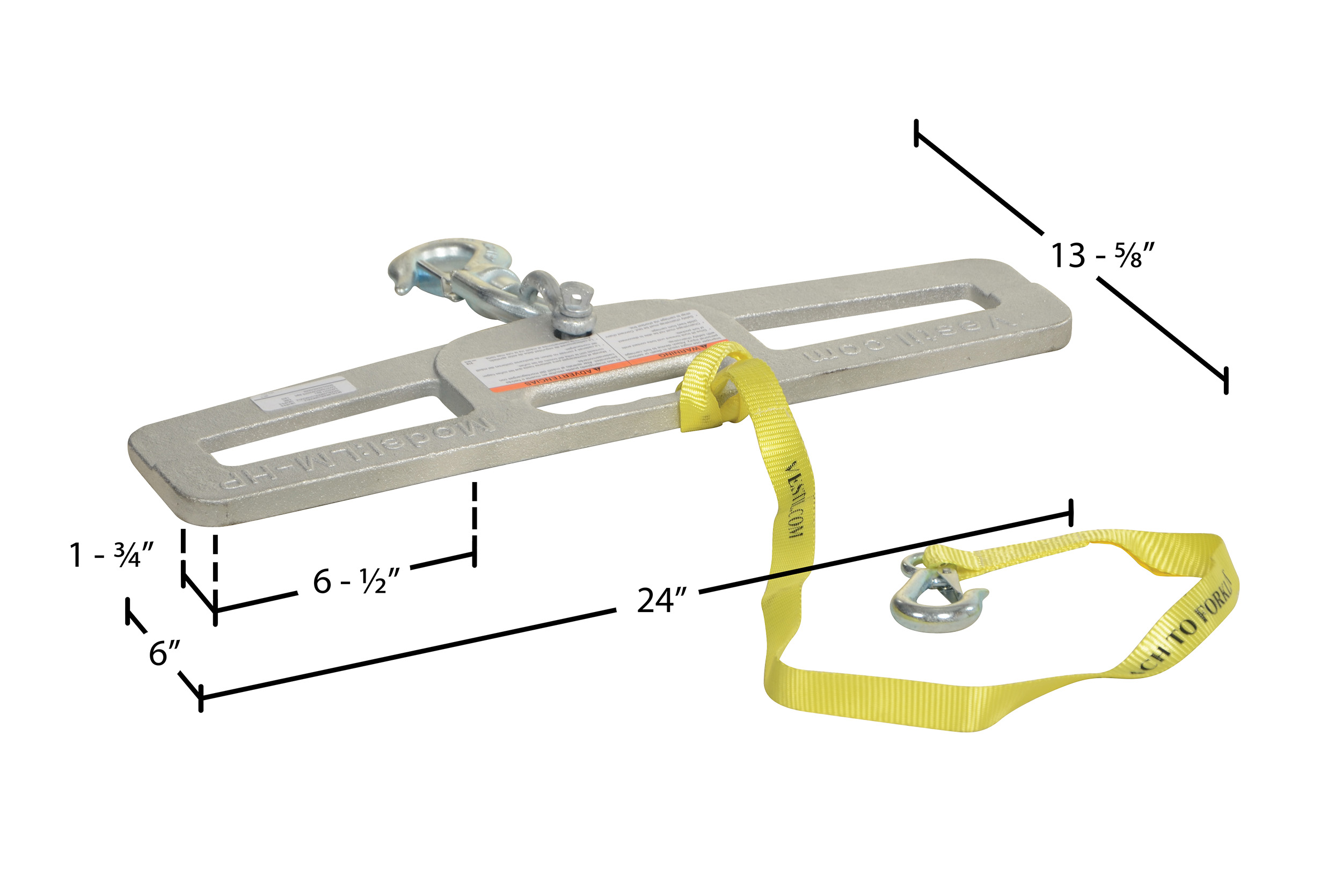

Steel Fork Truck Hook Plate Swivel 4,000 Lb. Capacity Silver

The hook plate enables any fork truck to safely lift a load using chains, cables, or slings. Features slanted fork openings to prevent the hook plate from being used upside down. A hook with anchor shackle is included.

  • Heavy-duty solid steel construction provides long lasting rugged use
  • Double-fork style securely slides onto both fork truck forks
  • Safety restraint with snap hook attaches unit to carriage of fork truck
  • Forged steel hook with safety latch ensures worker safety
Total Ship Wt.(lbs.): 22 (only 1 package) Size: 24"W x 3.25"L x 13.625"H Color: Silver

Uniform Capacity (lb.): 4,000 Height without Hook (in.): 6 Fork Opening Width (in.): 6-1/2
Fork Opening Height (in.): 1-3/4 Hook Type: Swivel OSHA: 1910.178(a)(4)

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: LM-HP4-S
LM-HP4-S

Steel Fork Truck Hook Plate Swivel 4,000 Lb. Capacity Silver

The hook plate enables any fork truck to safely lift a load using chains, cables, or slings. Features slanted fork openings to prevent the hook plate from being used upside down. A hook with anchor shackle is included.

  • Heavy-duty solid steel construction provides long lasting rugged use
  • Double-fork style securely slides onto both fork truck forks
  • Safety restraint with snap hook attaches unit to carriage of fork truck
  • Forged steel hook with safety latch ensures worker safety
Dimensions: 24"W x 3.25"L x 13.625"H Sell UOM: EA-Each Color: Silver
Material: Steel UPC: 691215027458 GTIN: 00691215027458
Warranty: -- Shipping Weight: 22 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4,000 Height without Hook (in.): 6 Fork Opening Width (in.): 6-1/2
Fork Opening Height (in.): 1-3/4 Hook Type: Swivel OSHA: 1910.178(a)(4)
