LAD-RAF-7-P-EZ

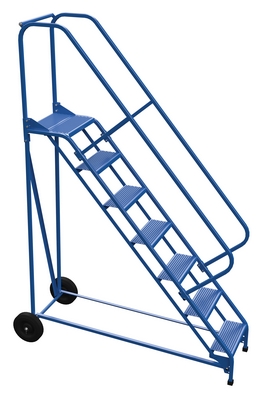

Steel Roll-A-Fold Ladder 50 Degree 7 Perforated 16-13/16 In. Step Width 350 Lb. Capacity Blue

Roll-A-Fold ladder, the portable ladder that conveniently folds for storage. Constructed of square tubing framework. Features removable hand railing, deep top platform, perforated steps, and an industrial blue powder coat finish. Unit rolls around on large wheels.

  • Portable ladder design conveniently folds for storage
  • Top tread design provides a safe non-slip grip
  • Complies with ANSI 14.7 and OSHA 1910.29 specifications
  • Heavy-duty formed steel construction offers maximum strength
Total Ship Wt.(lbs.): 220 (only 1 package) Size: 28"W x 70.8125"L x 100"H Color: Blue

Uniform Capacity (lb.): 350 Hand Rail Height (in.): 30 Platform Length (in.): 14
Step Width (in.): 16-13/16 Step Depth (in.): 7 Step Spacing (in.): 10
Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2 Wheel Type: Hard Rubber Step (qty.): 7
Step Angle (degrees): 50 Top Step Height (in.): 70 Fold Down Length (in.): 118
Fold Down Width (in.): 30 Fold Down Height (in.): 30 Step Type: Perforated
OSHA: 1910.29 ANSI: A14.7

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: LAD-RAF-7-P-EZ
LAD-RAF-7-P-EZ

Steel Roll-A-Fold Ladder 50 Degree 7 Perforated 16-13/16 In. Step Width 350 Lb. Capacity Blue

Roll-A-Fold ladder, the portable ladder that conveniently folds for storage. Constructed of square tubing framework. Features removable hand railing, deep top platform, perforated steps, and an industrial blue powder coat finish. Unit rolls around on large wheels.

  • Portable ladder design conveniently folds for storage
  • Top tread design provides a safe non-slip grip
  • Complies with ANSI 14.7 and OSHA 1910.29 specifications
  • Heavy-duty formed steel construction offers maximum strength
Dimensions: 28"W x 70.8125"L x 100"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215125338 GTIN: 00691215125338
Warranty: -- Shipping Weight: 220 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 350 Hand Rail Height (in.): 30 Platform Length (in.): 14
Step Width (in.): 16-13/16 Step Depth (in.): 7 Step Spacing (in.): 10
Wheel Quantity/Diameter/Width (in.): (2) 10 x 2-1/2 Wheel Type: Hard Rubber Step (qty.): 7
Step Angle (degrees): 50 Top Step Height (in.): 70 Fold Down Length (in.): 118
Fold Down Width (in.): 30 Fold Down Height (in.): 30 Step Type: Perforated
OSHA: 1910.29 ANSI: A14.7
