Model Details

HYD-10-AIR

Printer Friendly

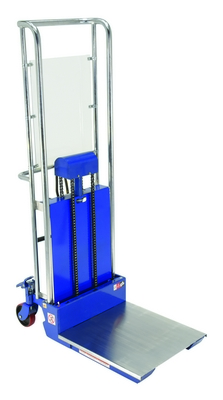

HYD-10-AIR

Steel Portable Air Foot Pump Hetti-Lift 41 In. x 69 In. 880 Lb. Capacity Blue

The air powdered Hetti-lifts are great a manufacturing or distributing facilities when space is limited. The single speed foot pump ad hand held push button control (reciprocating air/oil power) raise forks to the desired location. The foot pump can be utilized to maneuver the table height to a precise position. The unit requires a minimum hose diameter of 1/4" and air pressure of 72 to 100 psi.

  • Extended arms for lifting support
  • Air lifted for constant pressure
  • Compact design fits into snug spaces
  • Strong construction for durable use
Total Ship Wt.(lbs.): 295 (only 1 package) Size: 23"W x 36"L x 70"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 880 Platform Width/Length (in.): 23 x 24 Service Range (in.): 3-1/2 to 59
Operation: Air Powered Platform Travel per Stroke (in.): 3/4 Individual Fork Width/Height (in.): 4-3/8 x 2-1/2
Fork Length (in.): 24 Overall Fork Width (in.): 21-3/4 Handle Height (in.): 42
Back Caster Quantity/Diameter/Width (in.): (2) 5 x 2 Back Caster Type: Swivel Front Caster Quantity/Diameter/Width (in.): (2) 3 x 1-1/2
Front Caster Type: Rigid Caster Material: Poly-on-Steel Outrigger Inside Dimension (in.): 14
Outrigger Outside Dimension (in.): 18-1/4

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: HYD-10-AIR
HYD-10-AIR

Steel Portable Air Foot Pump Hetti-Lift 41 In. x 69 In. 880 Lb. Capacity Blue

The air powdered Hetti-lifts are great a manufacturing or distributing facilities when space is limited. The single speed foot pump ad hand held push button control (reciprocating air/oil power) raise forks to the desired location. The foot pump can be utilized to maneuver the table height to a precise position. The unit requires a minimum hose diameter of 1/4" and air pressure of 72 to 100 psi.

  • Extended arms for lifting support
  • Air lifted for constant pressure
  • Compact design fits into snug spaces
  • Strong construction for durable use
Dimensions: 23"W x 36"L x 70"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215116541 GTIN: 00691215116541
Warranty: -- Shipping Weight: 295 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 880 Platform Width/Length (in.): 23 x 24 Service Range (in.): 3-1/2 to 59
Operation: Air Powered Platform Travel per Stroke (in.): 3/4 Individual Fork Width/Height (in.): 4-3/8 x 2-1/2
Fork Length (in.): 24 Overall Fork Width (in.): 21-3/4 Handle Height (in.): 42
Back Caster Quantity/Diameter/Width (in.): (2) 5 x 2 Back Caster Type: Swivel Front Caster Quantity/Diameter/Width (in.): (2) 3 x 1-1/2
Front Caster Type: Rigid Caster Material: Poly-on-Steel Outrigger Inside Dimension (in.): 14
Outrigger Outside Dimension (in.): 18-1/4
