Model Details

HBS-85

HBS-85

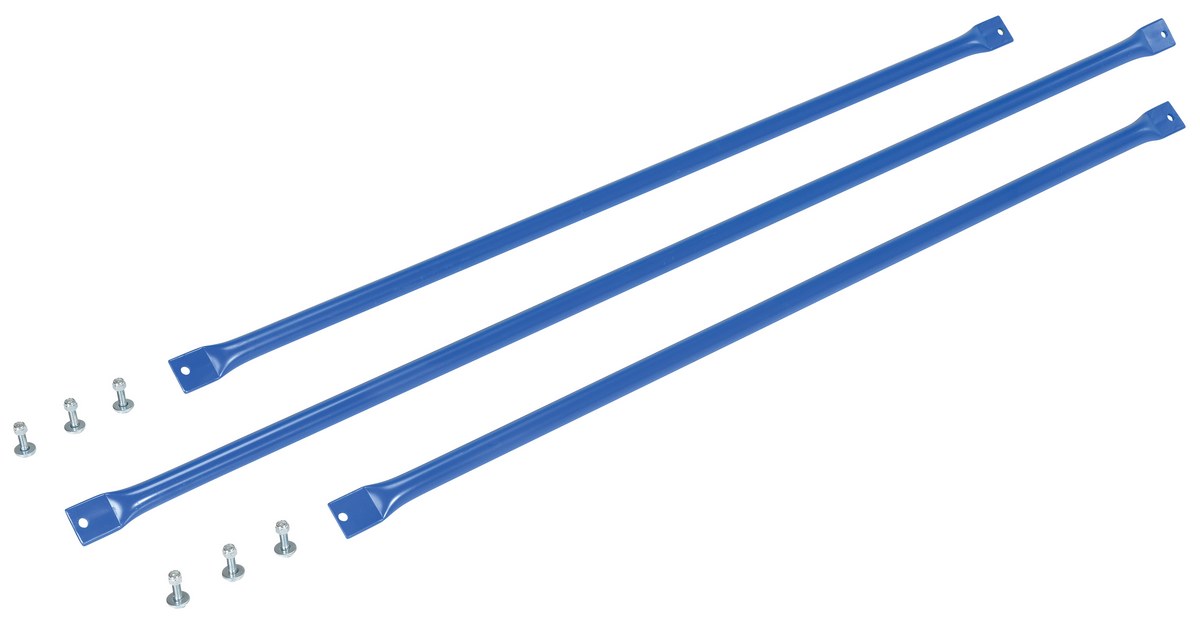

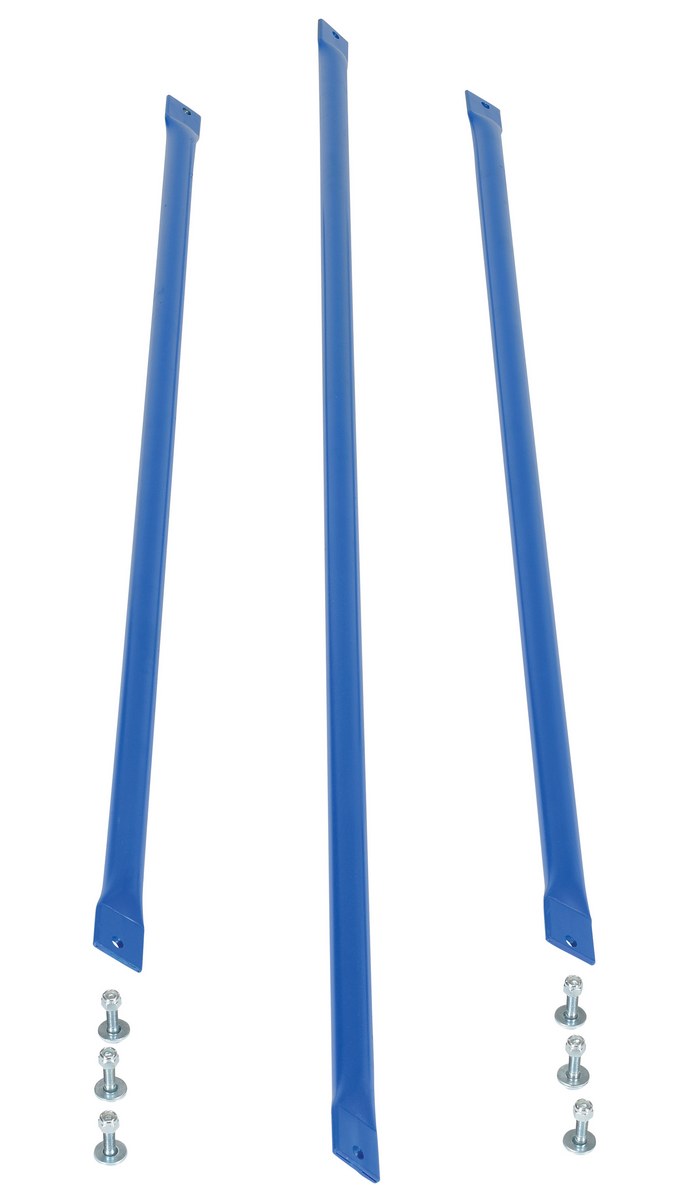

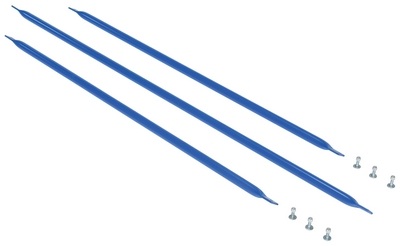

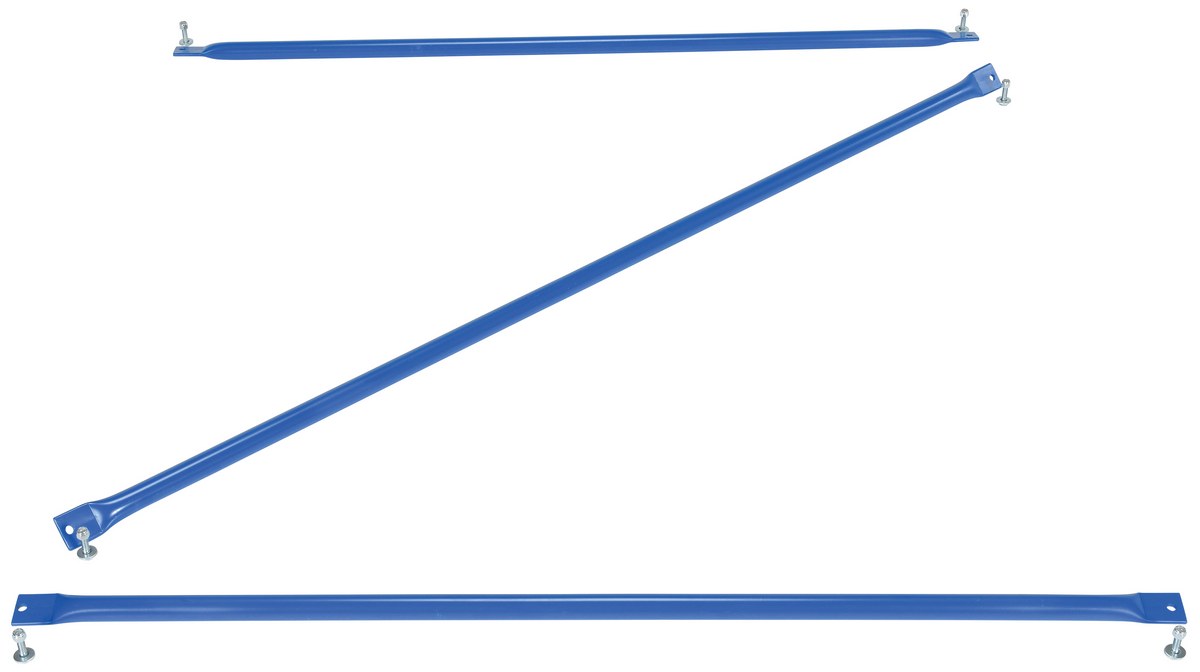

Steel Structural Cantilever Brace Set 60 In. x 96 In. Blue

Structural Cantilever racking offers flexibility to custom-fit individual applications. The horizontal/diagonal braces unique bolt together construction with welded steel components offers a great combination of strength and durability. Individual components are sold separately to accommodate your requirements.

  • Rack is completely adjustable for application specific design
  • Non welded stock is handled quickly and efficiently by forklift
  • Bolt together with welded steel construction are for strength and durability
  • Individual components are sold to accommodate specific requirements
Total Ship Wt.(lbs.): 36 (only 1 package) Size: 73.125"W x 1.9375"L x 1.3125"H Color: Blue

Component: Brace Set Column Height (in.): 96 Column Spacing (in.): 60
Horizontal Brace Quantity/Width (in.): (2) 56-3/4 Diagonal Brace Quantity/Width (in.): (1) 73-1/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: HBS-85


HBS-85

Steel Structural Cantilever Brace Set 60 In. x 96 In. Blue

Structural Cantilever racking offers flexibility to custom-fit individual applications. The horizontal/diagonal braces unique bolt together construction with welded steel components offers a great combination of strength and durability. Individual components are sold separately to accommodate your requirements.

  • Rack is completely adjustable for application specific design
  • Non welded stock is handled quickly and efficiently by forklift
  • Bolt together with welded steel construction are for strength and durability
  • Individual components are sold to accommodate specific requirements
Dimensions: 73.125"W x 1.9375"L x 1.3125"H Sell UOM: ST-Set Color: Blue
Material: Steel UPC: 691215021920 GTIN: 00691215021920
Warranty: -- Shipping Weight: 36 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: PACK_OR_INNER_PACK Drawing Required? N
Component: Brace Set Column Height (in.): 96 Column Spacing (in.): 60
Horizontal Brace Quantity/Width (in.): (2) 56-3/4 Diagonal Brace Quantity/Width (in.): (1) 73-1/8
