Model Details

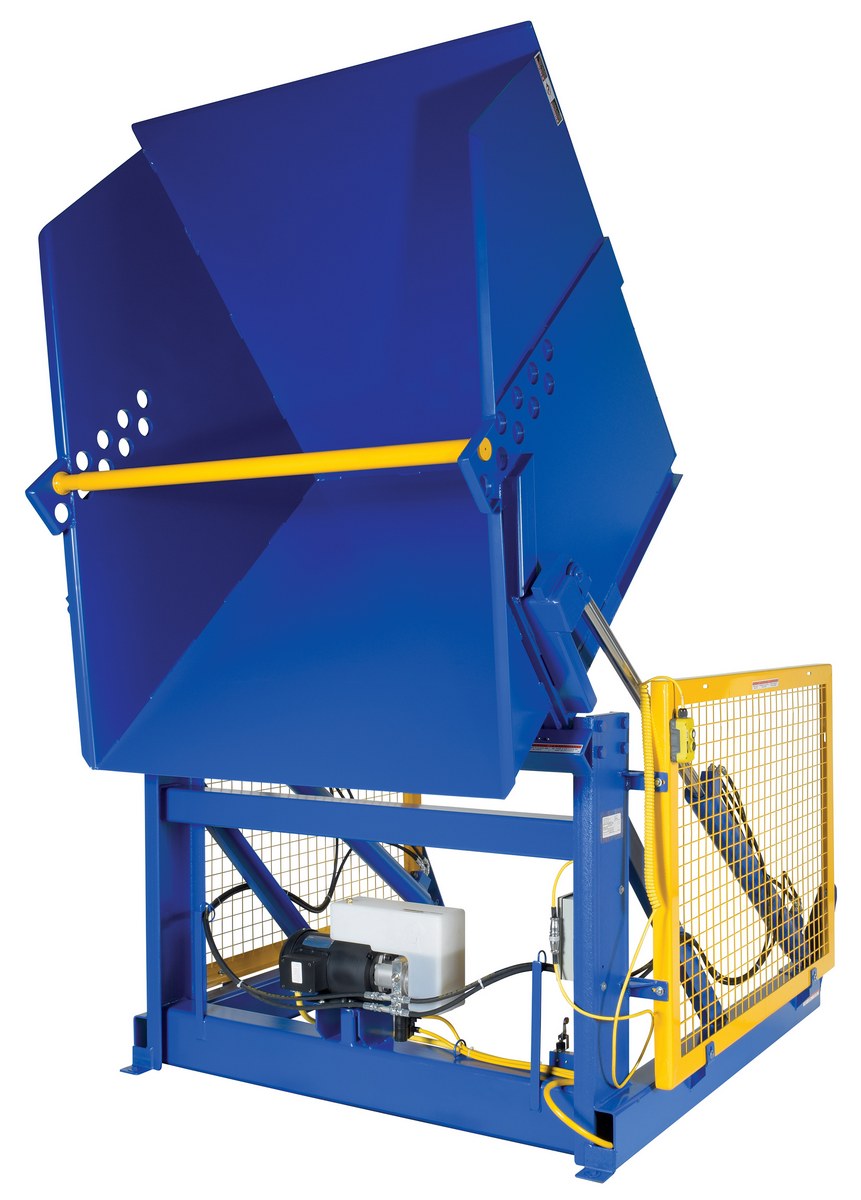

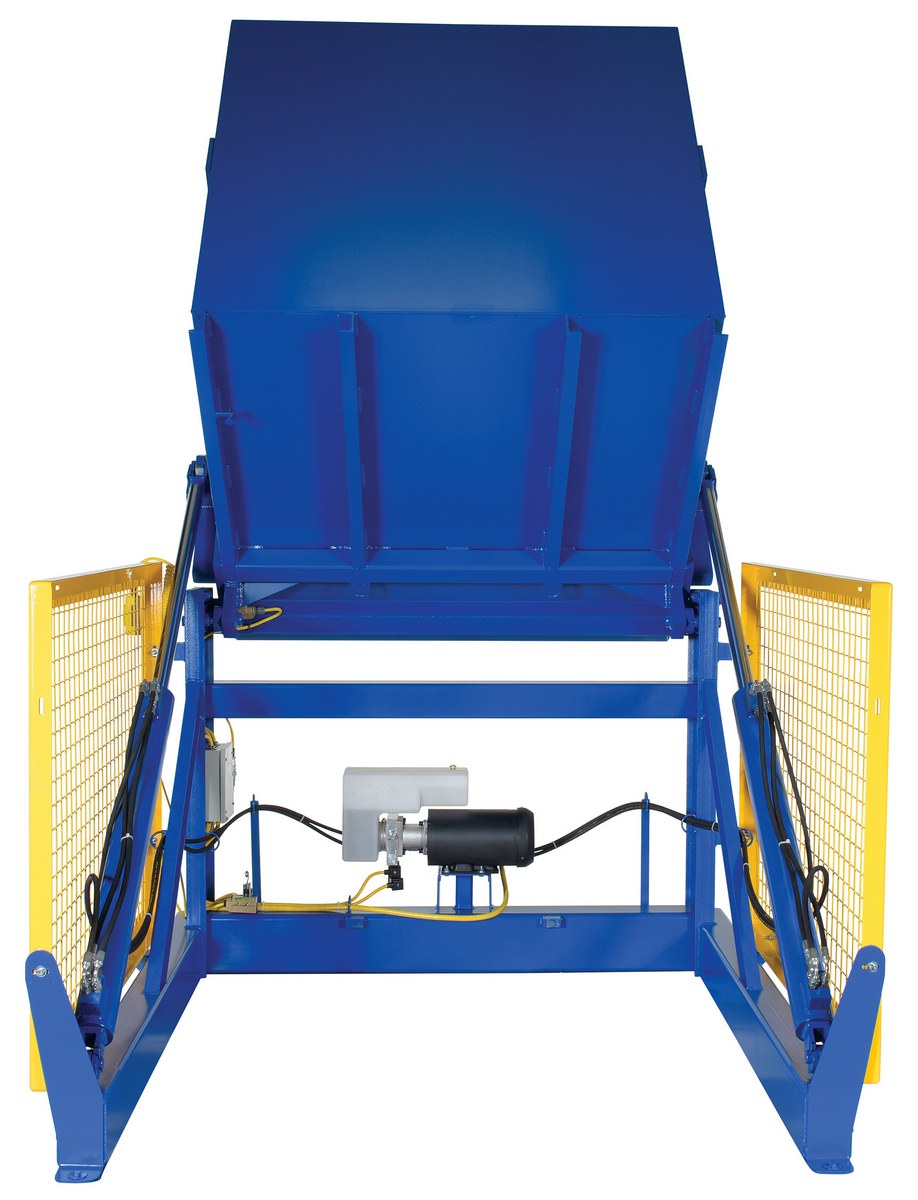

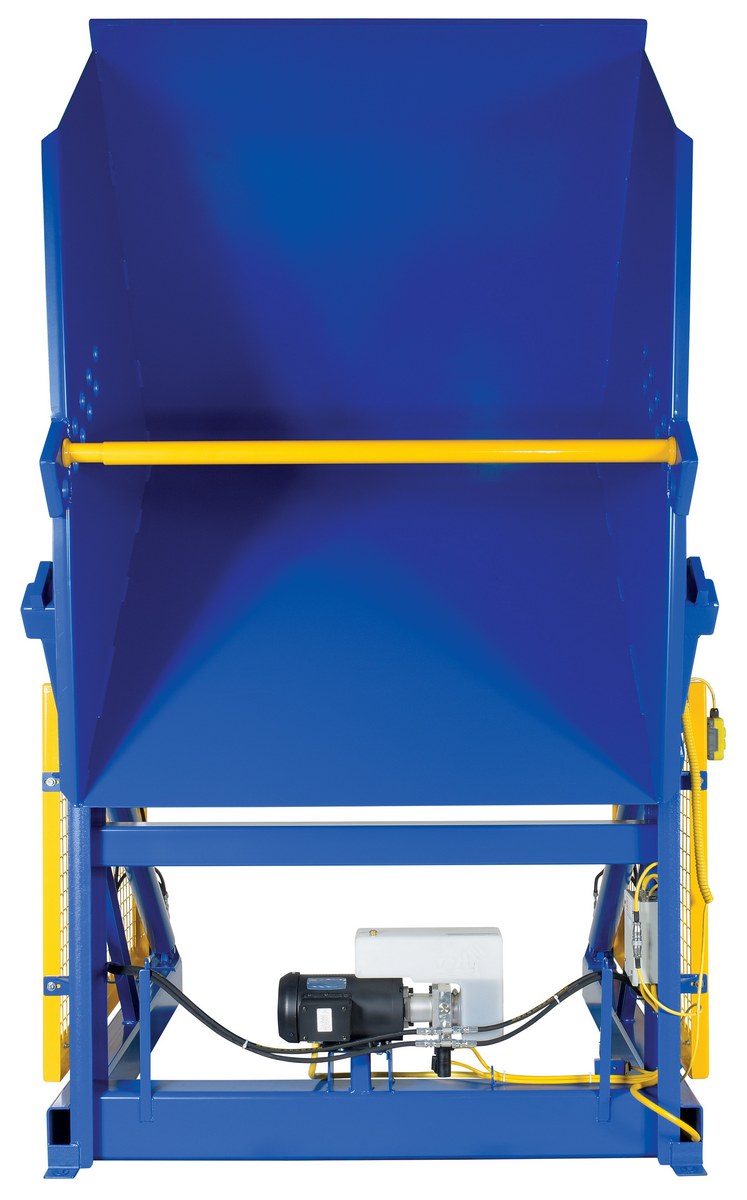

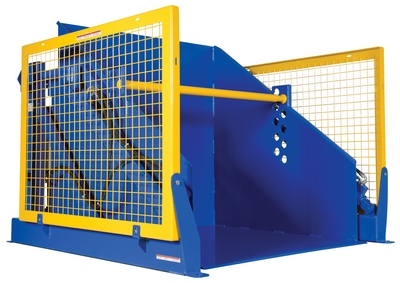

The electric/Hydraulic box dumper is designed for controlled dumping of material from boxes, crates, and other types of containers. It is designed for pallet truck loading and unloading. The retaining bar adjusts to accommodate a wide range of container heights. Each dump height has a hold down range and an internal power unit with a hand held control standard. It has a heavy-duty welded steel construction with protective mesh side screens included.
Uniform Capacity (lb.): 6000 | Dump Height (in.): 36 | Rotated Height (in.): 111 |
Lowered Height (in.): 3/8 | Usable Chute Width/Length (in.): 52 x 50 | Chute Reach at Full Rotation (in.): 10 |
Hold Downs (in.): 18 to 36 | Maximum Rotation Travel (degree): 135 | Dump Angle (degree): 45 |
Motor Horsepower: 5.5 | Voltage: 460/3 Phase | Maximum Duty Cycle Starts Per Hour: 15 |
Hand Held Control (volts): 24 | Hand Held Control Length (ft.): 8 | Standard Output: AC |
Cord Length (ft.): 2 |
Quickship Item?
Can It Ship UPS/FedEx?
Details For Model: HBD-6-36 |
|||||||||||||||||||||||||||||||||
![]() |
Steel Electric Hydraulic Box Dumper 36 In. Dump Height 6,000 Lb. Capacity BlueThe electric/Hydraulic box dumper is designed for controlled dumping of material from boxes, crates, and other types of containers. It is designed for pallet truck loading and unloading. The retaining bar adjusts to accommodate a wide range of container heights. Each dump height has a hold down range and an internal power unit with a hand held control standard. It has a heavy-duty welded steel construction with protective mesh side screens included.
|
||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
