Model Details

H-75-LD

Printer Friendly

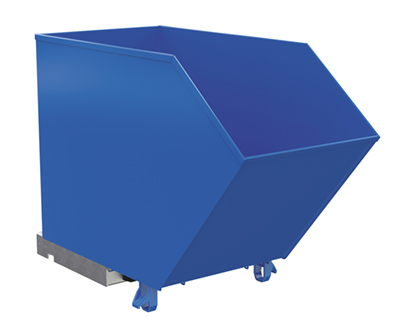

H-75-LD

Steel Light Duty Low Profile Self Dumping Hopper 3/4 Cubic Yard 2000 Lb. Capacity Blue

The Light Duty Low Profile 90 degree self-dumping steel Hopper feature a full ninety (90) degree dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. Fork pockets are 22" long and are capped on the end to allow for 90 degrees dump. The included safety restraint/chain must be securely attached to the lift truck carriage without slack. Models with same overall width may be stacked. For example, models H-25 may be stacked with H-50’s, the H-100’s can be stacked with H-150’s, while the H-200 hoppers can only be stacked with other H-200 series models. Never stack hoppers more than 3 high.

  • Low-profile design makes loading easier
  • Included manual pull-cable dumps hopper from seat of fork truck
  • Full 90 degree dump angle returns to upright position when lowered to ground
  • Features heavy-duty latch mechanism for worker safety
Total Ship Wt.(lbs.): 241 (only 1 package) Size: 27"W x 56.5625"L x 38.625"H Color: Blue

Uniform Capacity (lbs.): 2000 Fork Pocket Center (in.): 11-5/8 Usable Fork Pocket Width (in.): 7
Usable Fork Pocket Height (in.): 2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: H-75-LD
H-75-LD

Steel Light Duty Low Profile Self Dumping Hopper 3/4 Cubic Yard 2000 Lb. Capacity Blue

The Light Duty Low Profile 90 degree self-dumping steel Hopper feature a full ninety (90) degree dump angle with a cushioned rubber bumper stop. The low profile design is essential for convenient loading. Dumping with a fork truck is quick and simple. A cable is pulled from the seat of the fork truck to dump the hopper. The unit returns to an upright and locked position when lowered to the ground. Fork pockets are 22" long and are capped on the end to allow for 90 degrees dump. The included safety restraint/chain must be securely attached to the lift truck carriage without slack. Models with same overall width may be stacked. For example, models H-25 may be stacked with H-50’s, the H-100’s can be stacked with H-150’s, while the H-200 hoppers can only be stacked with other H-200 series models. Never stack hoppers more than 3 high.

  • Low-profile design makes loading easier
  • Included manual pull-cable dumps hopper from seat of fork truck
  • Full 90 degree dump angle returns to upright position when lowered to ground
  • Features heavy-duty latch mechanism for worker safety
Dimensions: 27"W x 56.5625"L x 38.625"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215343923 GTIN: 00691215343923
Warranty: -- Shipping Weight: 241 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs.): 2000 Fork Pocket Center (in.): 11-5/8 Usable Fork Pocket Width (in.): 7
Usable Fork Pocket Height (in.): 2
