Model Details

GR-H2R-BO-6-HDG

GR-H2R-BO-6-HDG

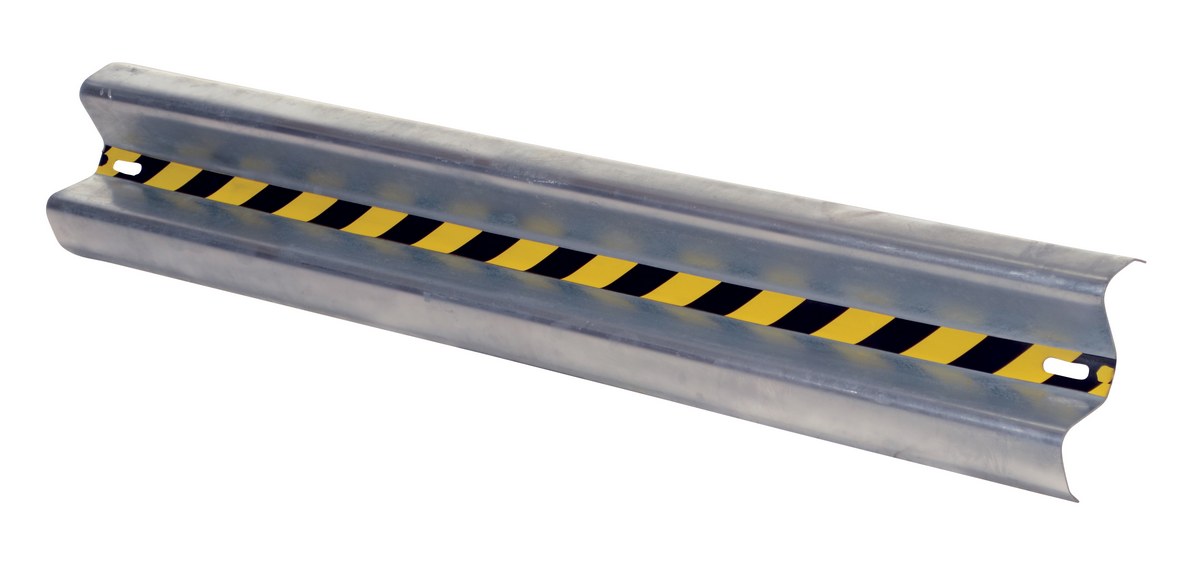

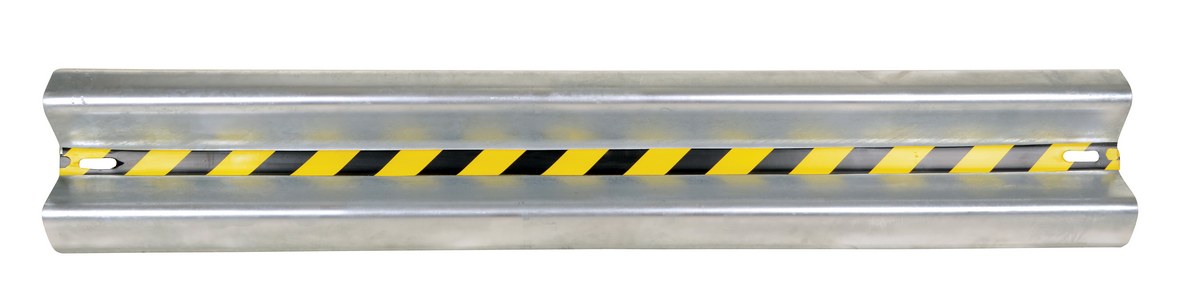

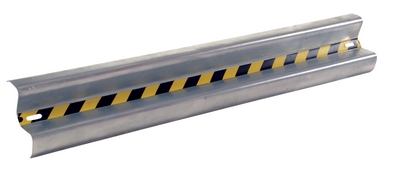

Galvanized Steel Straight Guard Rail 72 In. Length Gray

Protect personnel and equipment both visually and physically with this guard rail system. This economical system can be utilized indoors or outdoors. Ideal for protecting corners of buildings and machinery from fork truck and vehicle damage. Choose between one, two, or three high rail systems. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.

  • Guard rail design protects equipment visually and physically
  • Economical system can be utilized indoors or outdoors
  • Heavy-duty design protects corners of buildings and machinery from fork truck and vehicle damage
  • Steel offers strong reliable protection
Total Ship Wt.(lbs.): 48 (only 1 package) Size: 4.625"W x 72"L x 12"H Color: Gray

Mounting Posts Required (qty.): 2 Rail Style: Straight Impact Resistance: 4,000 lb. @ 4 mph
Overlap on Shared Post Deduct (in.): 5 Rail Mounting Hole Slotted (in.): 3/4 x 2-1/2

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: GR-H2R-BO-6-HDG


GR-H2R-BO-6-HDG

Galvanized Steel Straight Guard Rail 72 In. Length Gray

Protect personnel and equipment both visually and physically with this guard rail system. This economical system can be utilized indoors or outdoors. Ideal for protecting corners of buildings and machinery from fork truck and vehicle damage. Choose between one, two, or three high rail systems. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.

  • Guard rail design protects equipment visually and physically
  • Economical system can be utilized indoors or outdoors
  • Heavy-duty design protects corners of buildings and machinery from fork truck and vehicle damage
  • Steel offers strong reliable protection
Dimensions: 4.625"W x 72"L x 12"H Sell UOM: EA-Each Color: Gray
Material: Steel UPC: 691215021418 GTIN: 00691215021418
Warranty: -- Shipping Weight: 48 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Mounting Posts Required (qty.): 2 Rail Style: Straight Impact Resistance: 4,000 lb. @ 4 mph
Overlap on Shared Post Deduct (in.): 5 Rail Mounting Hole Slotted (in.): 3/4 x 2-1/2
