Model Details

FPG-6

FPG-6

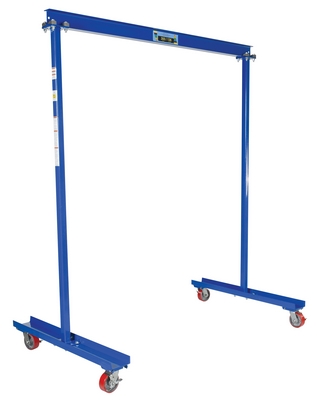

Steel Portable Work Area Gantry Crane 80-3/4 In. x 47-3/4 In. x 94 In. 600 Lb. Capacity Blue

The work area portable steel Gantry crane is designed to maximize material handling requirements in light-duty lifting applications. Lightweight design allows for easy mobility. Do not move unit while loaded. Steel construction with powder coat finish. Bolt together installation. Hoist and trolley not included.

  • Maximizes material handling in light-duty lifting
  • Lightweight design allows for easy mobility
  • Bolt together installation makes for an easy assembly
  • Steel construction with powder coat finish for strength & durability
Total Ship Wt.(lbs.): 276 (only 1 package) Size: 47.75"W x 80.75"L x 94"H Color: Blue

Uniform Capacity (lb.): 600 Under I-Beam to Ground Length (in.): 90 I-Beam (Flange Width x Height) (in.): 2-11/16 x 4
Base Width (in.): 47-3/4 Overall I-Beam length (in.): 79-3/4 I-Beam Usable length (in.): 69-3/4
Straddle Length (in.): 69 Caster Quantity/Diameter/Width (in.): (4) 5x2 Caster Material: Poly-on-Steel
Caster Type: Swivel with Brake

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FPG-6


FPG-6

Steel Portable Work Area Gantry Crane 80-3/4 In. x 47-3/4 In. x 94 In. 600 Lb. Capacity Blue

The work area portable steel Gantry crane is designed to maximize material handling requirements in light-duty lifting applications. Lightweight design allows for easy mobility. Do not move unit while loaded. Steel construction with powder coat finish. Bolt together installation. Hoist and trolley not included.

  • Maximizes material handling in light-duty lifting
  • Lightweight design allows for easy mobility
  • Bolt together installation makes for an easy assembly
  • Steel construction with powder coat finish for strength & durability
Dimensions: 47.75"W x 80.75"L x 94"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215020909 GTIN: 00691215020909
Warranty: -- Shipping Weight: 276 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 600 Under I-Beam to Ground Length (in.): 90 I-Beam (Flange Width x Height) (in.): 2-11/16 x 4
Base Width (in.): 47-3/4 Overall I-Beam length (in.): 79-3/4 I-Beam Usable length (in.): 69-3/4
Straddle Length (in.): 69 Caster Quantity/Diameter/Width (in.): (4) 5x2 Caster Material: Poly-on-Steel
Caster Type: Swivel with Brake
