FM-2572

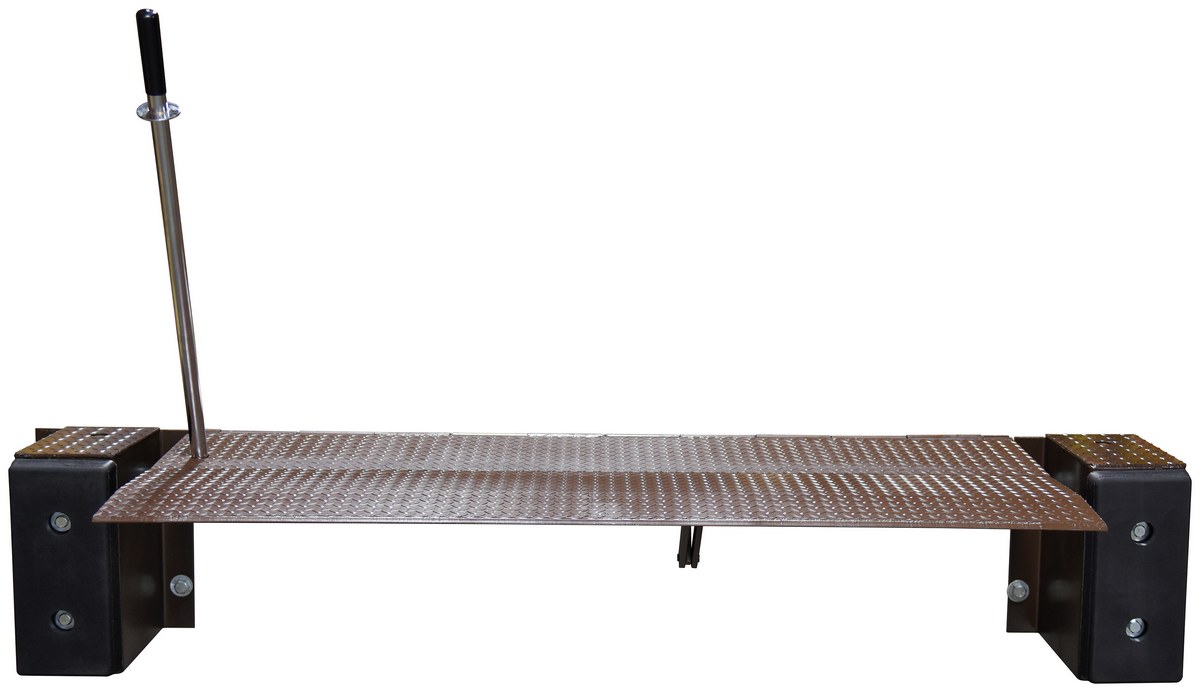

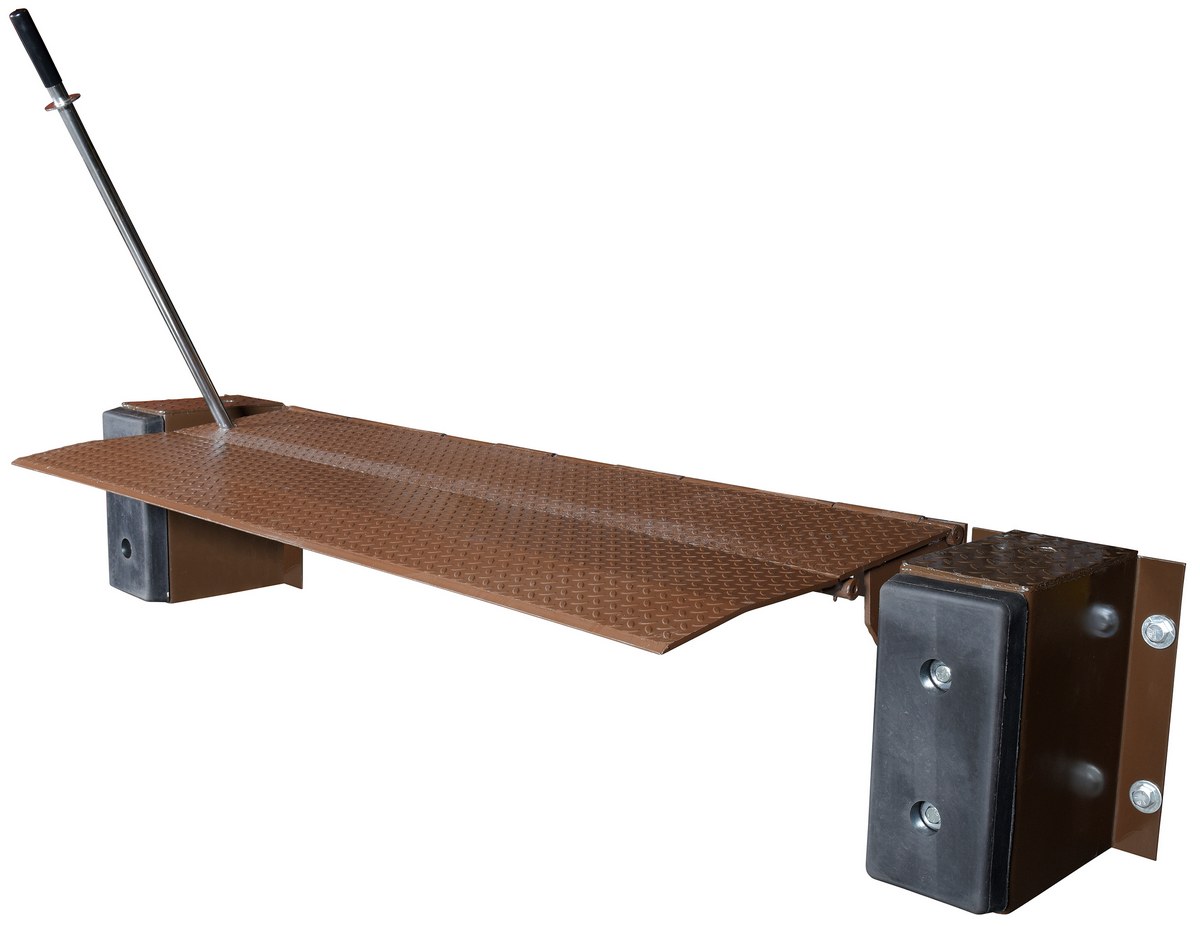

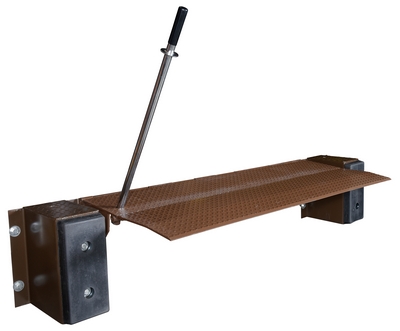

Steel Mechanical Edge O Dock Leveler 72 In. Ramp Width 25,000 Lb. Capacity Brown

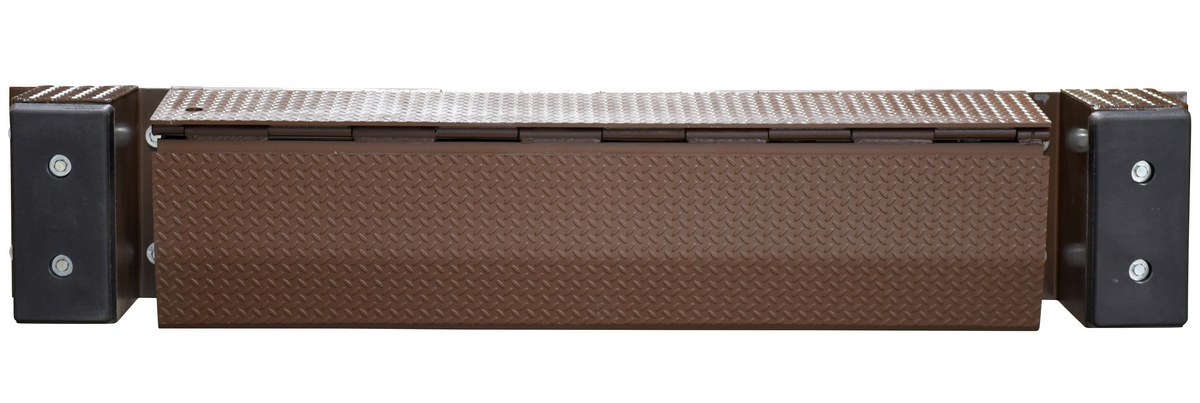

The Edge-O-Dock leveler permanently attaches to face of dock. It is recommended for docks to be at least forty-eight (48) inches high. When the trailer departs, the lip drops automatically behind the face of the bumpers. It comes complete with bumpers and installation instructions. Standard ramping is twenty-nine (29) inches. A steel dock edge, or approach ramp is required for proper installation. The mechanical Edge-O-Dock is operated by placing the actuation handle into the pocket of the inner lip and pulling down toward the floor. The operator then pushes the handle forward until the lip rests on the truck bed. As the trailer departs, the lip retracts behind the bumper face automatically.

  • Easy install allows unit to quickly mount to any loading dock with a steel dock edge
  • Tread plate design offers a positive non-slip gripping action
  • Concrete recess not required
  • Solid steel construction offers long lasting reliable use

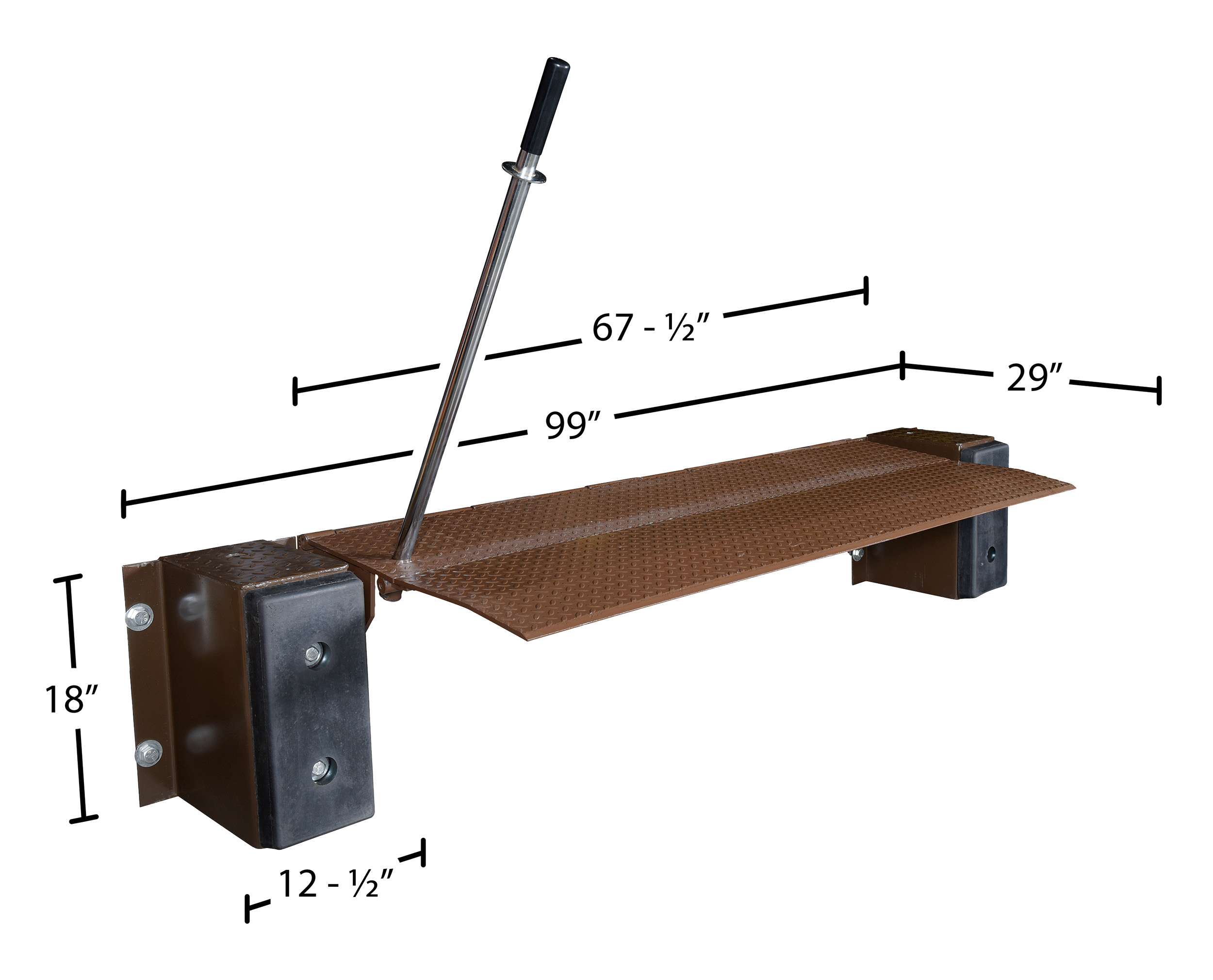

Total Ship Wt.(lbs.): 585 (only 1 package) Size: 99"W x 15"L x 18"H Color: Brown

Uniform Capacity (lb.): 25000 Service range above dock (in.): 5 Service range below dock (in.): 5
Bumper Width (in.): 8 Bumper Length (in.): 2 Bumper Height (in.): 18
Ramp Width (in.): 72 Ramping Length (in.): 29 Bumper projection including rubber bumper (in.): 15

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FM-2572
FM-2572

Steel Mechanical Edge O Dock Leveler 72 In. Ramp Width 25,000 Lb. Capacity Brown

The Edge-O-Dock leveler permanently attaches to face of dock. It is recommended for docks to be at least forty-eight (48) inches high. When the trailer departs, the lip drops automatically behind the face of the bumpers. It comes complete with bumpers and installation instructions. Standard ramping is twenty-nine (29) inches. A steel dock edge, or approach ramp is required for proper installation. The mechanical Edge-O-Dock is operated by placing the actuation handle into the pocket of the inner lip and pulling down toward the floor. The operator then pushes the handle forward until the lip rests on the truck bed. As the trailer departs, the lip retracts behind the bumper face automatically.

  • Easy install allows unit to quickly mount to any loading dock with a steel dock edge
  • Tread plate design offers a positive non-slip gripping action
  • Concrete recess not required
  • Solid steel construction offers long lasting reliable use
Dimensions: 99"W x 15"L x 18"H Sell UOM: EA-Each Color: Brown
Material: Steel UPC: 691215020602 GTIN: 00691215020602
Warranty: -- Shipping Weight: 585 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 25000 Service range above dock (in.): 5 Service range below dock (in.): 5
Bumper Width (in.): 8 Bumper Length (in.): 2 Bumper Height (in.): 18
Ramp Width (in.): 72 Ramping Length (in.): 29 Bumper projection including rubber bumper (in.): 15
