Model Details

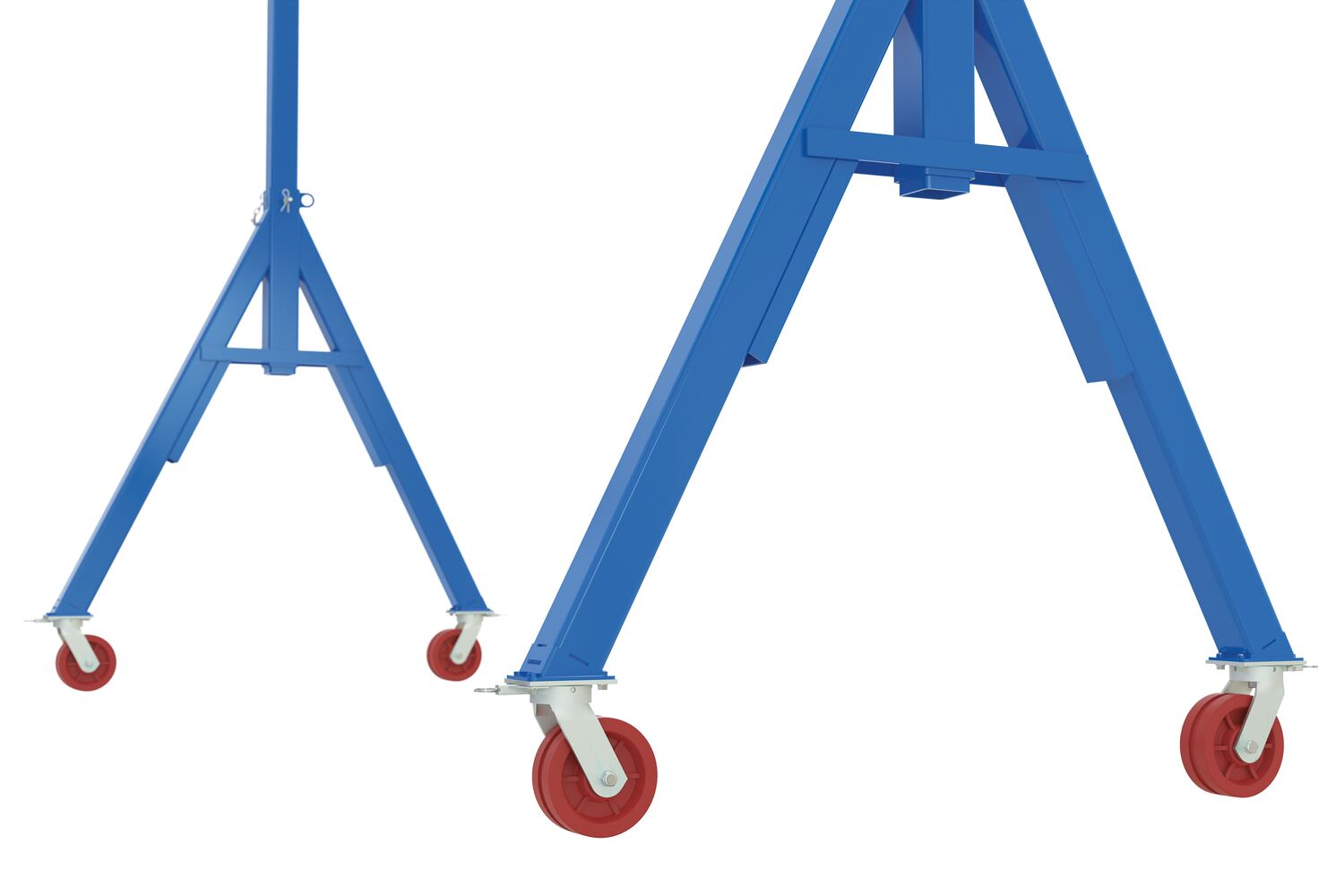

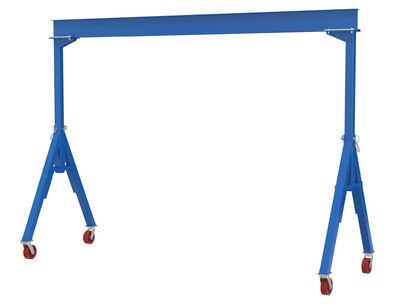

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.
Uniform Capacity (lbs.): 8000 | Casters Swivel (Qty): 4 | Caster Diameter (in.): 8 |
Caster Width (in.): 3 | Caster Material: Ductile Steel | Beam Height (in): 8.125 |
Beam Length (in): 120 | Usable Beam Length (in): 49.75 | Flange Width (in): 4 |
Base Width (in): 64.25 | Base Length (in): 109.25 | Maximum Overall Height (in): 129.313 |
Adjustable Height: No | Maximum Clearance (in): 121 |
Quickship Item?
Can It Ship UPS/FedEx?
Details For Model: FHS-8-10-VG |
|||||||||||||||||||||||||||||||
Steel Fixed Gantry Crane with V-Groove Ductile Steel Casters 10 Ft. 8000 Lb. Capacity BlueThe fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.
|
|||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||
