Model Details

FHS-2-10-TLC

Printer Friendly
FHS-2-10-TLC

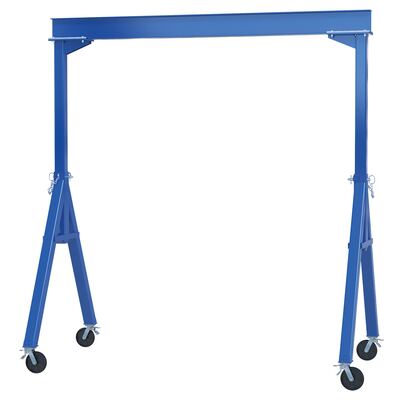

Steel Fixed Gantry Crane with Total Locking Glass Filled Nylon Casters 10 Ft. 2000 Lb. Capacity Blue

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard with total locking casters. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.

  • Sleek painted finish
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications
Total Ship Wt.(lbs.): 783 (Multiple Packages: P1: 624 lbs + P2: 159 lbs) Size: 64.5"W x 120"L x 126"H Color: Blue

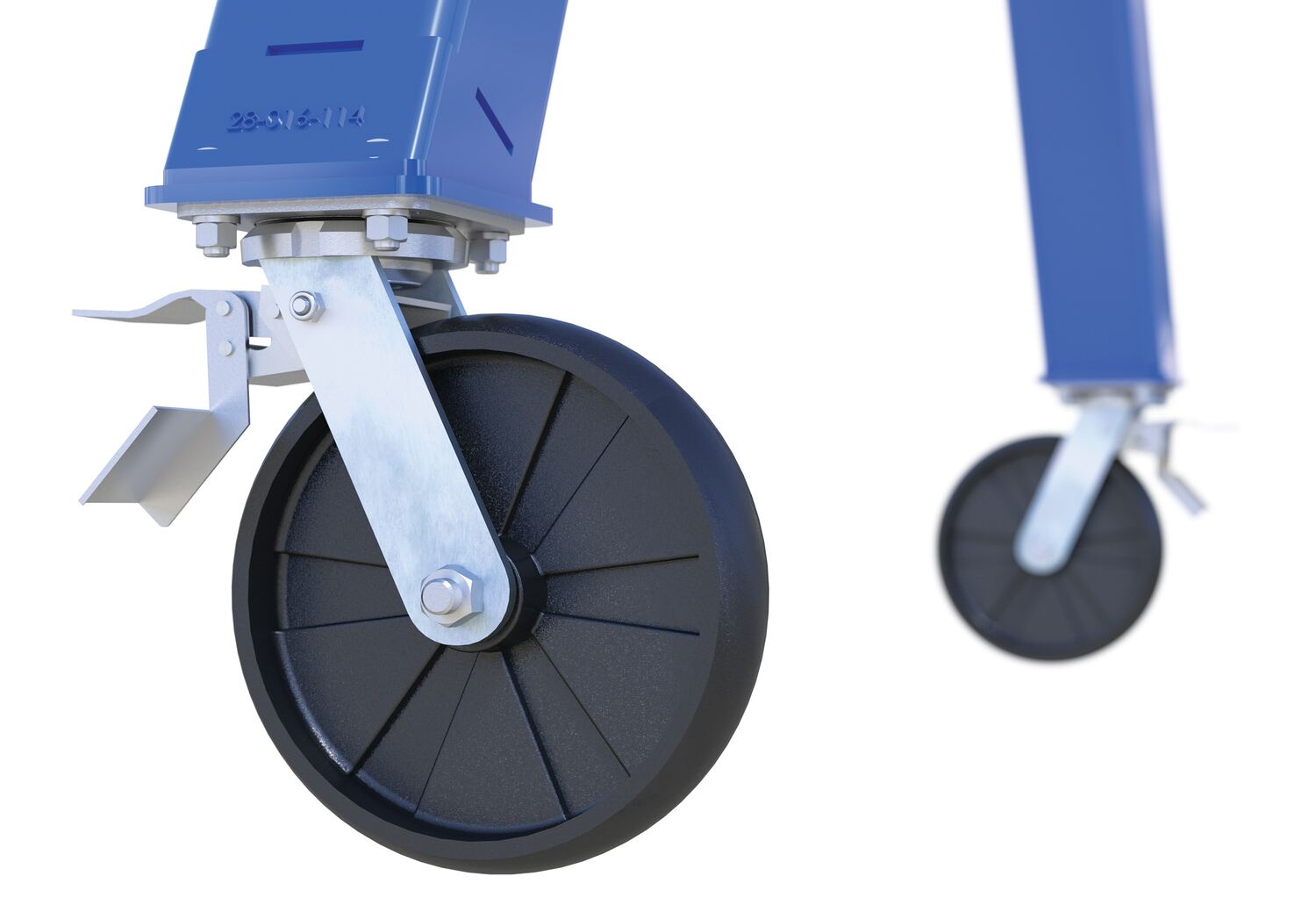

Uniform Capacity (lbs.): 2000 Casters Swivel with Brakes(Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 2 Caster Material: Glass Filled Nylon Beam Height (in): 6
Beam Length (in): 120 Usable Beam Length (in): 89.75 Flange Width (in): 4
Base Width (in): 64.5 Base Length (in): 109.25 Maximum Overall Height (in): 126
Adjustable Height: No Maximum Clearance (in): 120

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FHS-2-10-TLC
FHS-2-10-TLC

Steel Fixed Gantry Crane with Total Locking Glass Filled Nylon Casters 10 Ft. 2000 Lb. Capacity Blue

The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard with total locking casters. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.

  • Sleek painted finish
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications
Dimensions: 64.5"W x 120"L x 126"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215367677 GTIN: 00691215367677
Warranty: -- Shipping Weight: 624 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs.): 2000 Casters Swivel with Brakes(Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 2 Caster Material: Glass Filled Nylon Beam Height (in): 6
Beam Length (in): 120 Usable Beam Length (in): 89.75 Flange Width (in): 4
Base Width (in): 64.5 Base Length (in): 109.25 Maximum Overall Height (in): 126
Adjustable Height: No Maximum Clearance (in): 120
