FE-HS-5-63

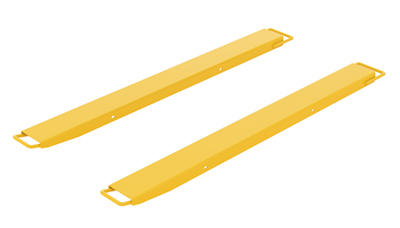

Steel High Strength Fork Extensions 5 In. x 63 In. 4,000 Lb. Capacity Yellow

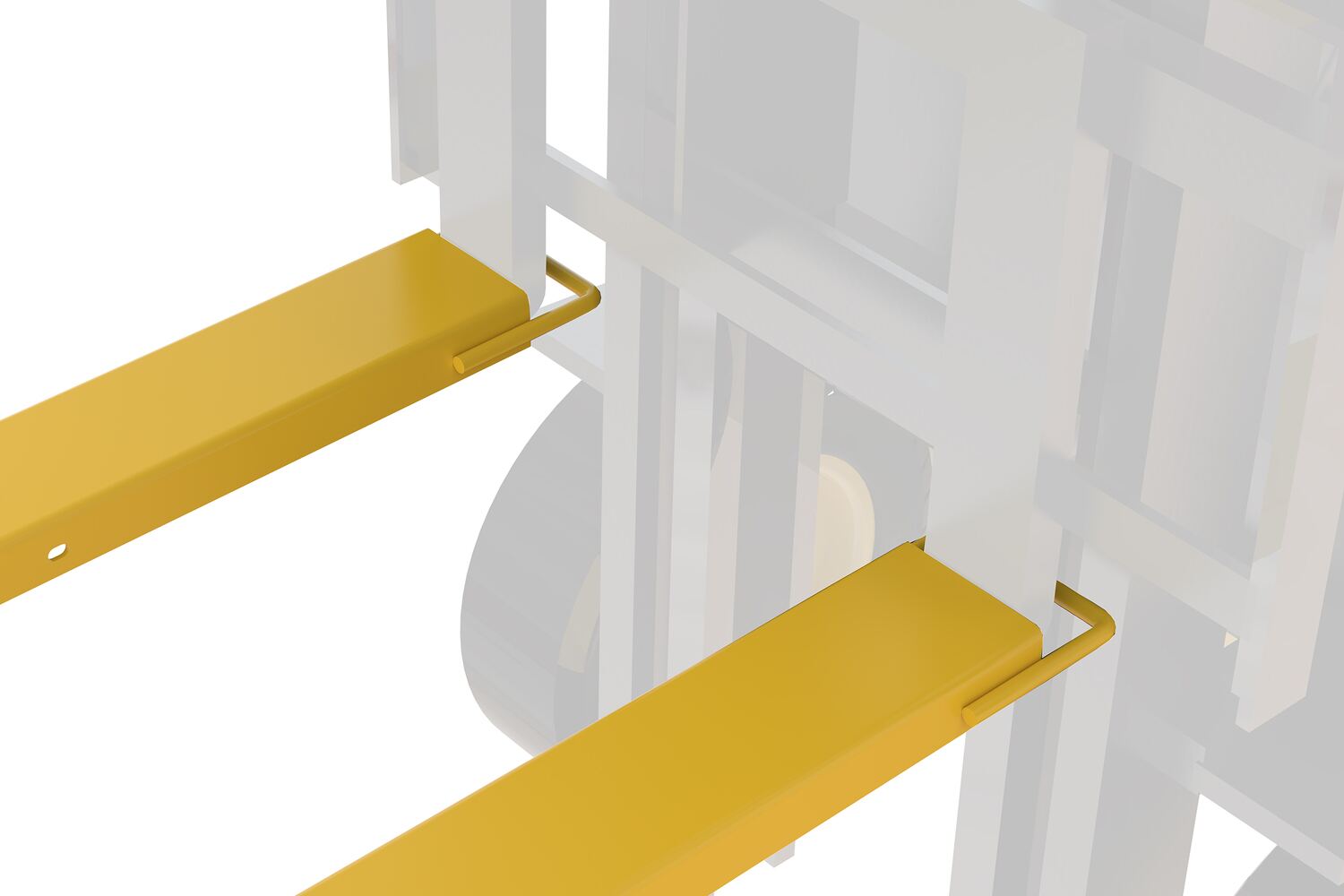

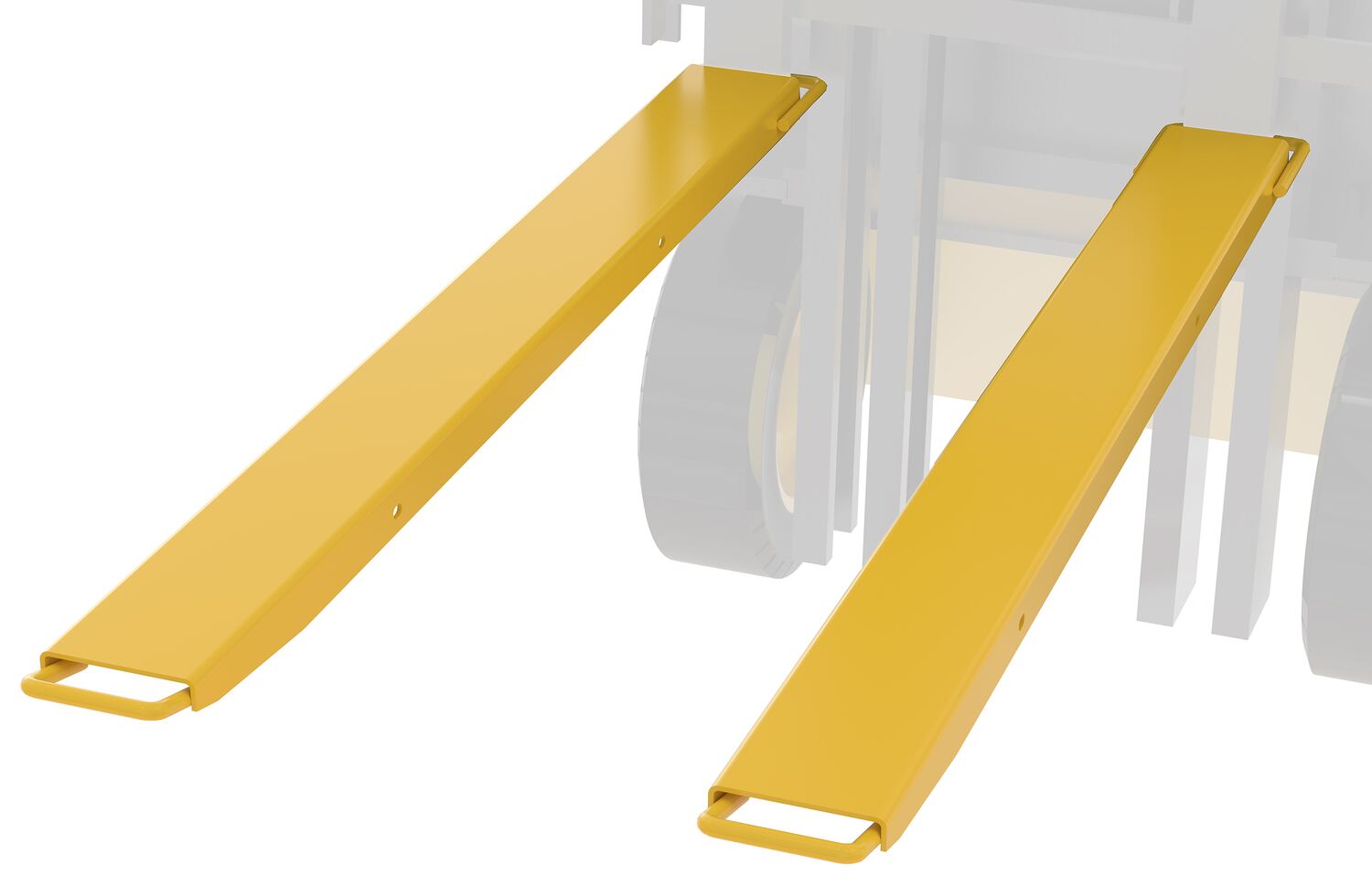

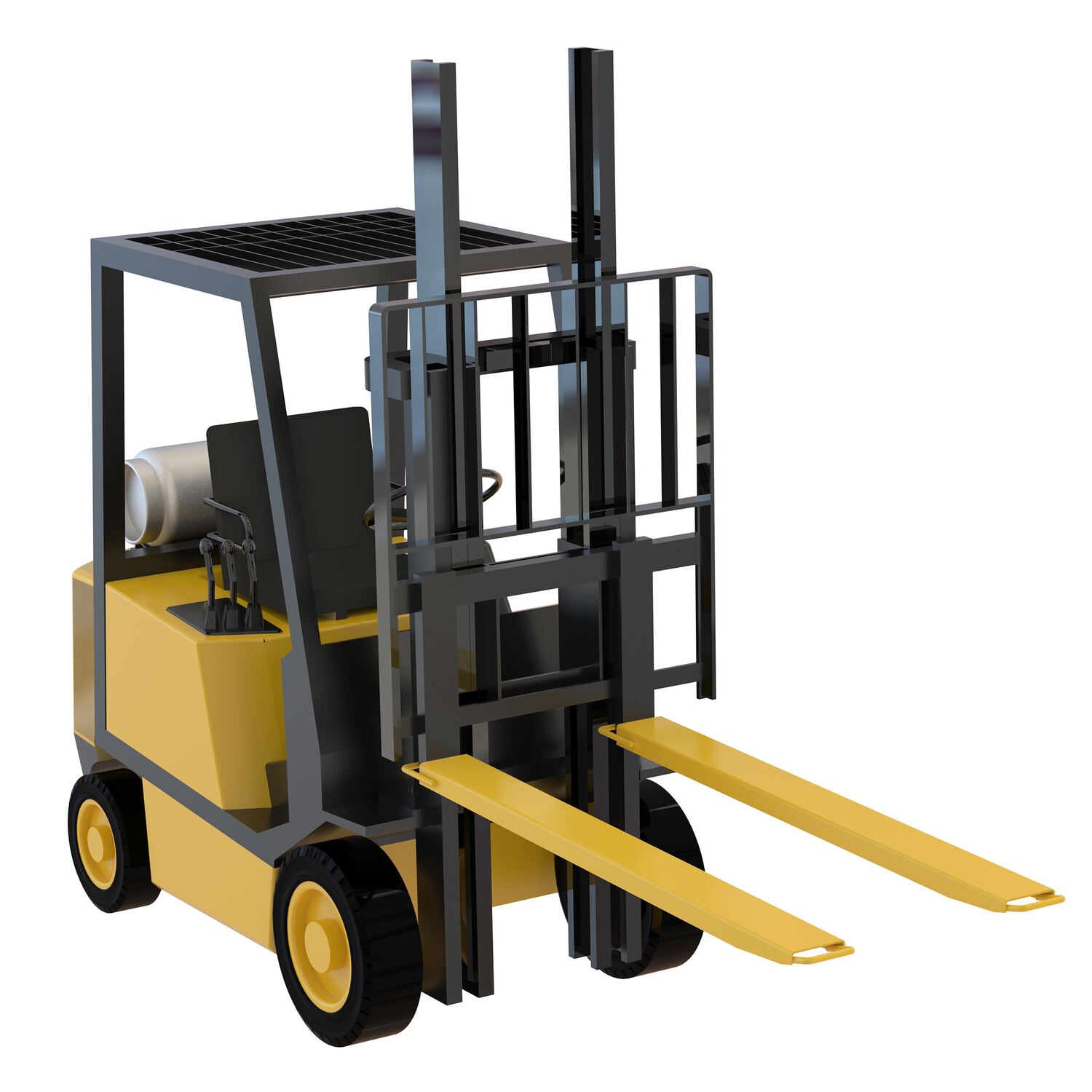

Fork extensions are the perfect accessory for new or existing forks. The high strength material provides extra support needed to lift large heavy objects with a fork lift. These models are almost 40% lighter than standard fork extensions. A powder coat finish is included to diminish scraps and minimize abrasion during use. To be used with class 2 and class 3 forks only. There are two handles included on each fork extension. The larger of the two is welded to the outside of the extension and it designed to go around the heel of the fork. While the smaller of the two handles is welded to the inside of each extension and is located at the front of the unit (opposite end). This handle is designed to assist the user while installing or removing the extension.

  • Smooth finish for simple cleaning
  • Brightly colored for clear visibility
  • Attached handle for easy handling
  • Compact design for minimal storage space
Total Ship Wt.(lbs.): 72 (Multiple Packages: P1: 36 lbs + P2: 36 lbs) Size: 7.125"W x 68.3125"L x 2.1875"H Color: Yellow

Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 Maximum Fork Thickness (in.): 2
Accommodates Fork Width (in.): 5 Fork Extension Inside Width (in.): 5-1/2 Mount Style: Loop Style
Steel Thickness (in.): 3/16

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: FE-HS-5-63
FE-HS-5-63

Steel High Strength Fork Extensions 5 In. x 63 In. 4,000 Lb. Capacity Yellow

Fork extensions are the perfect accessory for new or existing forks. The high strength material provides extra support needed to lift large heavy objects with a fork lift. These models are almost 40% lighter than standard fork extensions. A powder coat finish is included to diminish scraps and minimize abrasion during use. To be used with class 2 and class 3 forks only. There are two handles included on each fork extension. The larger of the two is welded to the outside of the extension and it designed to go around the heel of the fork. While the smaller of the two handles is welded to the inside of each extension and is located at the front of the unit (opposite end). This handle is designed to assist the user while installing or removing the extension.

  • Smooth finish for simple cleaning
  • Brightly colored for clear visibility
  • Attached handle for easy handling
  • Compact design for minimal storage space
Dimensions: 7.125"W x 68.3125"L x 2.1875"H Sell UOM: PR-Pair Color: Yellow
Material: Steel UPC: 691215320658 GTIN: 00691215320658
Warranty: -- Shipping Weight: 36 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: PACK_OR_INNER_PACK Drawing Required? N
Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 Maximum Fork Thickness (in.): 2
Accommodates Fork Width (in.): 5 Fork Extension Inside Width (in.): 5-1/2 Mount Style: Loop Style
Steel Thickness (in.): 3/16
