Model Details

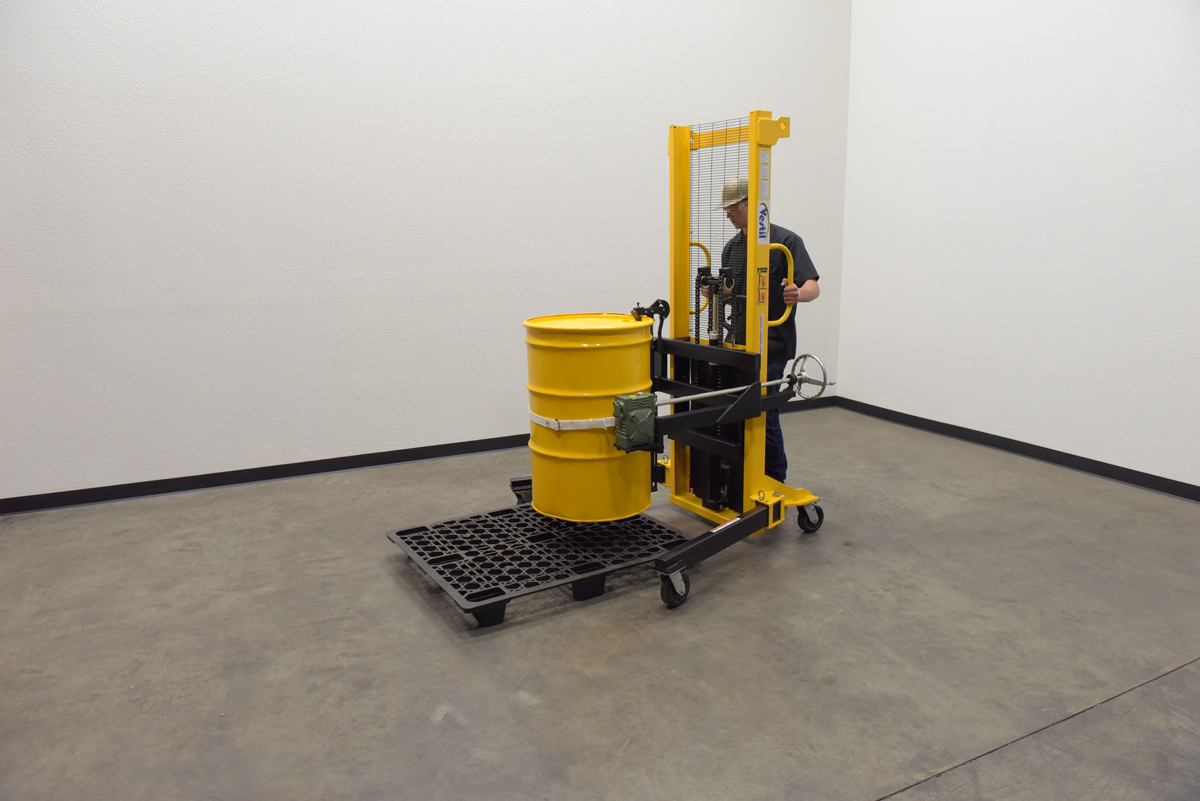

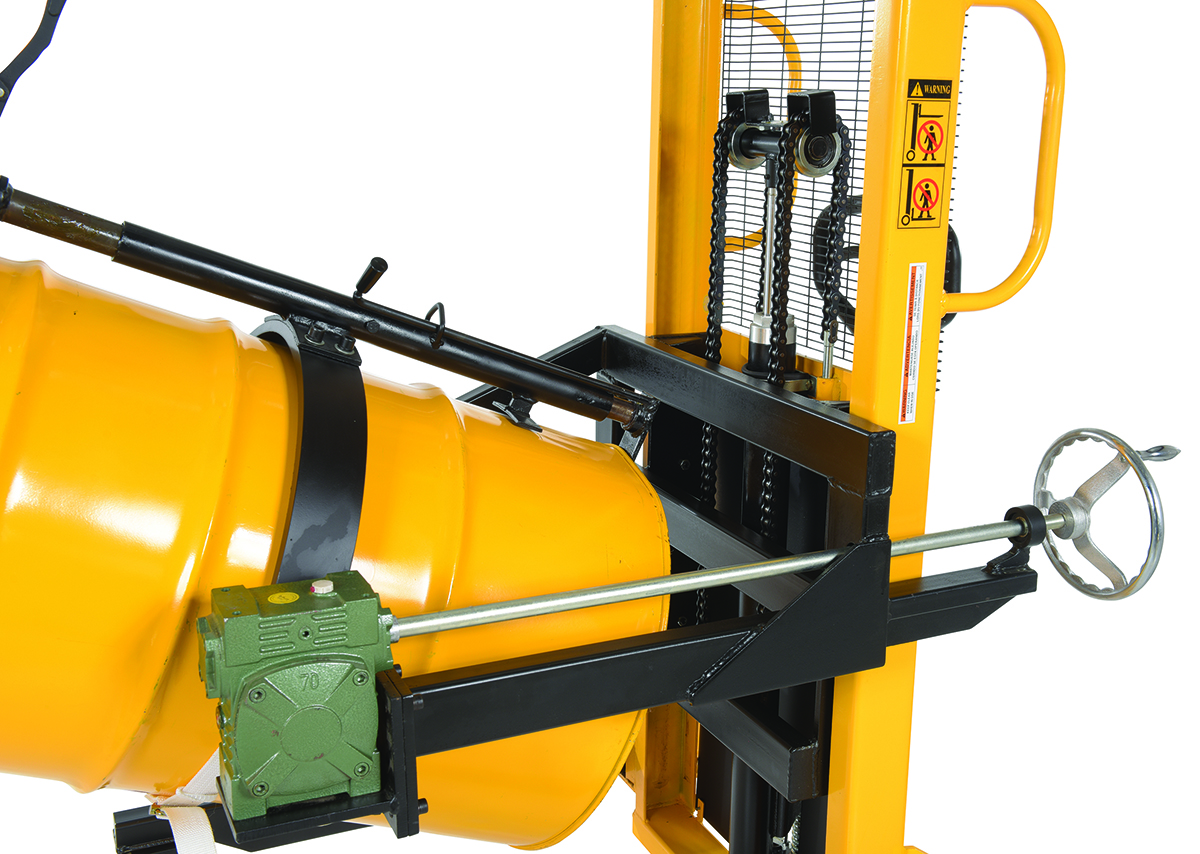

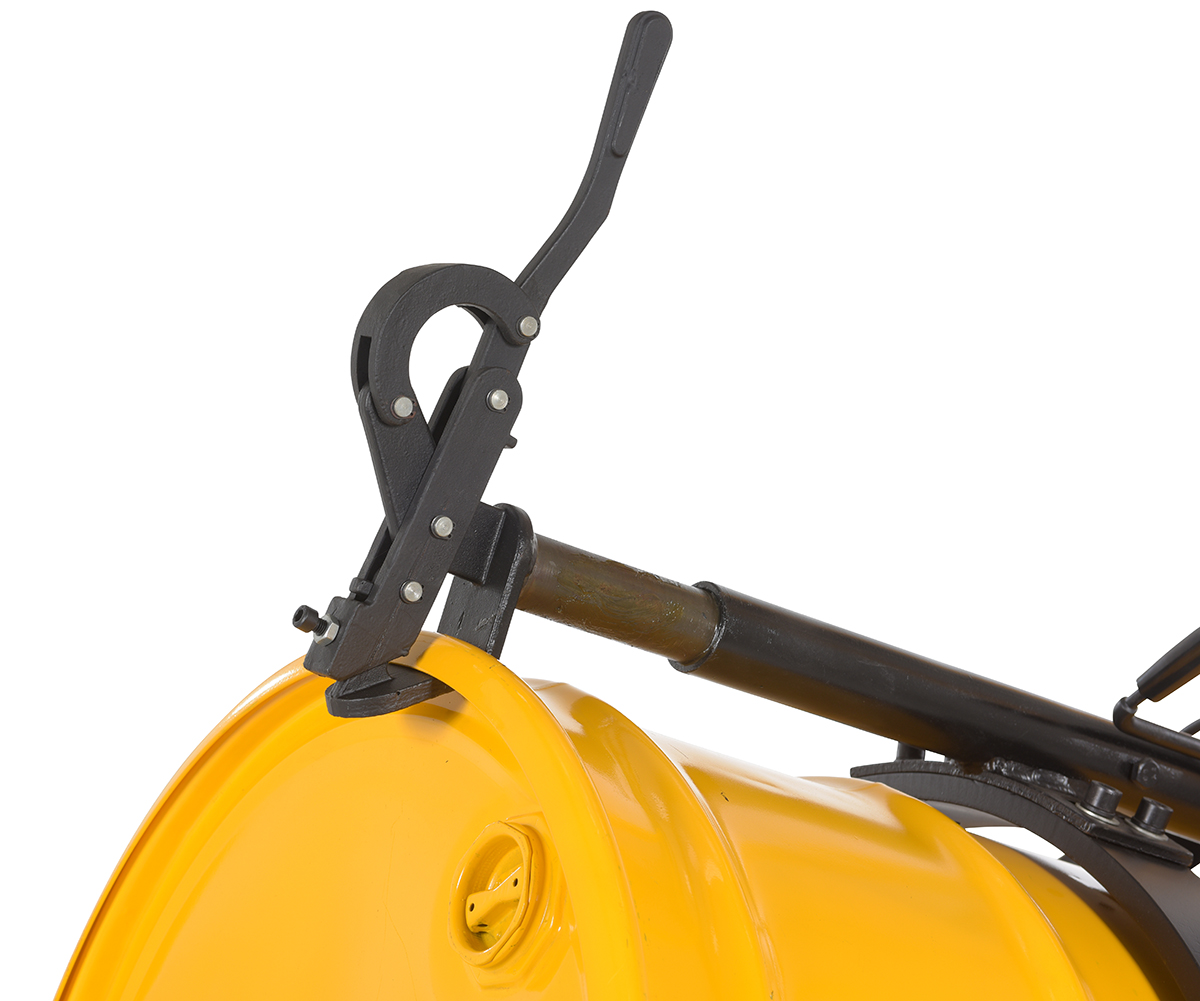

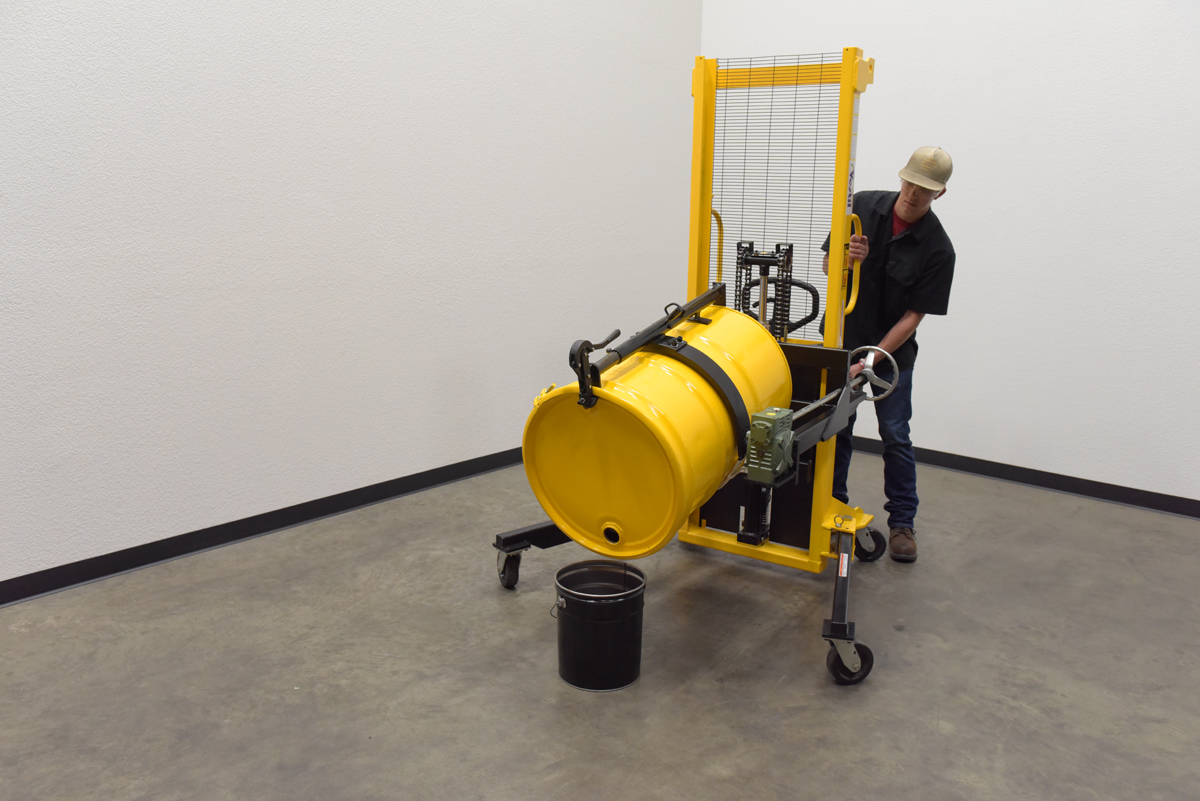

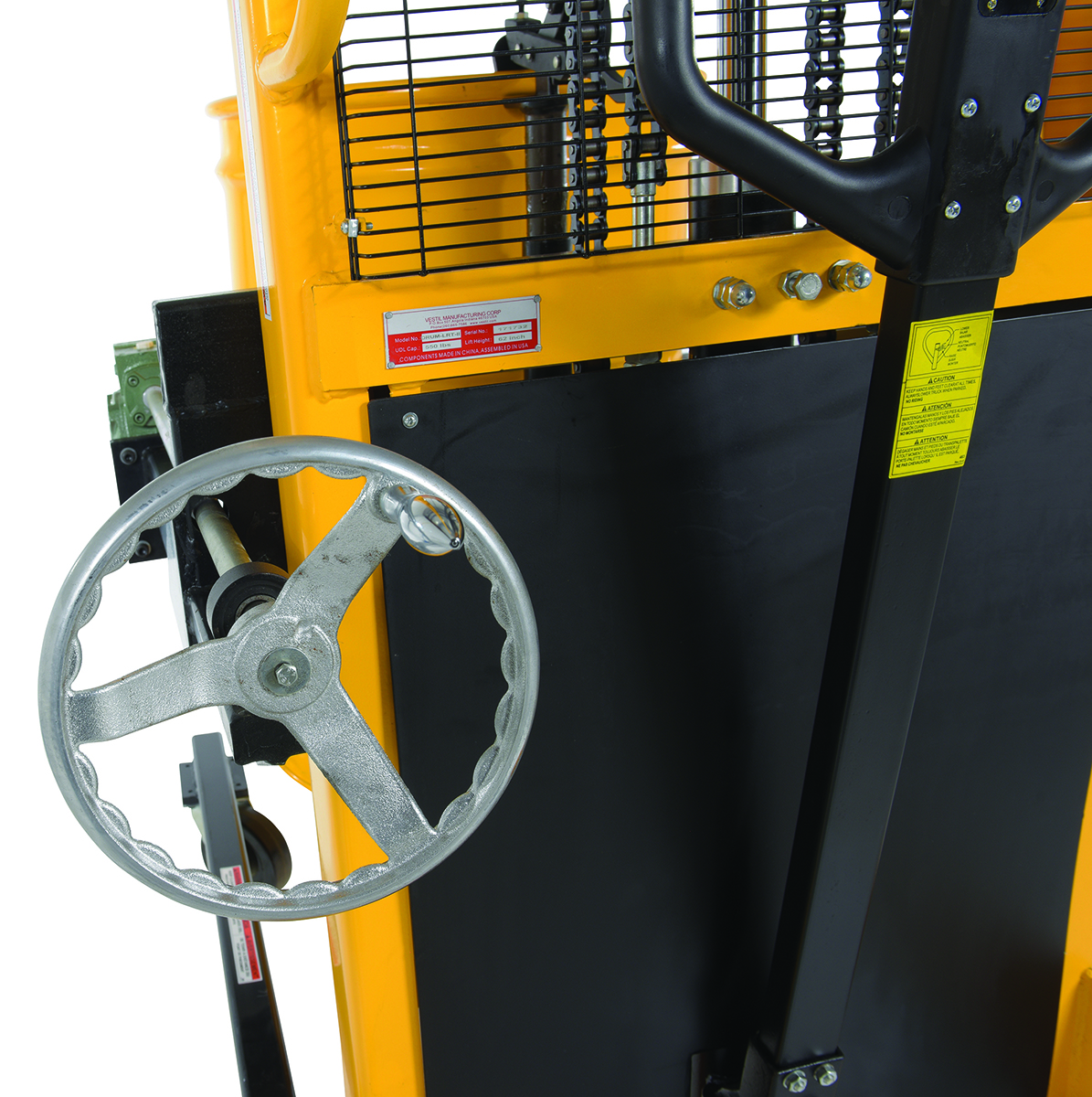

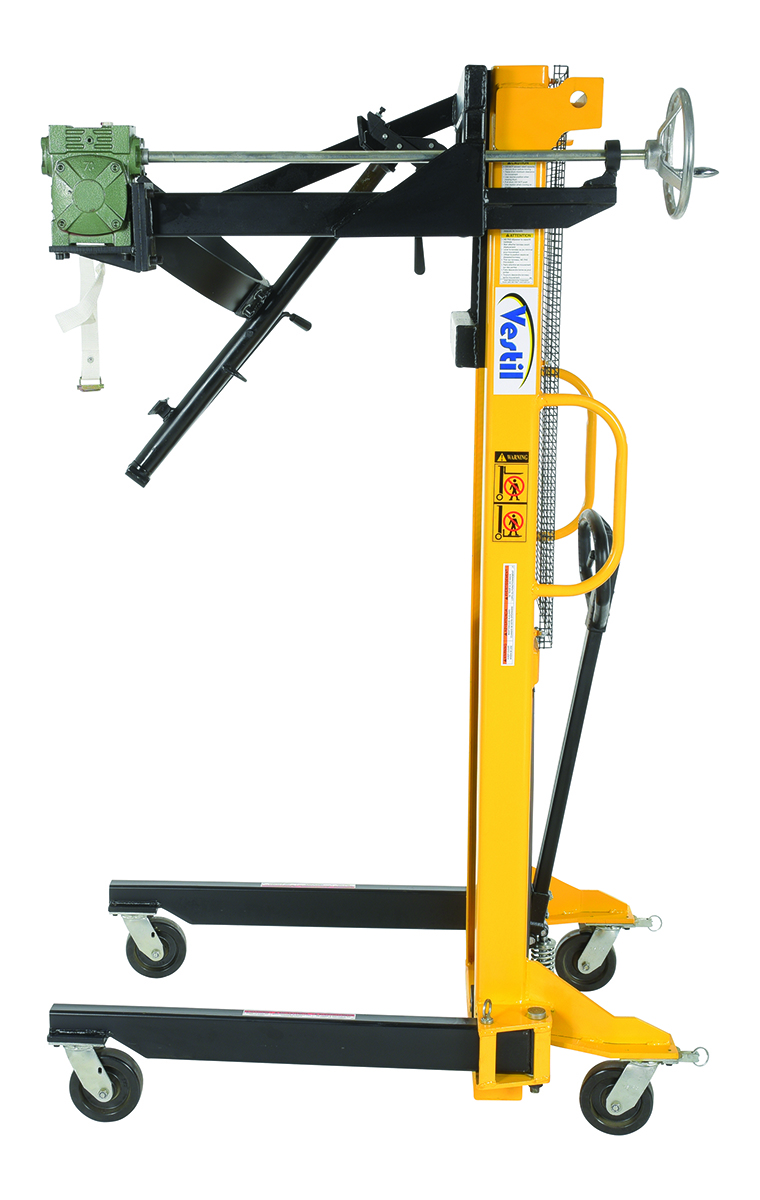

The manual operation, portable Drum Lifter/rotator/transporter features pivoting straddle legs for access to drums on pallets. Legs will manually pivot and lock into place with locking pin.
Uniform Capacity (lb.): 550 | Vertical Raised Height (in.): 62 | Horizontal (Dump) Raised Height (in.): 67 |
Drum Size: 55-gallon | Drum Diameter (in.): 24 | Drum Type: Steel, Fiber |
Rotation (degrees): 360 | Leg Type: Pivoting Straddle | Operates: Manual |
Mast: Single | Overall Mast Height (in.): 82-5/8 | Steering Wheel Diameter (in.): 7 |
Steering Wheel Width (in.): 2 | Steering Wheel Diameter (in.): 7 | Front Wheel Width (in.): 1-1/4 |
Front Wheel Diameter (in.): 5-9/10 | Caster Material: Nylon | Pumps to Raise to Maximum Height: 71 |
Turns to rotate to 360 degrees: 42 | Down Time (seconds): 24.28 |
Quickship Item?
Quickship ItemCan It Ship UPS/FedEx?

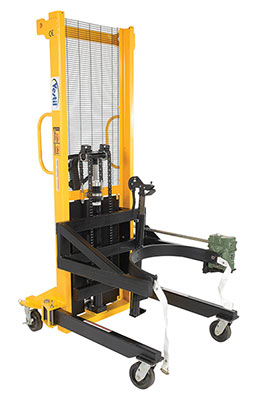

Details For Model: DRUM-LRT-II |
|||||||||||||||||||||||||||||||||||||
![]() |
Steel Manual Drum Lifter/Rotator/Transport 51-1/2 In. x 34 In. x 82-5/8 In. 550 Lb. Capacity Yellow/BlackThe manual operation, portable Drum Lifter/rotator/transporter features pivoting straddle legs for access to drums on pallets. Legs will manually pivot and lock into place with locking pin.
|
||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
