Model Details

D-300-HD-HYD

- Temporarily Unavailable - Please Contact Sales

Printer Friendly
D-300-HD-HYD

Steel Heavy Duty Hydraulic Dumping Hopper 3 Cubic Yard 6,000 Lb. Capacity Blue

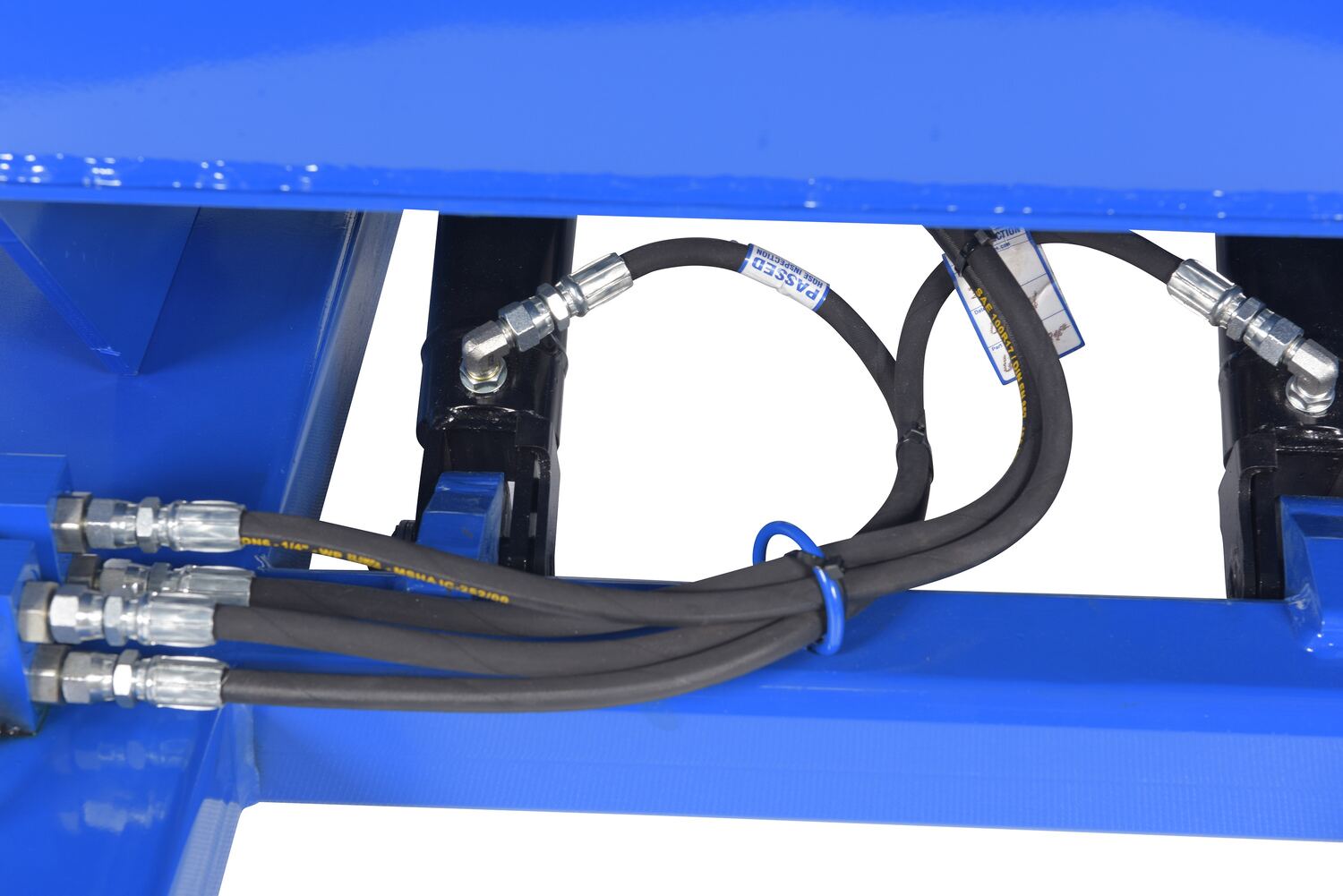

A hydraulic dumping hopper minimizes manual labor, while keeping workers safe. The hydraulic system is simply connected to a fork lift by using the hydraulic hose hookup. Utilizing the forklift levers, the hopper is activated to be dumped, as well as returned to its upright and locked position. The unit is constructed of 8 gauge steel with a powder coat finish. Optional casters are available for quick movement between workstations.

  • 6,000 lb capacity
  • Safely dump hopper from seat of forklift

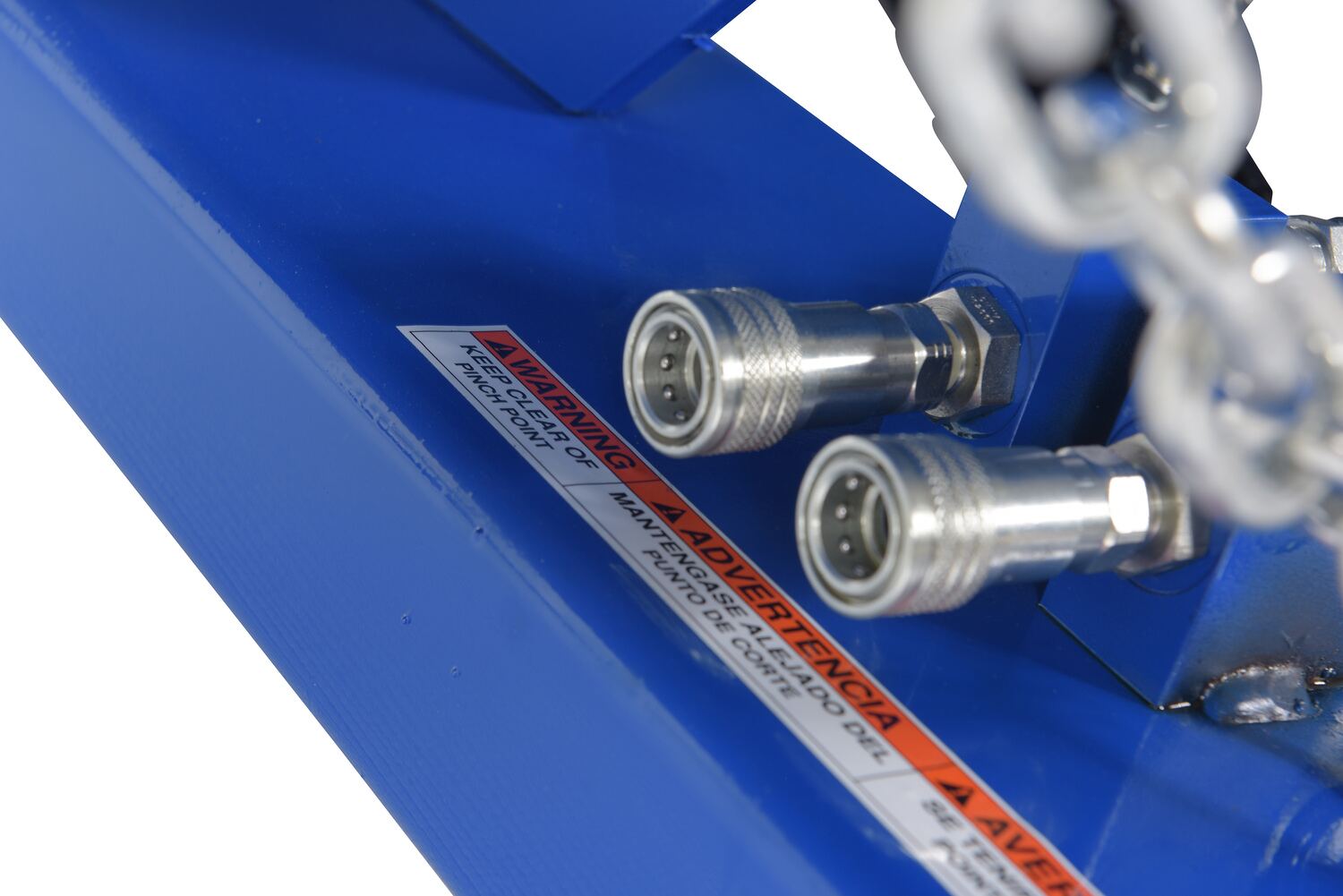

  • Integrated hydraulic connection
  • Built-in fork pockets
Total Ship Wt.(lbs.): 1033 (only 1 package) Size: 81.75"W x 64.5"L x 53"H Color: Blue Non-Returnable

Uniform Capacity (Lbs.): 6,000 Volume (cubic yd): 3 Fork Pocket Center (in.): 28
Fork Pocket WxH (in.): 7.5x2.5 Capacity (gal): 606 Steel Gauge: 8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: D-300-HD-HYD
D-300-HD-HYD

Steel Heavy Duty Hydraulic Dumping Hopper 3 Cubic Yard 6,000 Lb. Capacity Blue

A hydraulic dumping hopper minimizes manual labor, while keeping workers safe. The hydraulic system is simply connected to a fork lift by using the hydraulic hose hookup. Utilizing the forklift levers, the hopper is activated to be dumped, as well as returned to its upright and locked position. The unit is constructed of 8 gauge steel with a powder coat finish. Optional casters are available for quick movement between workstations.

  • 6,000 lb capacity
  • Safely dump hopper from seat of forklift
  • Integrated hydraulic connection
  • Built-in fork pockets
Dimensions: 81.75"W x 64.5"L x 53"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215370028 GTIN: 00691215370028
Warranty: -- Shipping Weight: 1033 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (Lbs.): 6,000 Volume (cubic yd): 3 Fork Pocket Center (in.): 28
Fork Pocket WxH (in.): 7.5x2.5 Capacity (gal): 606 Steel Gauge: 8
