Model Details

COLA-2-56-44

Printer Friendly
COLA-2-56-44

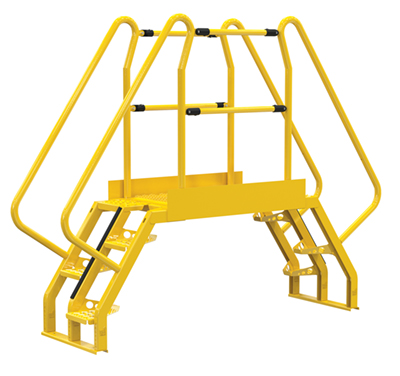

Steel Alternating Crossover Ladder 8 Step 56 Degrees 93 In. x 73 In. 350 Lb. Capacity Yellow

Mount this alternating step cross-over ladder where you need permanent access at crossover points. Alternating step design for shorter overall span than other units. The upper platform features removable two sided high handrail with mid-rail and fixed toe boards to prevent objects from rolling off. Includes lag-down points for securing to floor.

  • Alternating step design offers shorter overall span than other units
  • Pre-drilled lag-down points make installation quick and easy
  • Two-sided hand railing provides adder user safety
  • Meets OSHA STD 01-01-011and ANSI A14.7 standards
Total Ship Wt.(lbs.): 390 (only 1 package) Size: 24.0625"W x 92.125"L x 72.25"H Color: Yellow Non-Returnable

Uniform Capacity (lb.): 350 Number of Steps on Each Side: 4 Clearance Span Height (in.): 26-13/16
Clearance Span Width (in.): 38 Step Angle (degrees): 56 Platform Handrail Height (in.): 39
Platform Mid-Rail (in.): 21 Toeboard (in.): 4 Usable Width between Handrails (in.): 20-1/16
Step Width (in.): 9-1/8 Step Depth (in.): 10-1/2 Base Width (in.): 23-11/16
Tread: Serrated ANSI: A14.7 OSHA: STD 01-01-011

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: COLA-2-56-44
COLA-2-56-44

Steel Alternating Crossover Ladder 8 Step 56 Degrees 93 In. x 73 In. 350 Lb. Capacity Yellow

Mount this alternating step cross-over ladder where you need permanent access at crossover points. Alternating step design for shorter overall span than other units. The upper platform features removable two sided high handrail with mid-rail and fixed toe boards to prevent objects from rolling off. Includes lag-down points for securing to floor.

  • Alternating step design offers shorter overall span than other units
  • Pre-drilled lag-down points make installation quick and easy
  • Two-sided hand railing provides adder user safety
  • Meets OSHA STD 01-01-011and ANSI A14.7 standards
Dimensions: 24.0625"W x 92.125"L x 72.25"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215072014 GTIN: 00691215072014
Warranty: -- Shipping Weight: 390 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 350 Number of Steps on Each Side: 4 Clearance Span Height (in.): 26-13/16
Clearance Span Width (in.): 38 Step Angle (degrees): 56 Platform Handrail Height (in.): 39
Platform Mid-Rail (in.): 21 Toeboard (in.): 4 Usable Width between Handrails (in.): 20-1/16
Step Width (in.): 9-1/8 Step Depth (in.): 10-1/2 Base Width (in.): 23-11/16
Tread: Serrated ANSI: A14.7 OSHA: STD 01-01-011
