Model Details

COL-4-36-44

Printer Friendly
COL-4-36-44

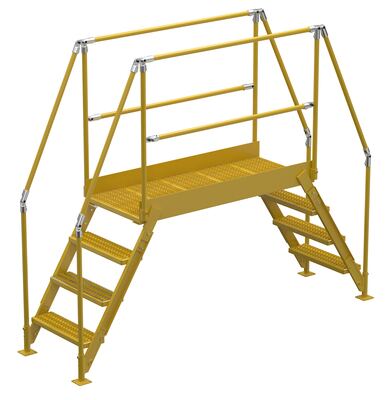

Steel Crossover Ladder 4 Step 23-1/2 In. x 60 In. 500 Lb. Capacity Yellow

The cross-over ladder mounts where you need permanent access at crossover points. The upper platform features removable two sided handrail with mid-rail and fixed toe boards to prevent objects from rolling off. Ground legs include floor mounting pads. Unit must be anchored to the floor. Cross-over ladder is all welded steel construction but can be knocked-down for storage and shipping. Powder coat yellow finish.

  • Meets OSHA 29 CFR 1910.23 and ANSI A14.7 standards
  • Serrated steps for extra grip and safety
  • 100% Welded steel construction offers rugged long lasting use
  • Ground legs include cast mounting feet for safety and stability
Total Ship Wt.(lbs.): 378 (only 1 package) Size: 29.25"W x 103"L x 83"H Color: Yellow

Uniform Capacity (lb.): 500 Platform Height (in.): 40 Platform Width (in.): 23-1/2
Platform Length (in.): 60 Handrail Height (in.): 42-5/8 Mid-Rail (in.): 21
Toeboard (in.): 4 Step Width (in.): 23-1/2 Step Depth (in.): 7
Step Spacing (in.): 10 Step Angle (degrees): 58 Number of Steps: 4
Clearance Span Width (in.): 50-1/8 Clearance Span Height (in.): 38-1/4 Overall Span Width (in.): 103
OSHA: 29 CFR 1910.23

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: COL-4-36-44
COL-4-36-44

Steel Crossover Ladder 4 Step 23-1/2 In. x 60 In. 500 Lb. Capacity Yellow

The cross-over ladder mounts where you need permanent access at crossover points. The upper platform features removable two sided handrail with mid-rail and fixed toe boards to prevent objects from rolling off. Ground legs include floor mounting pads. Unit must be anchored to the floor. Cross-over ladder is all welded steel construction but can be knocked-down for storage and shipping. Powder coat yellow finish.

  • Meets OSHA 29 CFR 1910.23 and ANSI A14.7 standards
  • Serrated steps for extra grip and safety
  • 100% Welded steel construction offers rugged long lasting use
  • Ground legs include cast mounting feet for safety and stability
Dimensions: 29.25"W x 103"L x 83"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215011372 GTIN: 00691215011372
Warranty: -- Shipping Weight: 378 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 500 Platform Height (in.): 40 Platform Width (in.): 23-1/2
Platform Length (in.): 60 Handrail Height (in.): 42-5/8 Mid-Rail (in.): 21
Toeboard (in.): 4 Step Width (in.): 23-1/2 Step Depth (in.): 7
Step Spacing (in.): 10 Step Angle (degrees): 58 Number of Steps: 4
Clearance Span Width (in.): 50-1/8 Clearance Span Height (in.): 38-1/4 Overall Span Width (in.): 103
OSHA: 29 CFR 1910.23
