BFSJ-2748

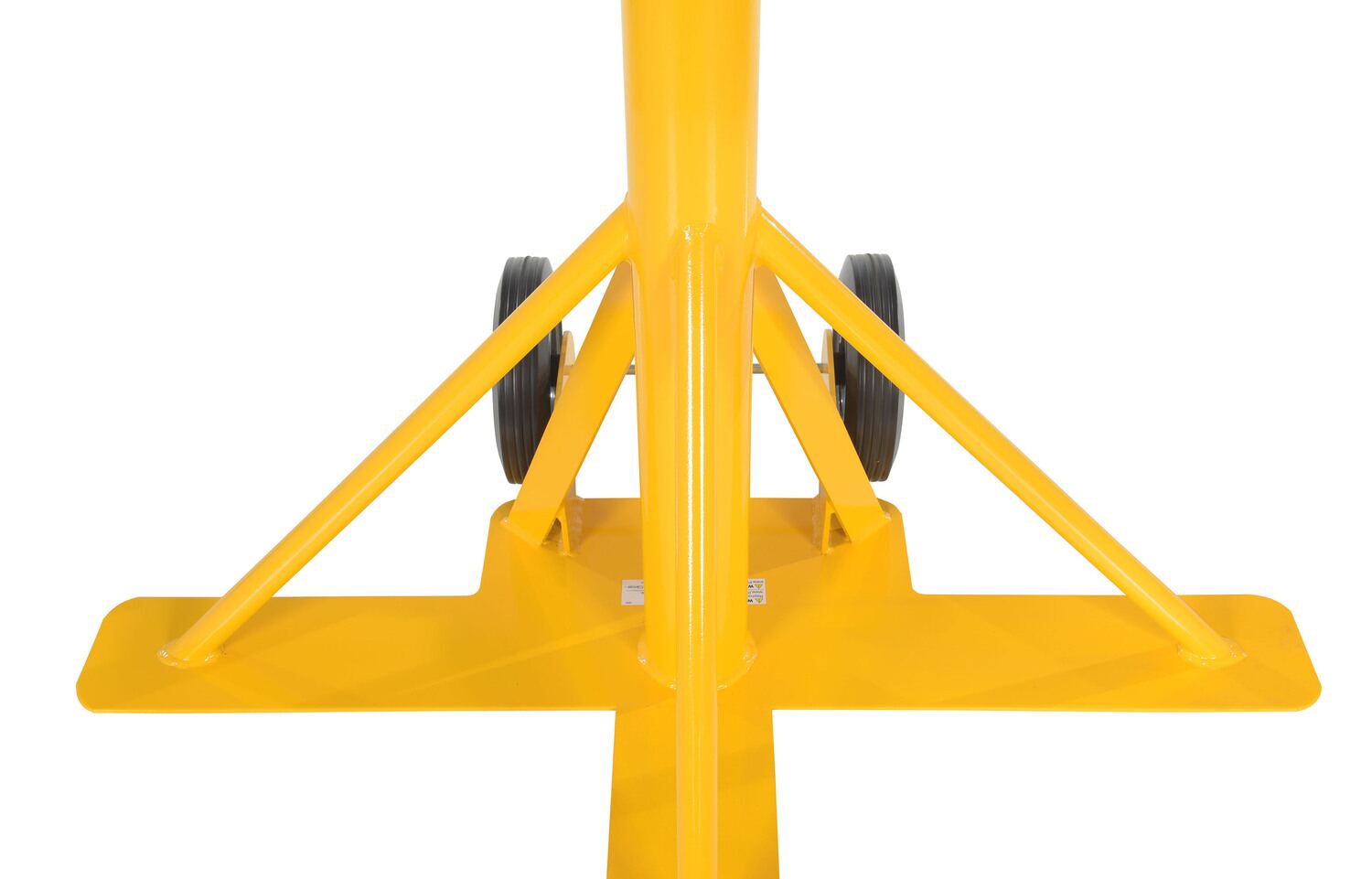

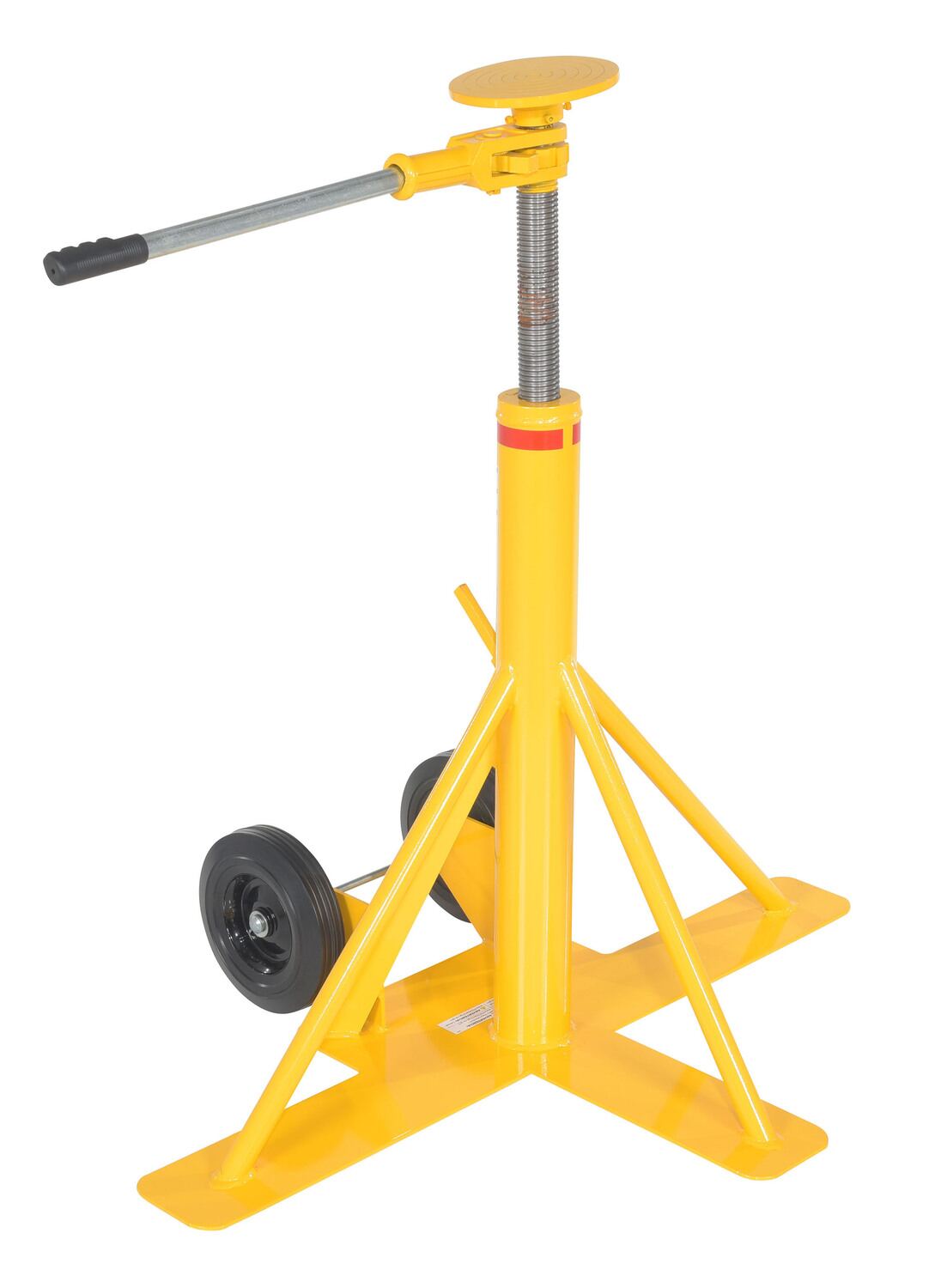

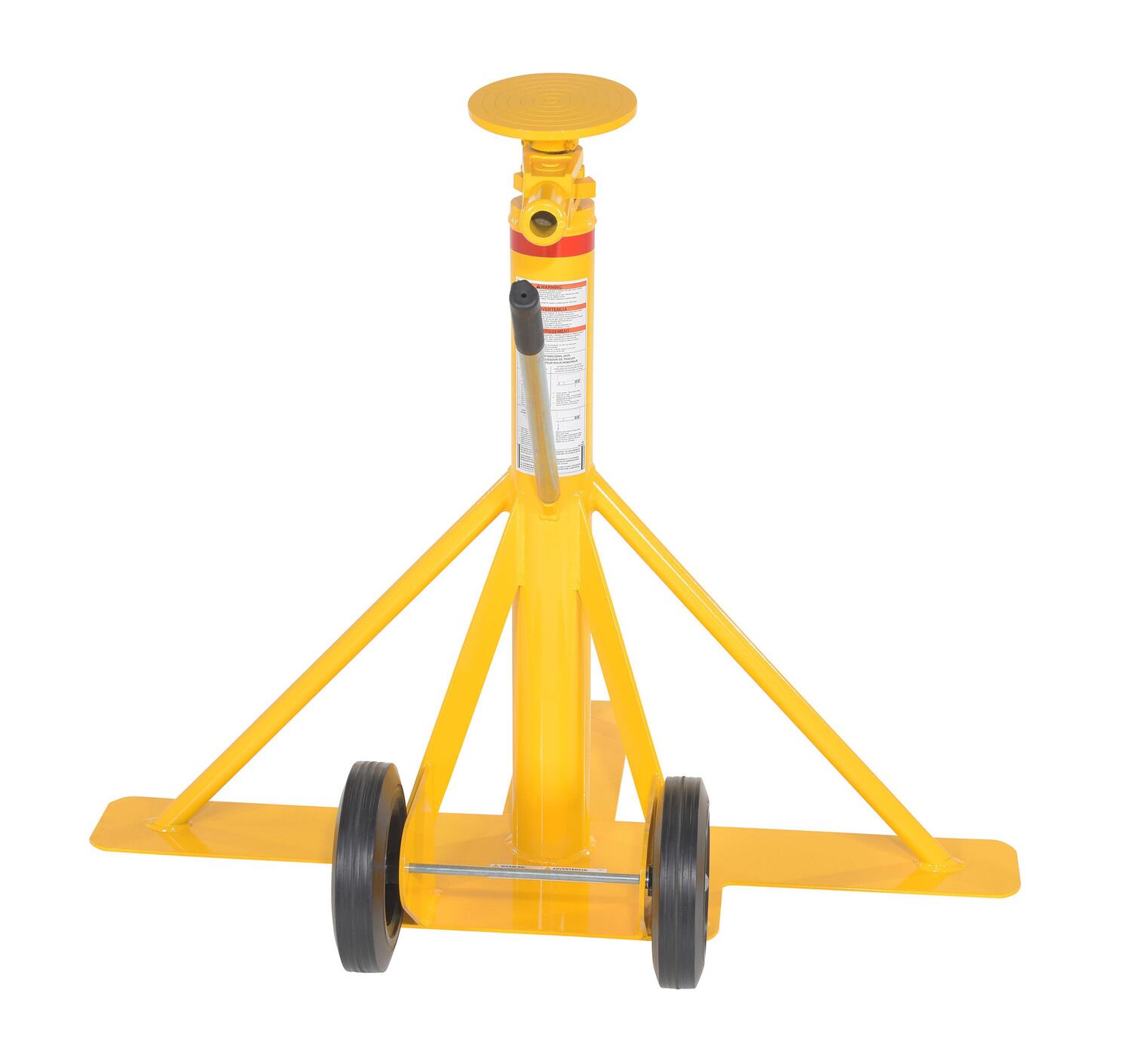

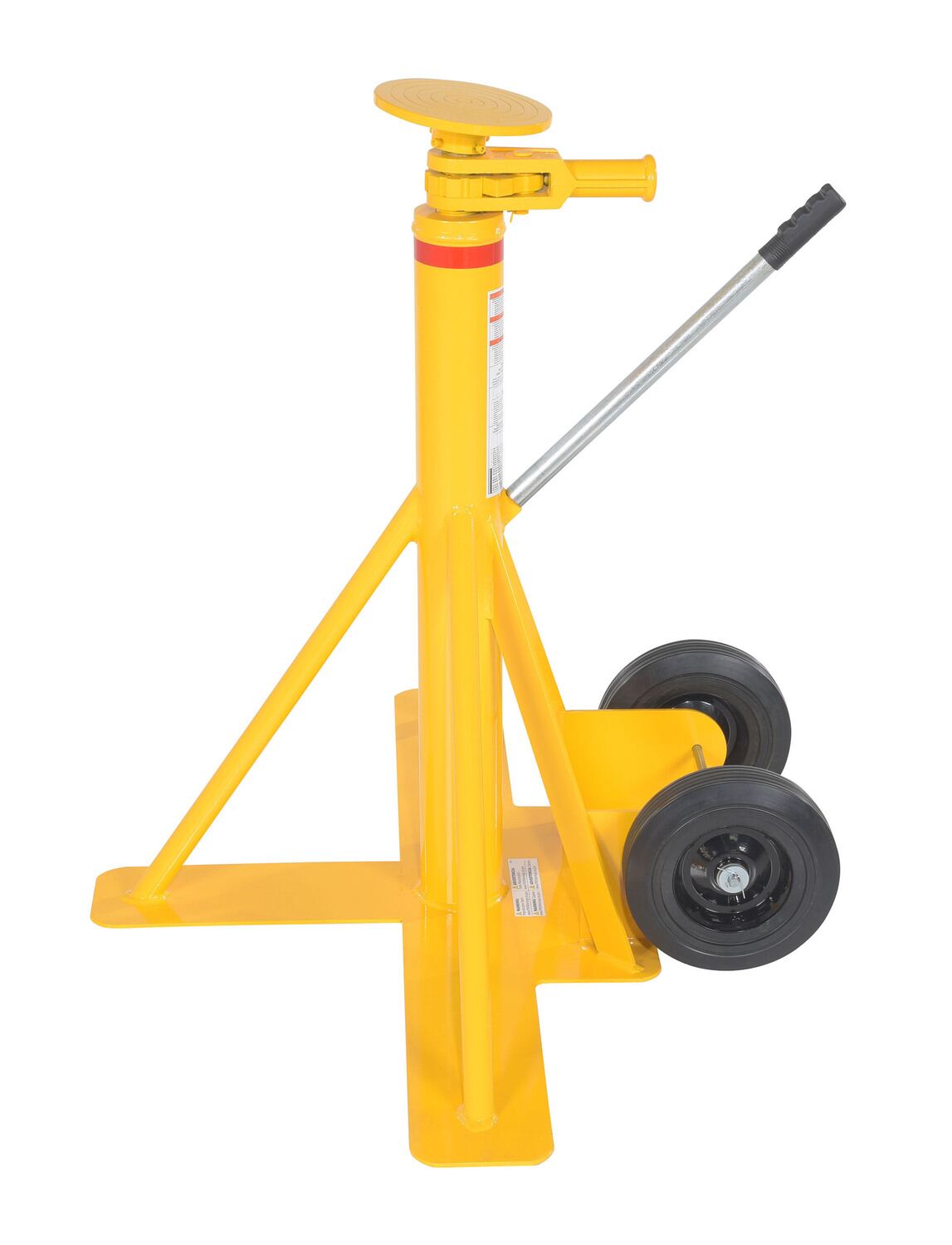

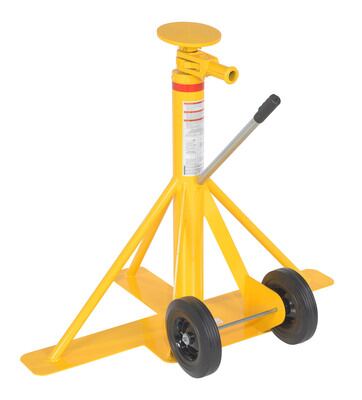

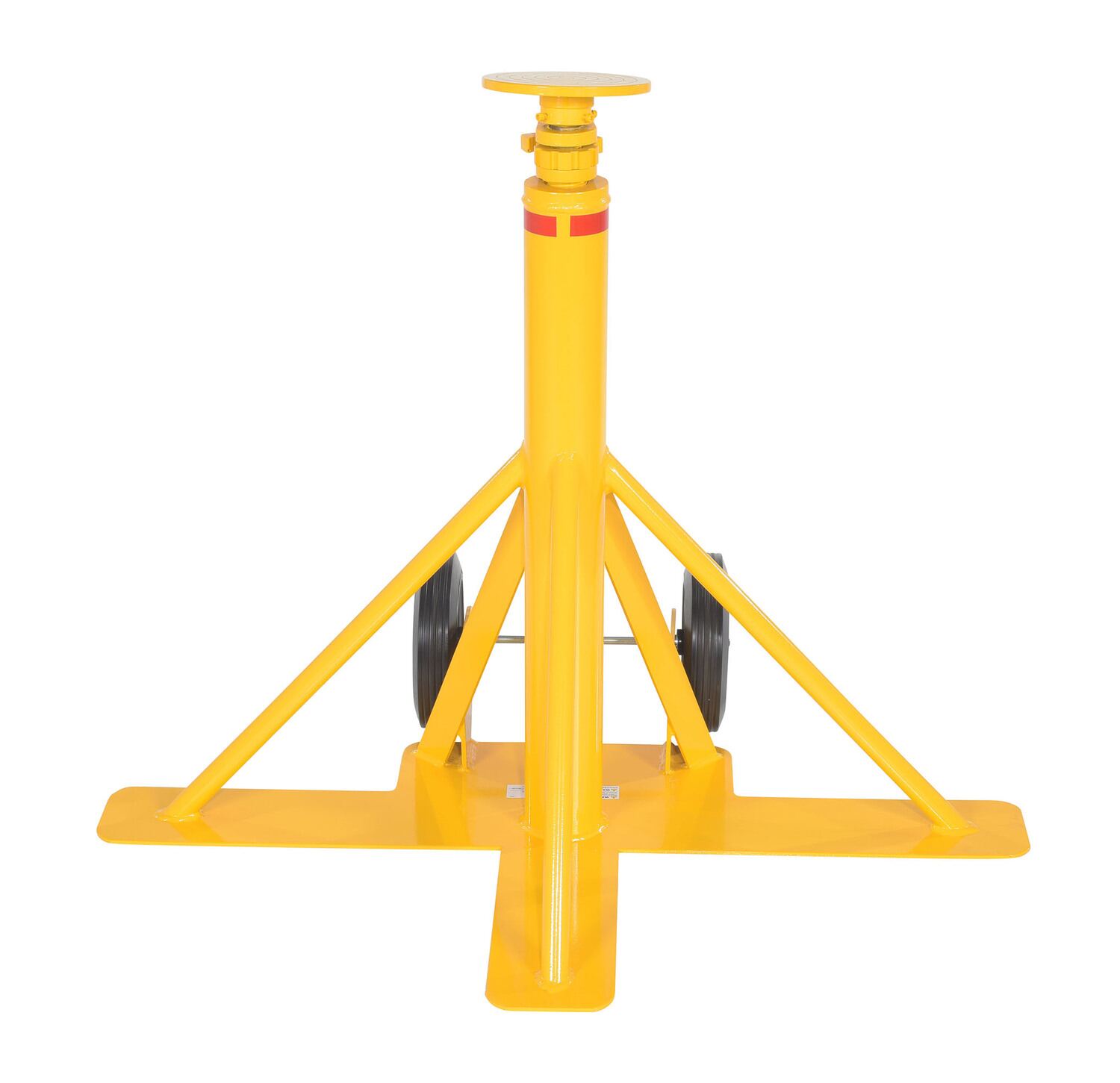

Steel Big Foot Stabilizing Jack 35-7/16 In. x 48 In. x 39-1/2 In. 40000 Lb. Capacity

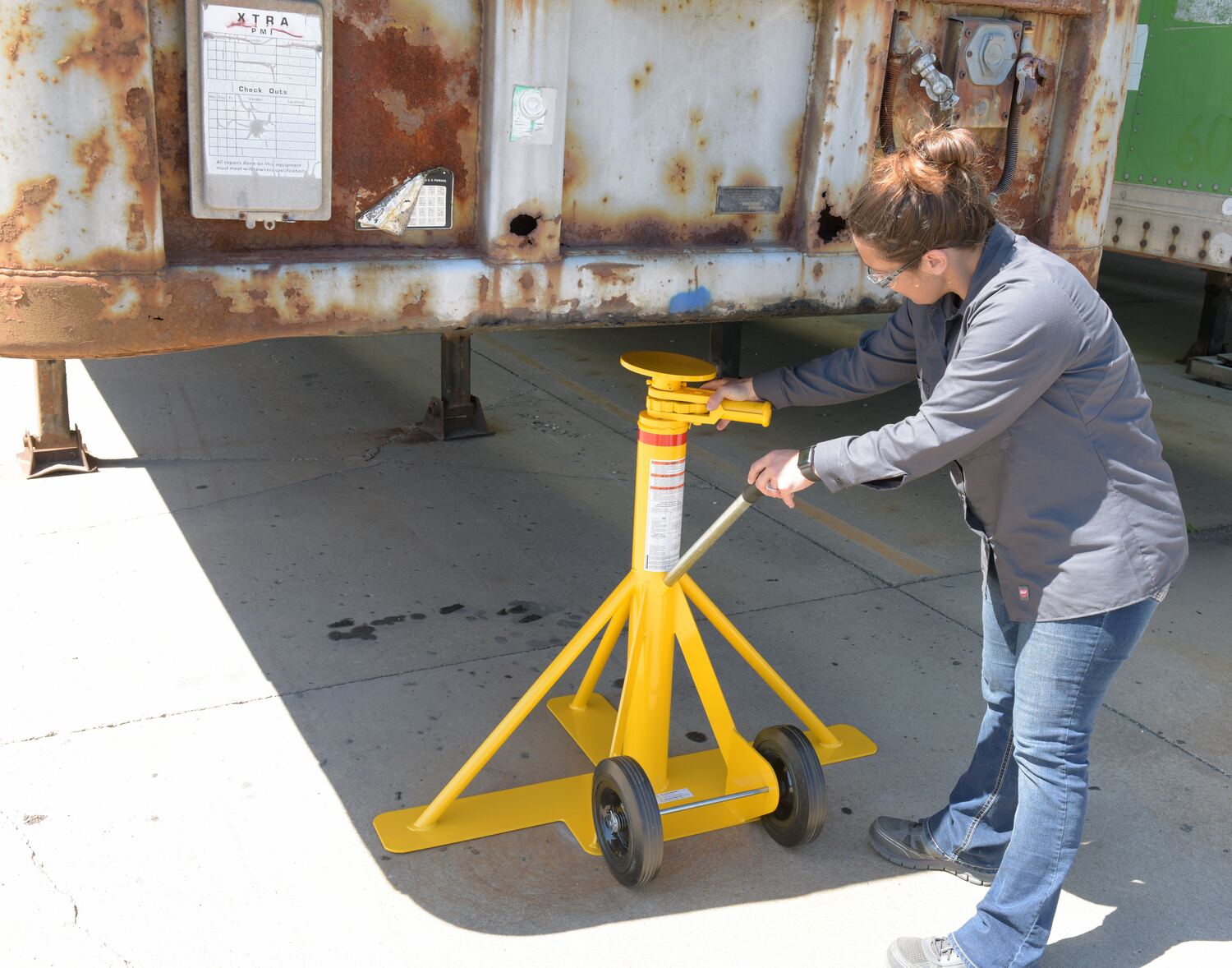

Trailer stabilizing jacks are used to prevent up-ending of semi-trailers when they are not connected to a tractor during loading and unloading operations. Throughout the loading and unloading process it is always recommended to use two jacks, one on each side of the front of the trailer. The trailer must be situated on a flat, stable and improved (preferably concrete) surface, while the jack sits perpendicular to the underside of the trailer. Every jack is built of a high strength steel construction with a flush-type Zerk fitting for lubricating ACME screw. A yellow powder coat finish is included. **The color of handles included with models may vary between red and black**.

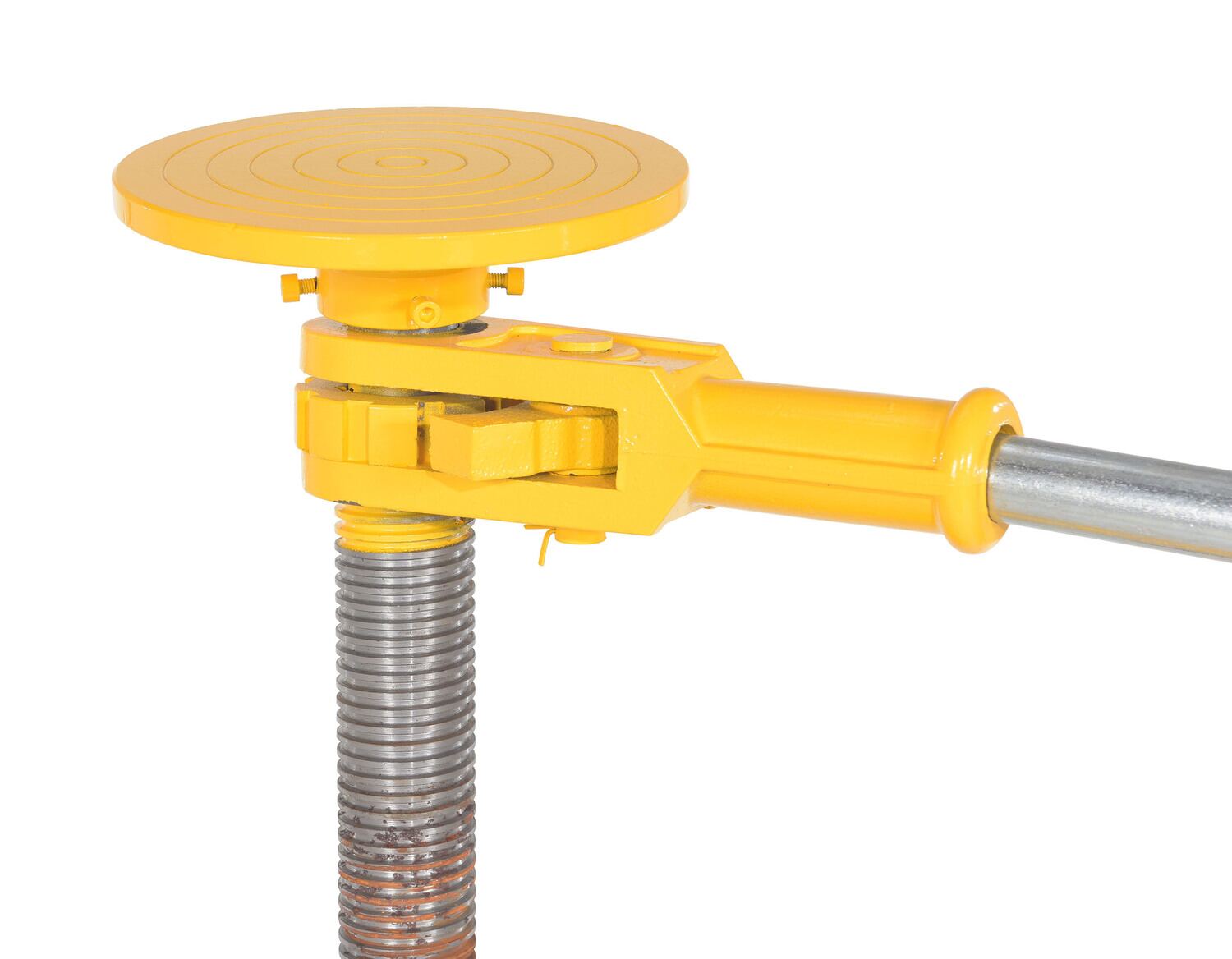

  • Round top plate
  • Reflective collar increases visibility at night
  • Manual raising and lowering mechanism
  • Meets OSHA regulations when used with wheel chocks
Total Ship Wt.(lbs.): 162 (only 1 package) Size: 48"W x 35.4375"L x 39.5"H Color: Yellow

Uniform Static Capacity (lb.): 100000 Uniform Lifting Capacity (lb.): 40,000 Lowered Height (in.): 39-1/2
Raised Height (in.): 51 Wheel Size (in.): 10 Wheel Type: Hard Rubber
OSHA : 1910.178 (k)(3)

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: BFSJ-2748
BFSJ-2748

Steel Big Foot Stabilizing Jack 35-7/16 In. x 48 In. x 39-1/2 In. 40000 Lb. Capacity

Trailer stabilizing jacks are used to prevent up-ending of semi-trailers when they are not connected to a tractor during loading and unloading operations. Throughout the loading and unloading process it is always recommended to use two jacks, one on each side of the front of the trailer. The trailer must be situated on a flat, stable and improved (preferably concrete) surface, while the jack sits perpendicular to the underside of the trailer. Every jack is built of a high strength steel construction with a flush-type Zerk fitting for lubricating ACME screw. A yellow powder coat finish is included. **The color of handles included with models may vary between red and black**.

  • Round top plate
  • Reflective collar increases visibility at night
  • Manual raising and lowering mechanism
  • Meets OSHA regulations when used with wheel chocks
Dimensions: 48"W x 35.4375"L x 39.5"H Sell UOM: EA-Each Color: Yellow
Material: Steel UPC: 691215004671 GTIN: 00691215004671
Warranty: -- Shipping Weight: 162 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Static Capacity (lb.): 100000 Uniform Lifting Capacity (lb.): 40,000 Lowered Height (in.): 39-1/2
Raised Height (in.): 51 Wheel Size (in.): 10 Wheel Type: Hard Rubber
OSHA : 1910.178 (k)(3)
