Model Details

BALL-1828

BALL-1828

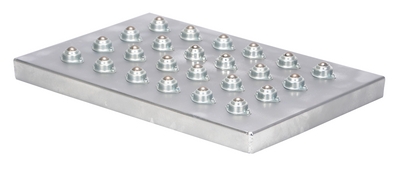

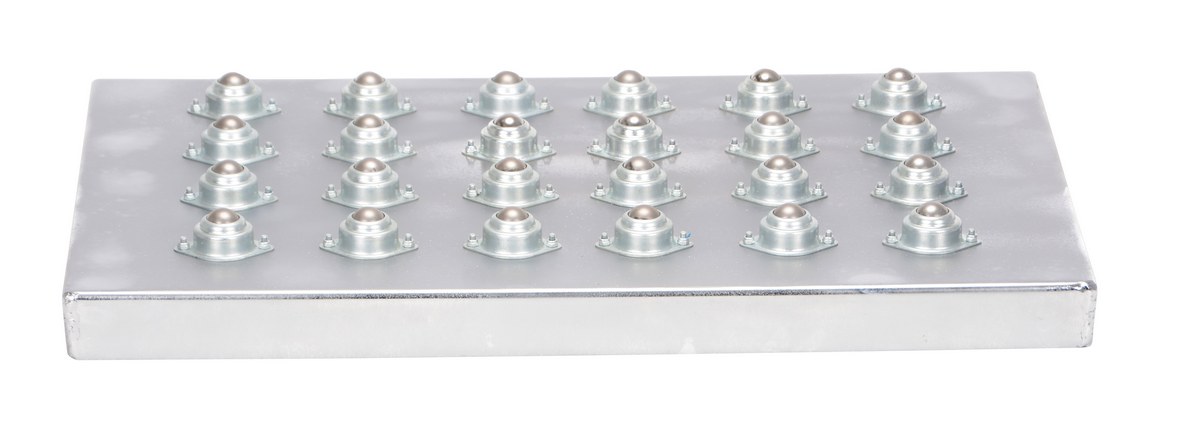

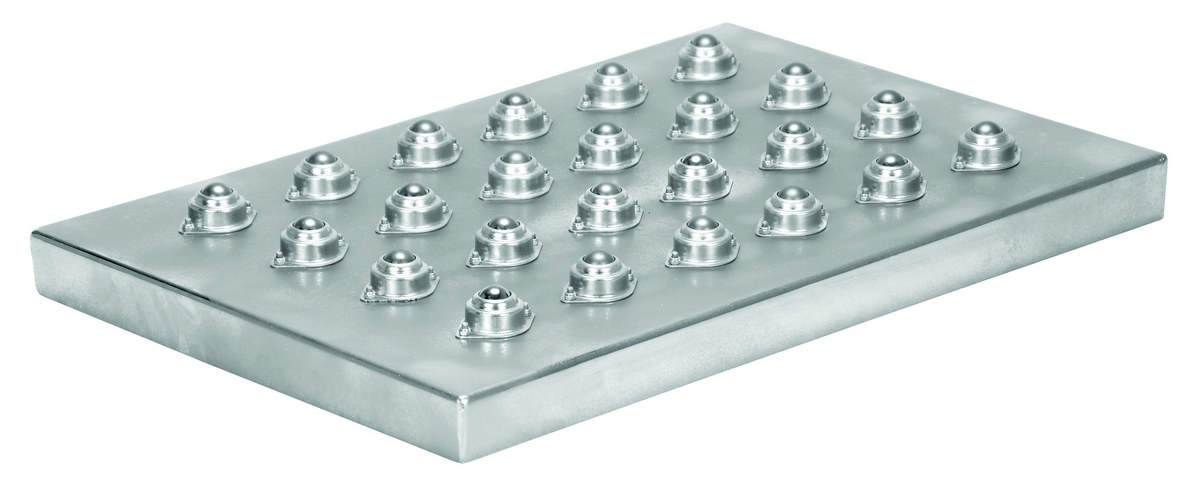

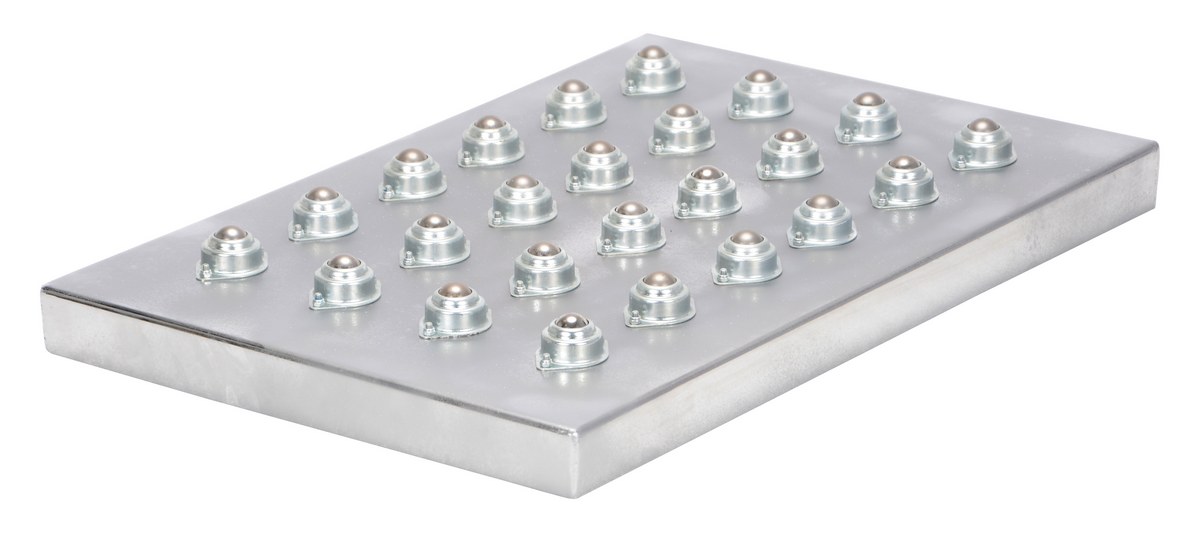

Steel Transfer Platform 18 In. x 28 In. 75 Lb. Capacity Silver

The ball transfer platform unit simply bolts on to any platform. The chrome ball transfers have a square pattern. Can attach to hydraulic and mechanical post tables and lift tables.

  • Bolts on to any platform
  • Chrome ball transfers have a square pattern
  • Attach to hydraulic and mechanical post and lift tables
  • Minimizes effort during item transfer
Total Ship Wt.(lbs.): 30 (only 1 package) Size: 18.125"W x 28"L x 3.25"H Color: Silver

Uniform Capacity/Ball (lb.): 75 Ball Centers (in.): 4 Ball Transfer Width (in.): 4
Ball Transfer Length (in.): 4-3/4 Ball (qty.): 24

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: BALL-1828


BALL-1828

Steel Transfer Platform 18 In. x 28 In. 75 Lb. Capacity Silver

The ball transfer platform unit simply bolts on to any platform. The chrome ball transfers have a square pattern. Can attach to hydraulic and mechanical post tables and lift tables.

  • Bolts on to any platform
  • Chrome ball transfers have a square pattern
  • Attach to hydraulic and mechanical post and lift tables
  • Minimizes effort during item transfer
Dimensions: 18.125"W x 28"L x 3.25"H Sell UOM: EA-Each Color: Silver
Material: Steel UPC: 691215112901 GTIN: 00691215112901
Warranty: -- Shipping Weight: 30 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity/Ball (lb.): 75 Ball Centers (in.): 4 Ball Transfer Width (in.): 4
Ball Transfer Length (in.): 4-3/4 Ball (qty.): 24
