Model Details

AHA-4-8-10-VG

Printer Friendly
AHA-4-8-10-VG

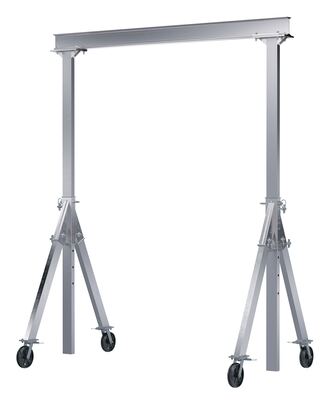

Aluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 8 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity Silver

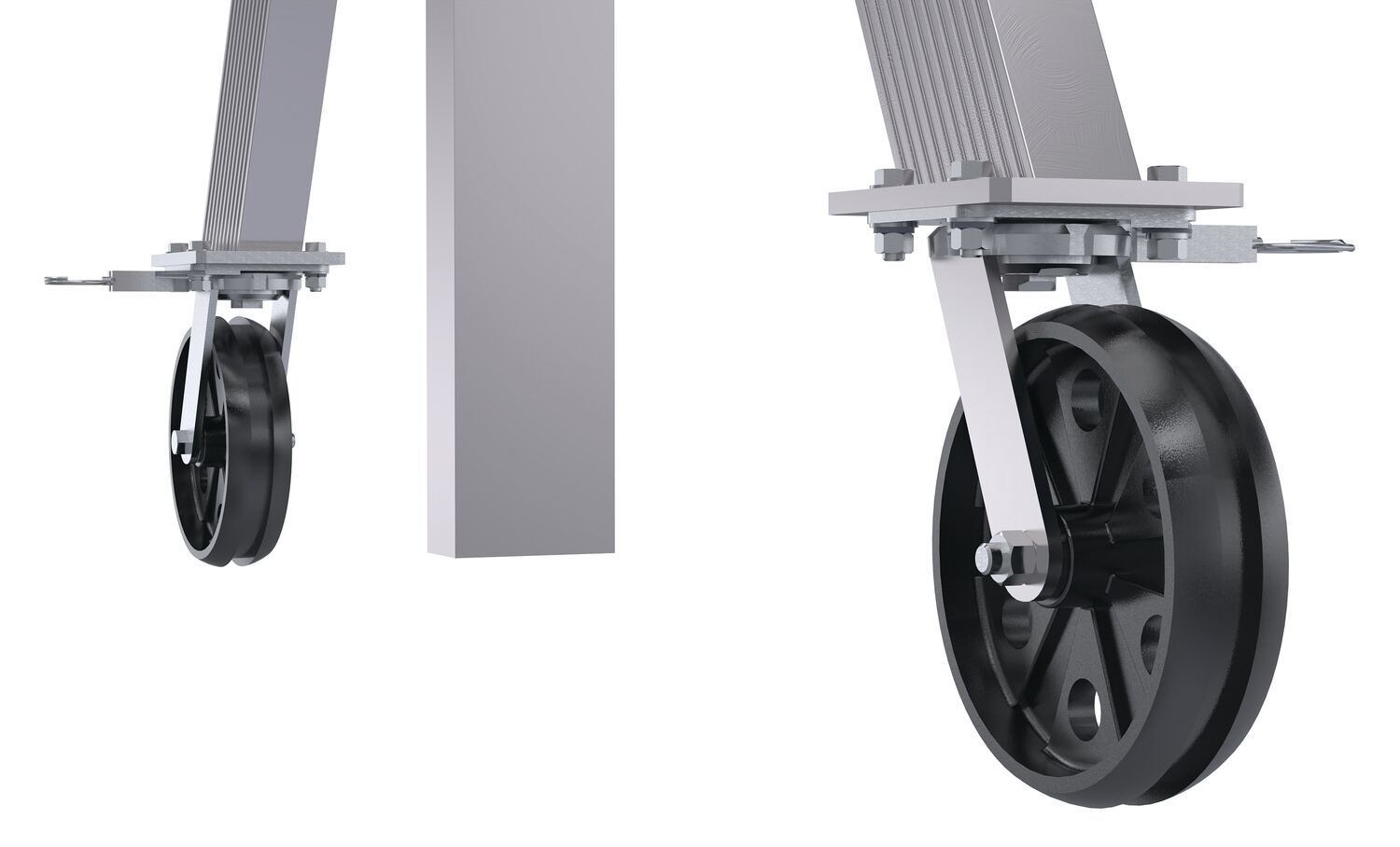

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two straps, allowing one person to transport the gantry crane in one neat package. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments.

  • Heavy-duty welded aluminum construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Total Ship Wt.(lbs.): 298 (only 1 package) Size: 53.9375"W x 96"L x 130.125"H Color: Silver

Uniform Capacity (lbs): 4000 Casters Swivel (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 3 Caster Material: Ductile Steel

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: AHA-4-8-10-VG
AHA-4-8-10-VG

Aluminum Adjustable Height Gantry Crane with V-Groove Ductile Steel Casters 8 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity Silver

The adjustable height Aluminum Gantry crane combines lightweight and rigid, sturdy construction into one unit. The all aluminum construction of this gantry crane makes it corrosion resistant and perfect for outdoor use. The lightweight I-beam allows simple height adjustments. All pinned connections make it possible for single person set up and take down in just minutes. Included are two straps, allowing one person to transport the gantry crane in one neat package. Unit comes standard four (4) V-groove casters, allowing for quick movement and positioning adjustments.

  • Heavy-duty welded aluminum construction for long lasting use
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications
Dimensions: 53.9375"W x 96"L x 130.125"H Sell UOM: EA-Each Color: Silver
Material: Aluminum UPC: 691215365147 GTIN: 00691215365147
Warranty: -- Shipping Weight: 298 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lbs): 4000 Casters Swivel (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 3 Caster Material: Ductile Steel
