Portable Pallet Inverters

- - - -

Description
Model Chart
PDF's
Image Gallery

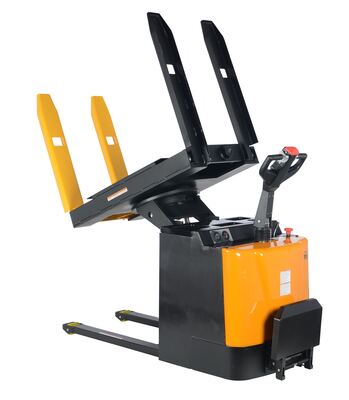

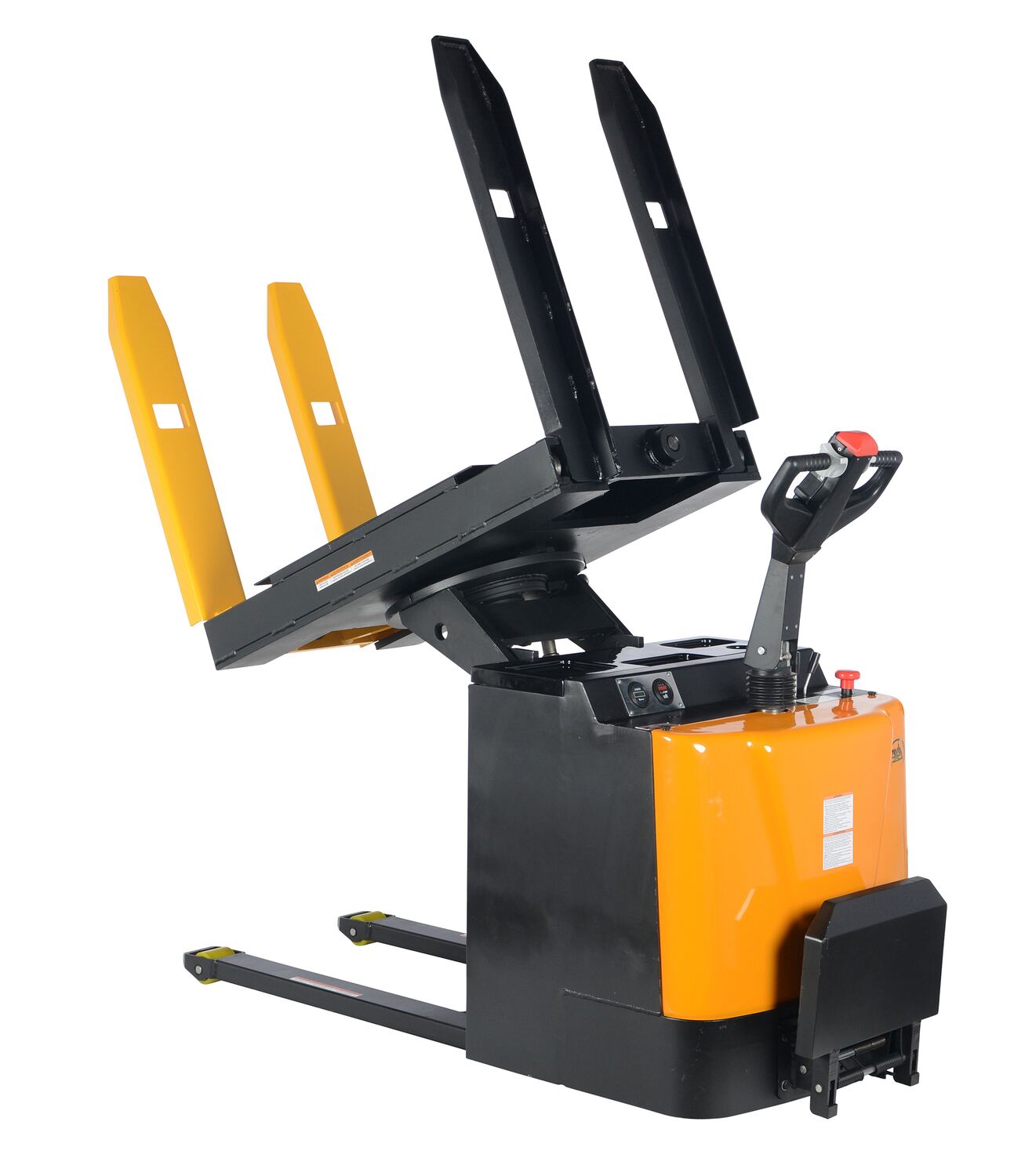

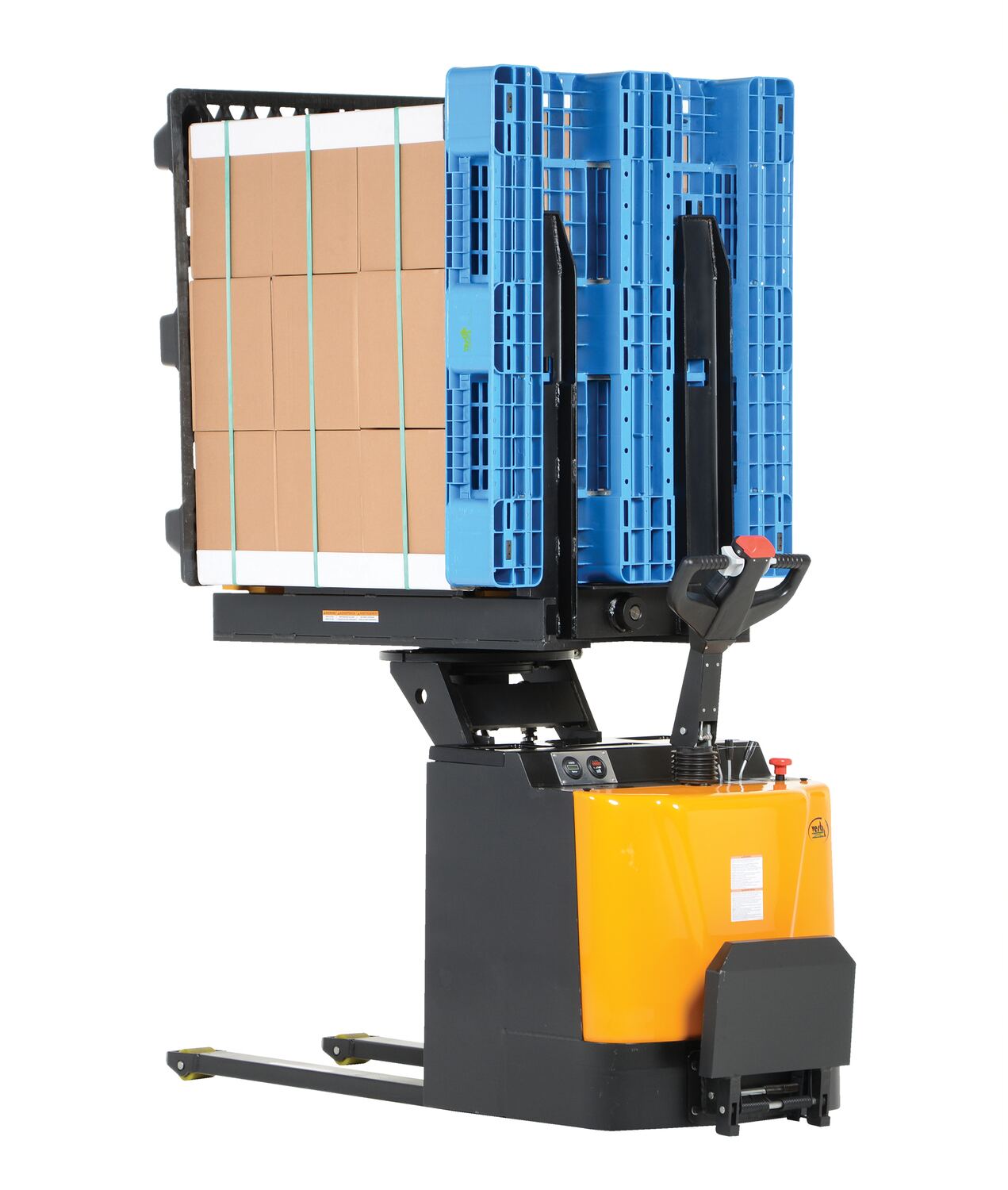

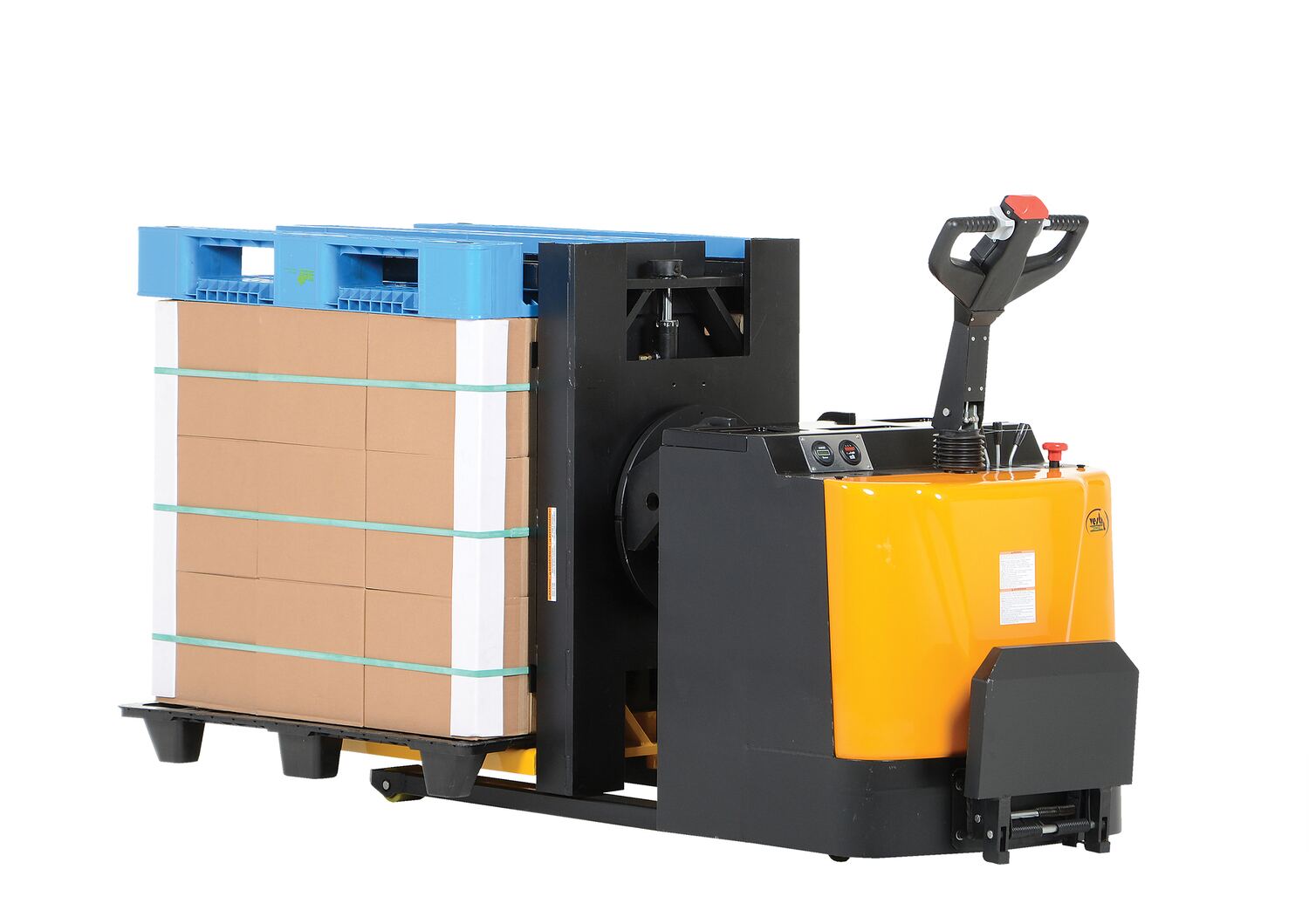

PI-P-3000-3254_A.jpg PI-P-3000-3254_B.jpg PI-P-3000-3254_C.jpg PI-P-3000-3254_D.jpg

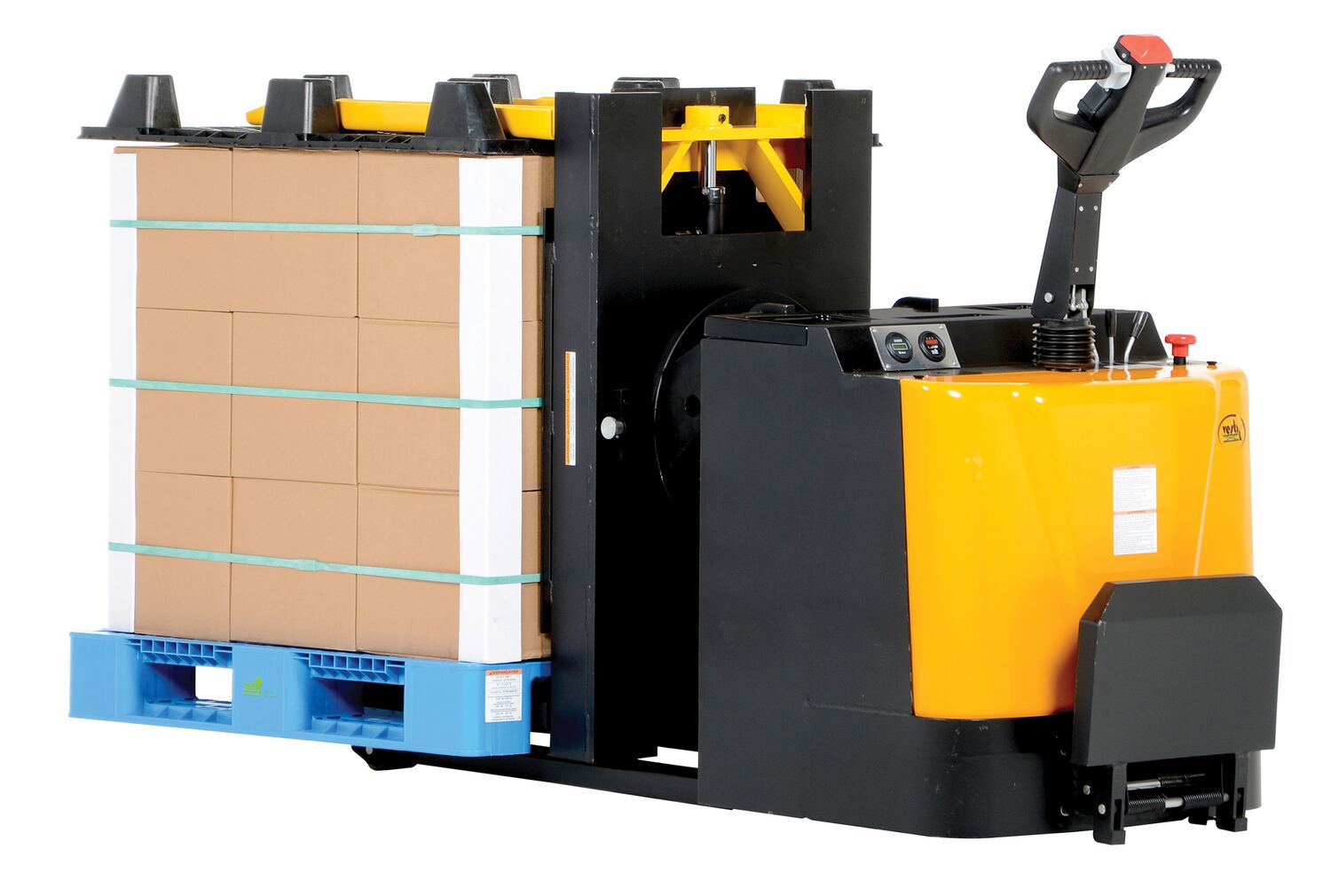

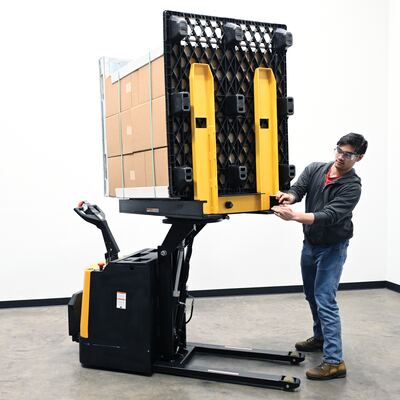

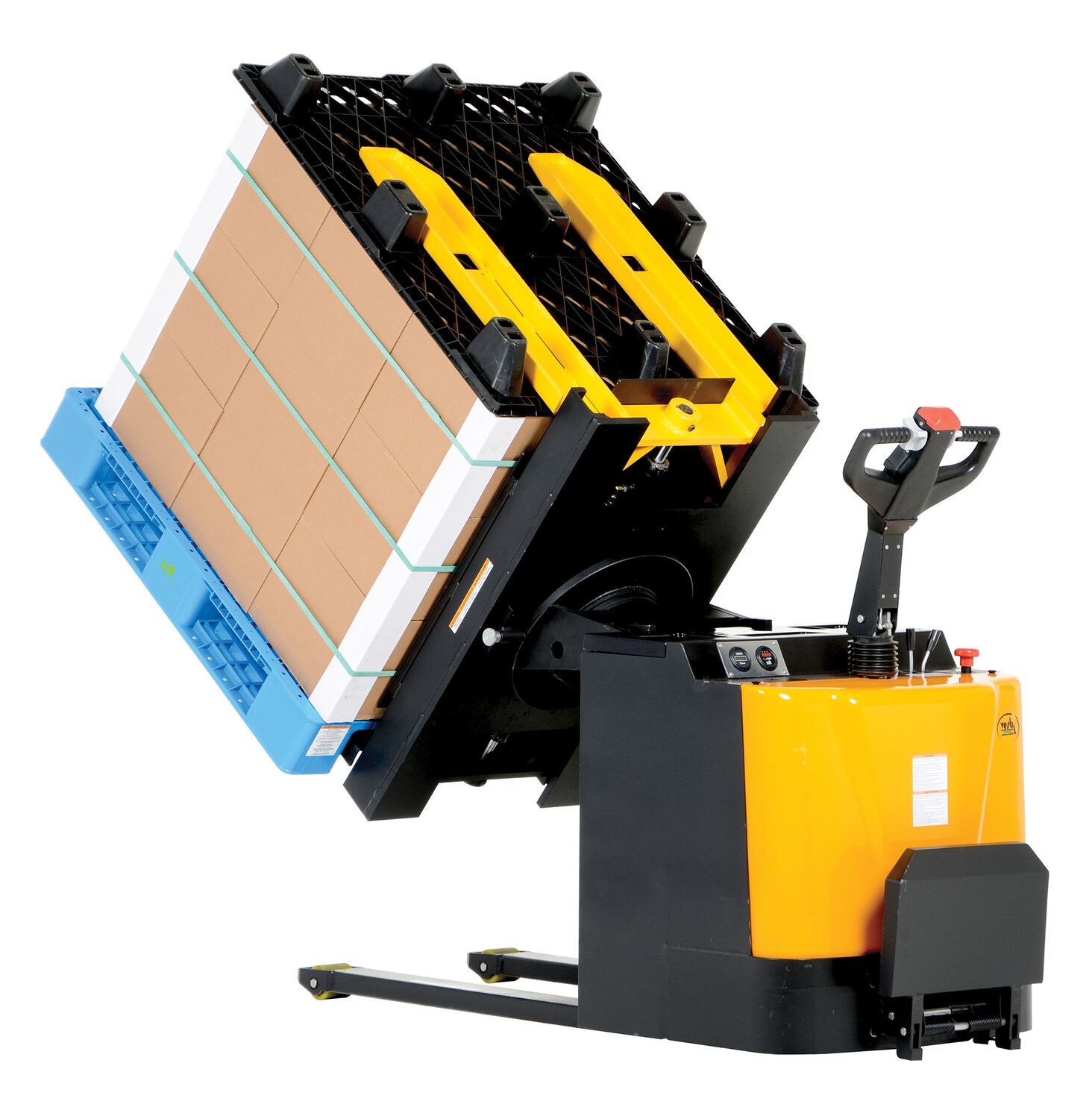

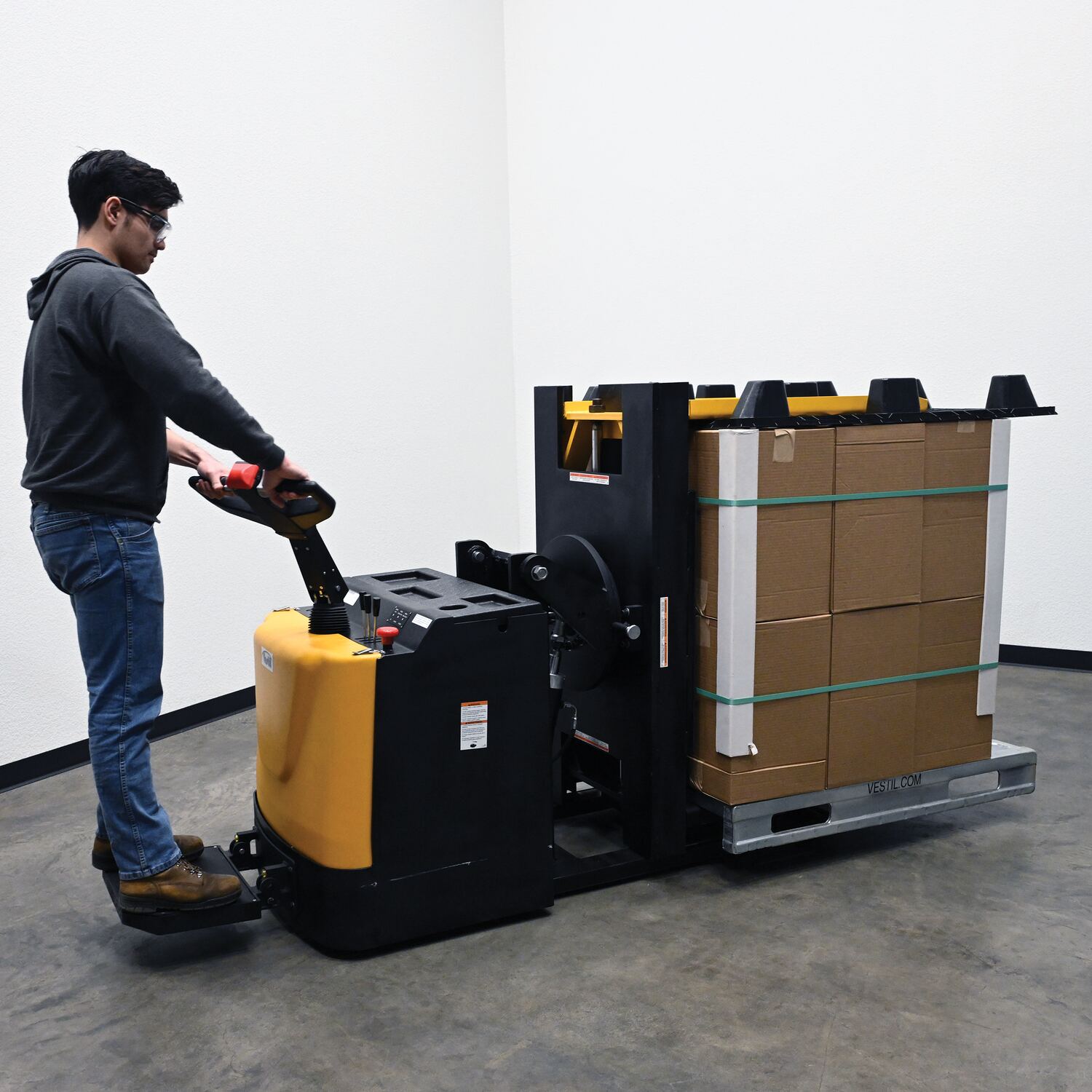

PI-P-3000-3254_E.jpg PI-P-3000-3254_F.jpg PI-P-3000-3254_G.jpg PI-P-3000-3254_H.jpg
Portable Pallet Inverters

model: PI-P-3000-3254



Featured Ergonomic Solutions


Roll Lifters and Transporters
Lift & Tilt Scissor Tables
Ergonomic Power Assist Pallet Trucks
Air Hydraulic Carts (partially stainless steel)
Scissor Carts
Electric/Hydraulic Corner Tilters
Pallet Trucks with Hand Brake
Trash Can Carts
Skid Adapters for Pallet Trucks
model chart

Product Family Overview

Print Friendly
Portable Pallet Inverters
SERIES: PI-P

24V DC STANDARD

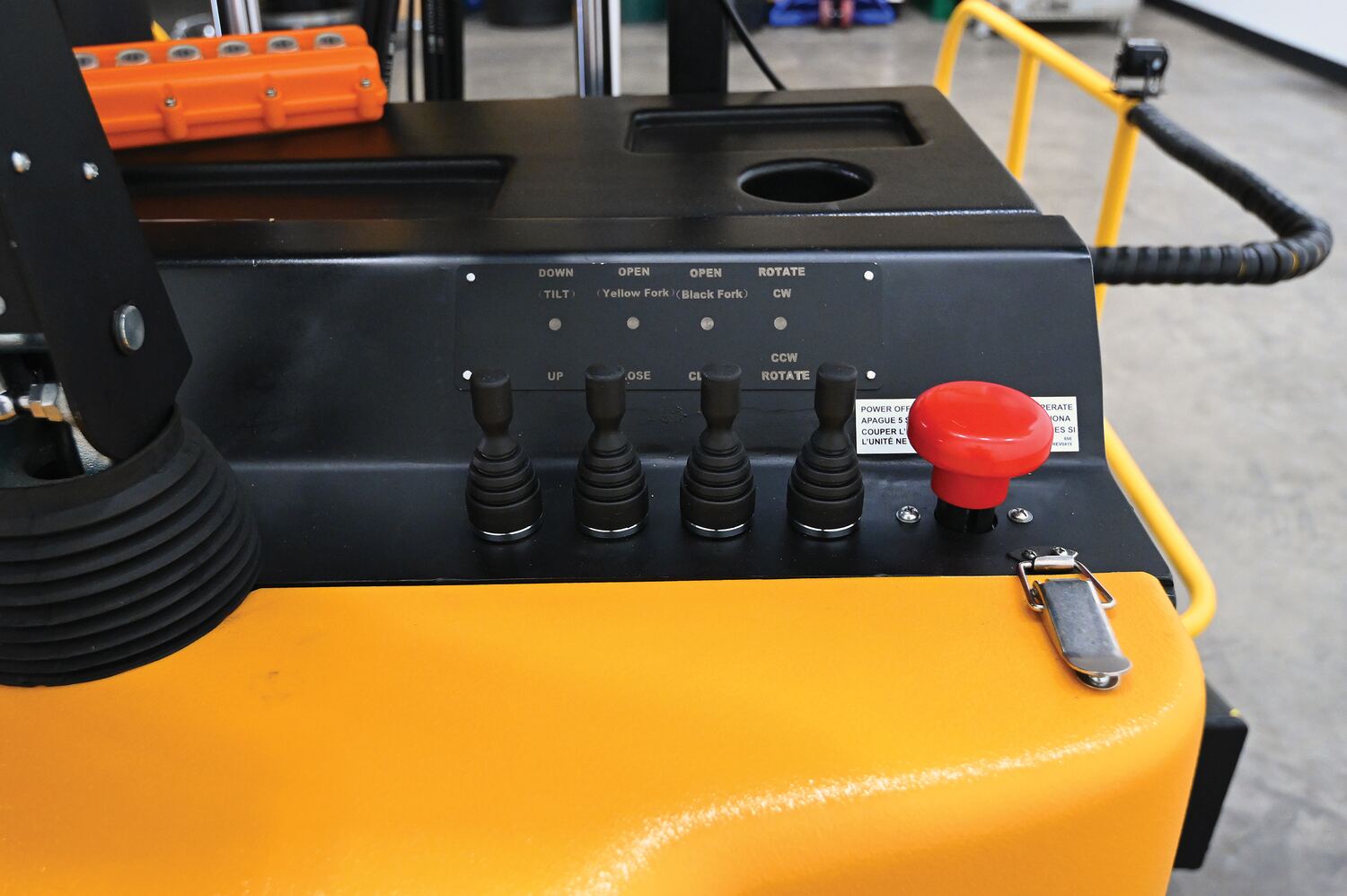

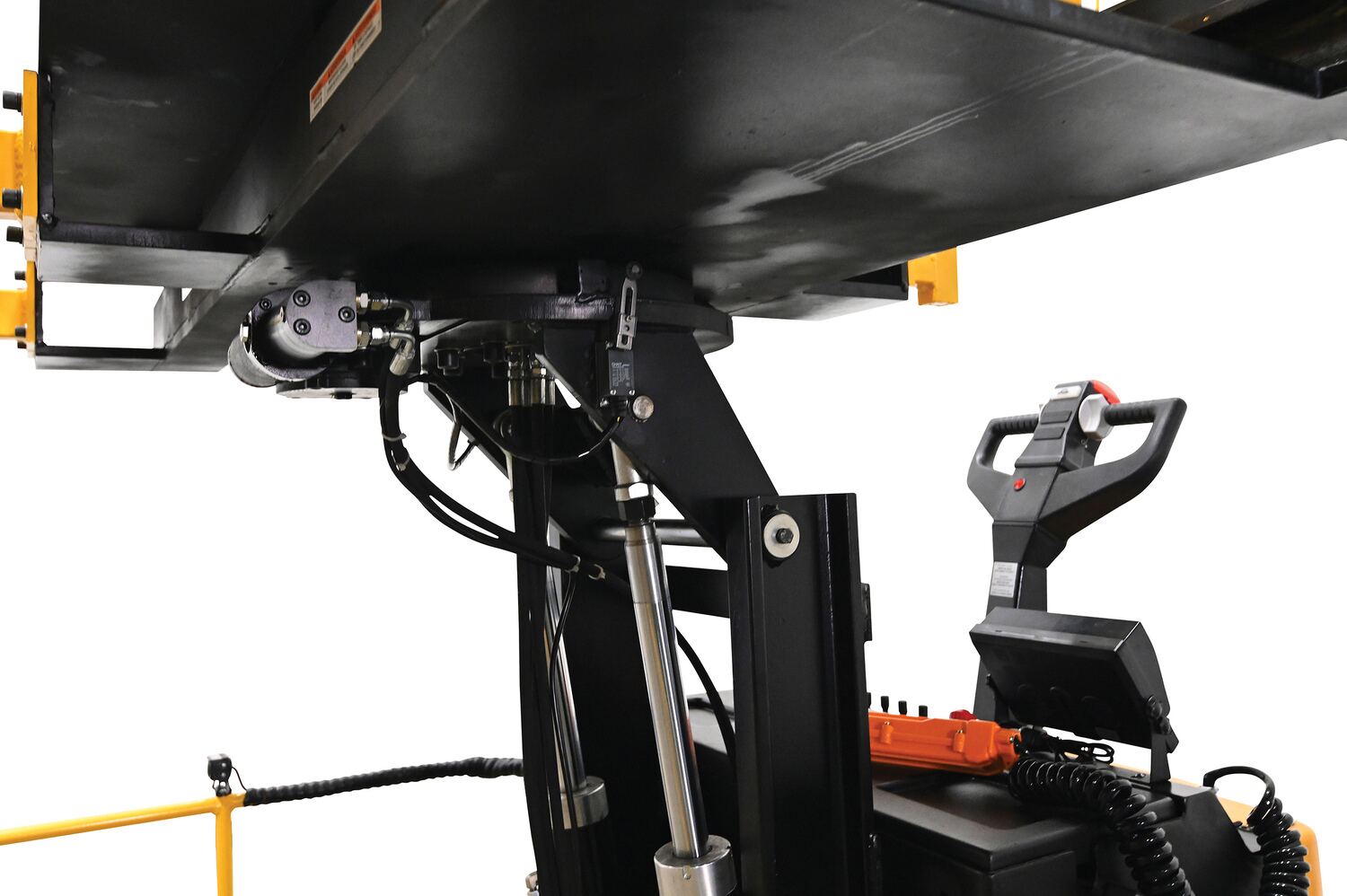

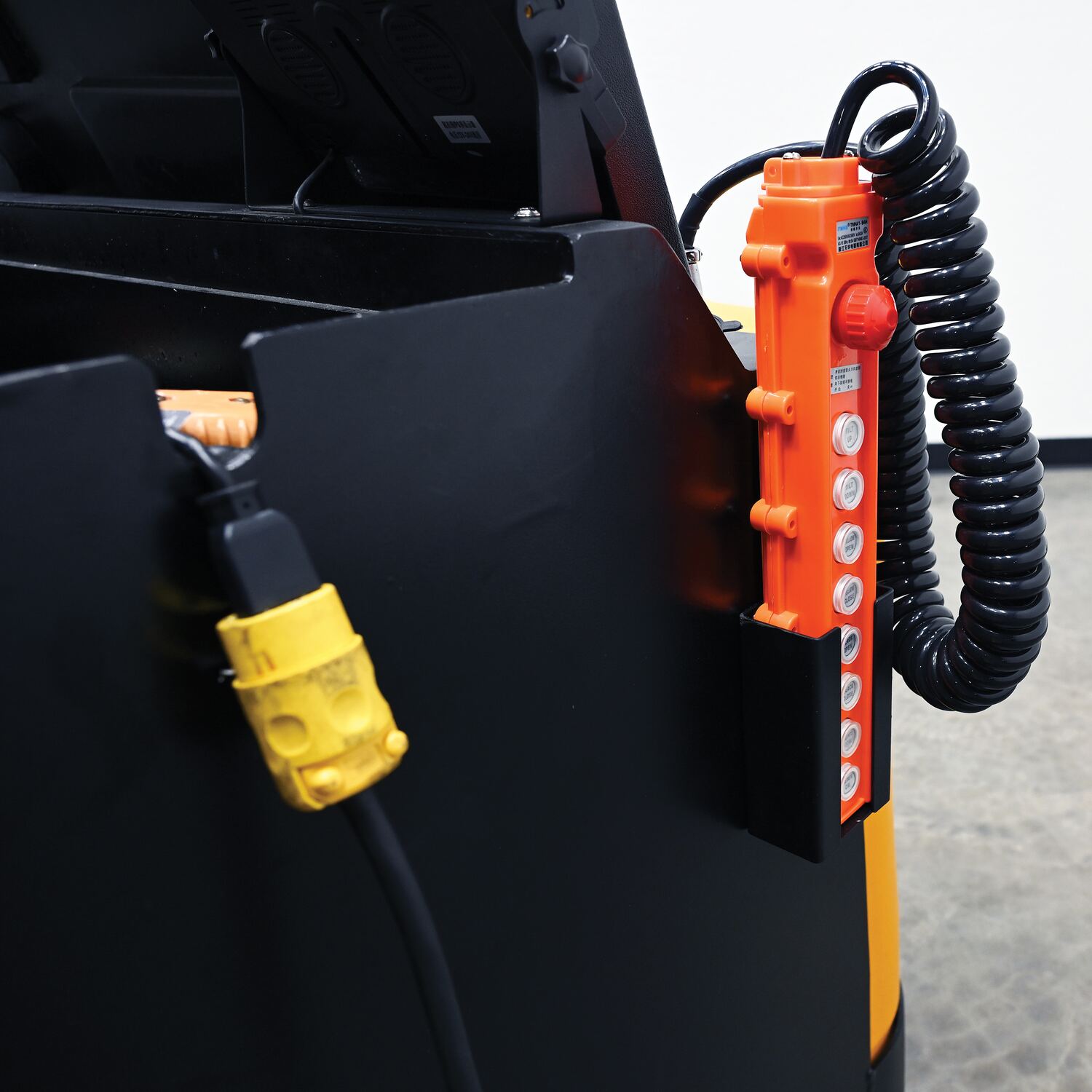

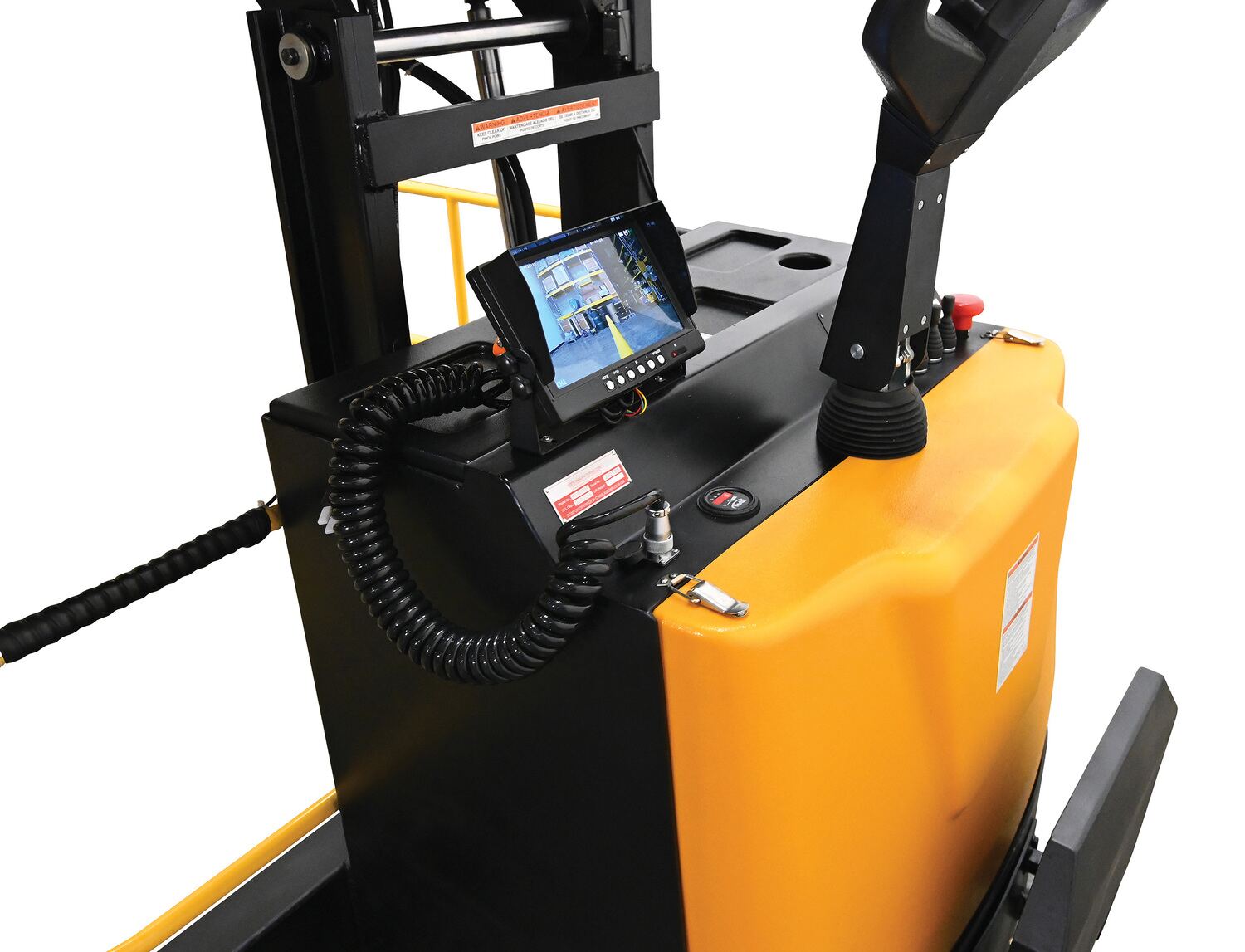

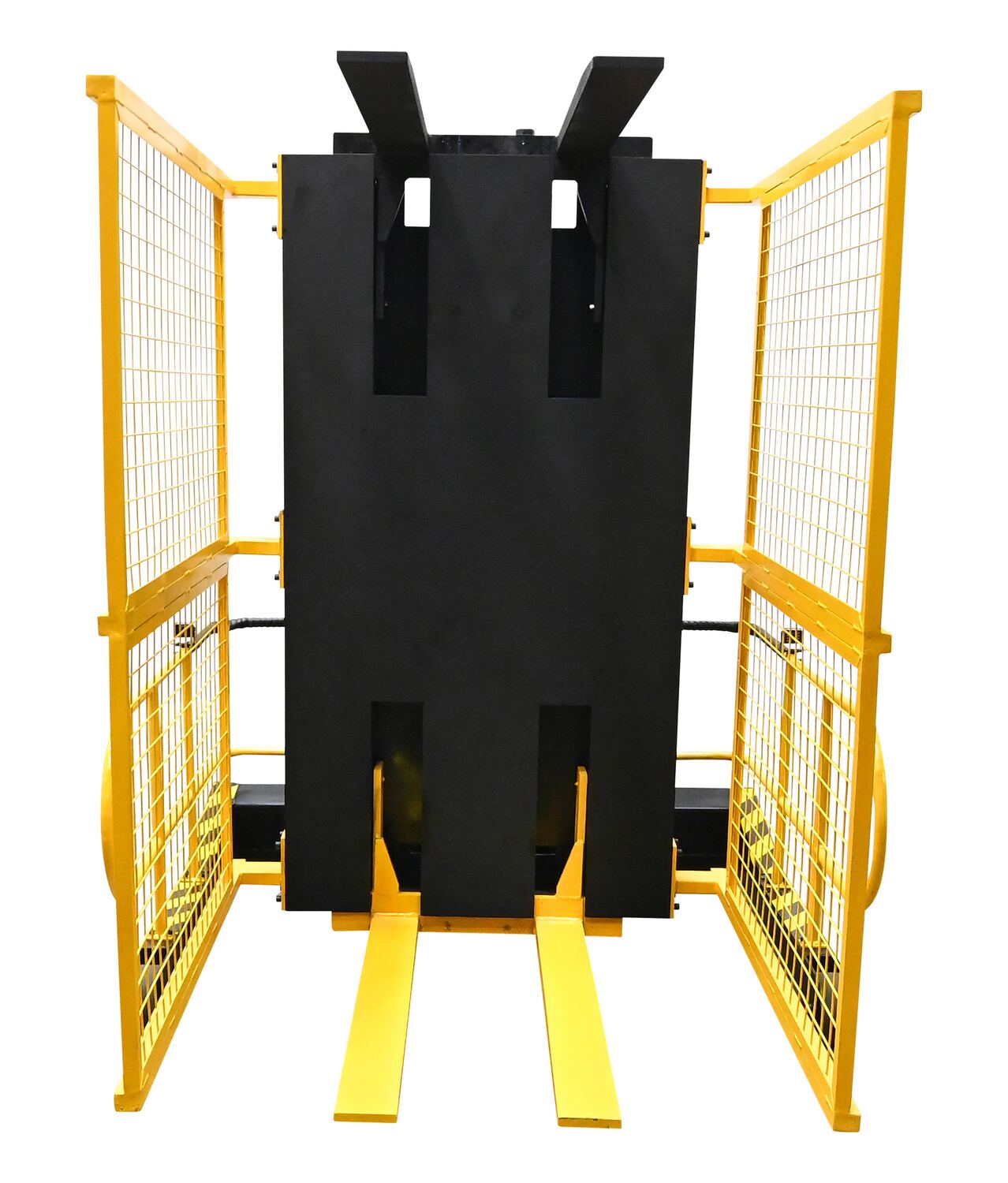

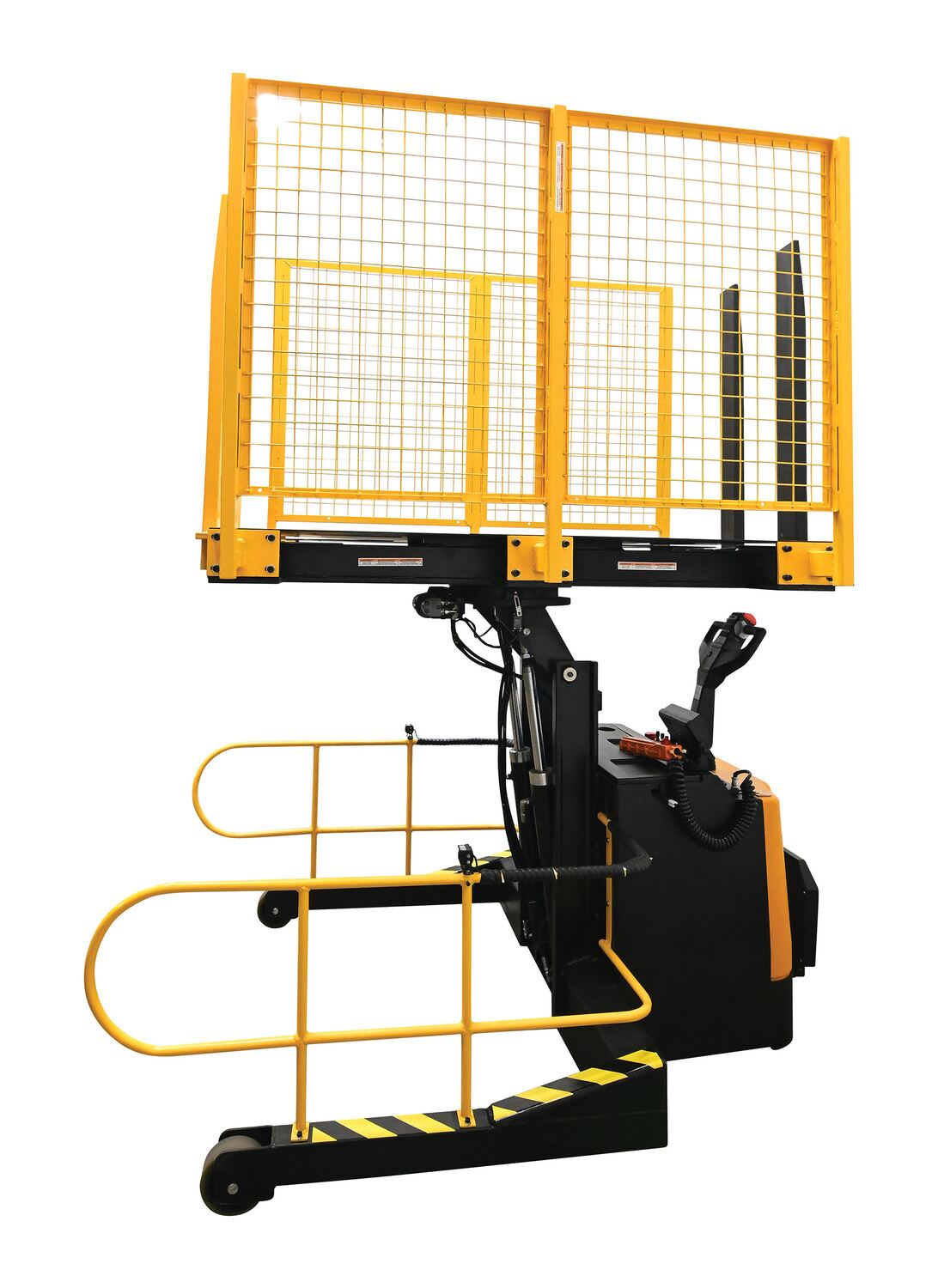

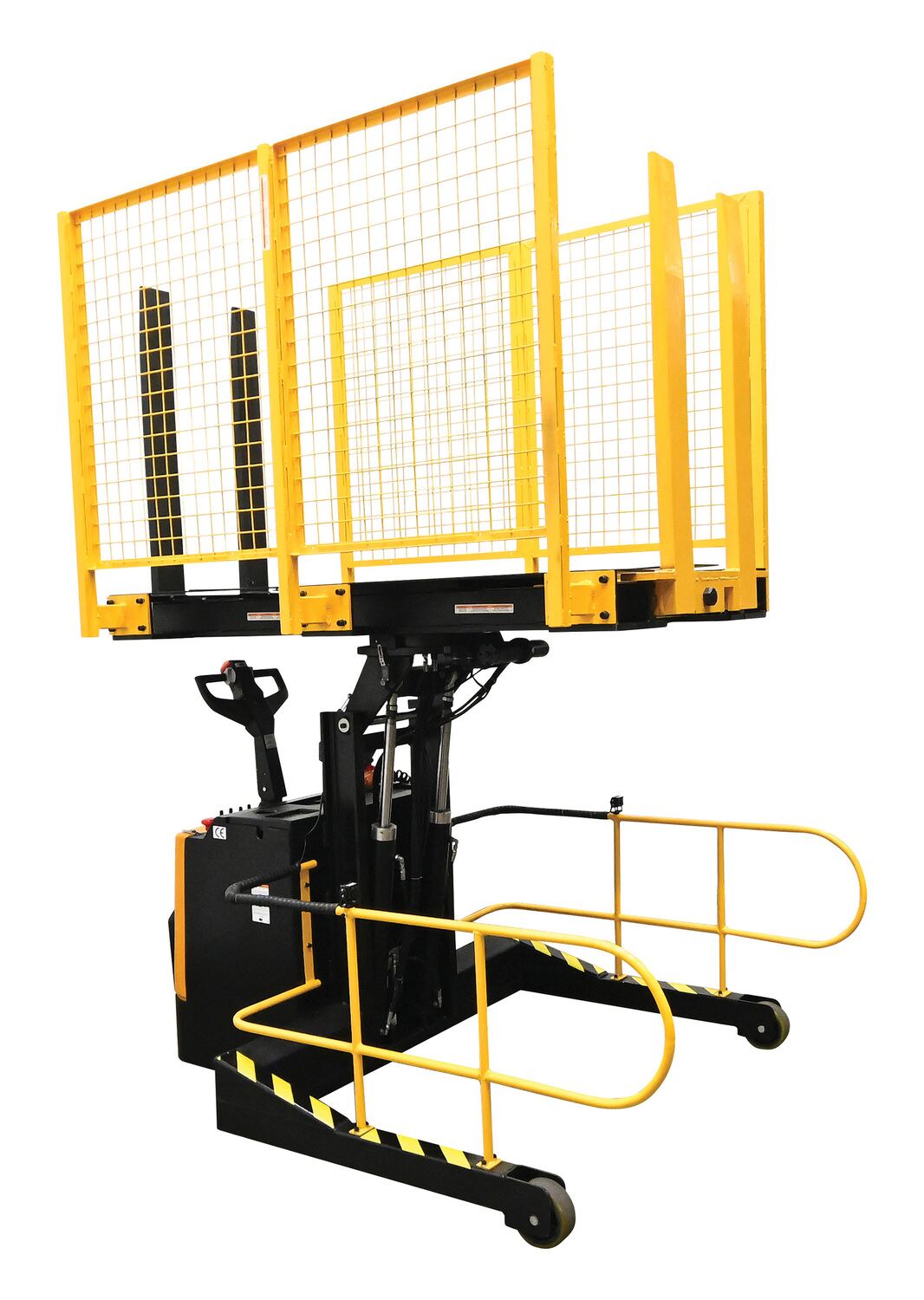

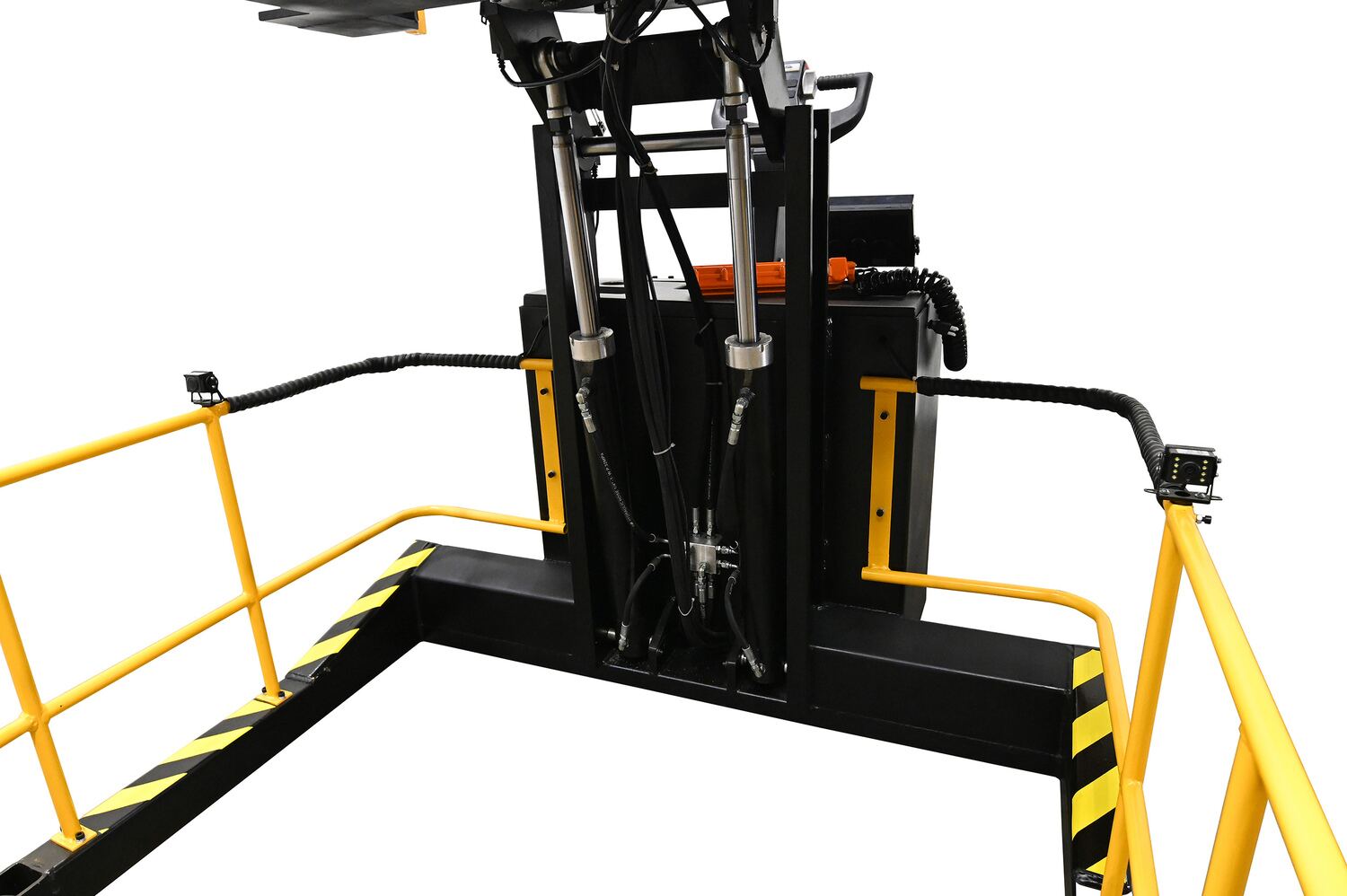

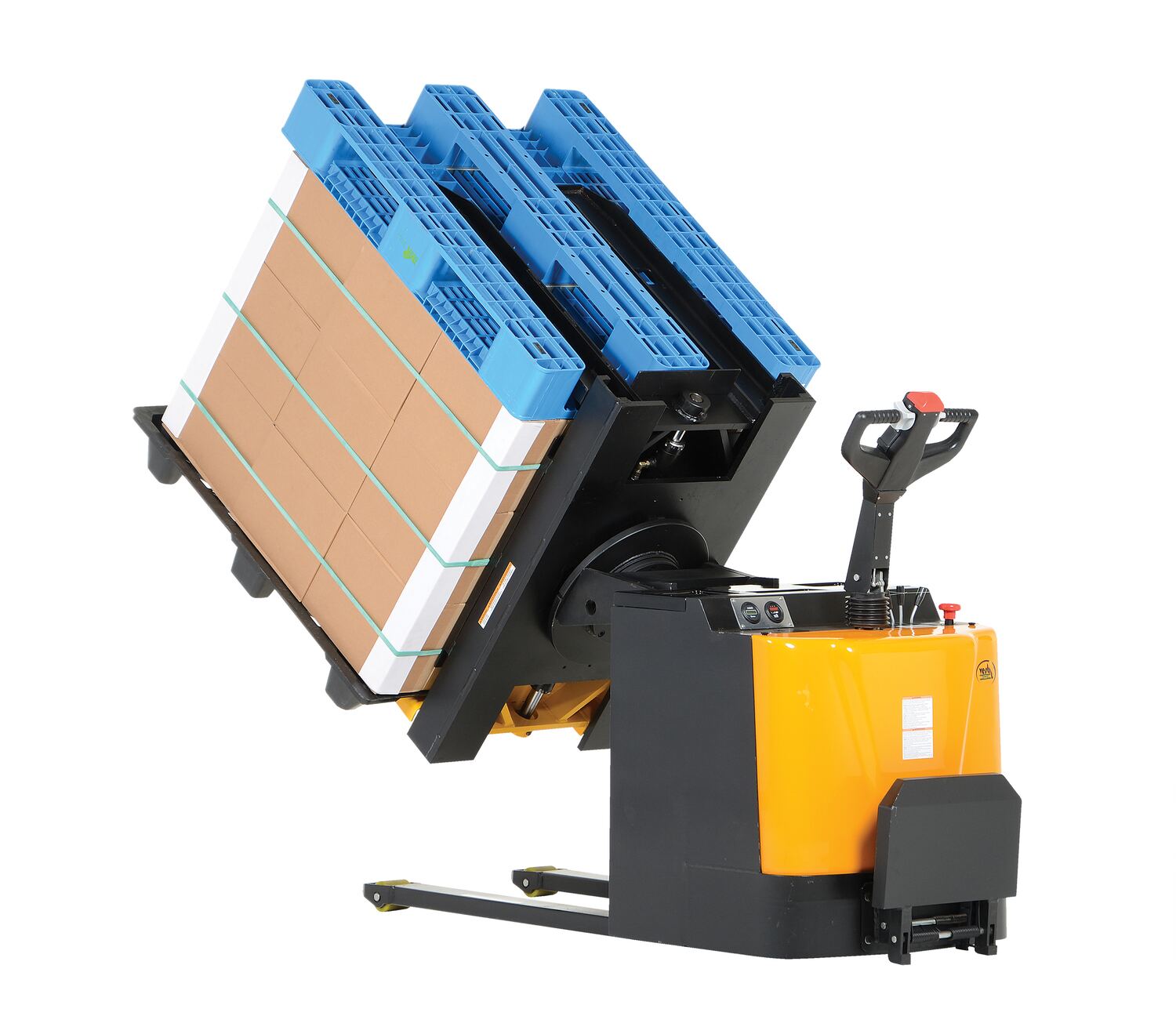

Tilt (powered) and rotate (manual) loads with our durable Pallet Inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle with infinite forward and reverse speeds, tilt/lower controls, safety belly reverse button, and horn. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, an on-board battery charger, battery level gauge, emergency battery disconnect, and horn. Ideal in loading dock areas as a powered pallet truck, powered pallet tilter, or as a manual turntable. Rolls smoothly on polyurethane steer and load wheels.

24V DC STANDARD

Tilt (powered) and rotate (manual) loads with our durable Pallet Inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle with infinite forward and reverse speeds, tilt/lower controls, safety belly reverse button, and horn. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, an on-board battery charger, battery level gauge, emergency battery disconnect, and horn. Ideal in loading dock areas as a powered pallet truck, powered pallet tilter, or as a manual turntable. Rolls smoothly on polyurethane steer and load wheels.

Other Pallet Inverters

 Pallet Inverters

Additional Models In This Family
view entire Image Gallery

PI-P-3000-3254

PI-P-3000-3254

PI-P-SL-3000-3276

PI-P-SL-3000-3276

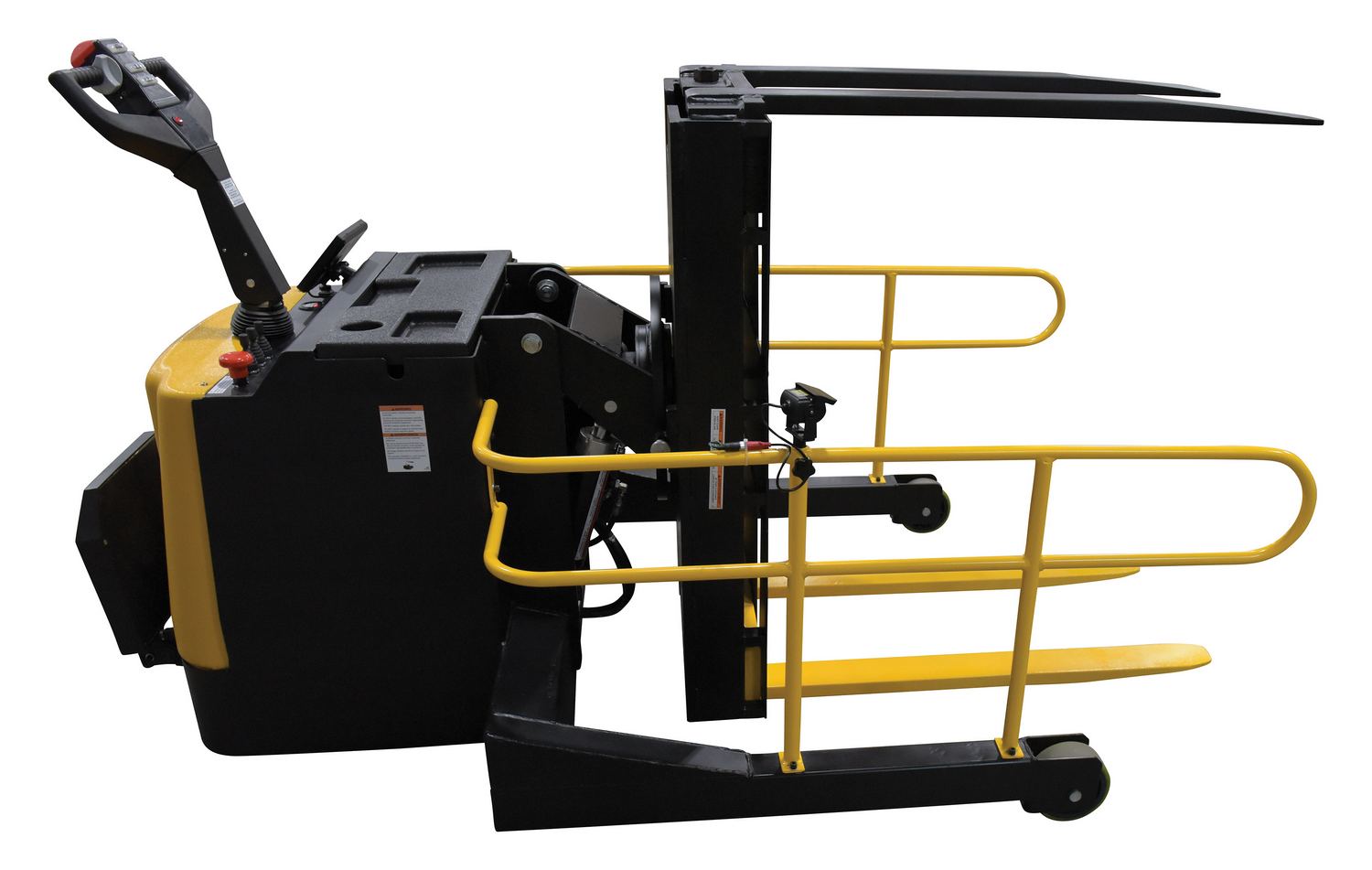

PI-P-SL-3000-4088

PI-P-SL-3000-4088

PI-P-SL-3000-4088

PI-P-SL-3000-4088

PI-P-3000-3254

PI-P-3000-3254

PI-P-3000-3254

PI-P-3000-3254

PI-P-SL-3000-4088

PI-P-SL-3000-4088

PI-P-3000-3254

PI-P-3000-3254

PI-P-3000-3254

PI-P-3000-3254

PI-P-SL-3000-4088

PI-P-SL-3000-4088

PI-P-SL-3000-4088

PI-P-SL-3000-4088

PI-P-3000-3254

PI-P-3000-3254

PI-P-SL-3000-3276

PI-P-SL-3000-3276

PI-P-SL-3000-3276

PI-P-SL-3000-3276

PI-P-SL-3000-4088

PI-P-SL-3000-4088

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
PI-P-3000-3254
PI-P-3000-32541 Year Limited WarrantySteel Portable Pallet Inverter Low Profile 32 In. to 54 In. Fork Opening 3000 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54		2388

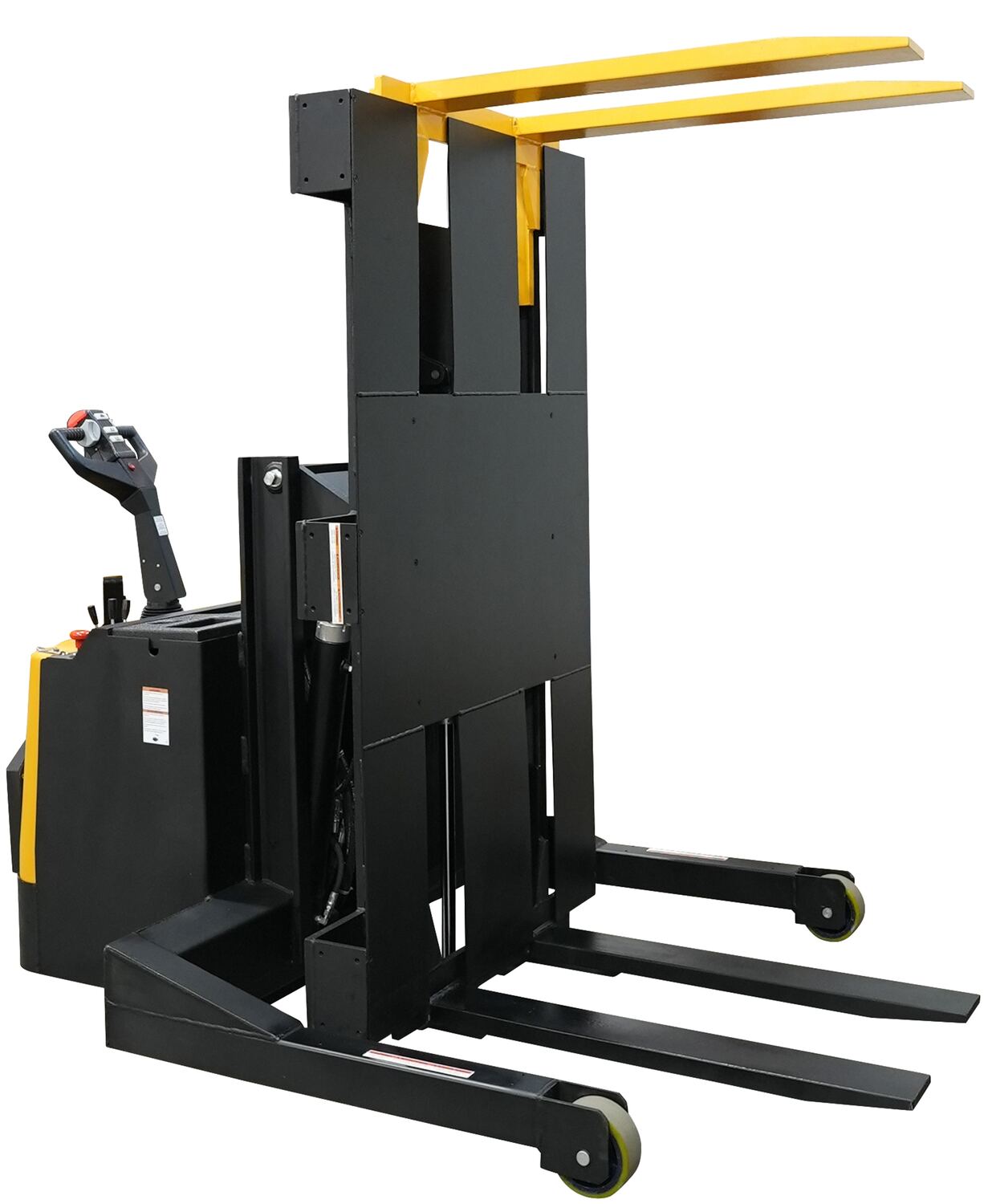

PI-P-SL-3000-3254
PI-P-SL-3000-32541 Year Limited WarrantySteel Portable Pallet Inverter 32 In. to 54 In Fork Opening 3000 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54		1879

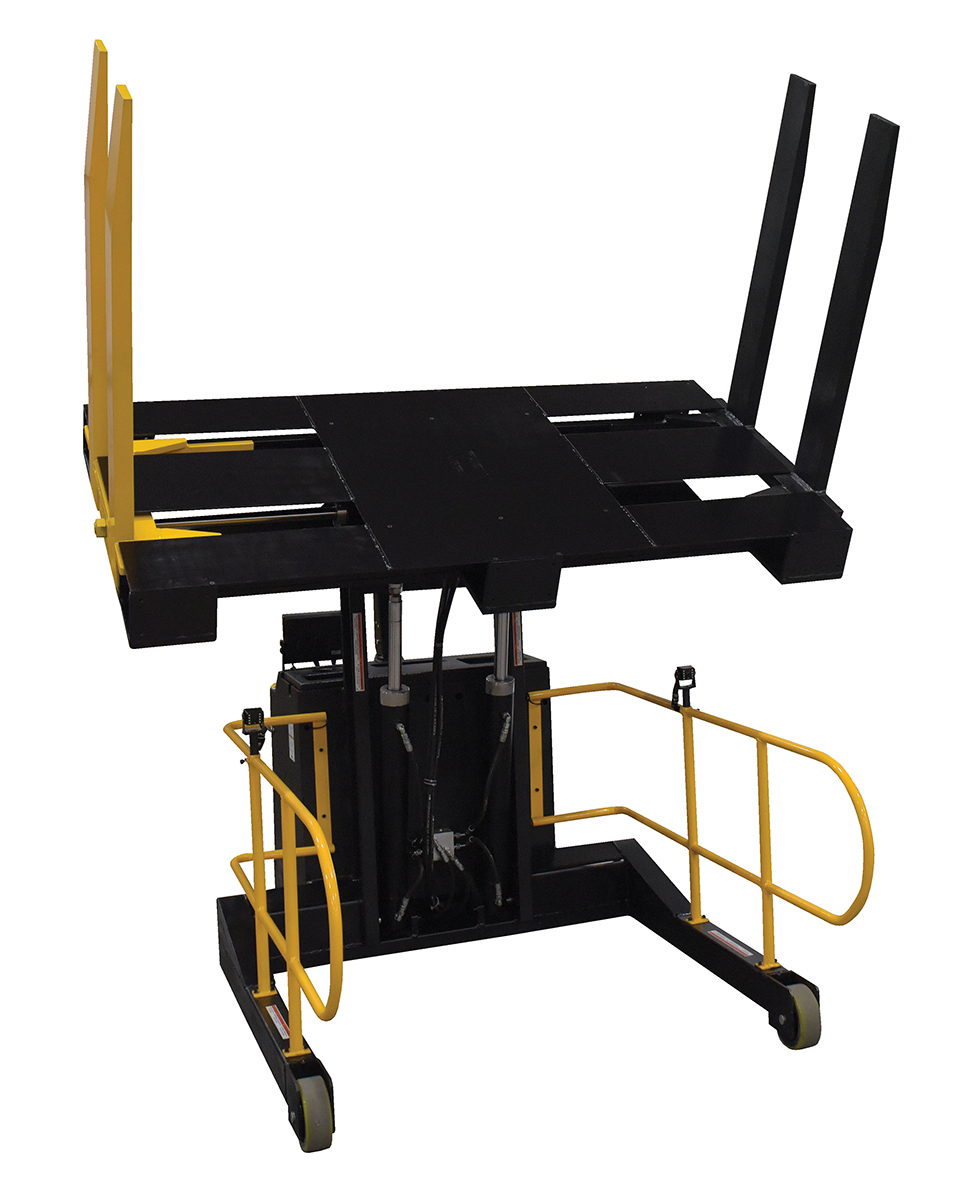

PI-P-SL-3000-3276
PI-P-SL-3000-32761 Year Limited WarrantySteel Portable Pallet Inverter 32 In. to 76 In Fork Opening 3000 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 76		3026
PI-P-SL-3000-4088
PI-P-SL-3000-40881 Year Limited WarrantySteel Portable Pallet Inverter 40 In. to 88 In Fork Opening 3000 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 3000
Fork Opening (in.): 40 to 88		3095

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

PI-P-3000-3254
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54

PI-P-SL-3000-3254
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54

PI-P-SL-3000-3276
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 76
Uniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 76

PI-P-SL-3000-4088
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Fork Opening (in.): 40 to 88
Uniform Capacity (lb.): 3000
Fork Opening (in.): 40 to 88
Portable Pallet Inverters PDF's will open in a new window when clicked.

Manuals


PI-P-4400-3254
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


PI-P-3000-3254

PI-P-SL-3000-3254

PI-P-SL-3000-3276

Testing Certificates


PI-P-3000-3254

PI-P-SL-3000-3254

PI-P-SL-3000-3276

PI-P-SL-3000-4088

SDS Sheets

Hydraulic Oil SDS Sheet for: PI-P-3000-3254
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PI-P-SL-3000-3254
Hydraulic Oil SDS Sheet for: PI-P-SL-3000-3254
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PI-P-SL-3000-3276
Hydraulic Oil SDS Sheet for: PI-P-SL-3000-3276
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PI-P-SL-3000-4088
Hydraulic Oil SDS Sheet for: PI-P-SL-3000-4088

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Can the portable pallet inverter pick up a loaded pallet?

A: The portable pallet inverter (part number PI-P-4400-3254) can be used to pick up skids. Please see the straddle model options to pick up pallets or skids. (PI-P-SL-3000-3254, PI-P-SL-3000-3276, or PI-P-SL-3000-4088).




Related or Similar Products:

Pallet Inverters
Product

Pallet Inverters

Electric/Hydraulic Box Dumpers
Product

Electric/Hydraulic Box Dumpers

Electric Hydraulic Trash Can Dumpers
Product

Electric Hydraulic Trash Can Dumpers

Universal Trash Can Dumpers
Product

Universal Trash Can Dumpers

Electric/Hydraulic Corner Tilters
Product

Electric/Hydraulic Corner Tilters

Air Corner Tilters
Product

Air Corner Tilters

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Portable Pallet Inverters




24V DC STANDARD

Tilt (powered) and rotate (manual) loads with our durable Pallet Inverter. Low profile design allows the operator to stand on the rider platform and steer the load from workstation to workstation quickly and easily. DC power lift and drive makes operation safe and efficient. The ergonomic handle features easy to operate throttle with infinite forward and reverse speeds, tilt/lower controls, safety belly reverse button, and horn. Features an electromagnetic disc brake with automatic dead-man feature that activates when user releases handle. Includes (4) 6V batteries, an on-board battery charger, battery level gauge, emergency battery disconnect, and horn. Ideal in loading dock areas as a powered pallet truck, powered pallet tilter, or as a manual turntable. Rolls smoothly on polyurethane steer and load wheels.


Model # Description Attributes Net Wt.
(lbs)
PI-P-3000-3254 PI-P-3000-3254Steel Portable Pallet Inverter Low Profile 32 In. to 54 In. Fork Opening 3000 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54		2388
PI-P-SL-3000-3254 PI-P-SL-3000-3254Steel Portable Pallet Inverter 32 In. to 54 In Fork Opening 3000 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 54		1879
PI-P-SL-3000-3276 PI-P-SL-3000-3276Steel Portable Pallet Inverter 32 In. to 76 In Fork Opening 3000 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 3000
Fork Opening (in.): 32 to 76		3026
PI-P-SL-3000-4088 PI-P-SL-3000-4088Steel Portable Pallet Inverter 40 In. to 88 In Fork Opening 3000 Lb. Capacity Yellow/BlackUniform Capacity (lb.): 3000
Fork Opening (in.): 40 to 88		3095
