Model Details

PS-4045/CA

Printer Friendly
PS-4045/CA

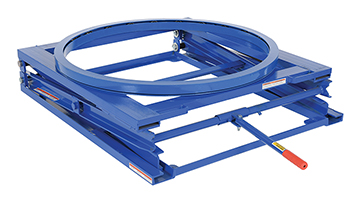

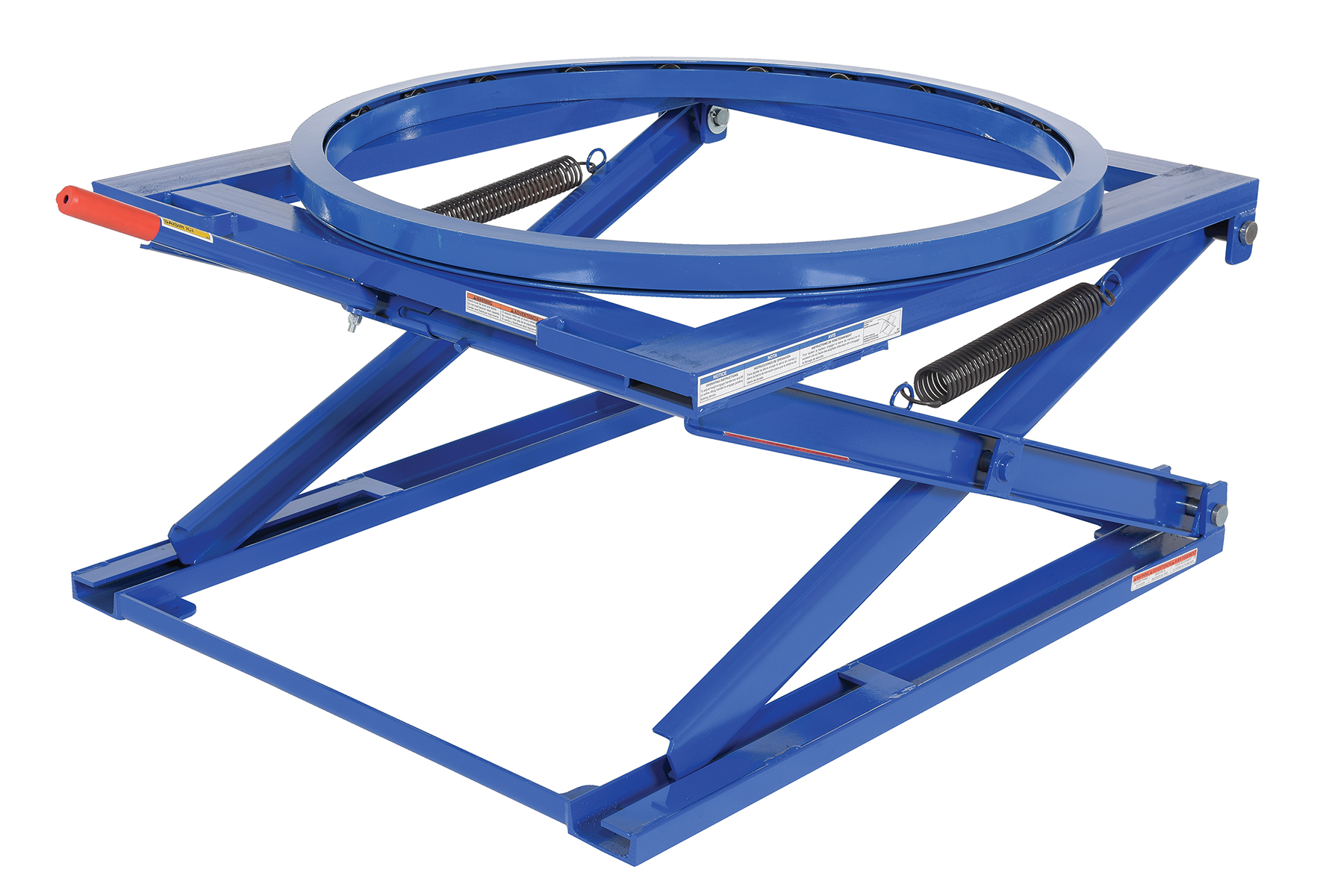

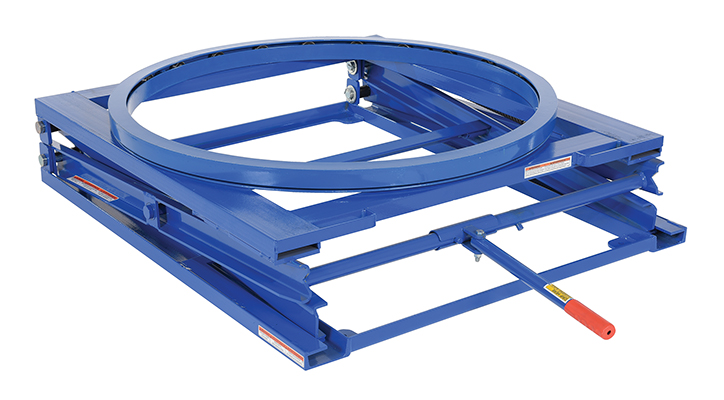

Steel Adjustable Pallet Carousel Stand 45-3/4 In. x 40-1/2 In. x 12-1/4 In. 4000 Lb. Capacity Blue

The adjustable pallet stand is designed to manually adjust to three (3) different ergonomic working heights. The stand includes a three (3) position manual adjusting bar with spring assist to help raise and lower the deck. The pallet stand must be empty when adjusting the height. This stand has a manual carousel that allows full rotation of products while on the pallet stand.

  • Unique design works as a variable-height ergonomic work station
  • Built-in springs assist with height adjustment
  • Welded steel construction provides long lasting use
  • Powder coat blue finish gives unit an attractive appearance and long lasting coat
Total Ship Wt.(lbs.): 312 (only 1 package) Size: 40.5"W x 45.75"L x 12.25"H Color: Blue

Uniform Capacity (lb.): 4,000 Lowered Height (in.): 12-1/4 First Setting (in.): 22-1/4
Second Setting (in.): 32-3/4 Third Setting (in.): 36-7/8 Platform Width (in.): 40
Platform Length (in.): 42-1/2 Carousel Diameter (in.): 40 Carousel Height (in.): 2
Rotation (degrees): 360

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: PS-4045/CA
PS-4045/CA

Steel Adjustable Pallet Carousel Stand 45-3/4 In. x 40-1/2 In. x 12-1/4 In. 4000 Lb. Capacity Blue

The adjustable pallet stand is designed to manually adjust to three (3) different ergonomic working heights. The stand includes a three (3) position manual adjusting bar with spring assist to help raise and lower the deck. The pallet stand must be empty when adjusting the height. This stand has a manual carousel that allows full rotation of products while on the pallet stand.

  • Unique design works as a variable-height ergonomic work station
  • Built-in springs assist with height adjustment
  • Welded steel construction provides long lasting use
  • Powder coat blue finish gives unit an attractive appearance and long lasting coat
Dimensions: 40.5"W x 45.75"L x 12.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215031714 GTIN: 00691215031714
Warranty: -- Shipping Weight: 312 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembly required Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 4,000 Lowered Height (in.): 12-1/4 First Setting (in.): 22-1/4
Second Setting (in.): 32-3/4 Third Setting (in.): 36-7/8 Platform Width (in.): 40
Platform Length (in.): 42-1/2 Carousel Diameter (in.): 40 Carousel Height (in.): 2
Rotation (degrees): 360
