A-Frame Storage Cart
model: AFSR-3672
A-Frame Storage Cart

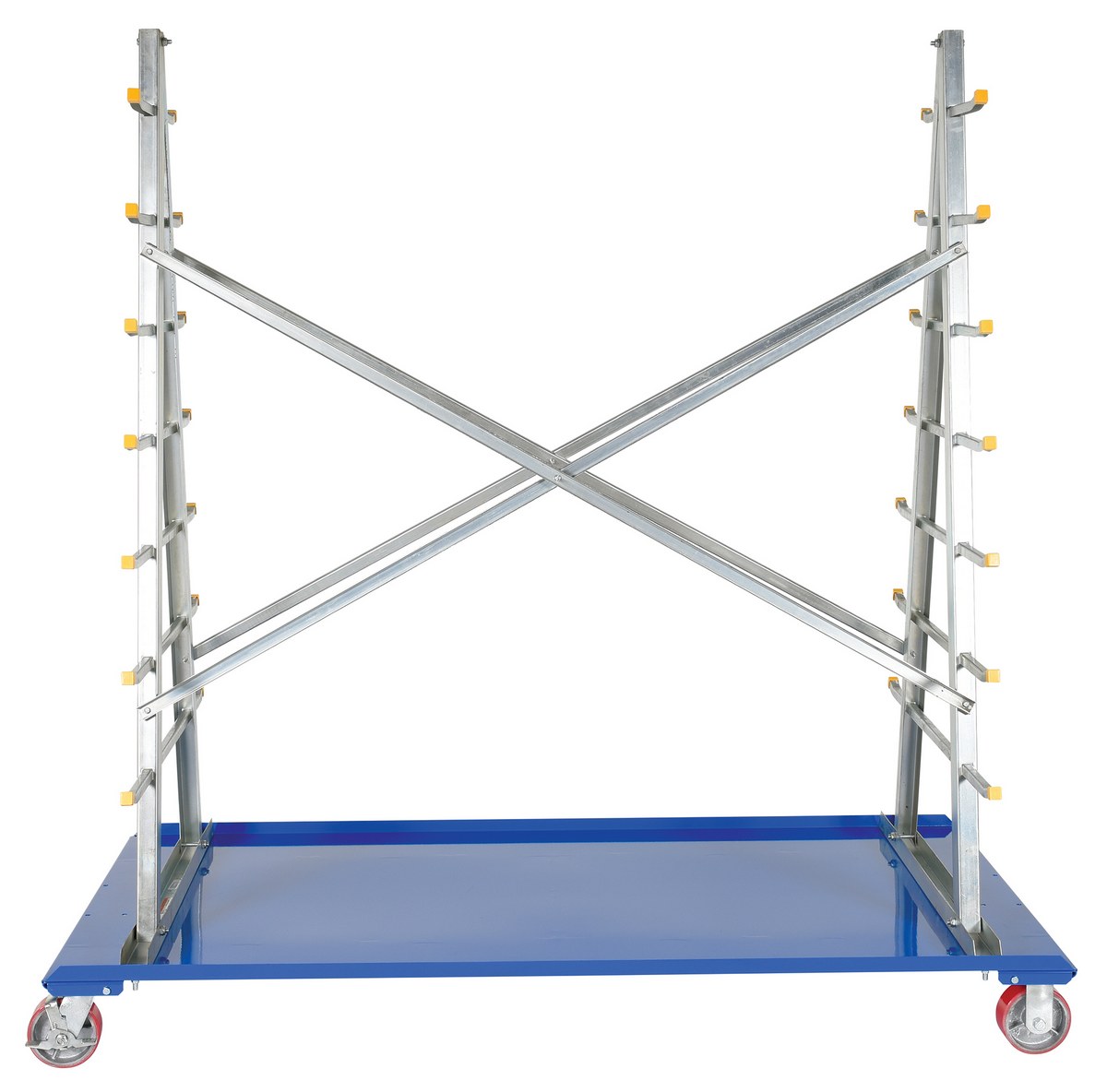

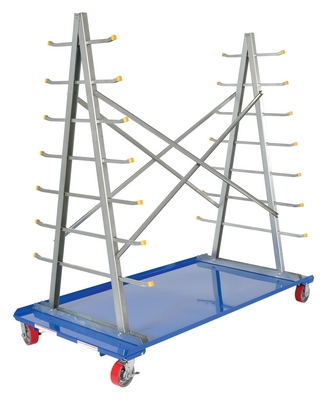

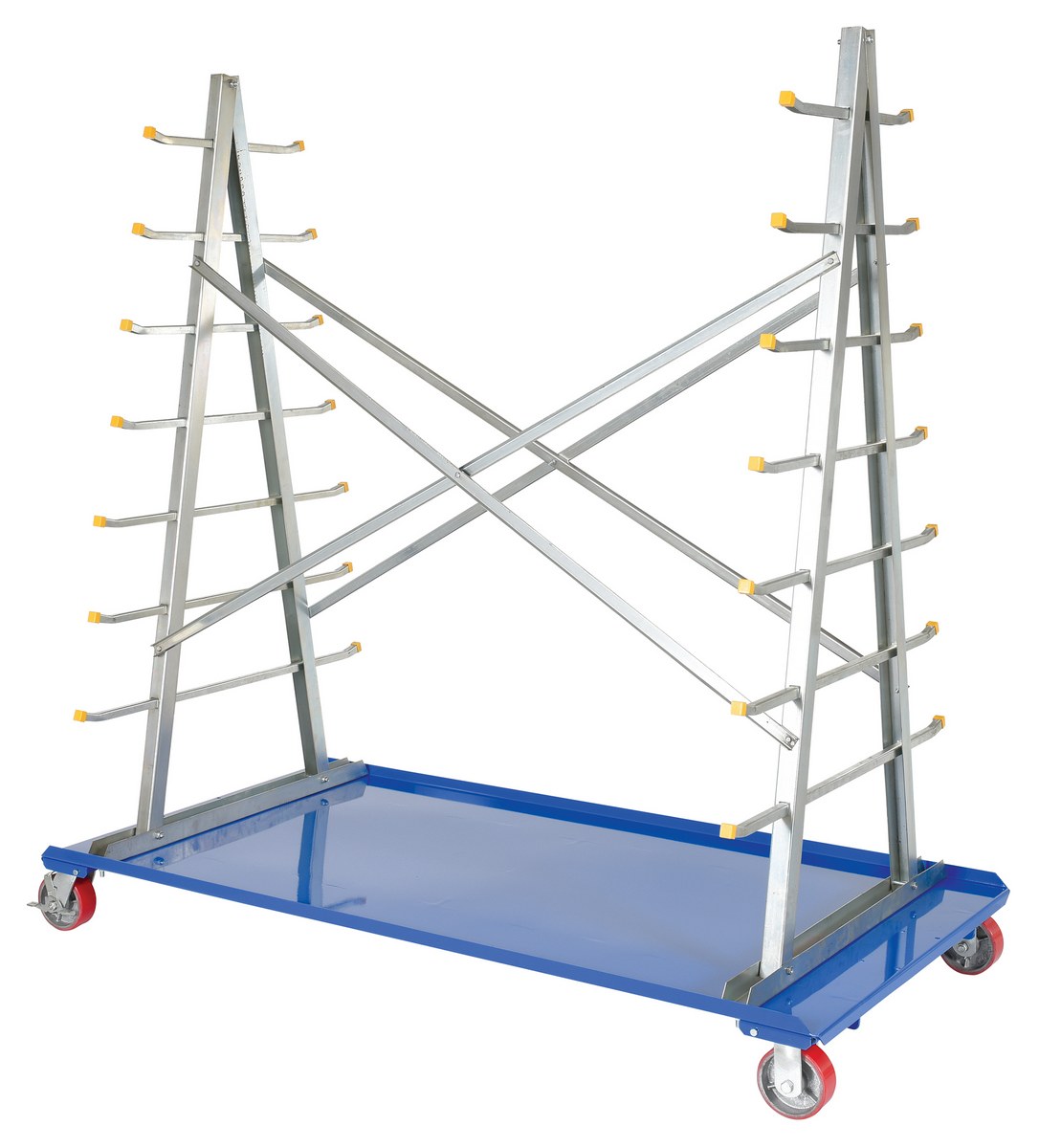

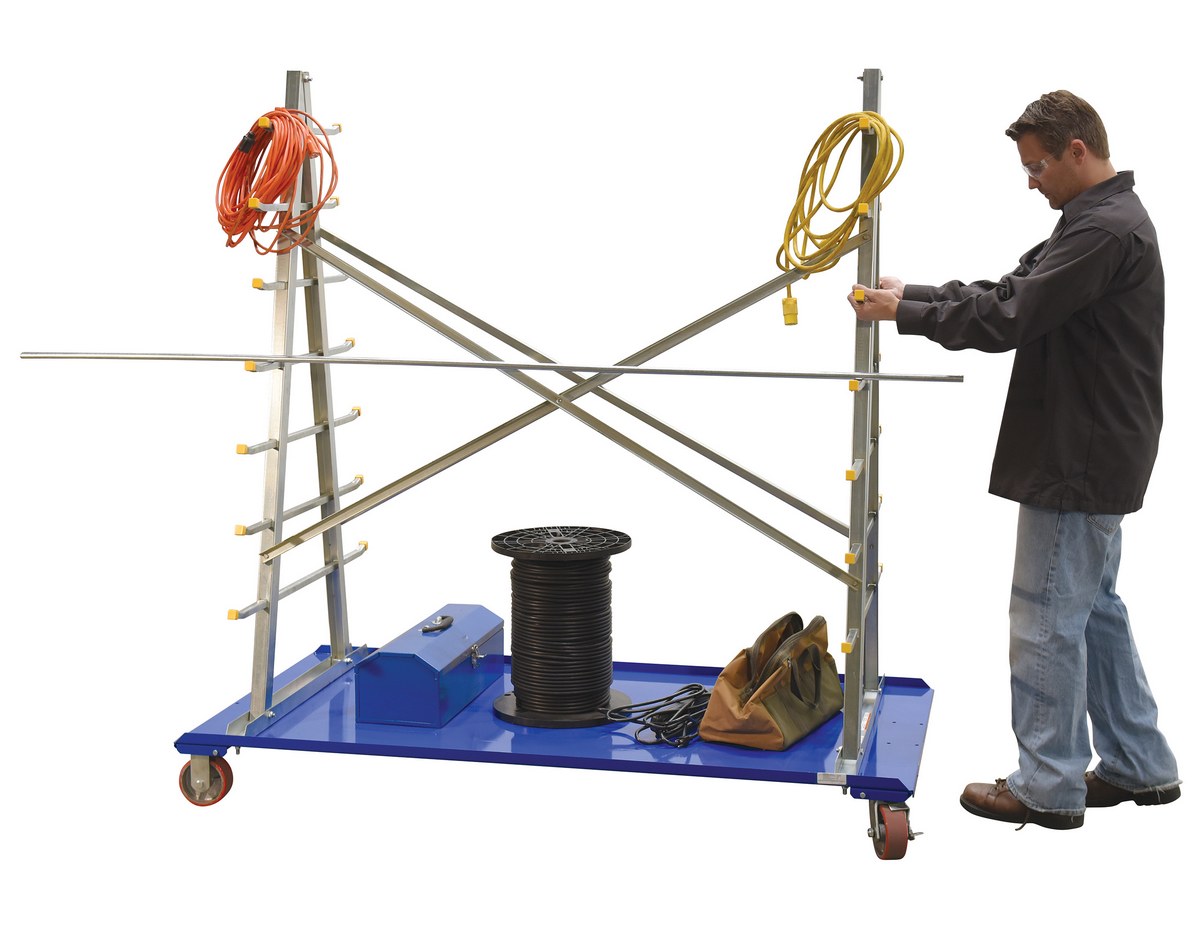

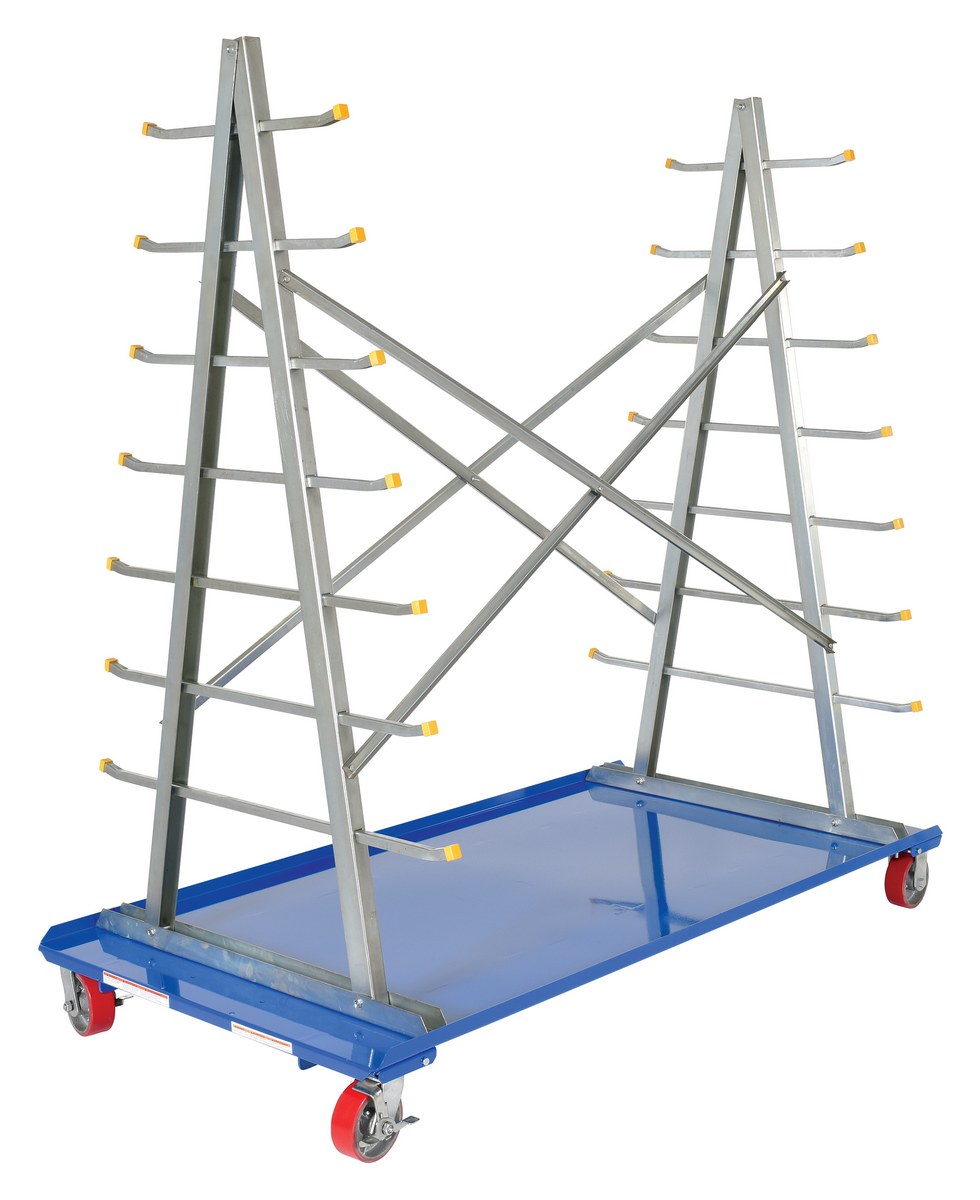

The portable A-Frame Cart with storage rack is ideal for storage and transporting pipe, conduit and other types of bar material. Storage arms extend 12" beyond frame with a clearance of 7-1/4" between arms. Unit rolls on (2) rigid and (2) swivel 5" poly-on-steel casters with brakes. Base is powder coat blue while the storage rack is zinc plated.
Standard Features:

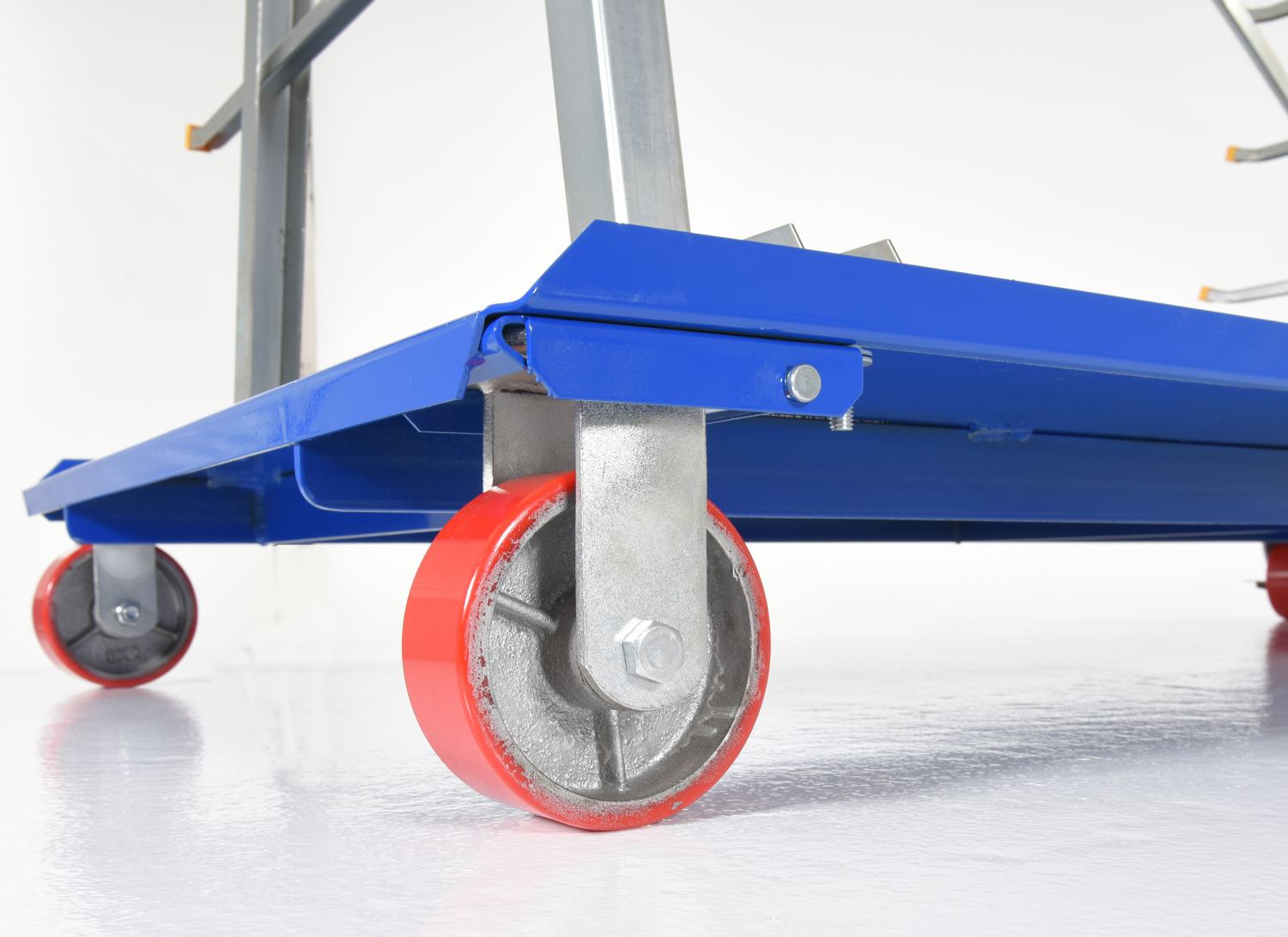

Portable with two rigid & two swivel 5" poly-on-steel casters
Overall deck size is 36-3/4"W x 72"L
Storage rack is 72-1/2"H with 8 storage levels

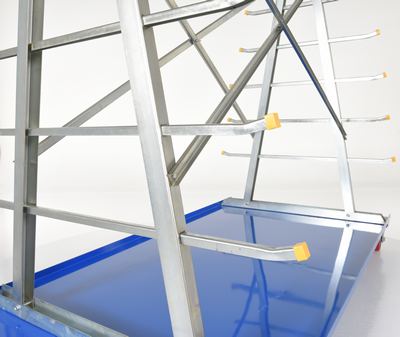

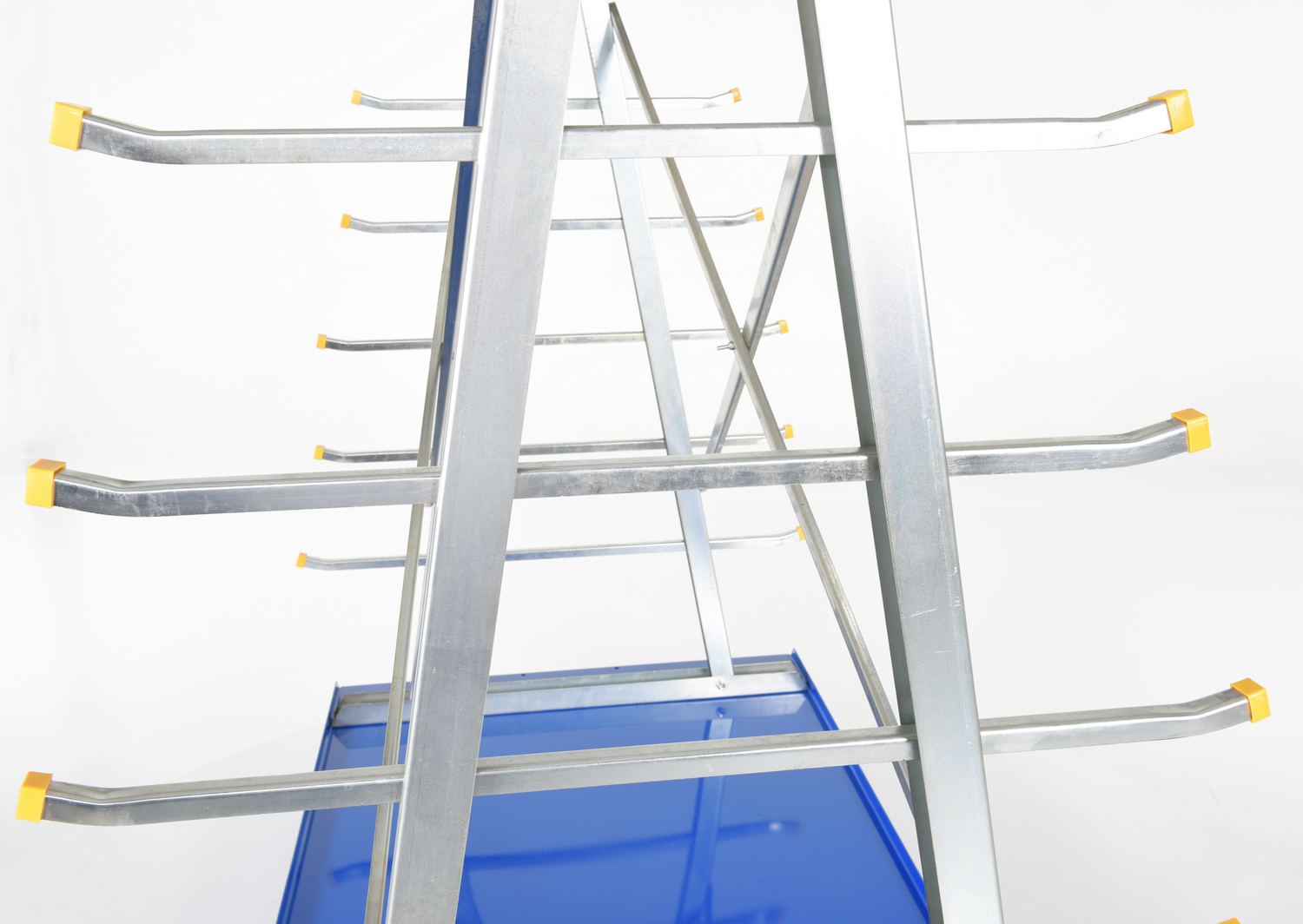

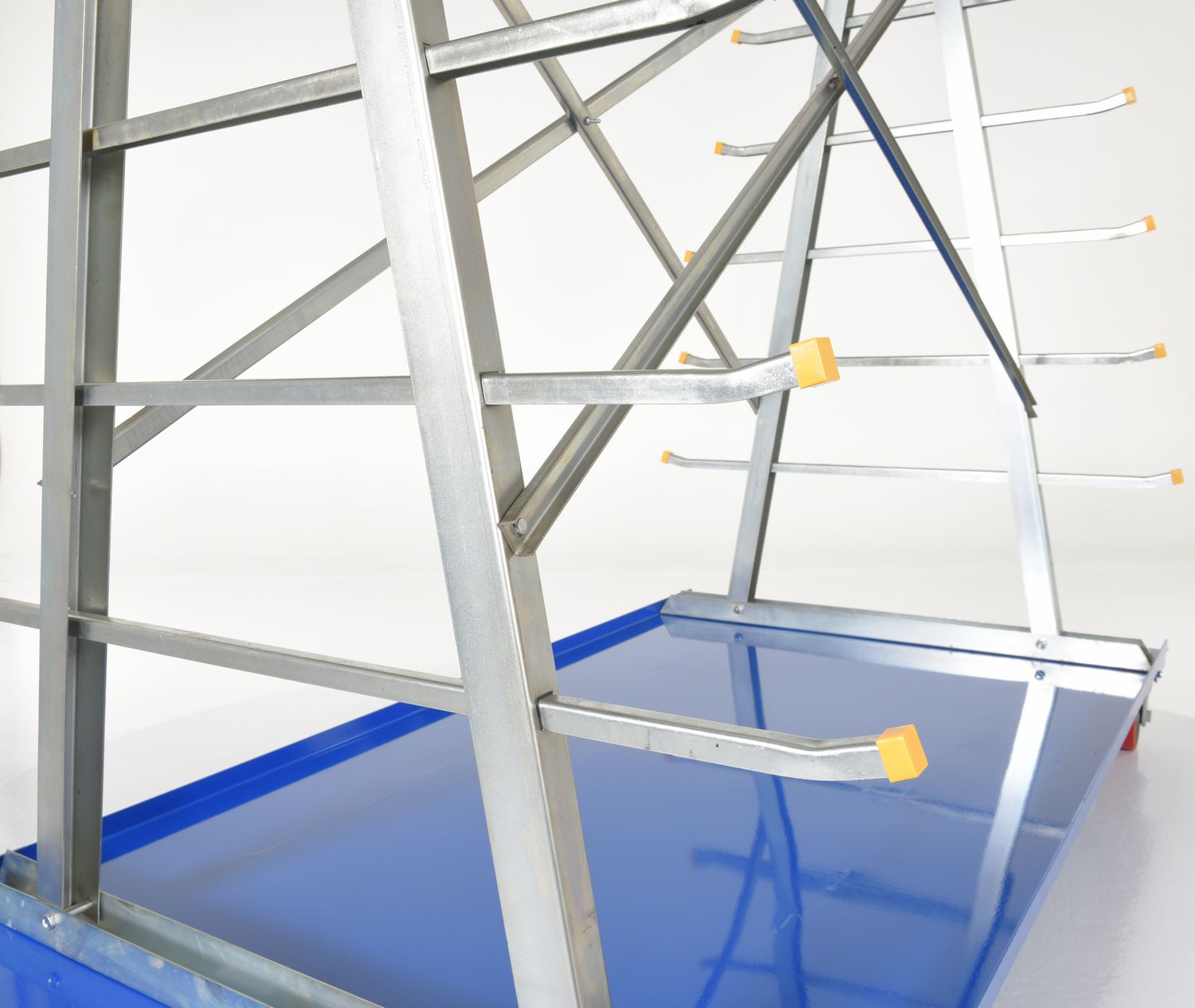

Storage arms extend 12" beyond frame
Distance between storage arms is 7-1/4"
Maximum capacity is 2000 lbs.
Base is powder coated blue

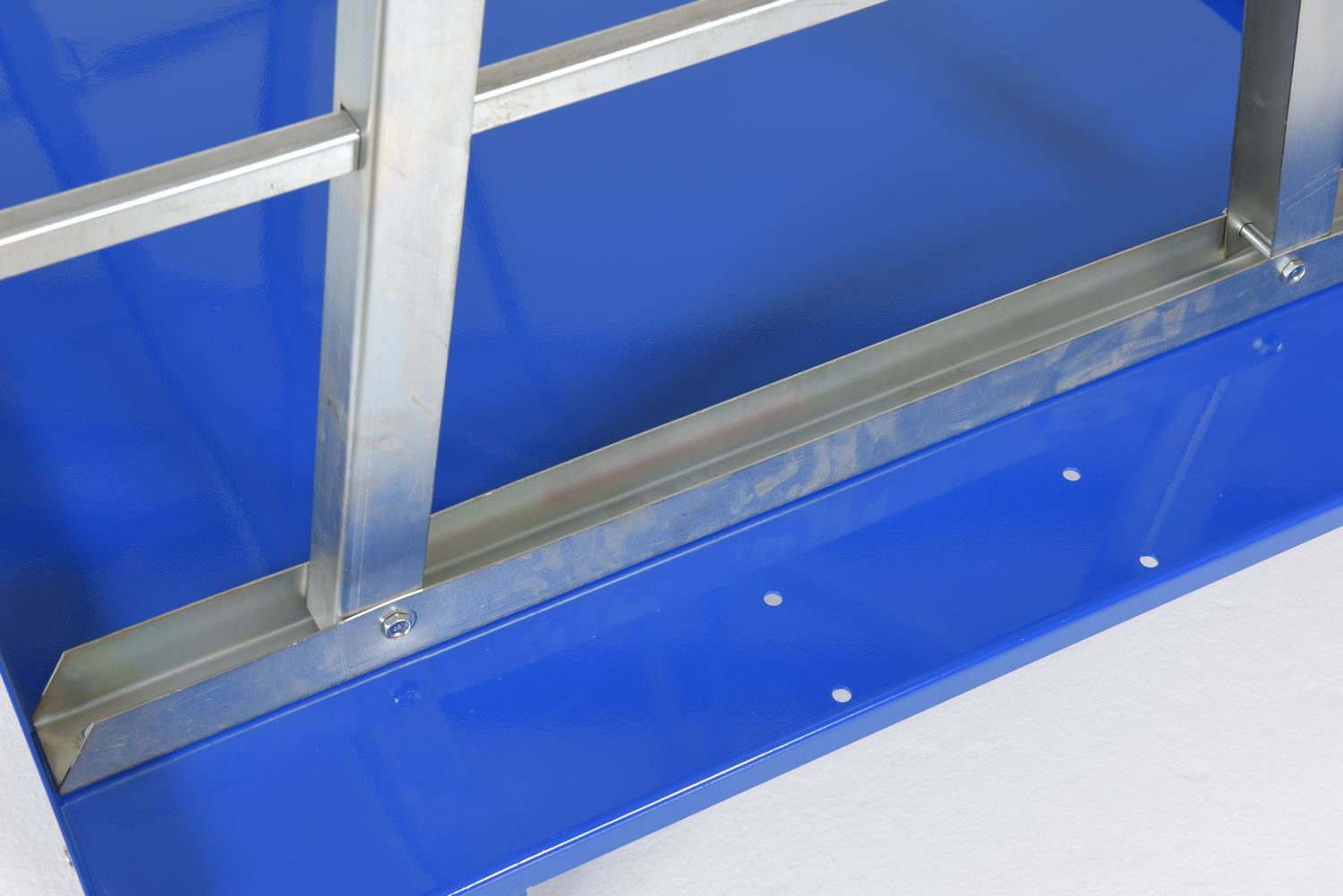

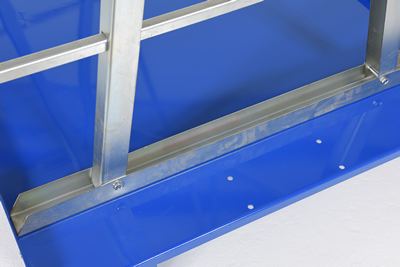

Storage rack is zinc-plated
Unit must be statically and uniformly loaded
Each sides capacity equals half the total system capacity
Each support arm must be statically and uniformly loaded
