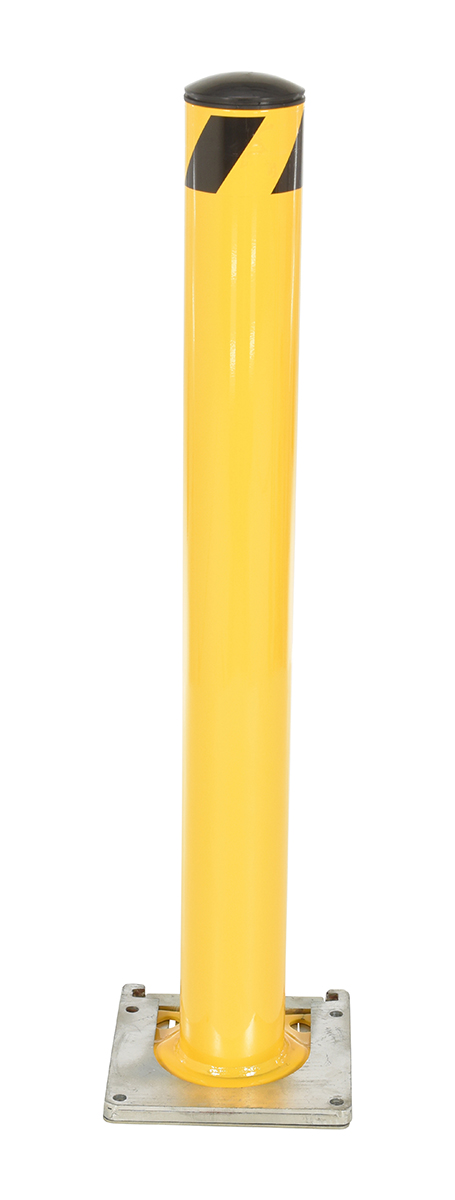

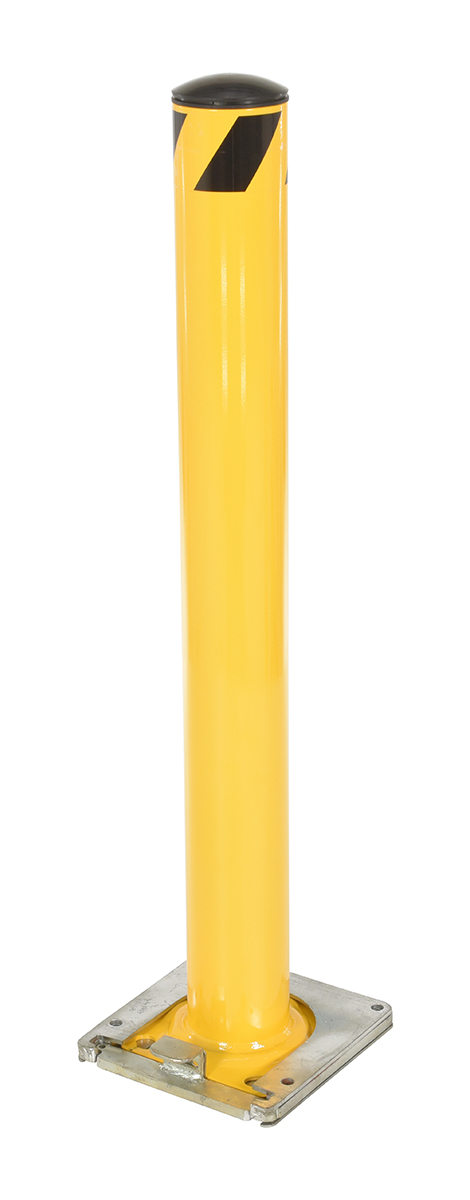

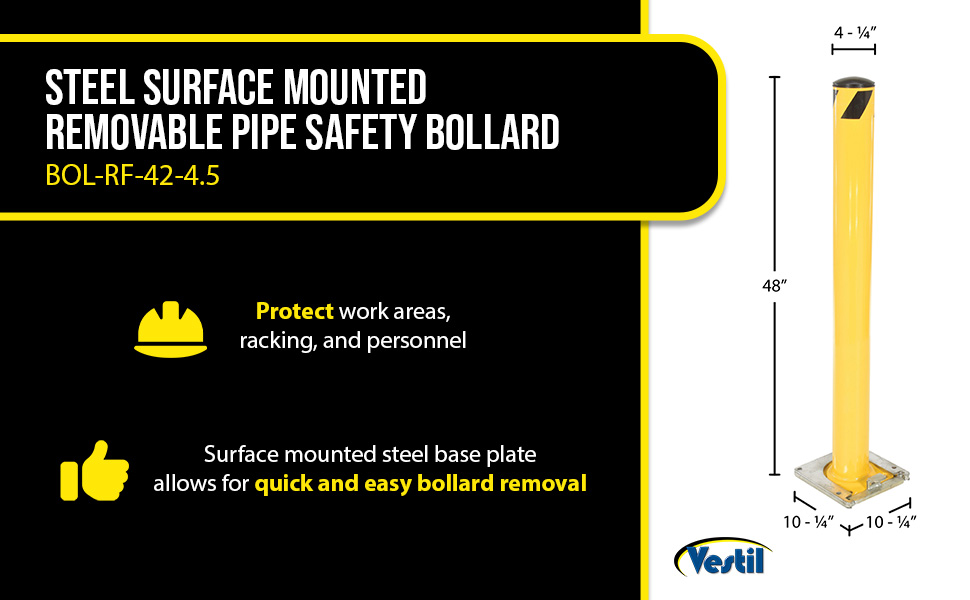

Surface Mounted Removable Steel Pipe Safety Bollards

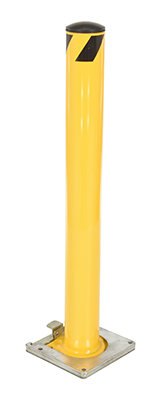

model: BOL-RF-42-4.5

BOL-RF-42-4.5_A.jpg BOL-RF-42-4.5_E.jpg BOL-RF-42-4.5_D.jpg BOL-RF-42-4.5_B.jpg BOL-RF-42-4.5_C.jpg BOL-RF-42-4.5_F.jpg BOL-RF-42-4.5_G.jpg BOL-RF-42-4.5_H.jpg
Surface Mounted Removable Steel Pipe Safety Bollards
SERIES: BOL-RF

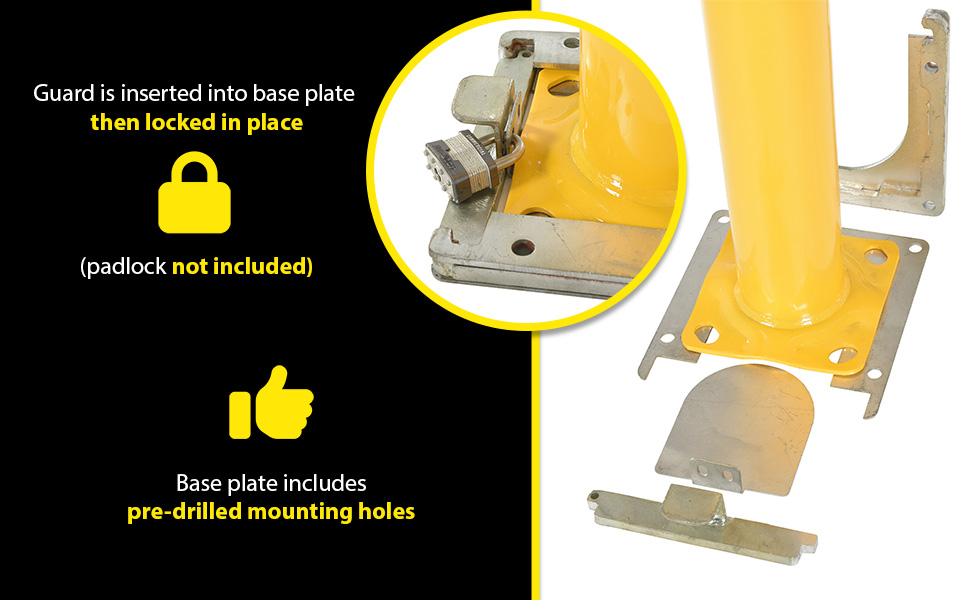

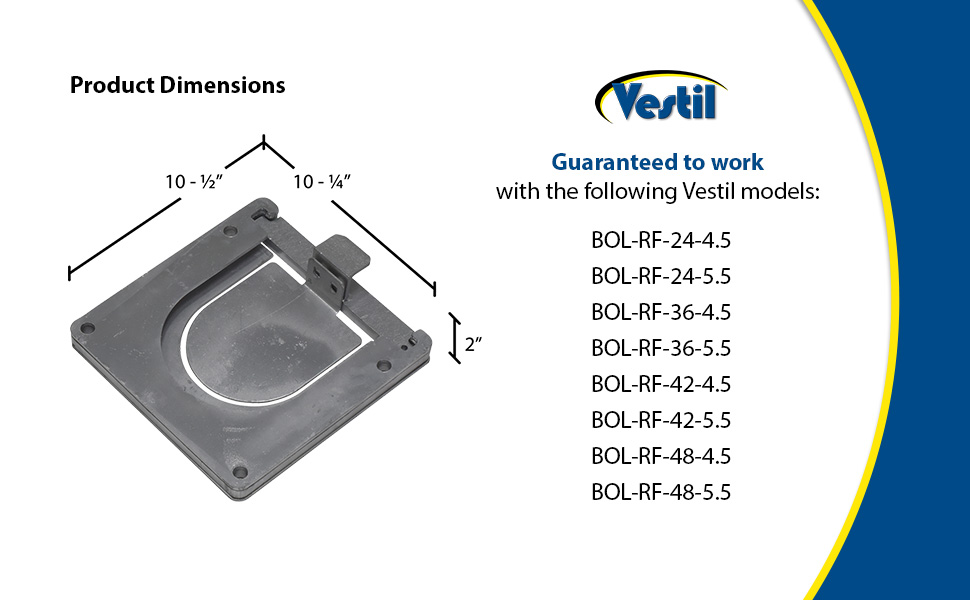

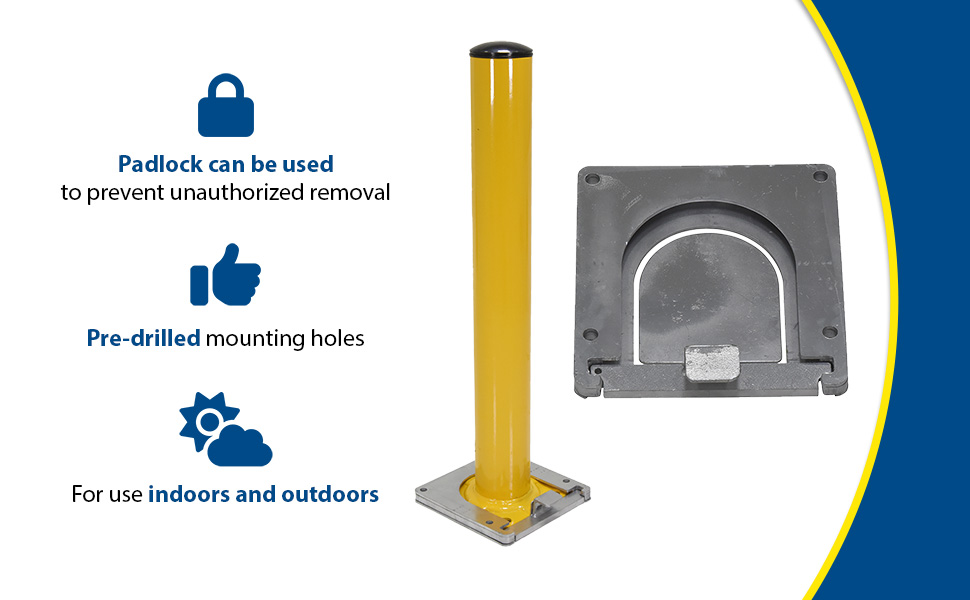

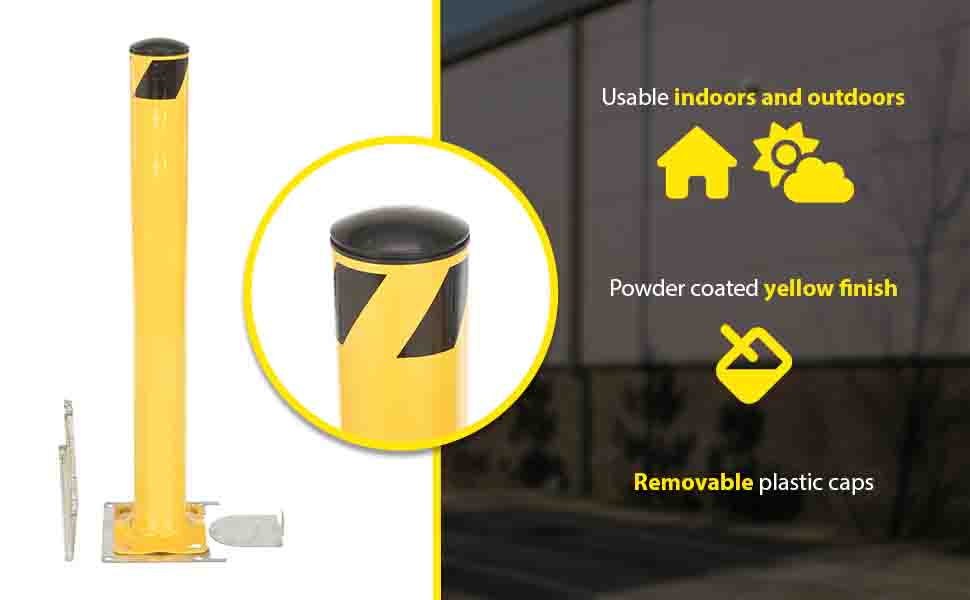

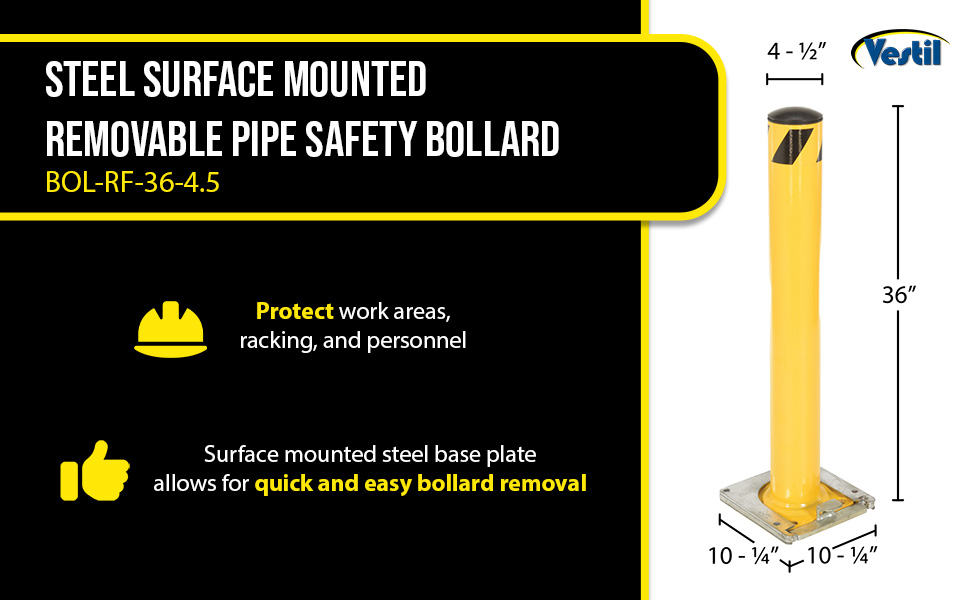

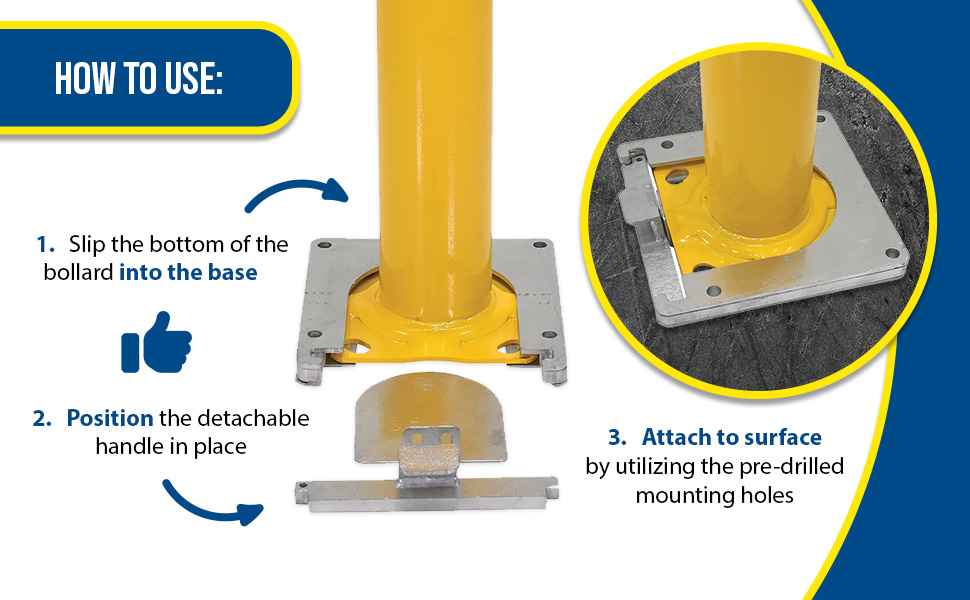

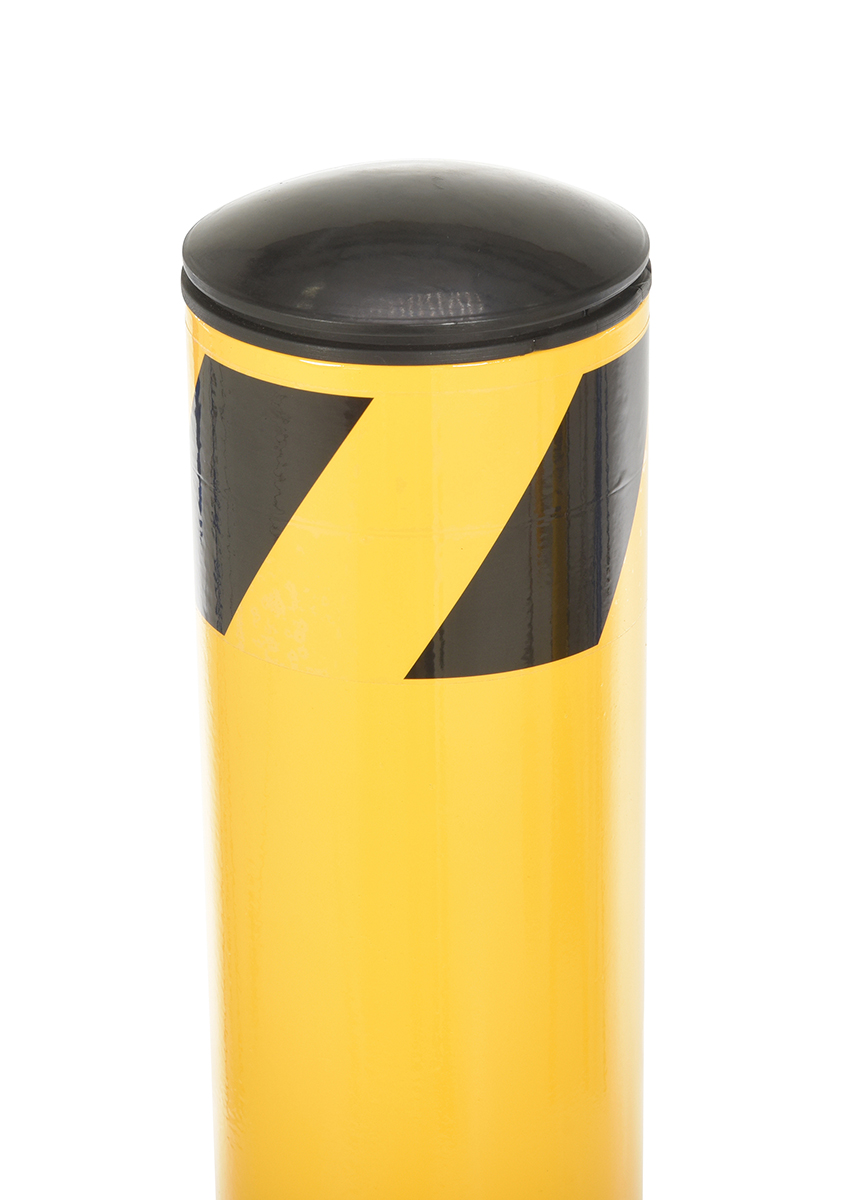

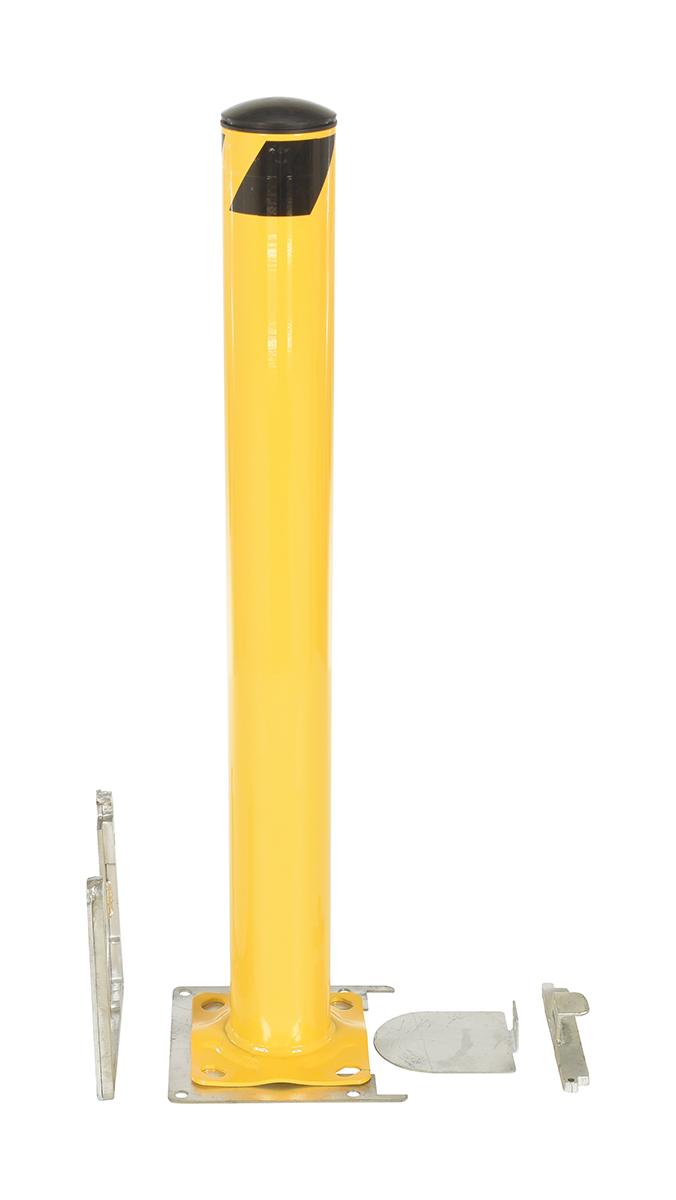

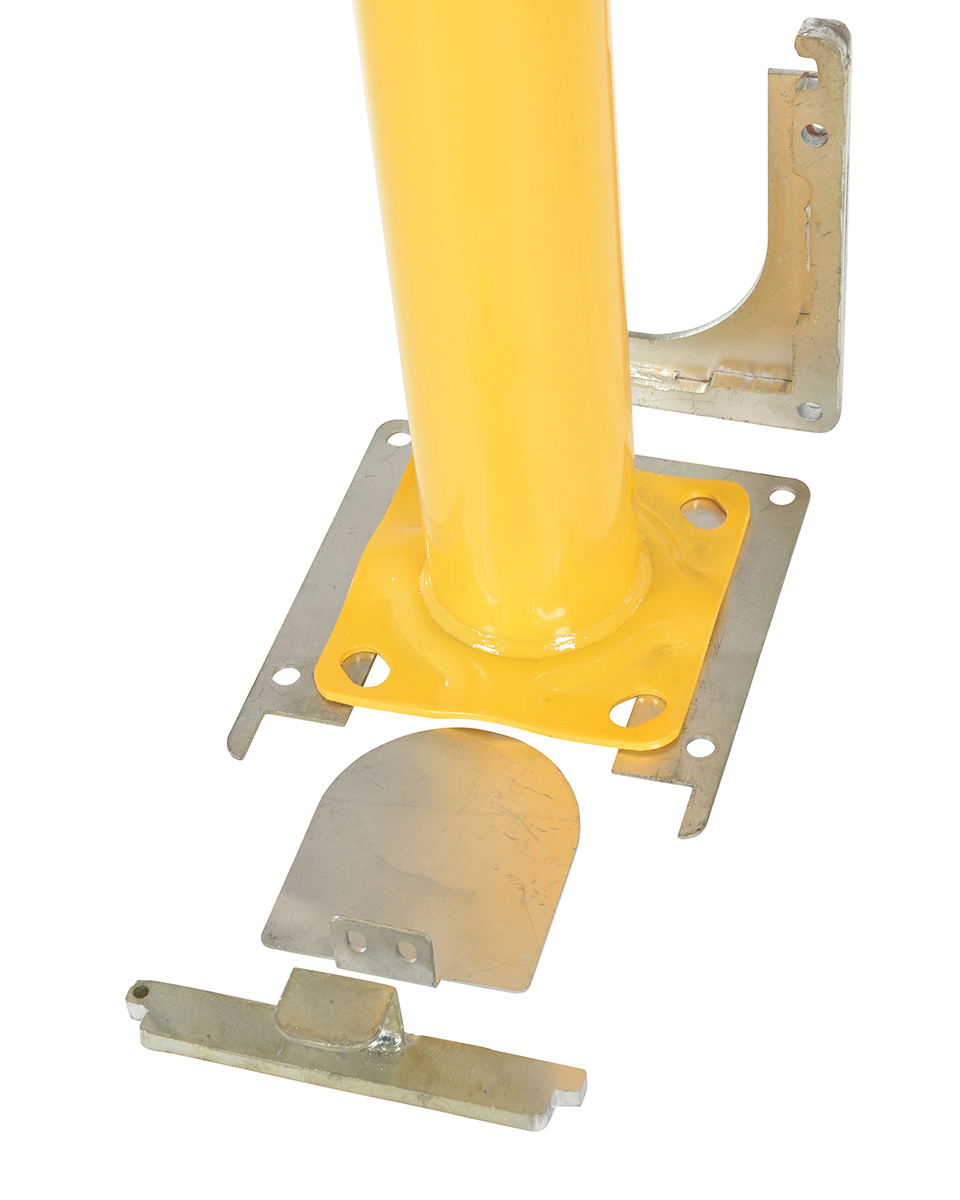

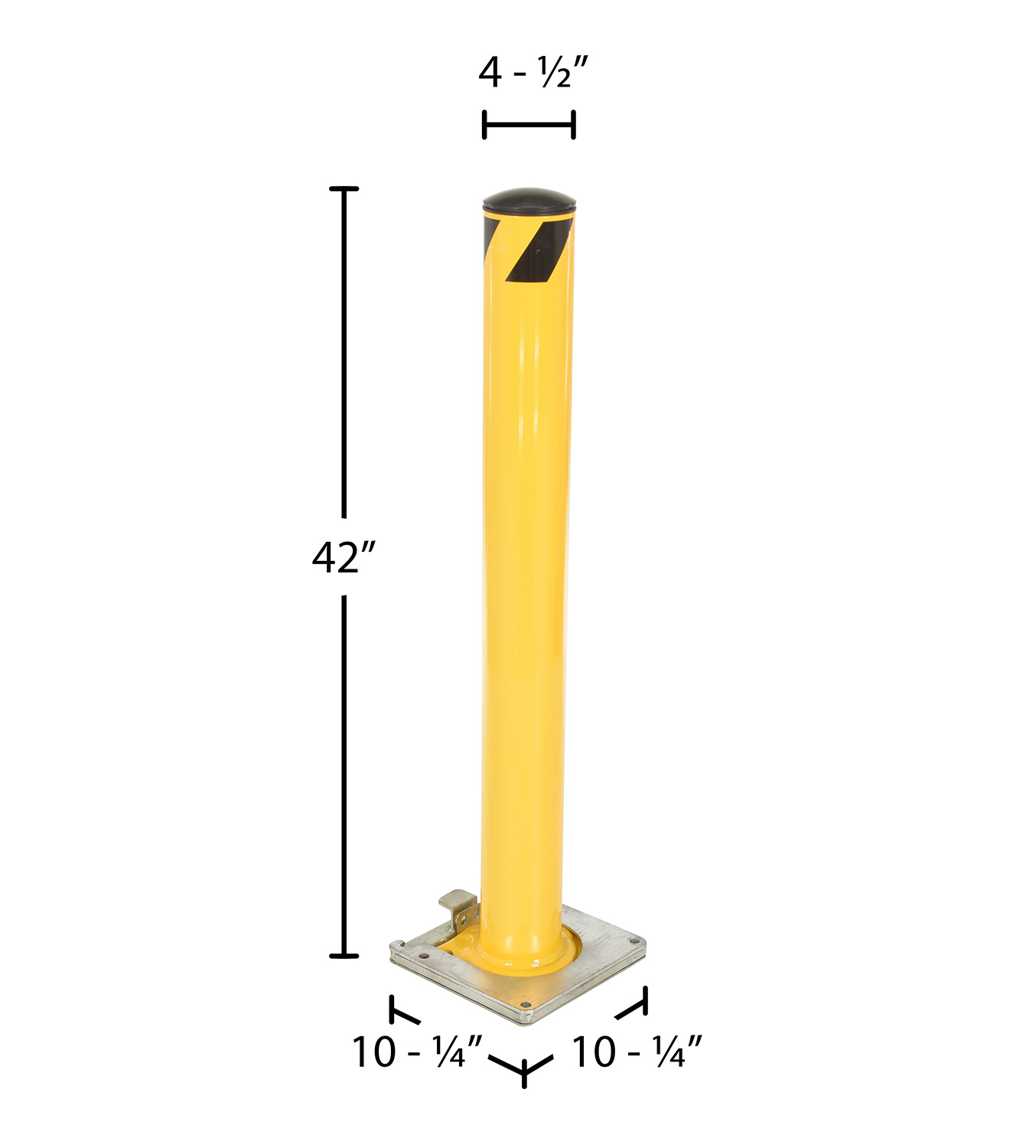

Bollards can be used both indoors and outdoors to protect work areas, racking and personnel. Surface mounted zinc coated steel base plate allows for quick and easy bollard removal. Steel base plate is bolted in place. Guard is easily inserted into base plate then secured in place. A padlock may be added to prevent unauthorized removal (padlock not included) Base plate measures 10-1/4"W x 10-1/2"L x 2"H height and include four (4) pre-drilled mounting holes. Plastic top caps are removable. Baked-in yellow powder coat finish for added toughness. Welded steel construction.

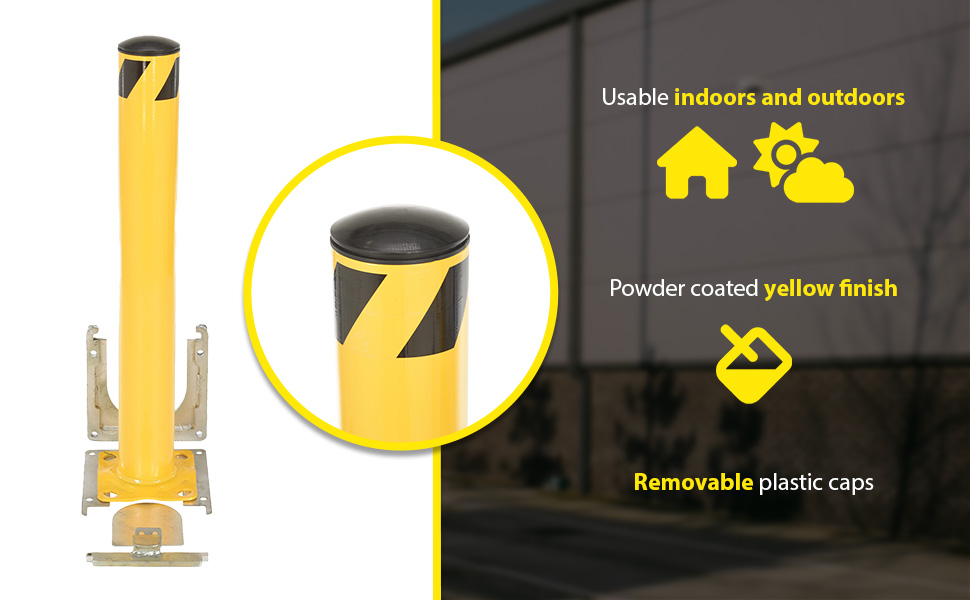

  • Safety pipe design can be used either inside or out
  • Powder coat safety yellow finish offers an attractive long lasting look
  • Heavy-duty welded steel construction provides long lasting protection
  • Surface-mounted steel base plate allows for quick & easy bollard removal
Surface Mounted Removable Steel Pipe Safety Bollards

model: BOL-RF-42-4.5

Table Search, not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

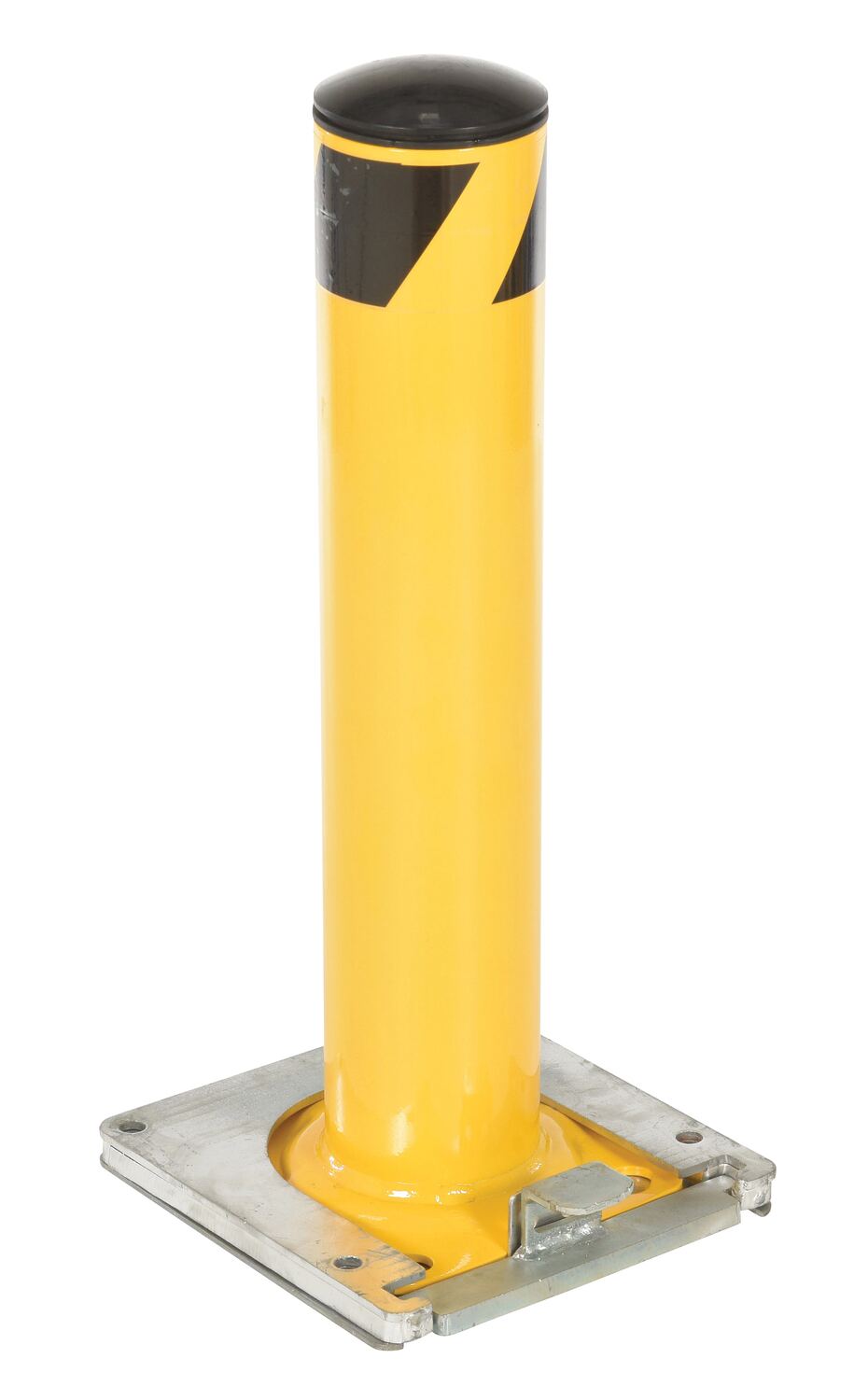

BOL-RF-24-4.5 BOL-RF-24-4.590 Days Limited WarrantySteel Surface Mounted Removable Pipe Safety Bollard 24 In. x 4-1/2 In. YellowOutside Diameter (in.): 4-1/2
Mounting Hole (qty.): 4		231
BOL-RF-24-5.5 BOL-RF-24-5.590 Days Limited WarrantySteel Surface Mounted Removable Pipe Safety Bollard 24 In. x 5-1/2 In. YellowOutside Diameter (in.): 5-1/2
Mounting Hole (qty.): 4		33

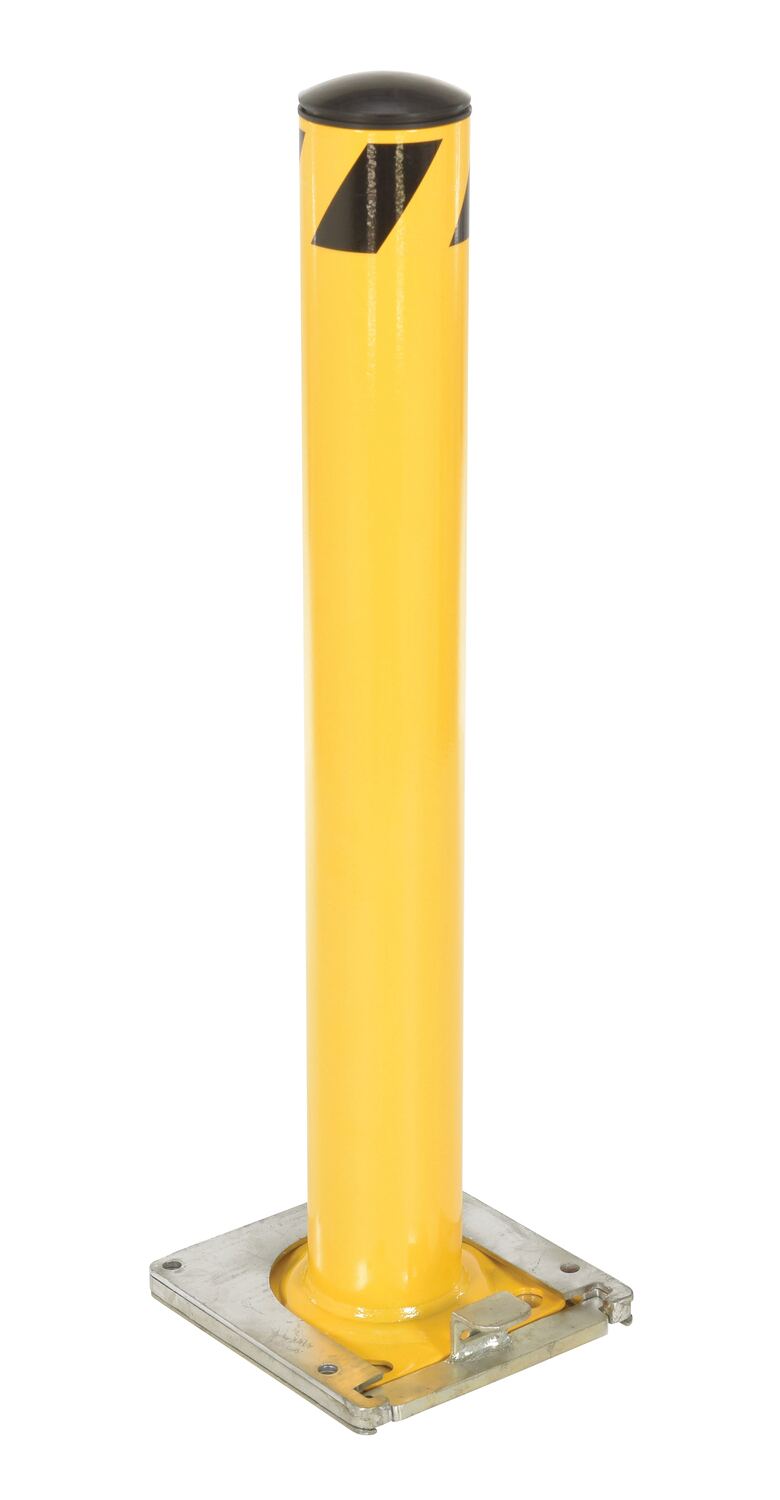

BOL-RF-36-4.5 BOL-RF-36-4.590 Days Limited WarrantySteel Surface Mounted Removable Pipe Safety Bollard 36 In. x 4-1/2 In. YellowOutside Diameter (in.): 4-1/2
Mounting Hole (qty.): 4		235
BOL-RF-36-5.5 BOL-RF-36-5.590 Days Limited WarrantySteel Surface Mounted Removable Pipe Safety Bollard 36 In. x 5-1/2 In. YellowOutside Diameter (in.): 5-1/2
Mounting Hole (qty.): 4		35

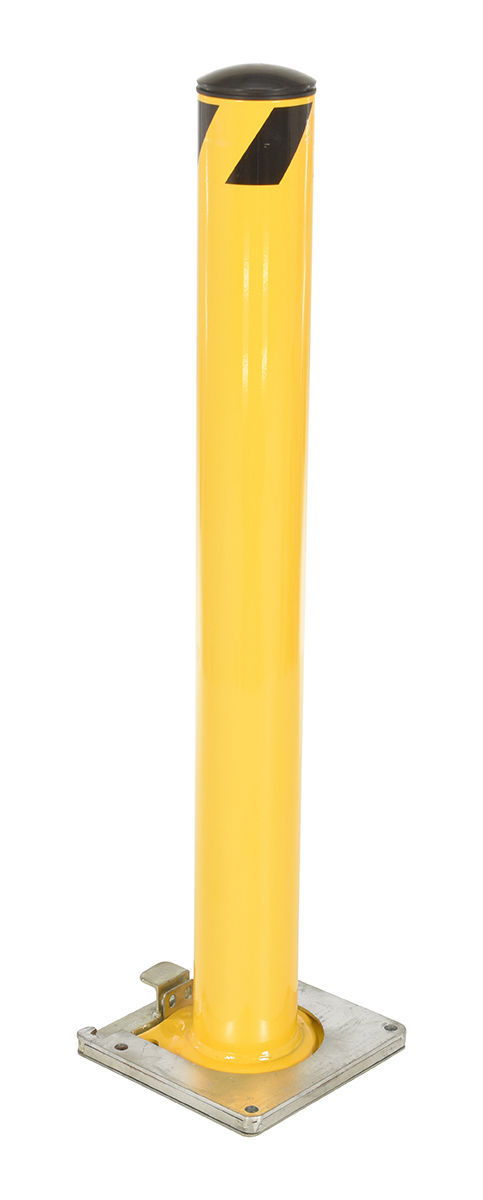

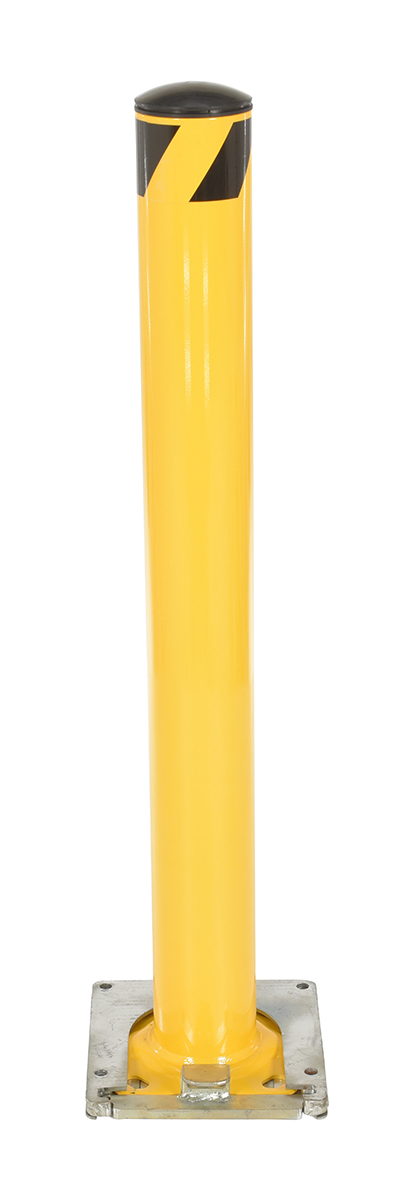

BOL-RF-42-4.5 POPULAR BOL-RF-42-4.590 Days Limited WarrantySteel Surface Mounted Removable Pipe Safety Bollard 42 In. x 4-1/2 In. YellowOutside Diameter (in.): 4-1/2
Mounting Hole (qty.): 4		239
BOL-RF-42-5.5 BOL-RF-42-5.590 Days Limited WarrantySteel Surface Mounted Removable Pipe Safety Bollard 42 In. x 5-1/2 In. YellowOutside Diameter (in.): 5-1/2
Mounting Hole (qty.): 4		243

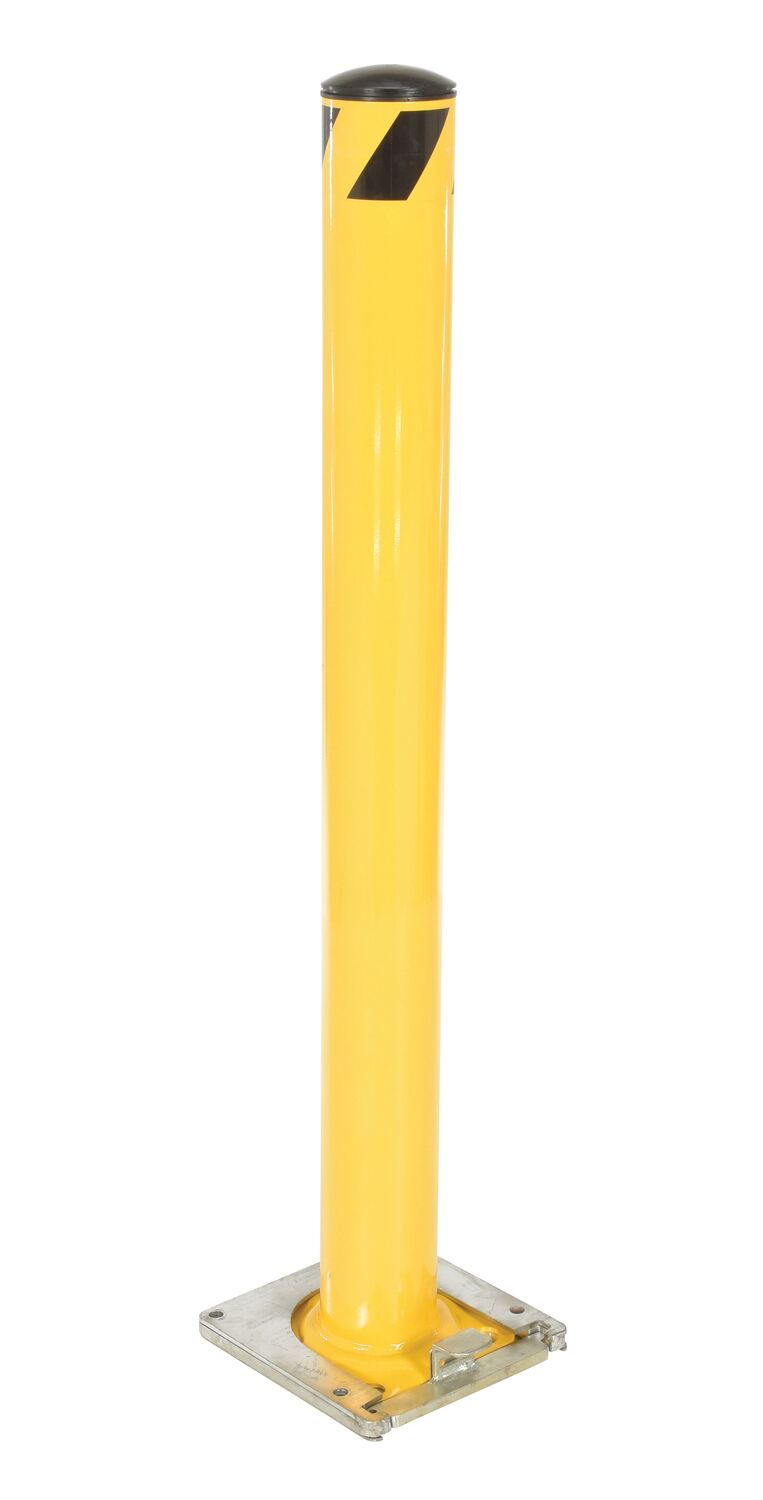

BOL-RF-48-4.5 BOL-RF-48-4.590 Days Limited WarrantySteel Surface Mounted Removable Pipe Safety Bollard 48 In. x 4-1/2 In. YellowOutside Diameter (in.): 4-1/2
Mounting Hole (qty.): 4		37
BOL-RF-48-5.5 BOL-RF-48-5.590 Days Limited WarrantySteel Surface Mounted Removable Pipe Safety Bollard 48 In. x 5-1/2 In. YellowOutside Diameter (in.): 5-1/2
Mounting Hole (qty.): 4		41

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

BOL-RF-24-4.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Outside Diameter (in.): 4-1/2
Mounting Hole (qty.): 4
Outside Diameter (in.): 4-1/2
Mounting Hole (qty.): 4

BOL-RF-24-5.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Outside Diameter (in.): 5-1/2
Mounting Hole (qty.): 4
Outside Diameter (in.): 5-1/2
Mounting Hole (qty.): 4

BOL-RF-36-4.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Outside Diameter (in.): 4-1/2
Mounting Hole (qty.): 4
Outside Diameter (in.): 4-1/2
Mounting Hole (qty.): 4

BOL-RF-36-5.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Outside Diameter (in.): 5-1/2
Mounting Hole (qty.): 4
Outside Diameter (in.): 5-1/2
Mounting Hole (qty.): 4

BOL-RF-42-4.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Outside Diameter (in.): 4-1/2
Mounting Hole (qty.): 4
Outside Diameter (in.): 4-1/2
Mounting Hole (qty.): 4

BOL-RF-42-5.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Outside Diameter (in.): 5-1/2
Mounting Hole (qty.): 4
Outside Diameter (in.): 5-1/2
Mounting Hole (qty.): 4

BOL-RF-48-4.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Outside Diameter (in.): 4-1/2
Mounting Hole (qty.): 4
Outside Diameter (in.): 4-1/2
Mounting Hole (qty.): 4

BOL-RF-48-5.5
Unit:
Size: W x L x H
Weight:
Limited Warranty
Outside Diameter (in.): 5-1/2
Mounting Hole (qty.): 4
Outside Diameter (in.): 5-1/2
Mounting Hole (qty.): 4
For More Details of the Option Click the Red Model Button

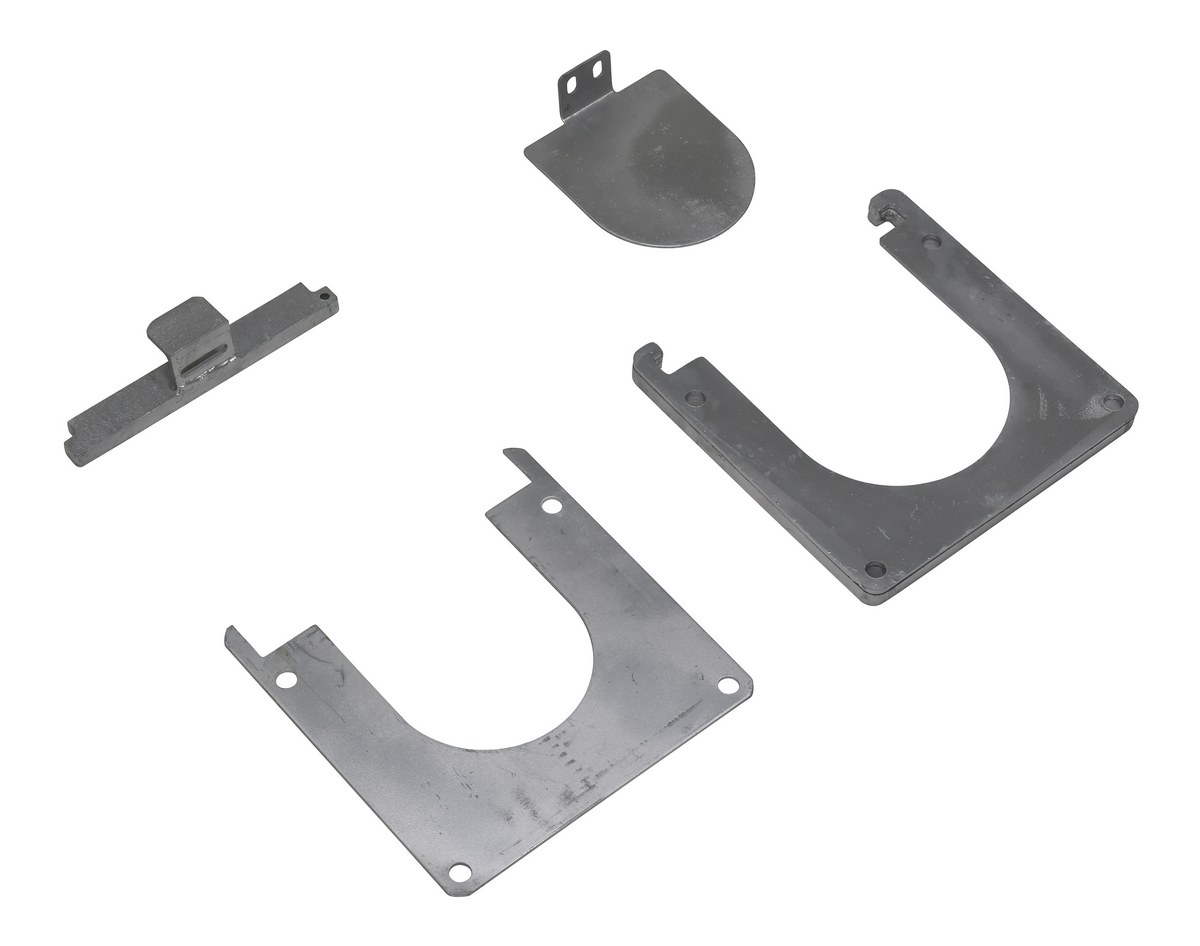

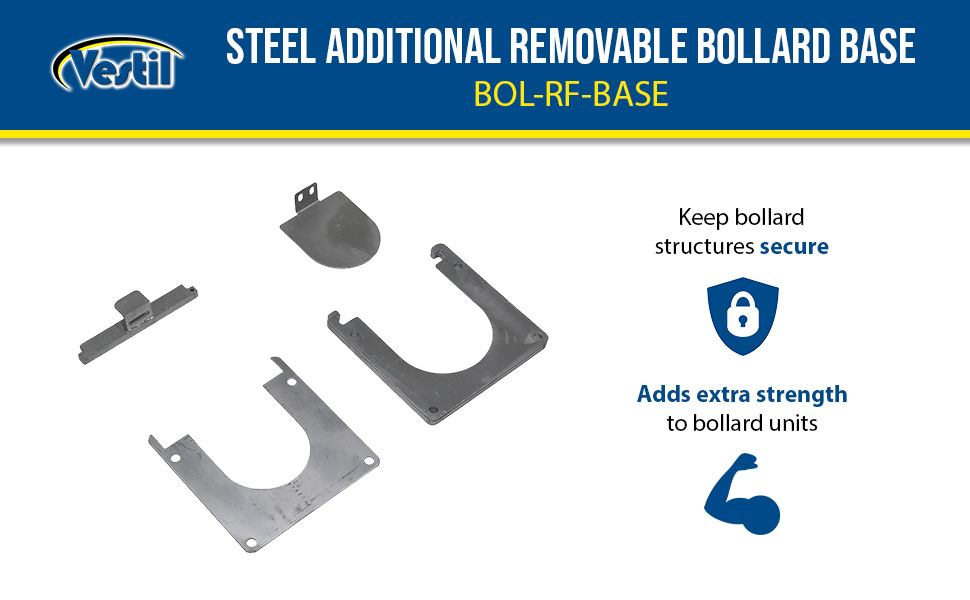

BOL-RF-BASE BOL-RF-BASE90 Days Limited WarrantySteel Additional Removable Bollard Base 10-1/2 In. x 10-1/4 In. x 2 In. SilverBolt Holes (qty.): 4
Usable Width (in.): 6-3/4		13
Model Image Description WT.
BOL-CAP-4.5-P BOL-CAP-4.5-P Plastic Bollard Cap Replacement For Schedule 10 Steel 4 In. Pipe Black 2
BOL-CAP-5.5-P BOL-CAP-5.5-P Plastic Bollard Cap Replacement For Schedule 10 Steel 5 In. Pipe Black 2
Model Image Description Wt (lbs.)
AS-124 Anchor Bolts for concrete (1) 1/2" x 4" (4-1/2" Units) 1
AS-124-4PK Anchor Bolts for concrete (4) 1/2" x 4" (4-1/2" Units) 4
AS-125 Anchor Bolts for concrete (1) 1/2" x 5" (5-1/2" Units) 1
AS-125-4PK Anchor Bolts for concrete (4) 1/2" x 5" (5-1/2" Units) 4
DCBB-B-KIT Steel Dock Chain Barrier Bollard Conversion Hardware Kit Yellow 2
BOL-CHAIN Steel Barrier System Chain 3/16 In. Sold Per Foot Yellow 2
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Surface Mounted Removable Steel Pipe Safety Bollards PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


BOL-RF-BASE

Testing Certificates


BOL-RF-24-4.5

BOL-RF-24-5.5

BOL-RF-36-4.5

BOL-RF-36-5.5

BOL-RF-42-4.5

BOL-RF-42-5.5

BOL-RF-48-4.5

BOL-RF-48-5.5

BOL-RF-BASE

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Parking Lot Safety Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Is there a key to lock the base plate so someone cannot come along and remove the bollard?

A: No, but you can use your own padlock and key to secure.

Q: Is there an installation kit, including bolts for the bollards?

A: Installation kit is not included.

Q: Can these be used outside?

A: This steel pipe safety bollard can be used both indoors and outdoors.

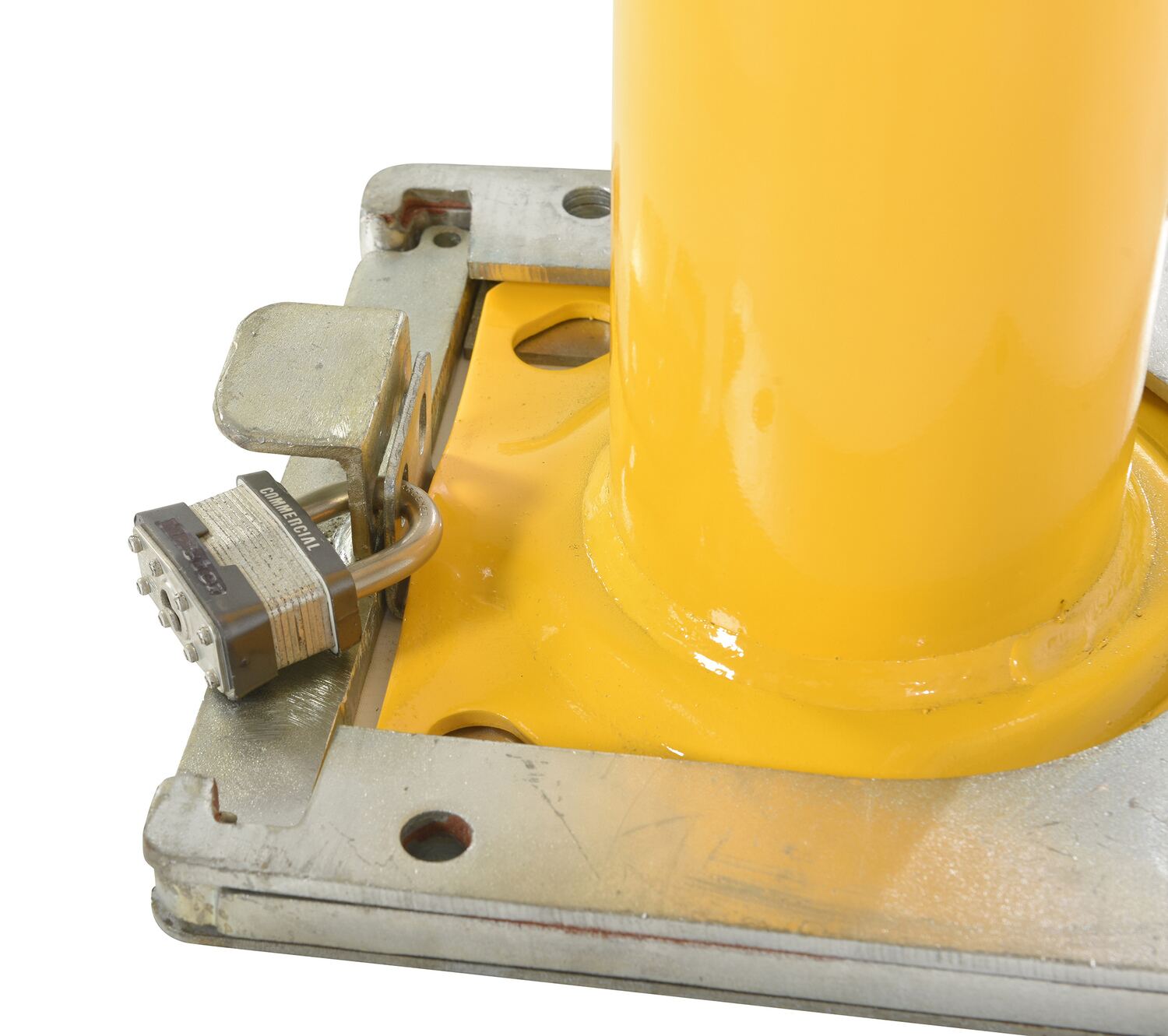

Q: The description states "a padlock maybe added to prevent unauthorized removal". Where does the padlock attach?

A: The padlock goes into the base plate where the lip is with 2 holes are. The padlock is not included
