Product Family Overview


Structural Channel Guard Rail Systems
SERIES: GR-STC8-DI

Constructed of structural C-channel 11.5 lbs. per foot for maximum strength and protection. Railing can be removed in a matter of seconds. Features 10" x 10" base plate with four (4) pre-drilled mounting holes. Posts include mounting holes on three sides for use as corner or center posts. Drop-in style bracket, and their hardware come with each structural rail purchased. Baked-in powder-coated toughness.

Model # Guide
Guard Rail old Model # to new Model # Conversion Guide

Constructed of structural C-channel 11.5 lbs. per foot for maximum strength and protection. Railing can be removed in a matter of seconds. Features 10" x 10" base plate with four (4) pre-drilled mounting holes. Posts include mounting holes on three sides for use as corner or center posts. Drop-in style bracket, and their hardware come with each structural rail purchased. Baked-in powder-coated toughness.

Model # Guide
Guard Rail old Model # to new Model # Conversion Guide

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

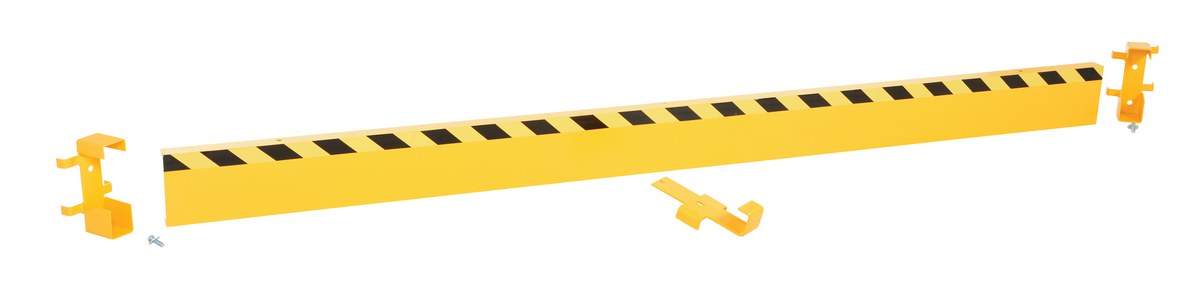

GR-STC8-DI-10-YL GR-STC8-DI-10-YL90 Days Limited WarrantySteel Channel Guard Rail with Bracket 113.875 In. Length YellowC-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8
118

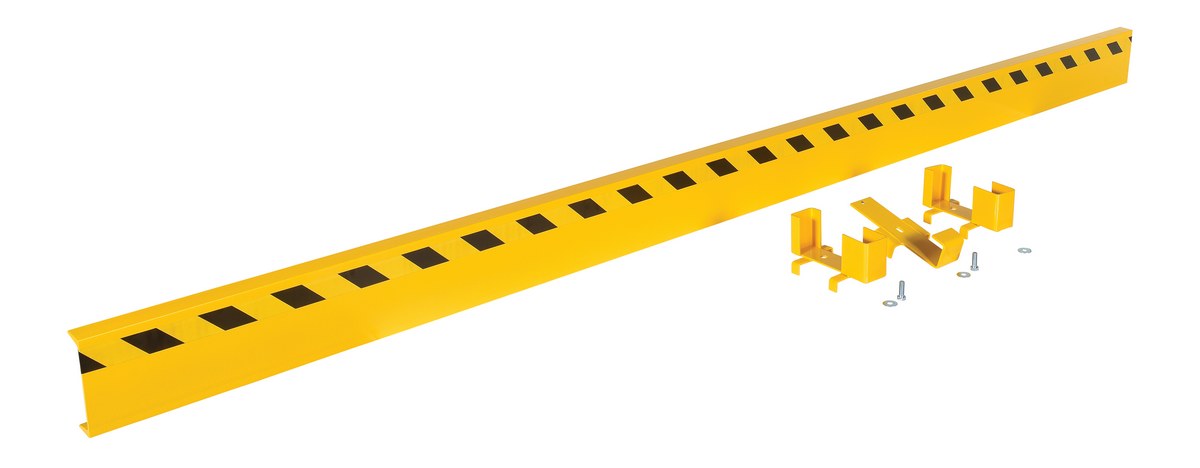

GR-STC8-DI-12-YL GR-STC8-DI-12-YL90 Days Limited WarrantySteel Channel Guard Rail with Bracket 124 In. Length YellowC-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8
195

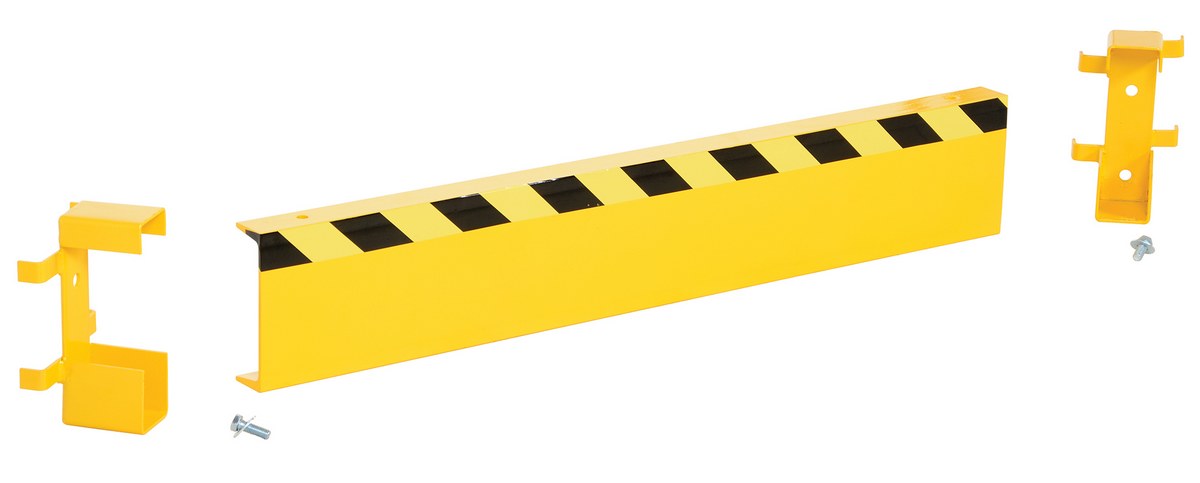

GR-STC8-DI-4-YL GR-STC8-DI-4-YL90 Days Limited WarrantySteel Channel Guard Rail with Bracket 41.875 In. Length YellowC-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8
56

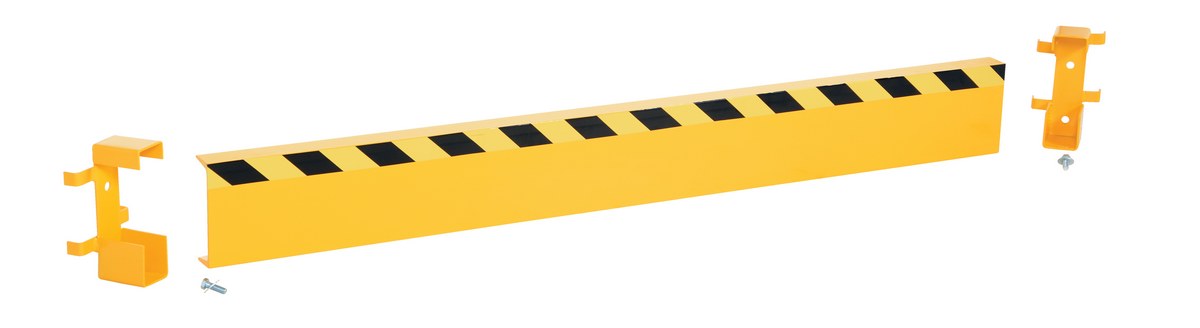

GR-STC8-DI-6-YL GR-STC8-DI-6-YL90 Days Limited WarrantySteel Channel Guard Rail with Bracket 65.875 In. Length YellowC-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8
71

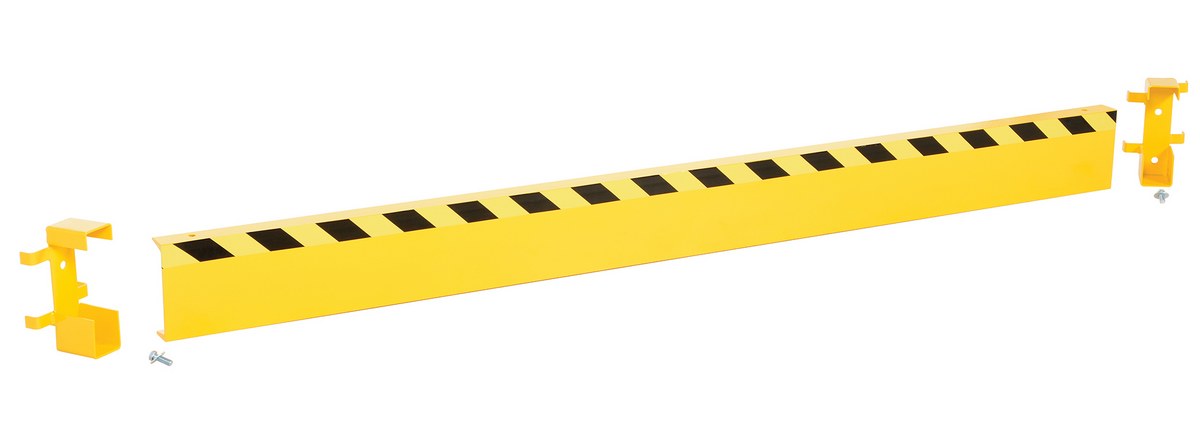

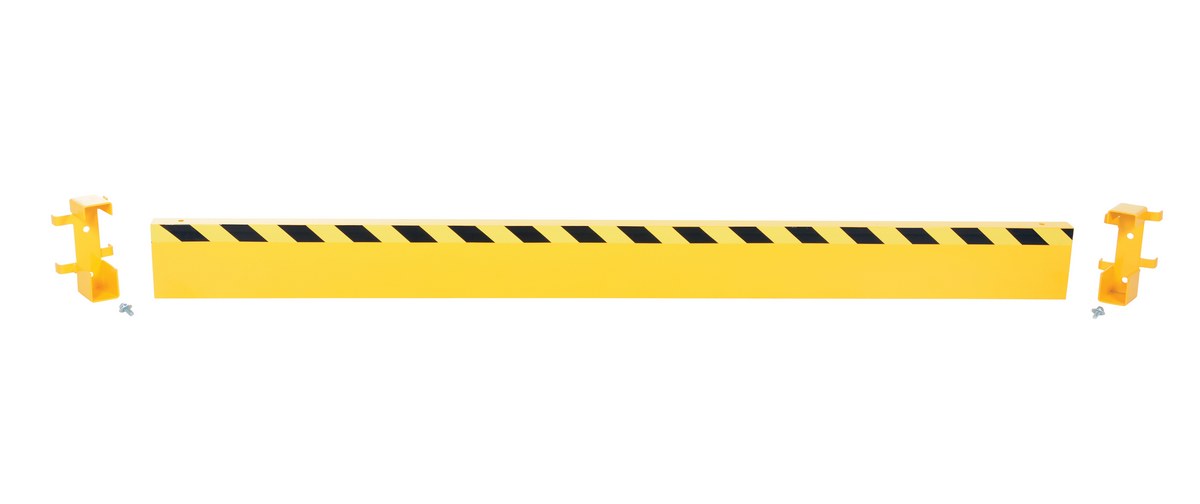

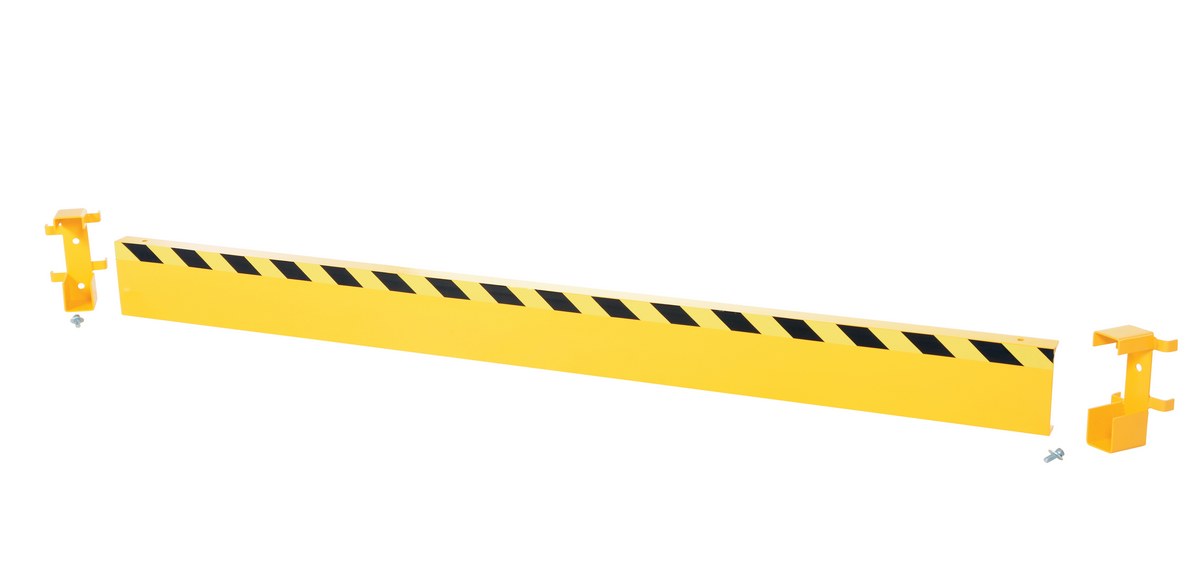

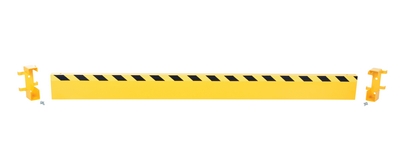

GR-STC8-DI-8-YL GR-STC8-DI-8-YL90 Days Limited WarrantySteel Channel Guard Rail with Bracket 89.875 In. Length YellowC-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8
95

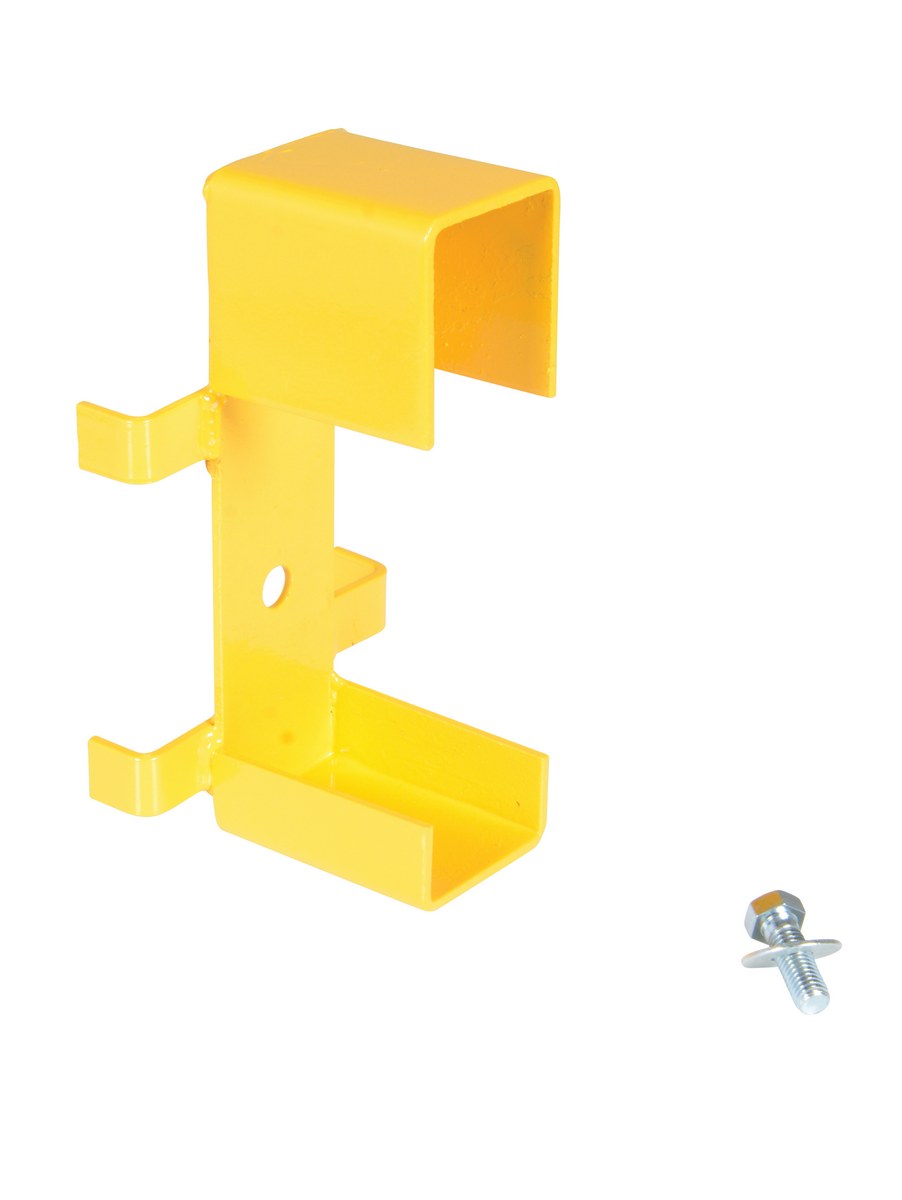

GR-STC8-DI-BKT-YL GR-STC8-DI-BKT-YL90 Days Limited WarrantySteel Channel Drop In Guard Rail Mounting Bracket 10-1/2 In. x 5-1/2 In. x 5-1/4 In. YellowHardware Category: Brackets
Type: Mounting Bracket
7

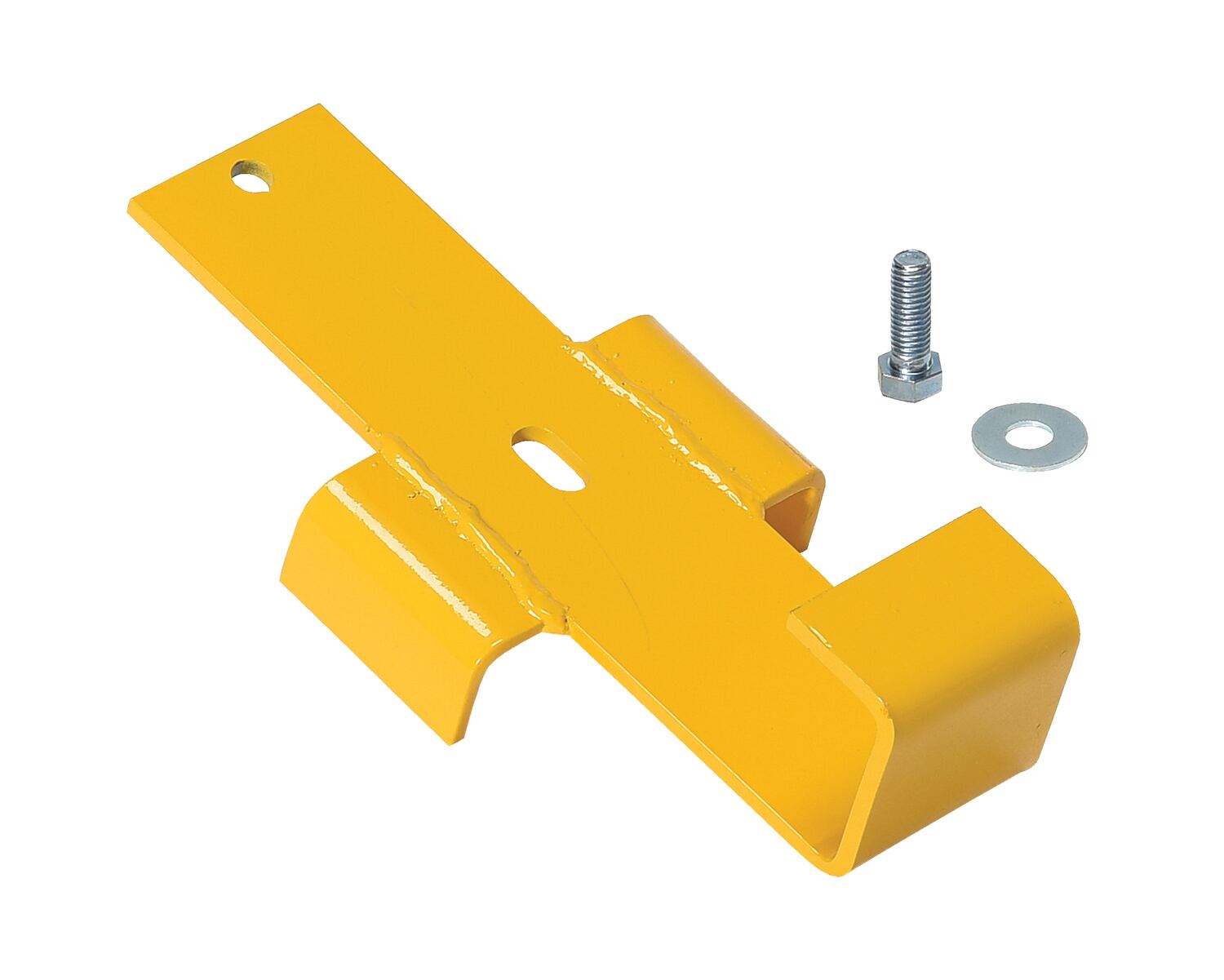

GR-STC8-DI-BKTCS-YL GR-STC8-DI-BKTCS-YL90 Days Limited WarrantySteel Center Support Bracket For 113.875 In. To 124 In. Drop In Guard Rail Yellow-
5

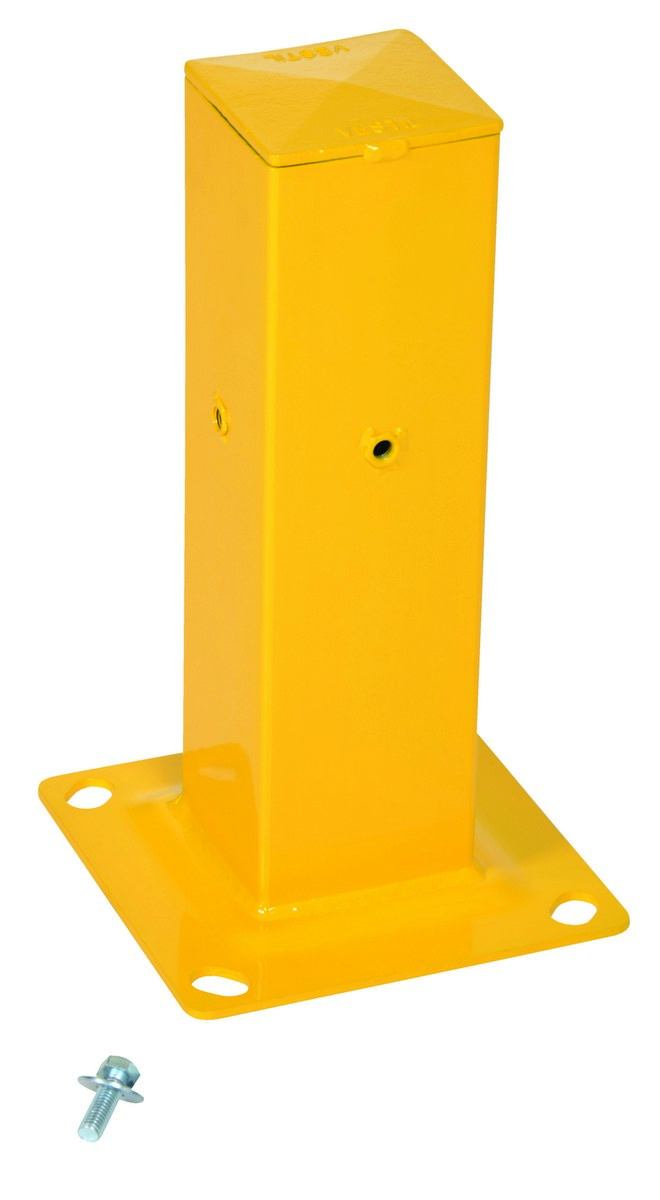

GR-STC8-DI-TP18-YL GR-STC8-DI-TP18-YL90 Days Limited WarrantySteel Tubular Mounting Posts with Drop In Style Bracket 10 In. x 10 In. x 18 In. YellowAccommodates Rail (qty.): 1
Post Type: Tubular
27

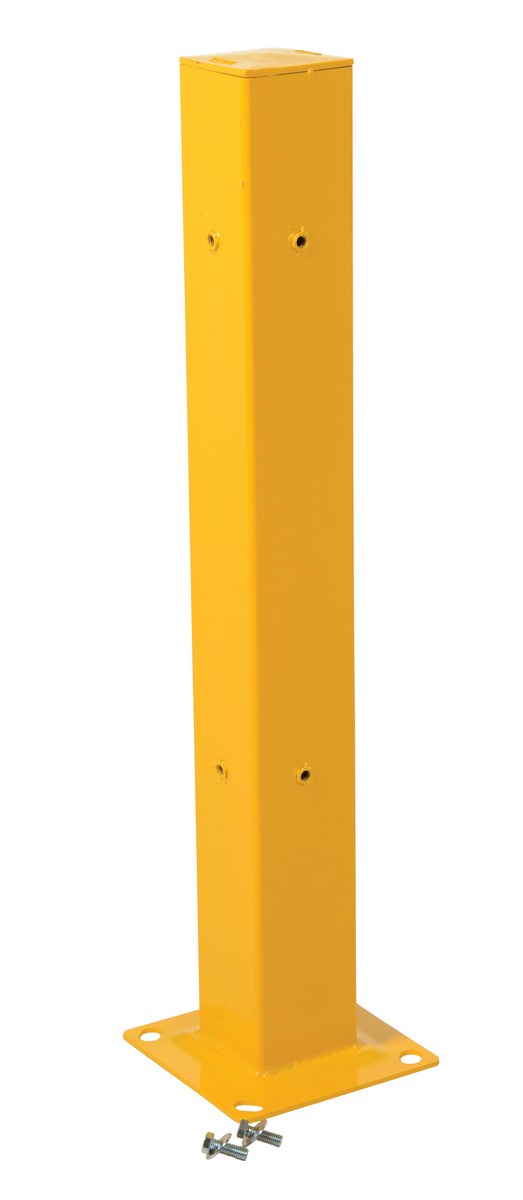

GR-STC8-DI-TP42-YL GR-STC8-DI-TP42-YL90 Days Limited WarrantySteel Tubular Mounting Posts with Drop In Style Bracket 10 In. x 10 In. x 42 In. YellowAccommodates Rail (qty.): 2
Post Type: Tubular
52

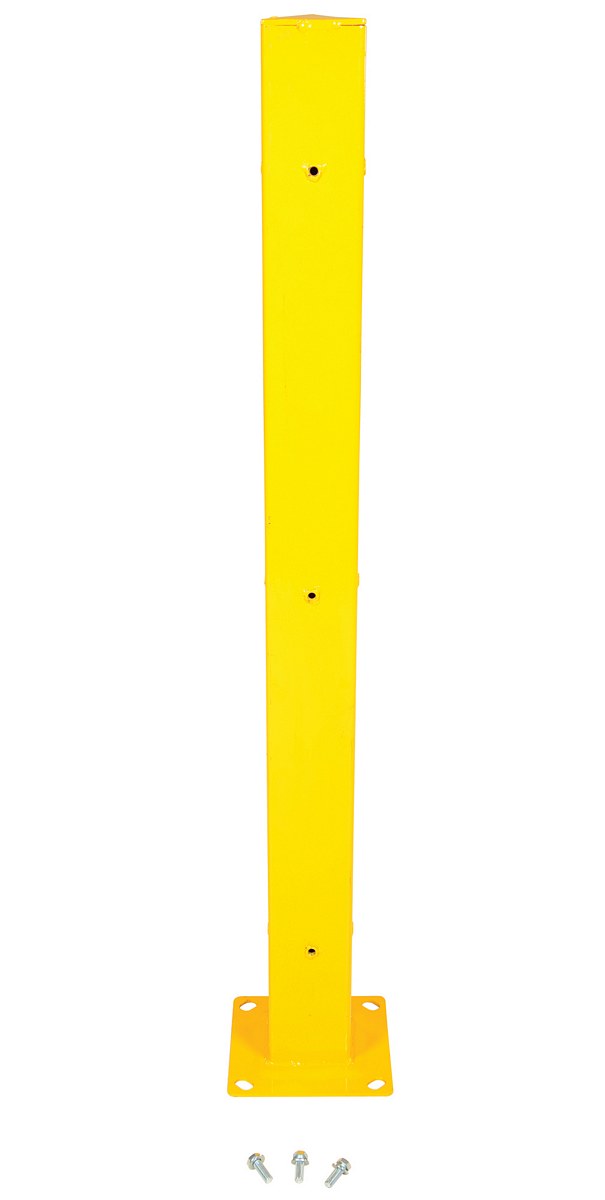

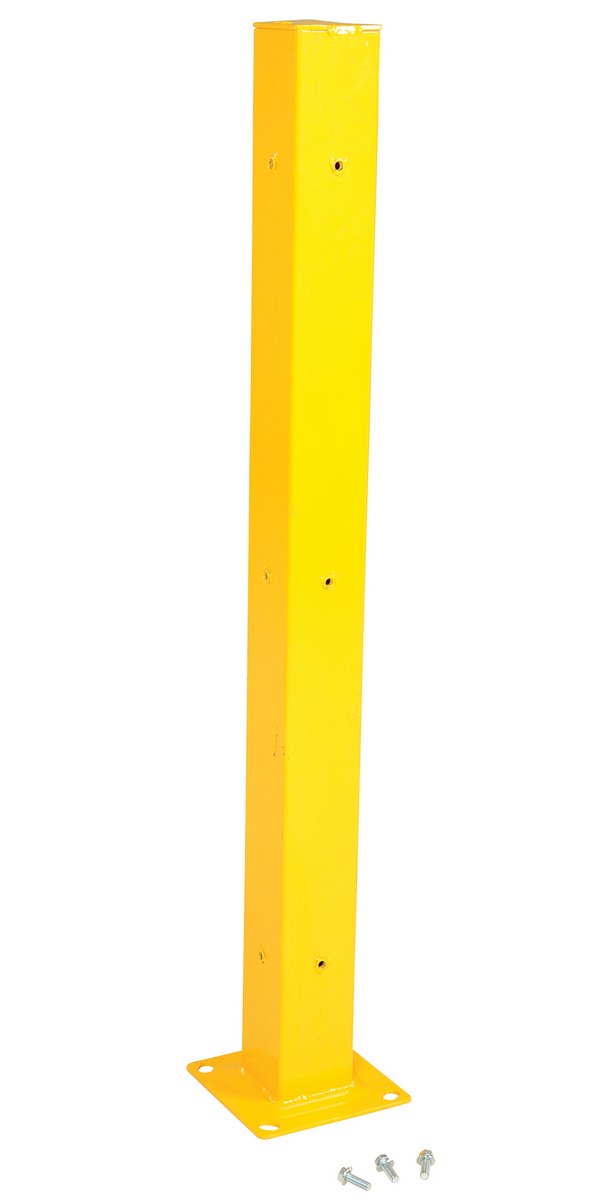

GR-STC8-DI-TP60-YL GR-STC8-DI-TP60-YL90 Days Limited WarrantySteel Tubular Mounting Posts with Drop In Style Bracket 10 In. x 10 In. x 60 In. YellowAccommodates Rail (qty.): 3
Post Type: Tubular
95

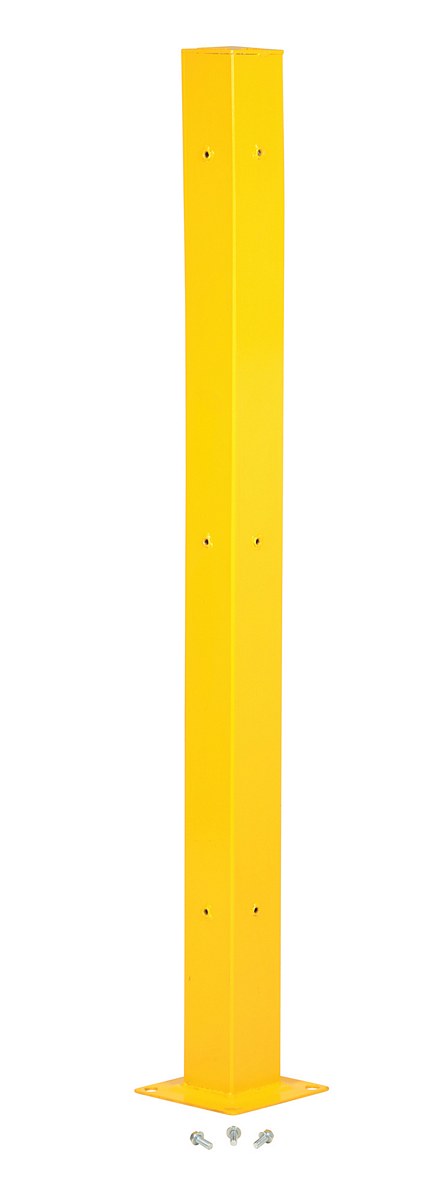

GR-STC8-DI-TP72-YL GR-STC8-DI-TP72-YL90 Days Limited WarrantySteel Tubular Mounting Posts with Drop In Style Bracket 10 In. x 10 In. x 72 In. YellowAccommodates Rail (qty.): 3
Post Type: Tubular
116

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

GR-STC8-DI-10-YL
Unit:
Size: W x L x H
Weight:
Limited Warranty
C-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8
C-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8

GR-STC8-DI-12-YL
Unit:
Size: W x L x H
Weight:
Limited Warranty
C-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8
C-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8

GR-STC8-DI-4-YL
Unit:
Size: W x L x H
Weight:
Limited Warranty
C-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8
C-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8

GR-STC8-DI-6-YL
Unit:
Size: W x L x H
Weight:
Limited Warranty
C-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8
C-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8

GR-STC8-DI-8-YL
Unit:
Size: W x L x H
Weight:
Limited Warranty
C-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8
C-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8

GR-STC8-DI-BKT-YL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Hardware Category: Brackets
Type: Mounting Bracket
Hardware Category: Brackets
Type: Mounting Bracket

GR-STC8-DI-BKTCS-YL
Unit:
Size: W x L x H
Weight:
Limited Warranty
-

-

GR-STC8-DI-TP18-YL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Accommodates Rail (qty.): 1
Post Type: Tubular
Accommodates Rail (qty.): 1
Post Type: Tubular

GR-STC8-DI-TP42-YL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Accommodates Rail (qty.): 2
Post Type: Tubular
Accommodates Rail (qty.): 2
Post Type: Tubular

GR-STC8-DI-TP60-YL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Accommodates Rail (qty.): 3
Post Type: Tubular
Accommodates Rail (qty.): 3
Post Type: Tubular

GR-STC8-DI-TP72-YL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Accommodates Rail (qty.): 3
Post Type: Tubular
Accommodates Rail (qty.): 3
Post Type: Tubular
For More Details of the Option Click the Red Model Button
Model Image Description Weight
(lbs)
AS-344 Anchor Bolts for concrete (1) 3/4"x3" 1
AS-344-4PK Anchor Bolts for concrete (4) 3/4"x3" 4
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Structural Channel Guard Rail Systems PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


GR-STC8-DI-10-YL

GR-STC8-DI-12-YL

GR-STC8-DI-4-YL

GR-STC8-DI-6-YL

GR-STC8-DI-8-YL

GR-STC8-DI-BKT-YL

GR-STC8-DI-BKTCS-YL

GR-STC8-DI-TP18-YL

GR-STC8-DI-TP42-YL

GR-STC8-DI-TP60-YL

GR-STC8-DI-TP72-YL

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Structural Channel Guard Rail ...




Constructed of structural C-channel 11.5 lbs. per foot for maximum strength and protection. Railing can be removed in a matter of seconds. Features 10" x 10" base plate with four (4) pre-drilled mounting holes. Posts include mounting holes on three sides for use as corner or center posts. Drop-in style bracket, and their hardware come with each structural rail purchased. Baked-in powder-coated toughness.

Model # Guide
Guard Rail old Model # to new Model # Conversion Guide



Model # Description Attributes Net Wt.
(lbs)
GR-STC8-DI-10-YL GR-STC8-DI-10-YLSteel Channel Guard Rail with Bracket 113.875 In. Length YellowC-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8
118
GR-STC8-DI-12-YL GR-STC8-DI-12-YLSteel Channel Guard Rail with Bracket 124 In. Length YellowC-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8
195
GR-STC8-DI-4-YL GR-STC8-DI-4-YLSteel Channel Guard Rail with Bracket 41.875 In. Length YellowC-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8
56
GR-STC8-DI-6-YL GR-STC8-DI-6-YLSteel Channel Guard Rail with Bracket 65.875 In. Length YellowC-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8
71
GR-STC8-DI-8-YL GR-STC8-DI-8-YLSteel Channel Guard Rail with Bracket 89.875 In. Length YellowC-channel Pounds Per Foot: 11-1/2
C-Channel (in.): 8
95
GR-STC8-DI-BKT-YL GR-STC8-DI-BKT-YLSteel Channel Drop In Guard Rail Mounting Bracket 10-1/2 In. x 5-1/2 In. x 5-1/4 In. YellowHardware Category: Brackets
Type: Mounting Bracket
7
GR-STC8-DI-BKTCS-YL GR-STC8-DI-BKTCS-YLSteel Center Support Bracket For 113.875 In. To 124 In. Drop In Guard Rail Yellow-
5
GR-STC8-DI-TP18-YL GR-STC8-DI-TP18-YLSteel Tubular Mounting Posts with Drop In Style Bracket 10 In. x 10 In. x 18 In. YellowAccommodates Rail (qty.): 1
Post Type: Tubular
27
GR-STC8-DI-TP42-YL GR-STC8-DI-TP42-YLSteel Tubular Mounting Posts with Drop In Style Bracket 10 In. x 10 In. x 42 In. YellowAccommodates Rail (qty.): 2
Post Type: Tubular
52
GR-STC8-DI-TP60-YL GR-STC8-DI-TP60-YLSteel Tubular Mounting Posts with Drop In Style Bracket 10 In. x 10 In. x 60 In. YellowAccommodates Rail (qty.): 3
Post Type: Tubular
95
GR-STC8-DI-TP72-YL GR-STC8-DI-TP72-YLSteel Tubular Mounting Posts with Drop In Style Bracket 10 In. x 10 In. x 72 In. YellowAccommodates Rail (qty.): 3
Post Type: Tubular
116

Options


Model Image Description Weight
(lbs)
AS-344 Anchor Bolts for concrete (1) 3/4"x3" 1
AS-344-4PK Anchor Bolts for concrete (4) 3/4"x3" 4
