For More Details of the Option Click the Red Model Button
CBFC-PTDS-E | ![]() | 1 Year Limited Warranty | Factory Installed Power Traction Drive System For Counter Balanced Floor Crane Models | - | 255 |
.
Vestil Manufacturing Corporation is an industry leader in the manufacturing and distributing of industrial material handling equipment. We feature over 1,000 different product lines, many of which are in stock and ready for immediate shipment.

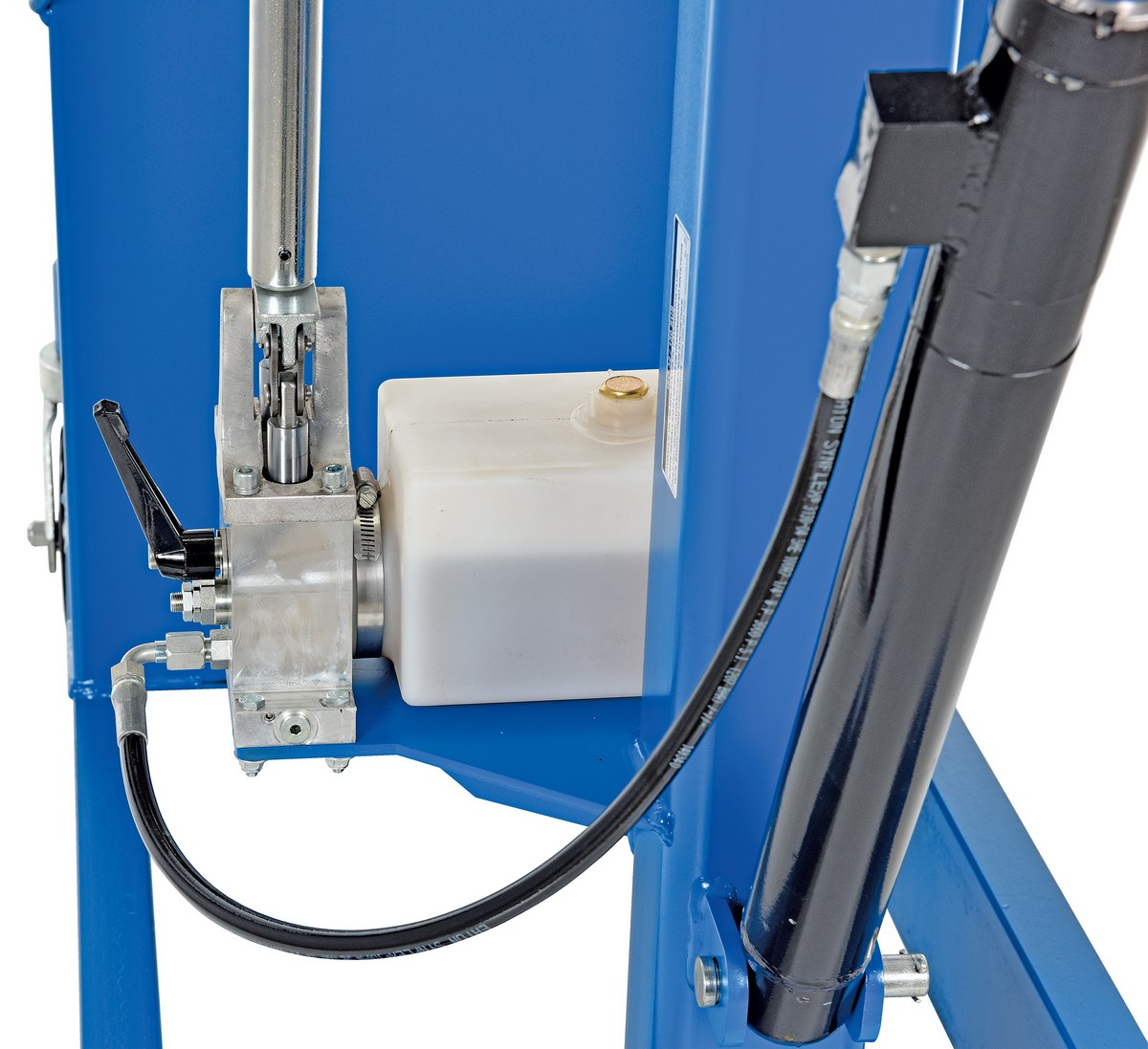

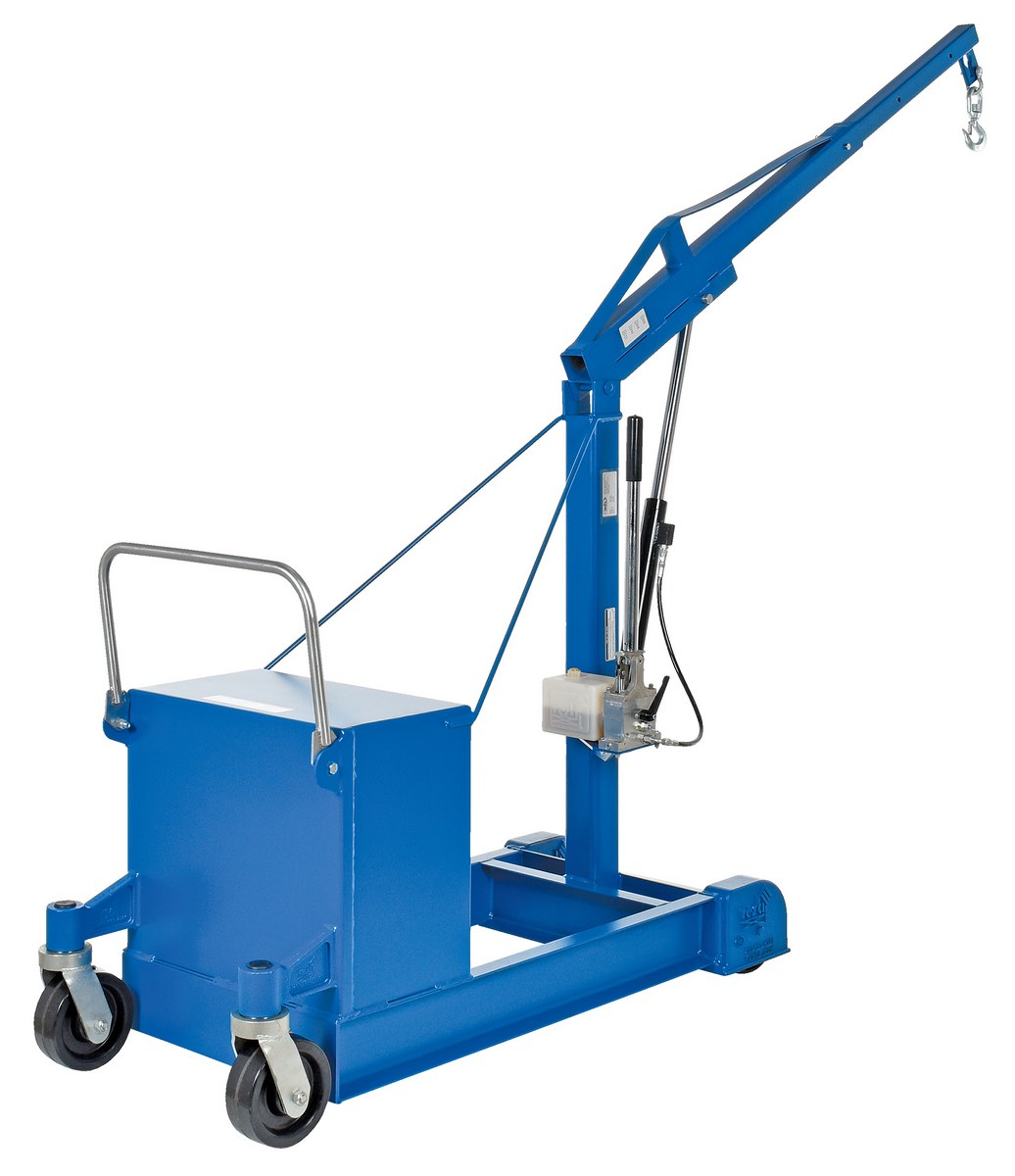

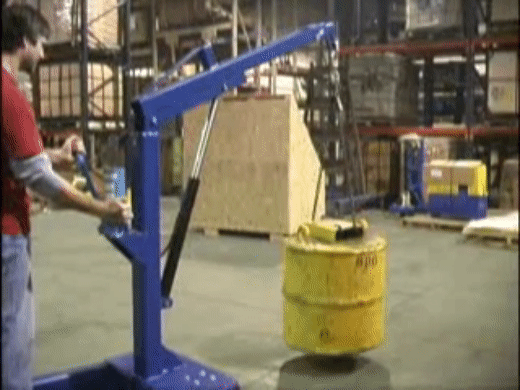

This Crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a manual hydraulic hand pump or push of a button on DC powered units. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic casters with side brake. Counterbalance included. Welded steel construction. Painted finish. Air operation available, contact factory.

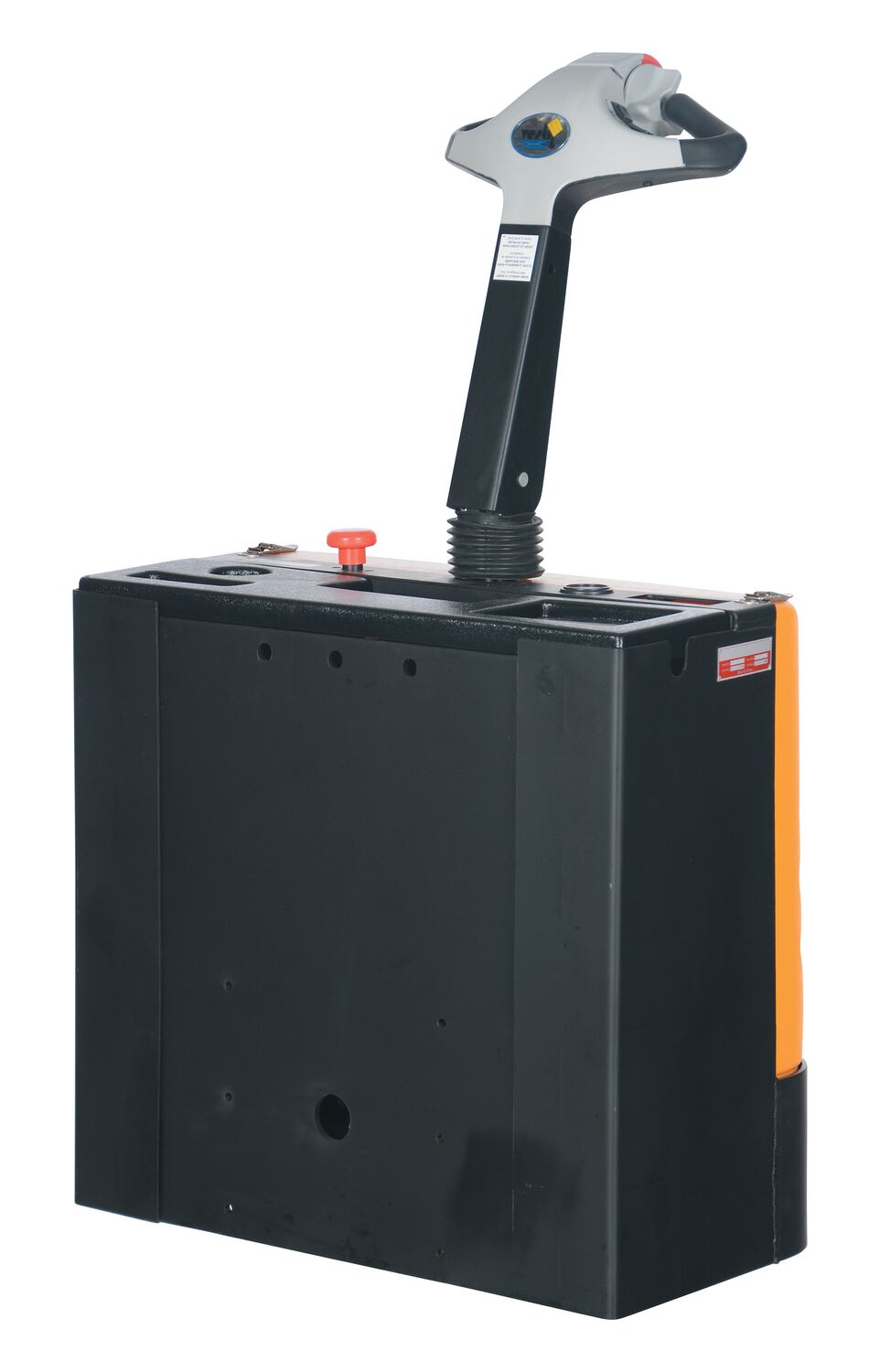

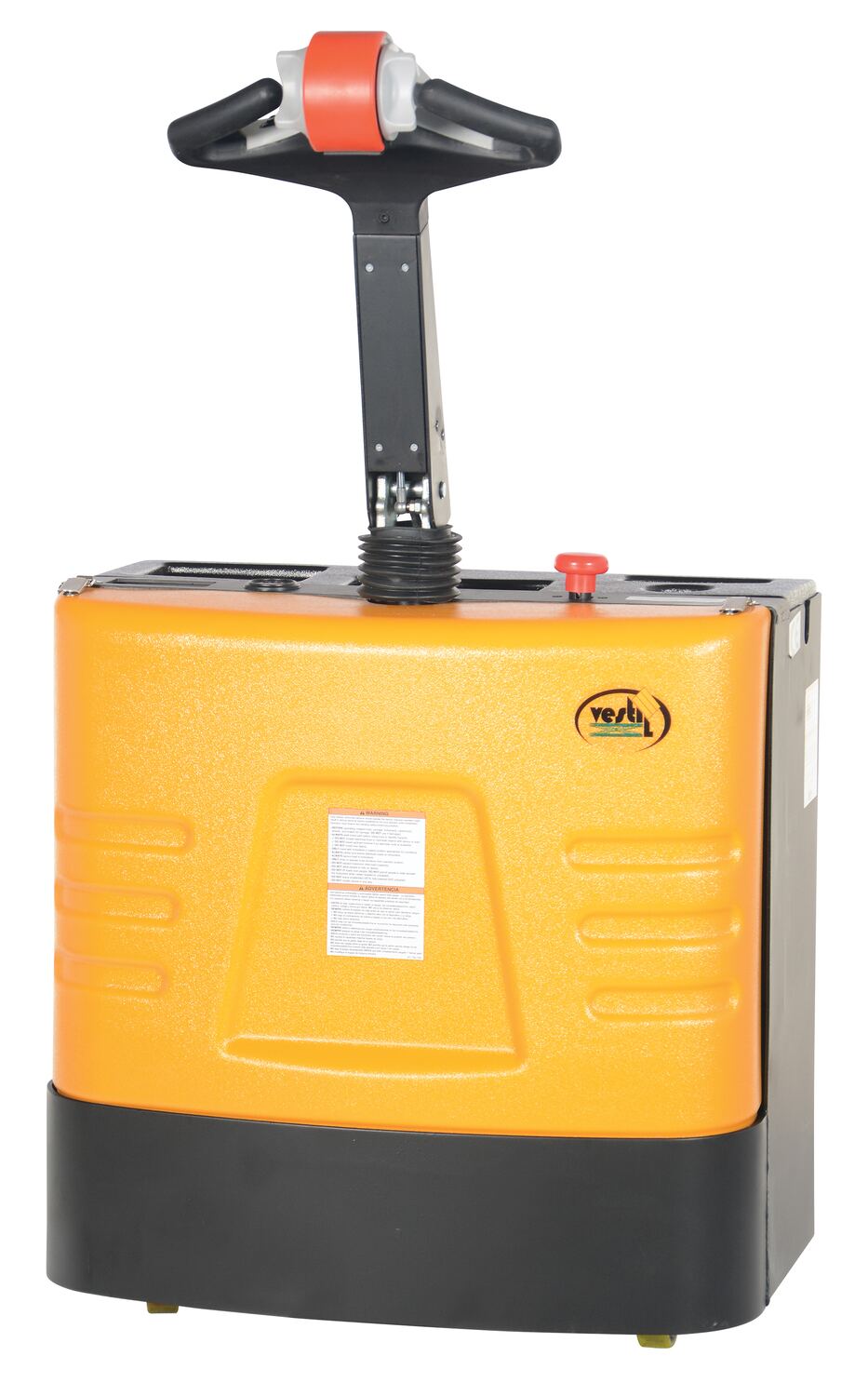

Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. CBFC-PTDS-E includes: Combination throttle / direction controller, An auto reverse emergency "belly switch", (2) 12V batteries.
This Crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a manual hydraulic hand pump or push of a button on DC powered units. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic casters with side brake. Counterbalance included. Welded steel construction. Painted finish. Air operation available, contact factory.
Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. CBFC-PTDS-E includes: Combination throttle / direction controller, An auto reverse emergency "belly switch", (2) 12V batteries.
Model # | Description | Attributes | Net Wt. (lbs) |
||||
---|---|---|---|---|---|---|---|

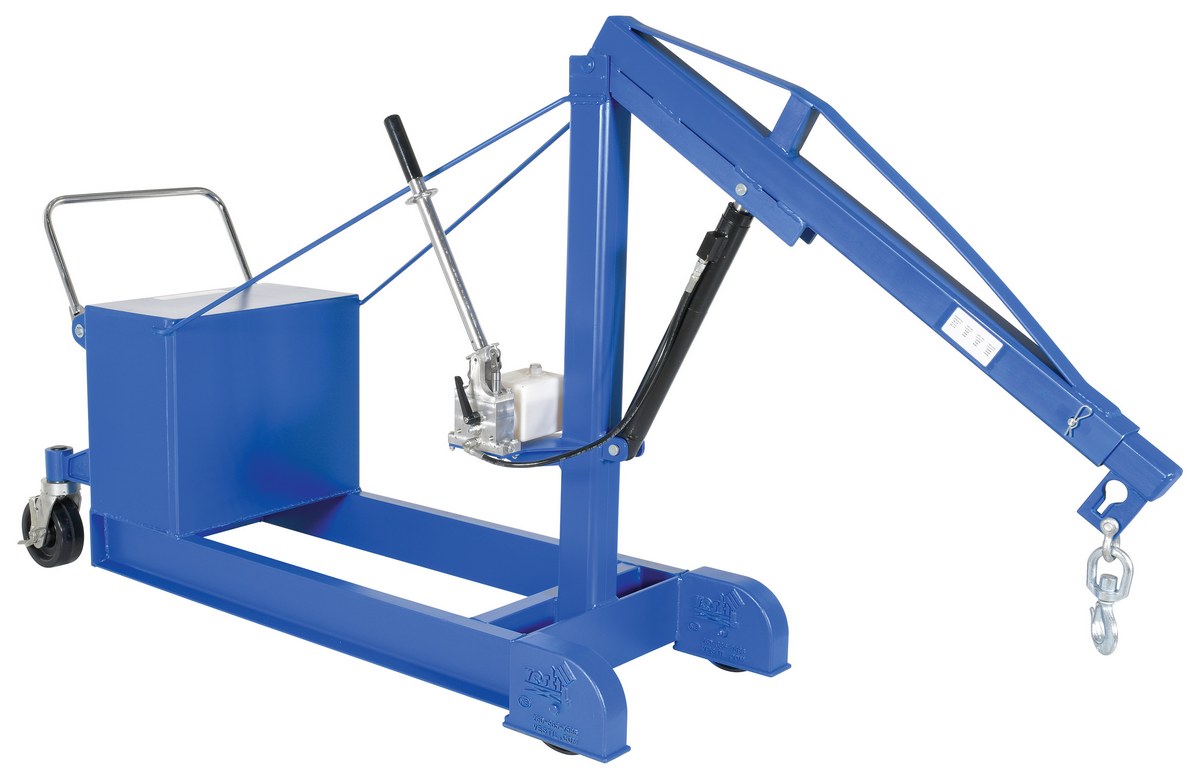

CBFC-1000 |
![]() | 1 Year Limited Warranty | Steel Counter Balance Floor Crane 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1,000 Uniform Capacity extended 39-1/4"(lb.): 1000 | 1690 | ||

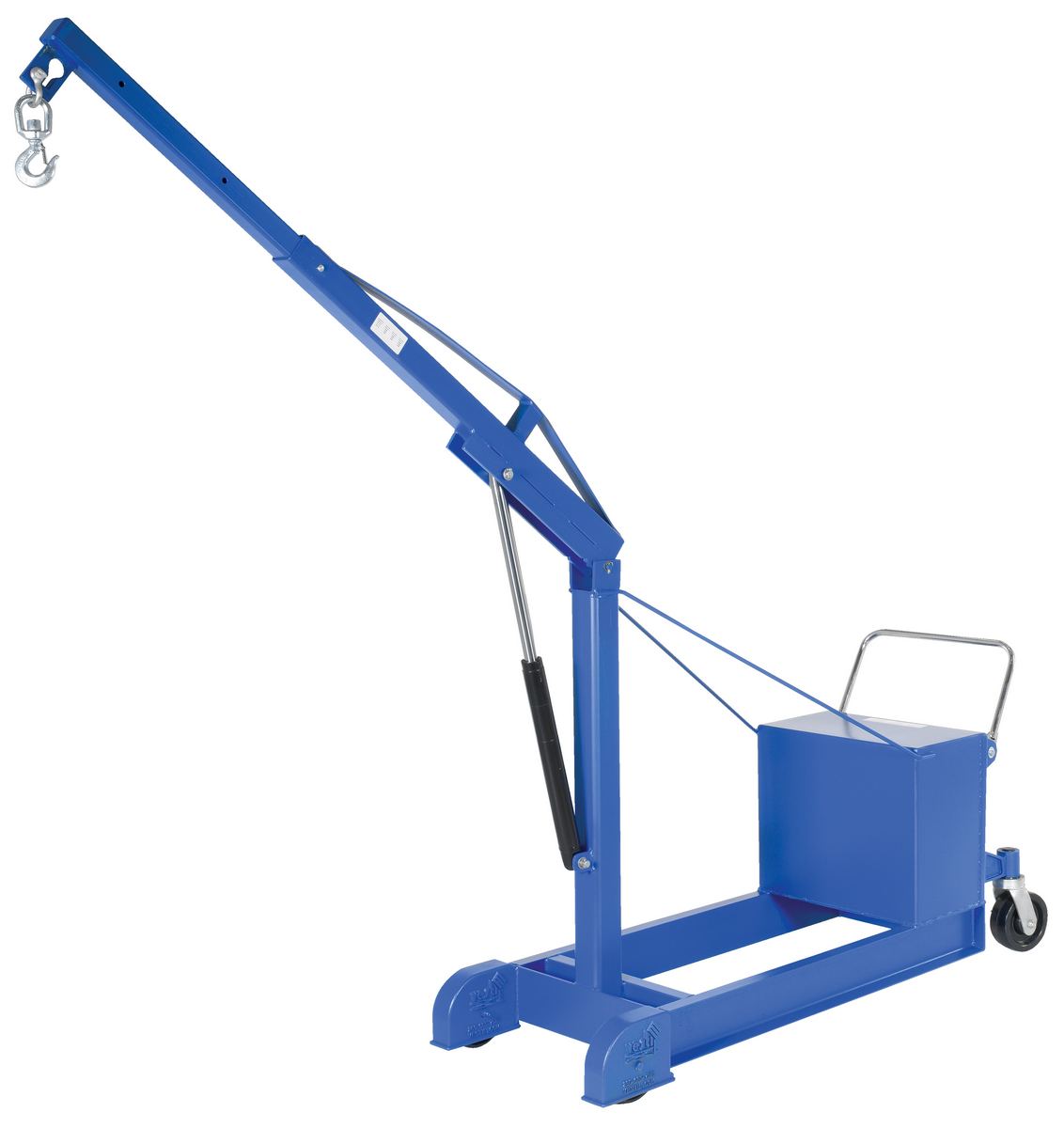

CBFC-1000-AIR | |
![]() | 1 Year Limited Warranty | Steel Air Counter Balance Floor Crane 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1,000 Uniform Capacity extended 39-1/4"(lb.): 1000 | 1906 | |

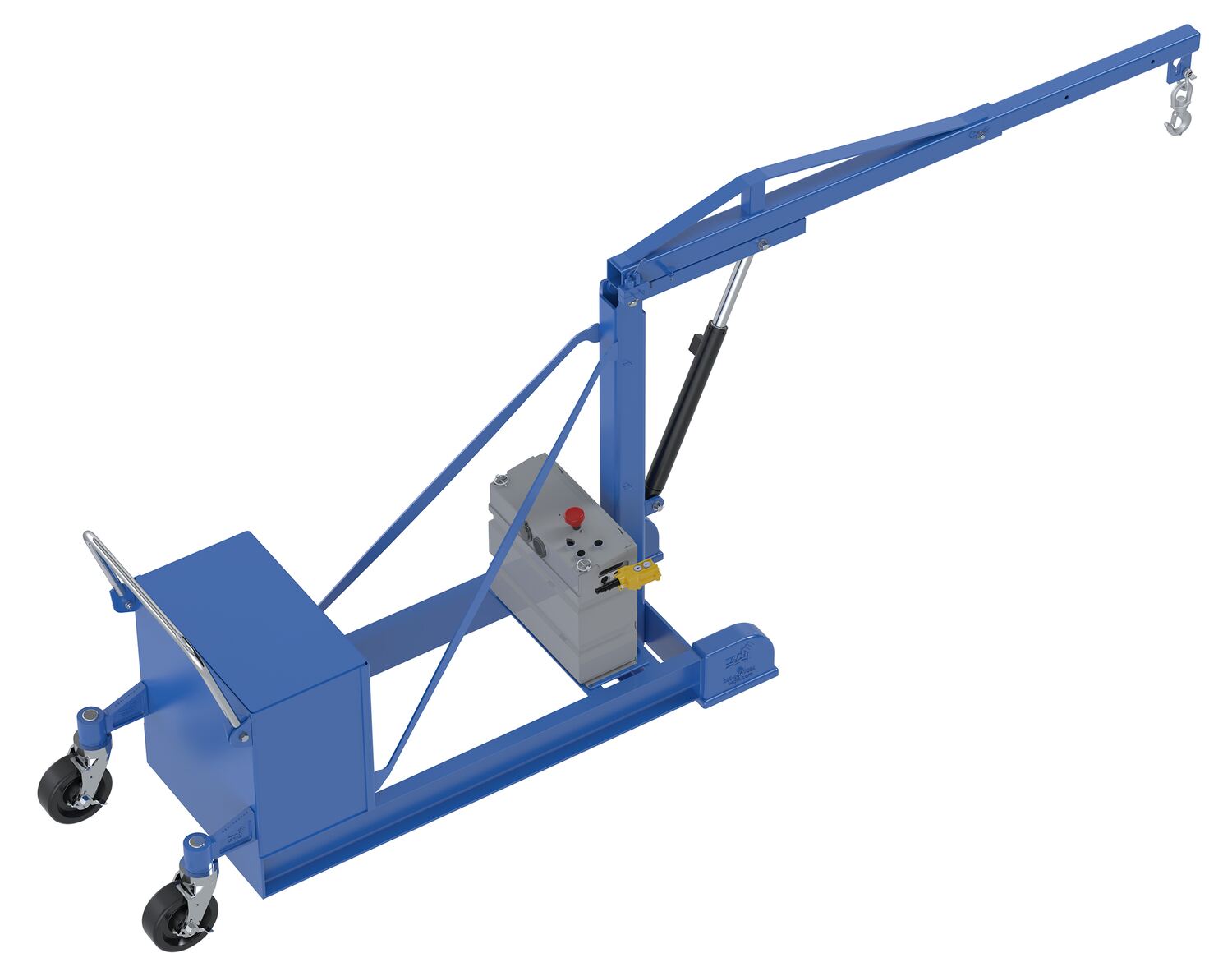

CBFC-1000-DC |
![]() | 1 Year Limited Warranty | Steel DC Counter Balance Floor Crane 1000 Lb. Capacity Blue | Uniform Capacity (lb.): 1,000 Uniform Capacity extended 39-1/4"(lb.): 1000 | 1906 | ||

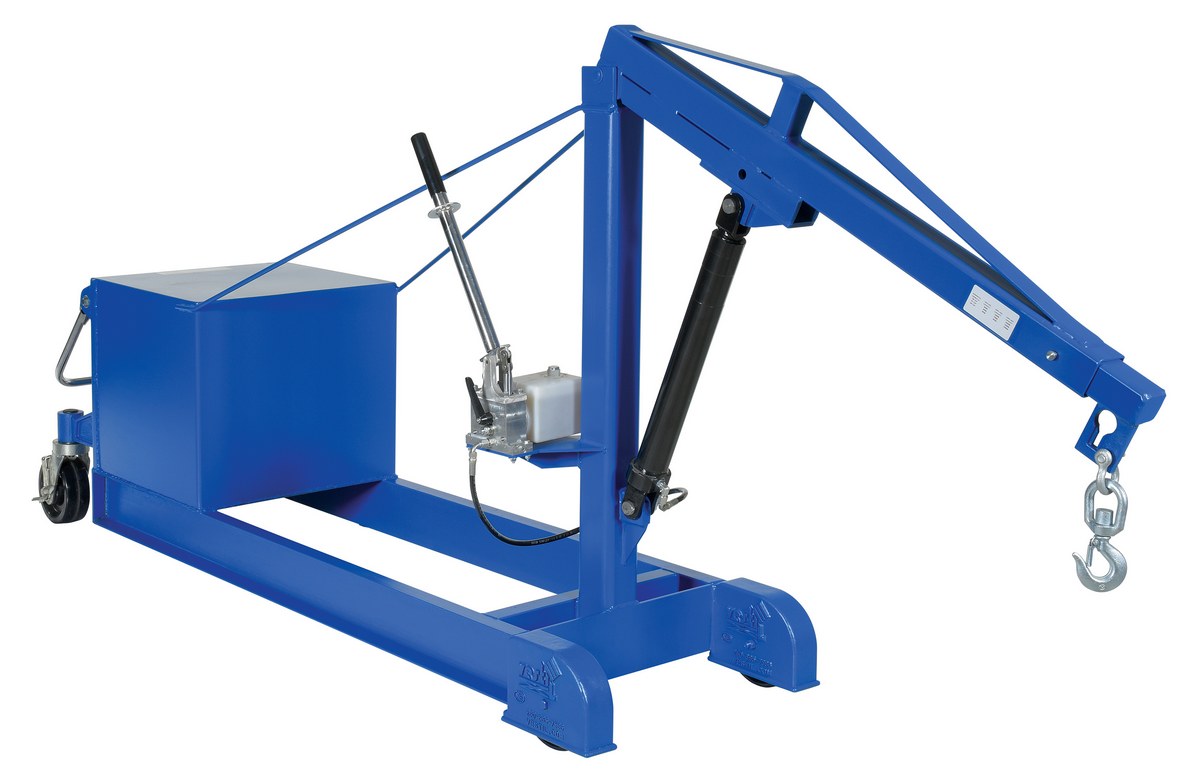

CBFC-2000 |
![]() | 1 Year Limited Warranty | Steel Counter Balance Floor Crane 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Uniform Capacity extended 39-1/4"(lb.): 2000 | 2646 | ||

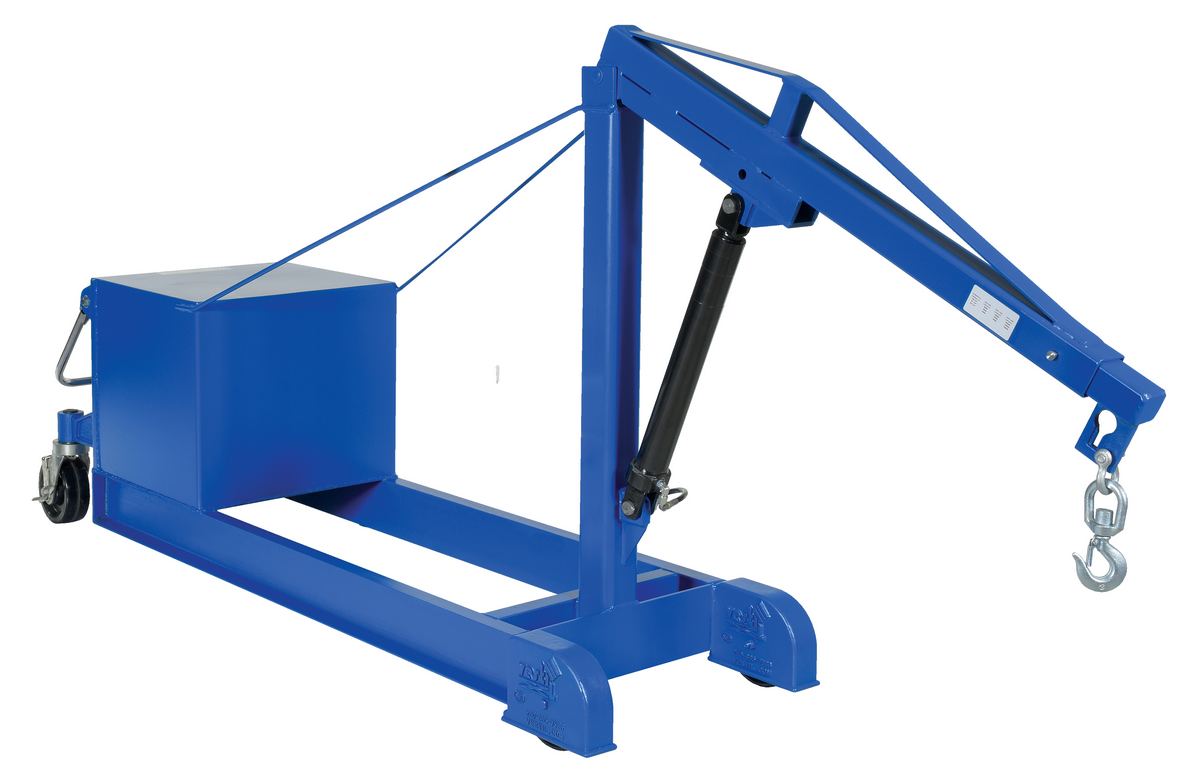

CBFC-2000-AIR | |
![]() | 1 Year Limited Warranty | Steel Air Counter Balance Floor Crane 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Uniform Capacity extended 39-1/4"(lb.): 2000 | 2356 | |

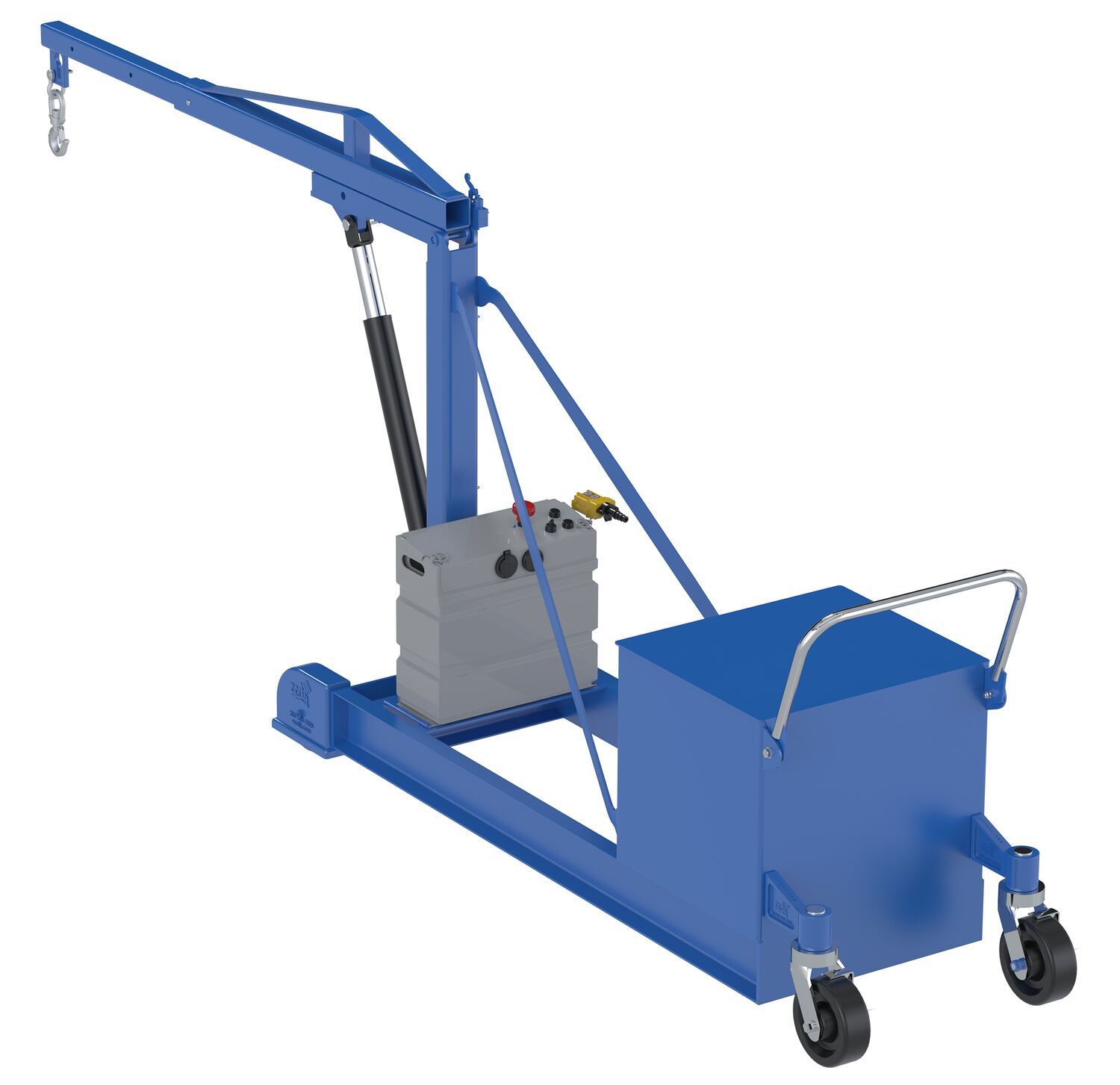

CBFC-2000-DC |
![]() | 1 Year Limited Warranty | Steel DC Counter Balance Floor Crane 2000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Uniform Capacity extended 39-1/4"(lb.): 2000 | 2631 | ||

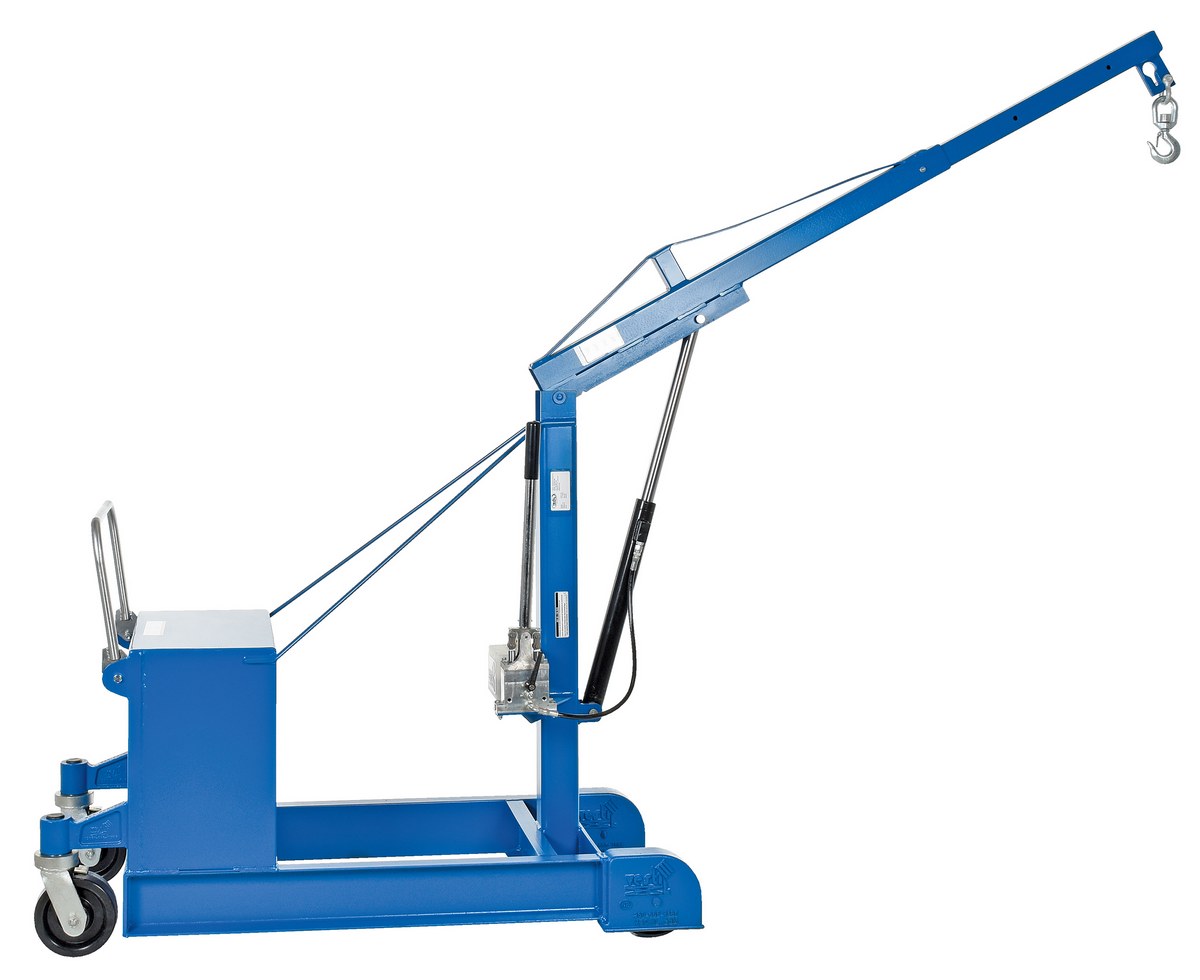

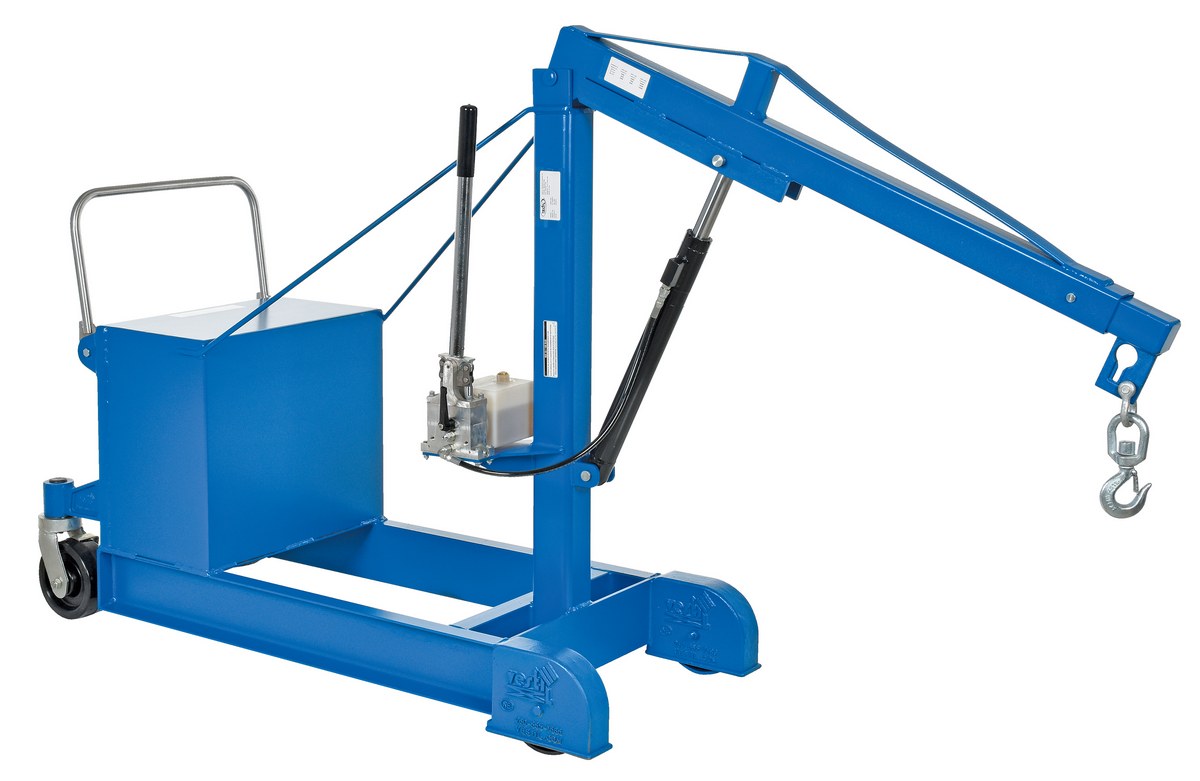

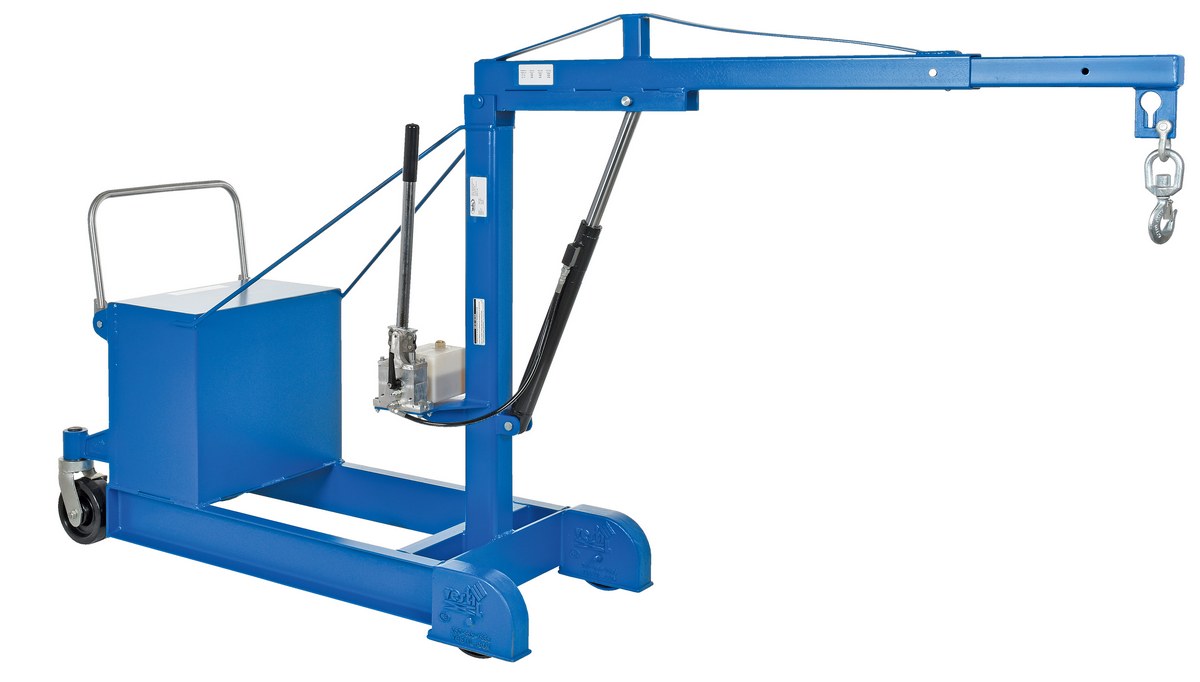

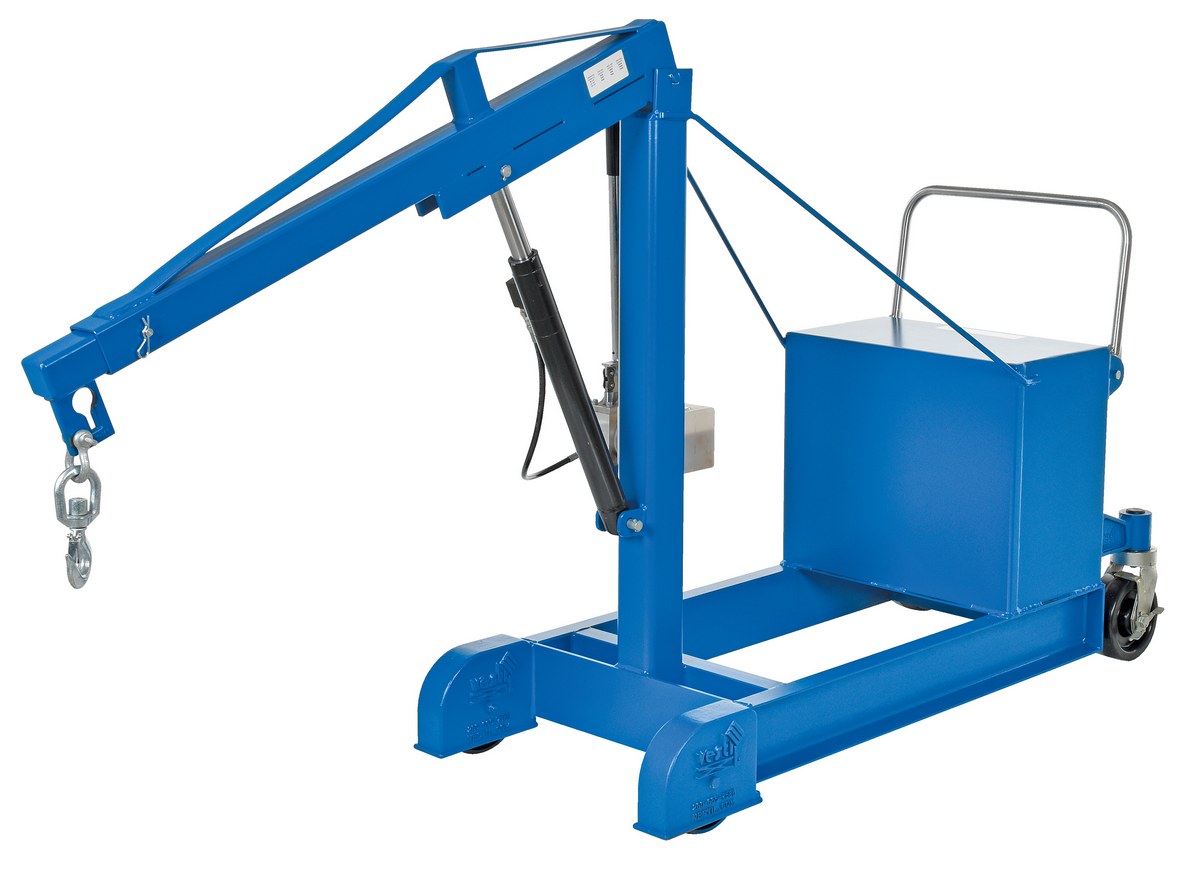

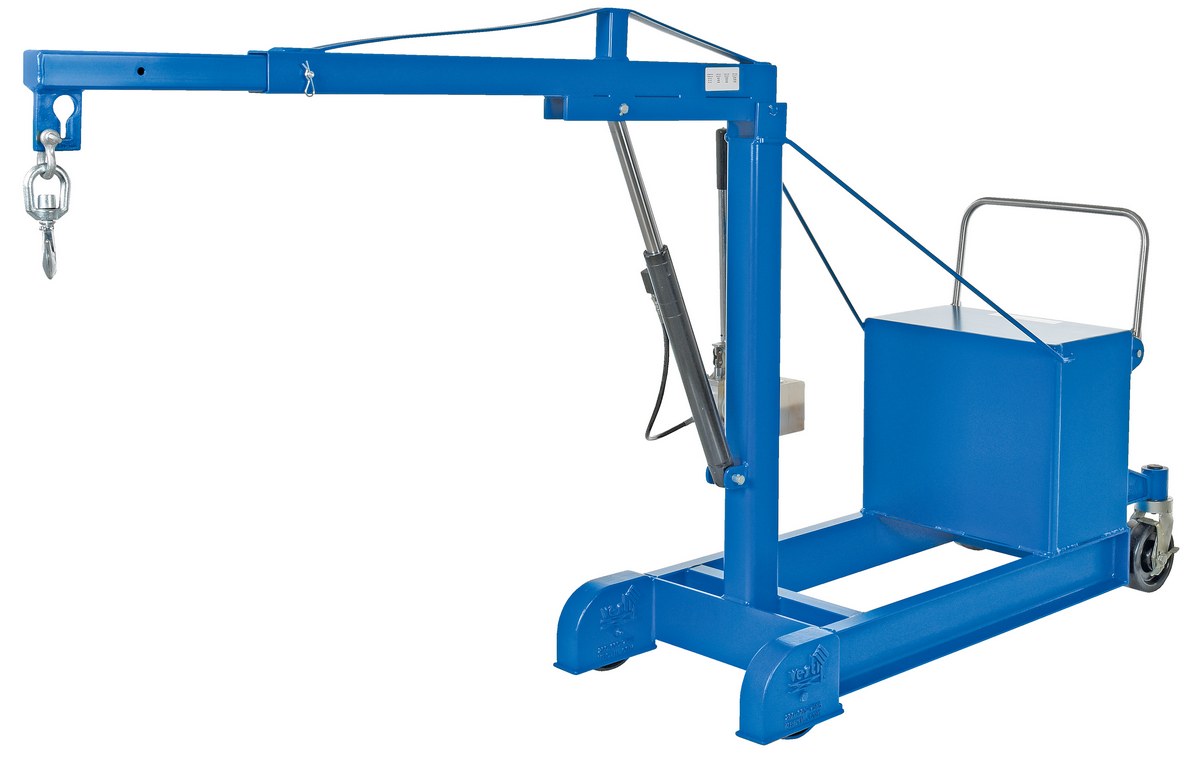

CBFC-500 |
![]() | 1 Year Limited Warranty | Steel Counter Balance Floor Crane 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Uniform Capacity extended 39-1/4"(lb.): 500 | 1259 | ||
CBFC-500-AIR | |
![]() | 1 Year Limited Warranty | Steel Air Counter Balance Floor Crane 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Uniform Capacity extended 39-1/4"(lb.): 500 | 1259 | |

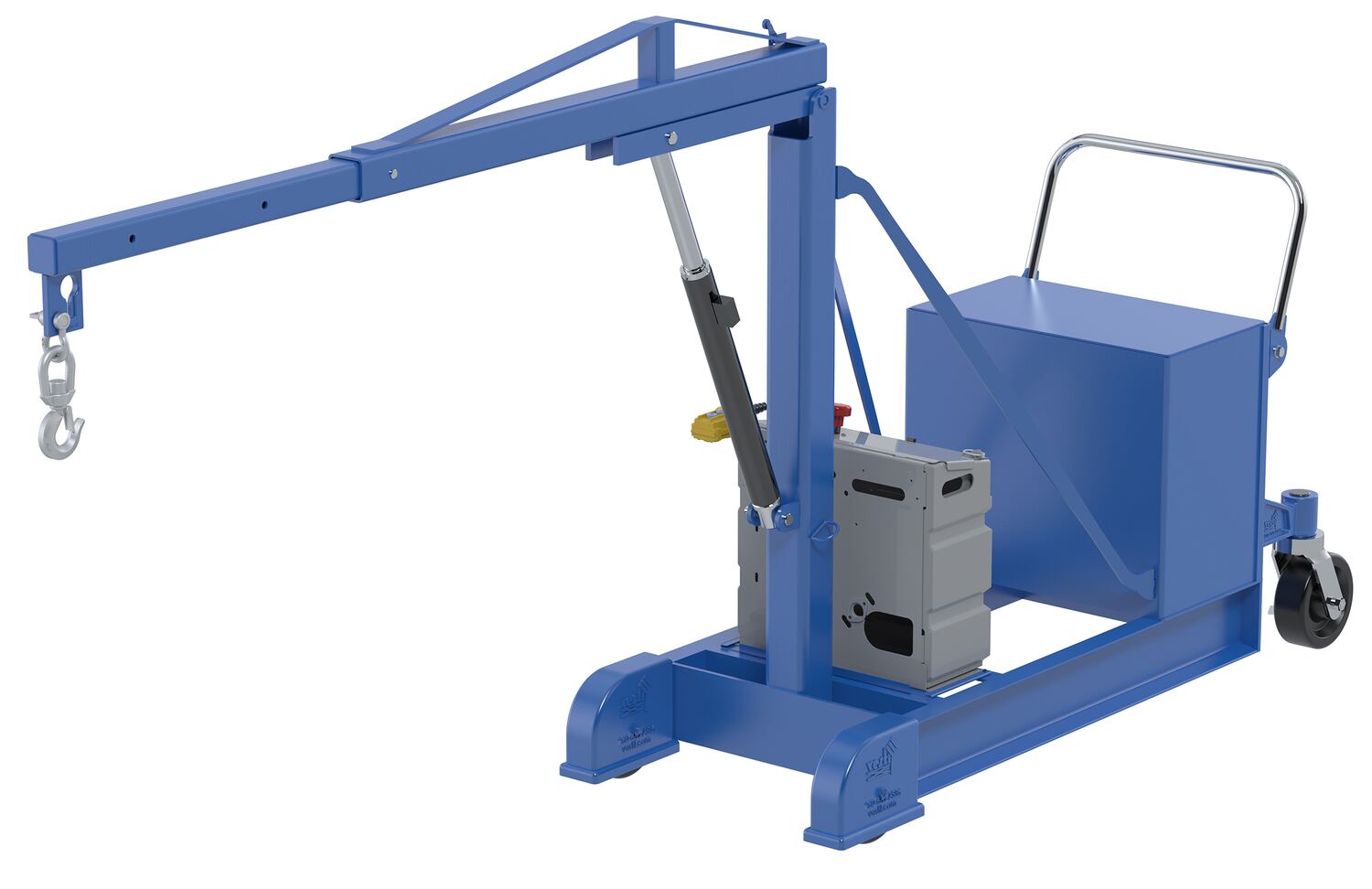

CBFC-500-DC |
![]() | 1 Year Limited Warranty | Steel DC Counter Balance Floor Crane 500 Lb. Capacity Blue | Uniform Capacity (lb.): 500 Uniform Capacity extended 39-1/4"(lb.): 500 | 1277 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

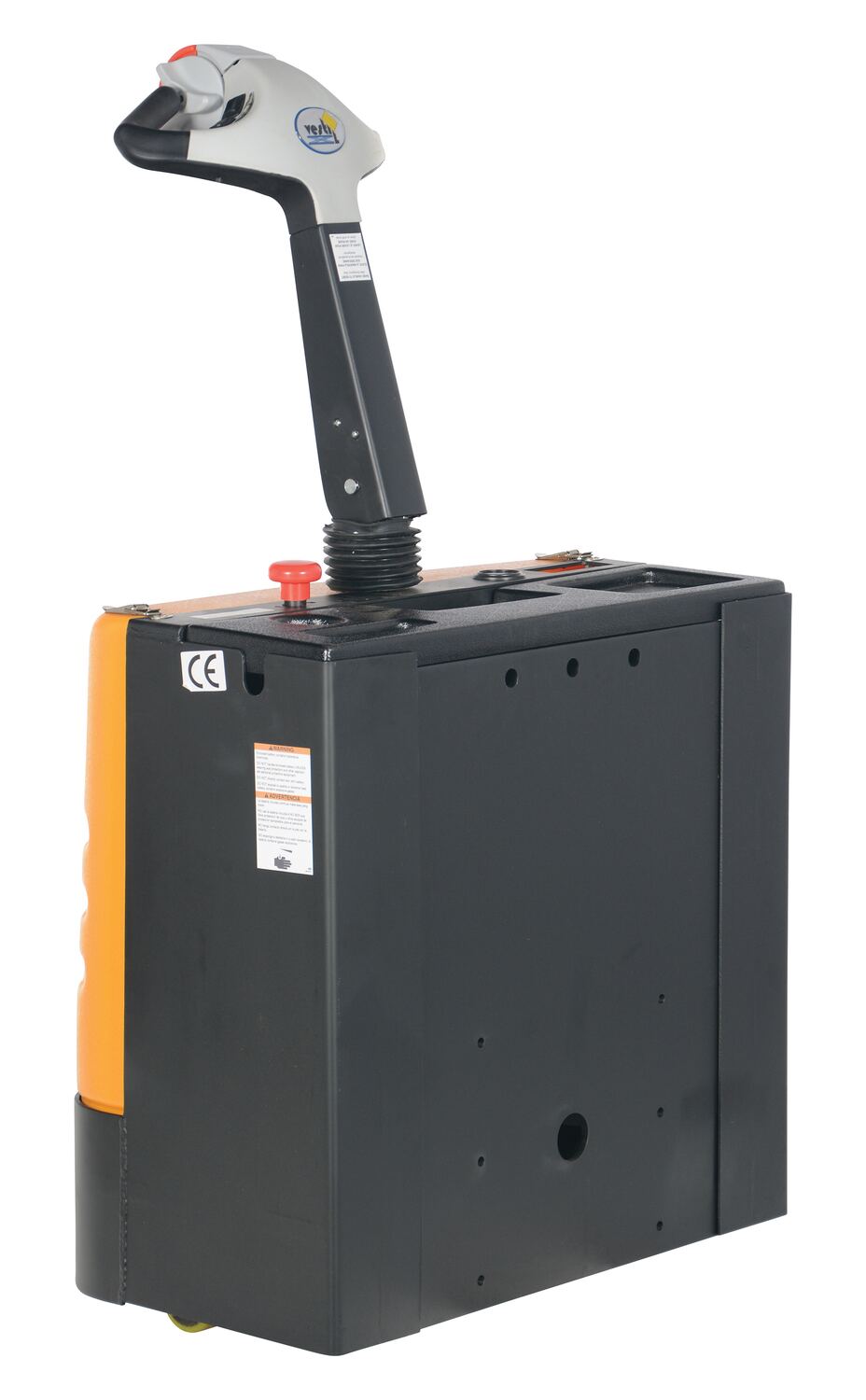

CBFC-PTDS-E |
![]() | 1 Year Limited Warranty | Factory Installed Power Traction Drive System For Counter Balanced Floor Crane Models | - | 255 |
.
A: The dimension is 1".
A: It is approximately 30 pumps to extend the boom.
A: Customer uses their own extension cord to charge. One end plugs into the power unit and the other end plugs into the wall.
A: The safety factor for the CBFC-2000 is 3:1
A: Yes, the CBFC-1000-DC is CSA compliant.
