Stockpicker Work Platforms

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
SP-175-84B_A.jpg SP-175-84B_B.jpg SP-175-84B_C.jpg SP-175-84B_D.jpg

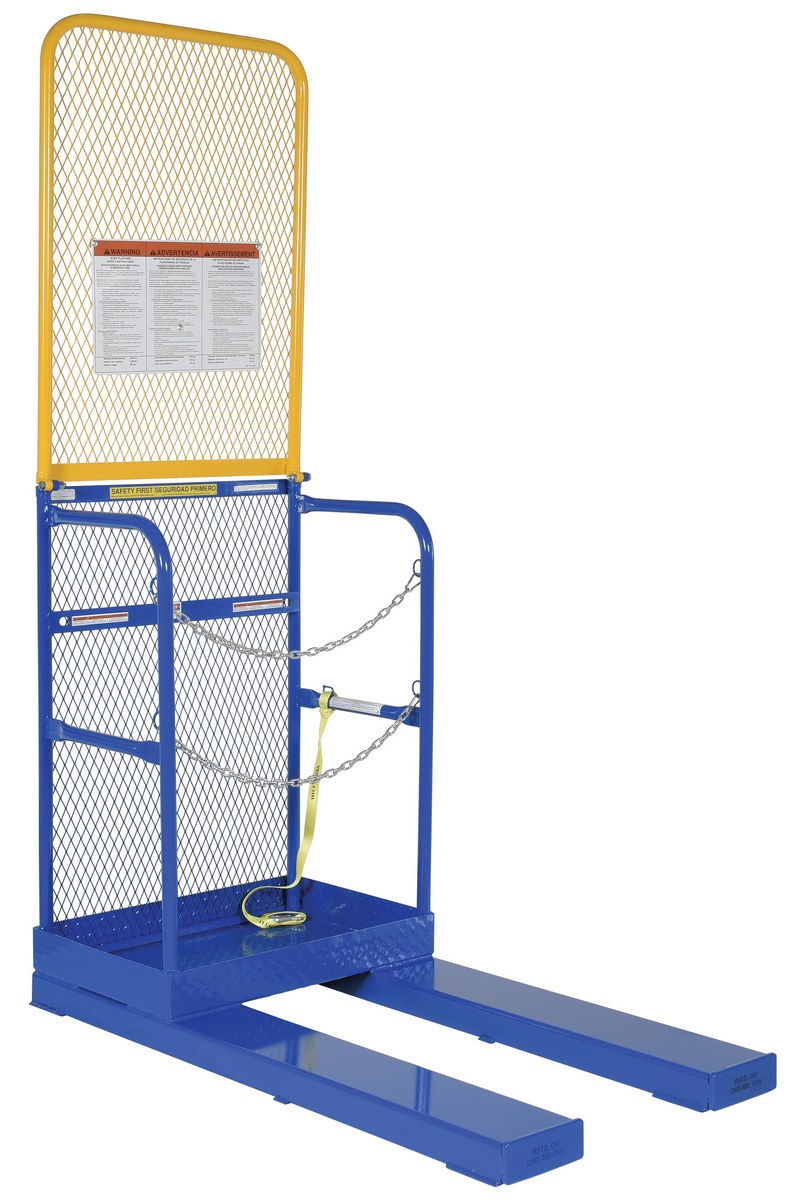

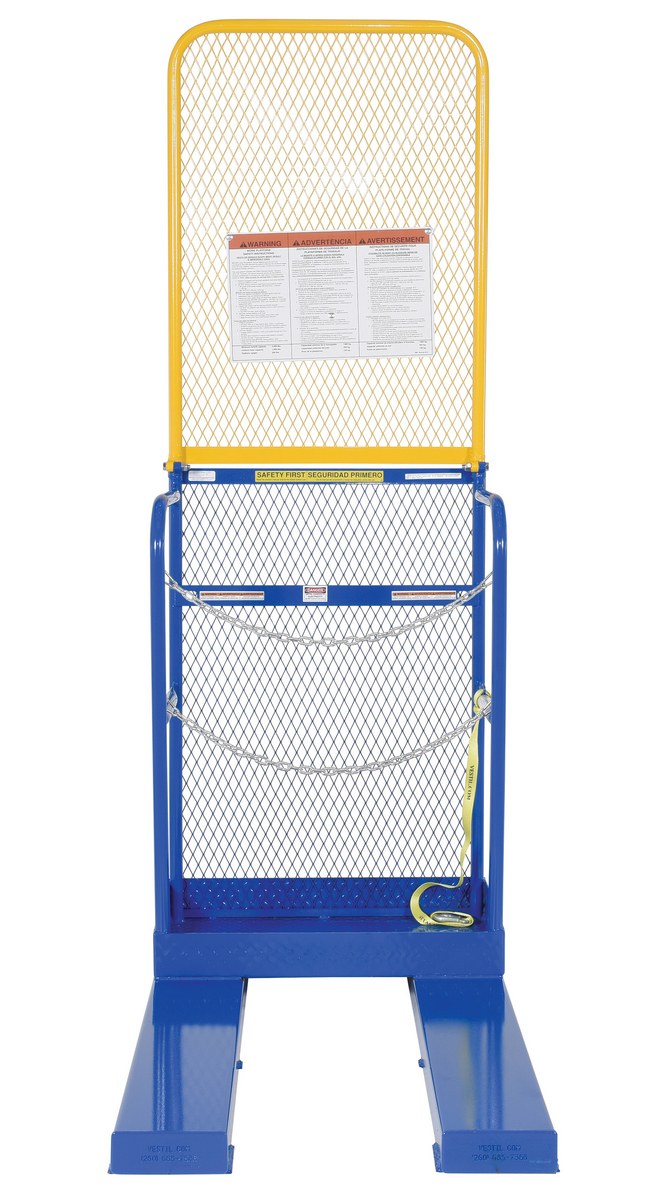

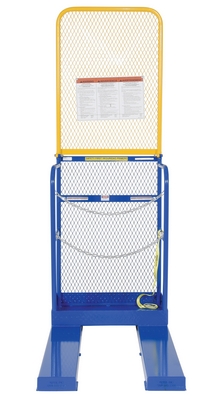

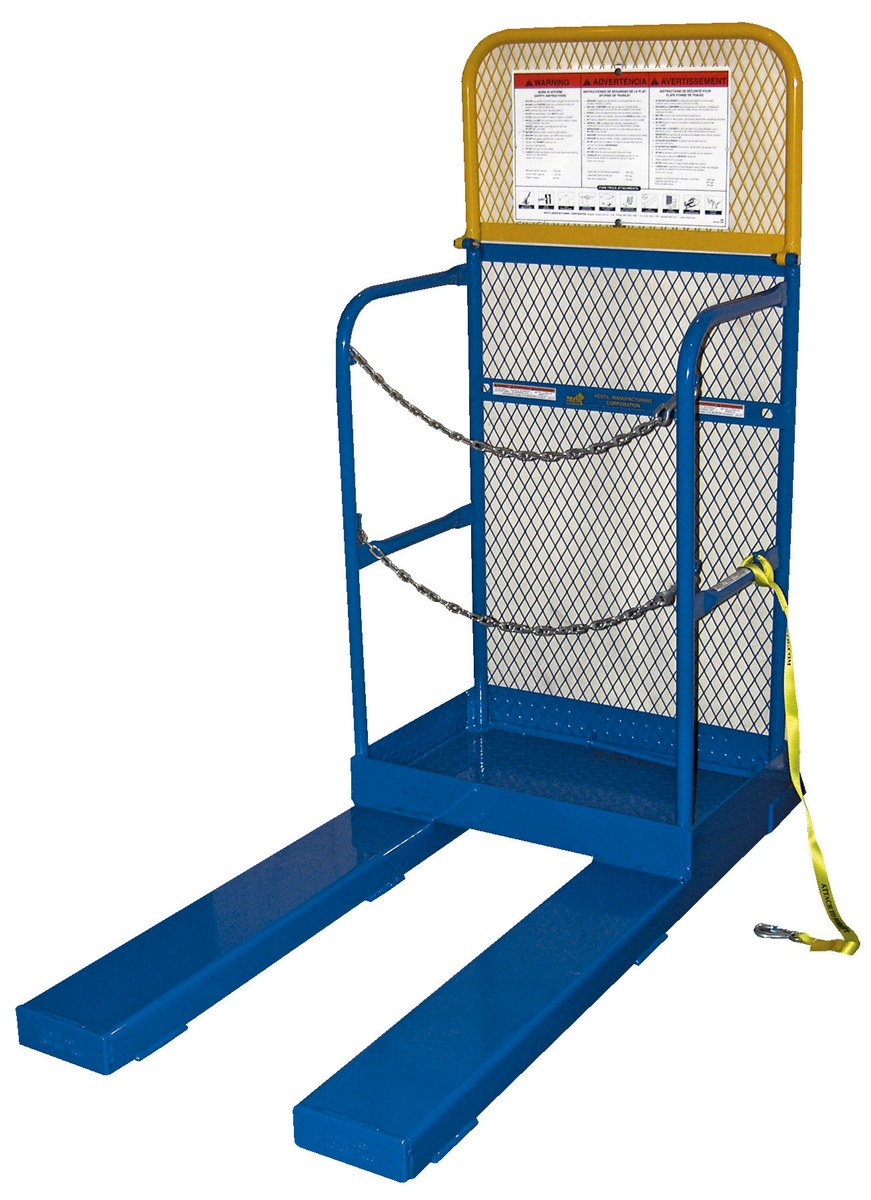

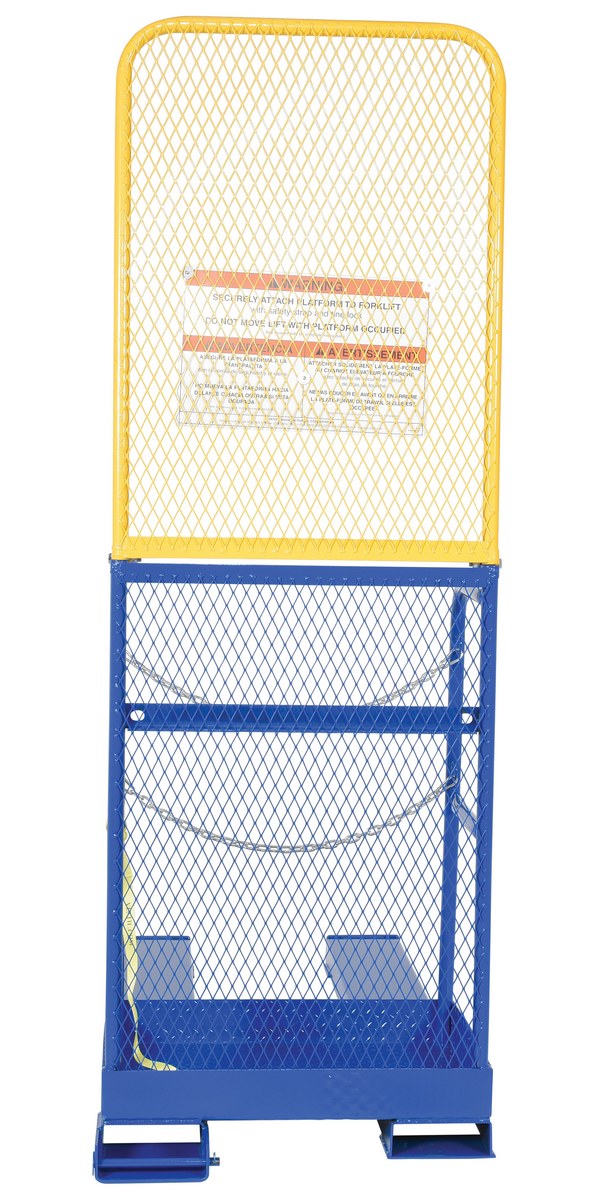

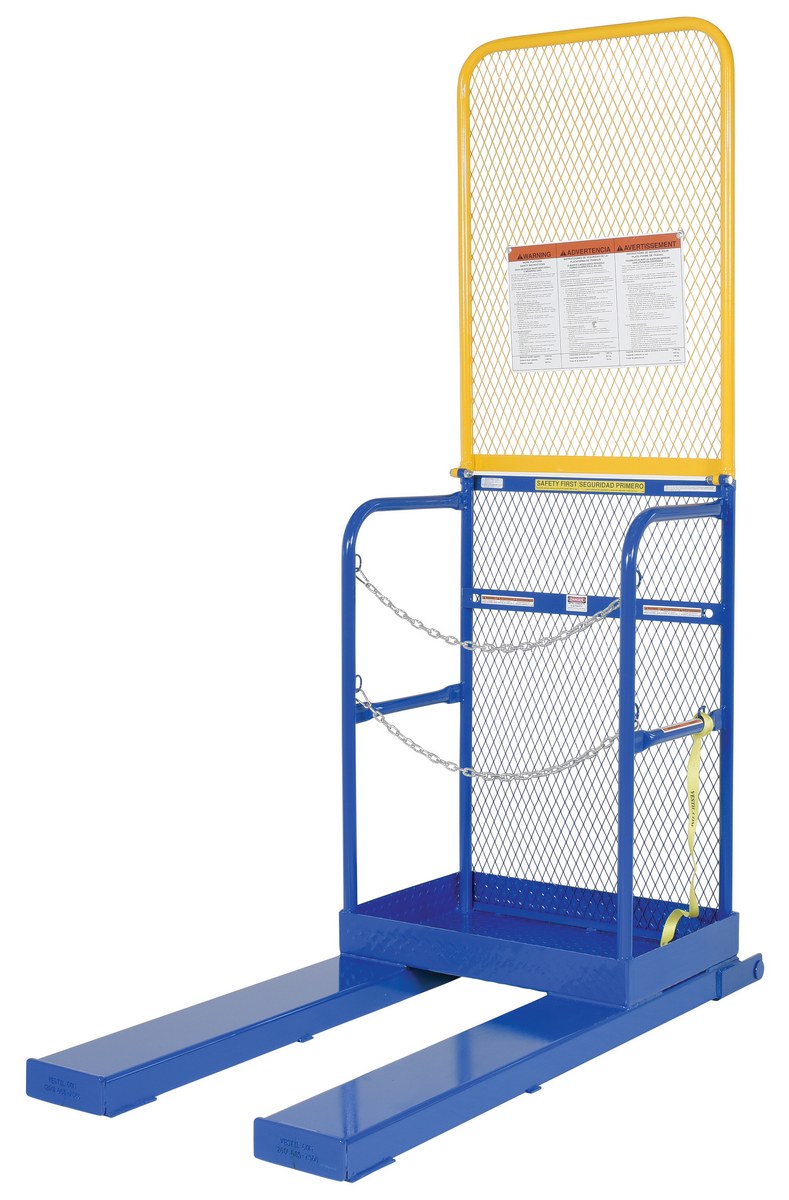

Stockpicker Work Platforms

model: SP-175-84B



Featured Fork Truck Attachments


Fork Truck LED DC Strobe Beacon
Heavy-Duty Poly Lids for D & H series Hoppers
Fork Lifter
Accessories For Fork Truck
Open Ended Steel Dumping Hopper
Chip & Waste Trucks
Low Profile D-Style Self Dumping Hoppers
Lift Master Booms
Overhead Drum Lifter
model chart

Product Family Overview

Print Friendly
Stockpicker Work Platforms
SERIES: SP

Elevate personnel and pallets to overhead racks and shelving for safe, convenient access. Accommodates one person and a 42" long pallet. Attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Pin type tine lock standard. 42" high handrail with 21" high mid-rail on two sides. 60" high expanded metal backing on fourth side (84" high backing to meet California OSHA specifications). Includes diamond floor plate platform and 36" long safety restraint with hook to attach platform to fork truck. The usable fork pocket size is 7-1/2"W x 2-1/2"H. Unit includes a welded steel construction with a powder coat blue finish for added toughness.

  • Elevate to overhead racks and shelving for safe and convenient access
  • Attaches to fork truck by securing platform to fork truck
  • High expanded metal backing on fourth side
  • Includes floor plate platform and long chain with hook

Elevate personnel and pallets to overhead racks and shelving for safe, convenient access. Accommodates one person and a 42" long pallet. Attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Pin type tine lock standard. 42" high handrail with 21" high mid-rail on two sides. 60" high expanded metal backing on fourth side (84" high backing to meet California OSHA specifications). Includes diamond floor plate platform and 36" long safety restraint with hook to attach platform to fork truck. The usable fork pocket size is 7-1/2"W x 2-1/2"H. Unit includes a welded steel construction with a powder coat blue finish for added toughness.

  • Elevate to overhead racks and shelving for safe and convenient access
  • Attaches to fork truck by securing platform to fork truck
  • High expanded metal backing on fourth side
  • Includes floor plate platform and long chain with hook

Other Work Platforms

 Multi-Person Work Platforms Stockpicker Work Platforms Work Platforms Loading Platforms for Fork Truck

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
SP-175 SP-1751 Year Limited WarrantySteel Stock Picker Work Platform 60 In. Expanded Metal Back Height 4,000 Lb. Capacity Blue / YellowMaximum Uniform Capacity (lb.): 4,000
Uniform Basket Capacity (lb.): 1,000		174
SP-175-84B SP-175-84B1 Year Limited WarrantySteel Stock Picker Work Platform 84 In. Expanded Metal Back Height 4,000 Lb. Capacity Blue / YellowMaximum Uniform Capacity (lb.): 4,000
Uniform Basket Capacity (lb.): 1,000		210

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SP-175
Unit:
Size: W x L x H
Weight:
Limited Warranty
Maximum Uniform Capacity (lb.): 4,000
Uniform Basket Capacity (lb.): 1,000
Maximum Uniform Capacity (lb.): 4,000
Uniform Basket Capacity (lb.): 1,000

SP-175-84B
Unit:
Size: W x L x H
Weight:
Limited Warranty
Maximum Uniform Capacity (lb.): 4,000
Uniform Basket Capacity (lb.): 1,000
Maximum Uniform Capacity (lb.): 4,000
Uniform Basket Capacity (lb.): 1,000
For More Details of the Option Click the Red Model Button
Lanyard with Safety Harness or Safety Belt
Model Image PDF Description Capacity
(lbs)		 Length of Lanyard Wt.
(lbs)
WP-LH-S Warranty PDFCompliance Certificate Harness Small 350 6ft. 5
WP-LH-M Warranty PDFCompliance Certificate Harness Medium 350 6ft. 5
WP-LH-L Warranty PDFCompliance Certificate Harness Large 350 6ft. 5
WP-LH-XL Warranty PDFCompliance Certificate Harness X-Large 350 6ft. 5
WP-LH-XXL Warranty PDFCompliance Certificate Harness XX-Large 350 6ft. 5
WP-LH-XXXL Warranty PDFCompliance Certificate

Harness XXX-Large

*Note: Customer's Completion of this waiver form mandatory for this item

 350 6ft. 7
Harness Sizing Chart
Height - 34"-36" 38"-40" 42"-44" 46"-48" 50"-54" 56"-60"
Small (5'4-5'7") - Small Small Medium Large X-Large XX-Large
Reg (5'8"-5'11") - Small Medium Large X-Large XX-Large XXX-Large
Tall (6'0"- 6'3") - Medium Medium Large X-Large XX-Large XXX-Large
X-Tall (6'3"-Plus) - Large Large X-Large X-Large XX-Large XXX-Large
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Stockpicker Work Platforms PDF's will open in a new window when clicked.

Manuals


WP
Owners Manual

WP-LH
Owners Manual

Survey Sheets


SP-175
Survey Sheet

Approval Drawings


SP-175

SP-175-84B

Testing Certificates


SP-175

SP-175-84B

SDS Sheets

No SDS Sheets For This Product

Other PDF's

WP-LH-XXXL Waiver Form


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Related or Similar Products:

Work Platforms
Product

Work Platforms

Multi-Person Work Platforms
Product

Multi-Person Work Platforms

Fold Down Work Platforms
Product

Fold Down Work Platforms

Hoppers
Product

Hoppers

Lift Master Booms
Product

Lift Master Booms

Hoisting Hooks & Hitches
Product

Hoisting Hooks & Hitches

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Stockpicker Work Platforms




Elevate personnel and pallets to overhead racks and shelving for safe, convenient access. Accommodates one person and a 42" long pallet. Attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Pin type tine lock standard. 42" high handrail with 21" high mid-rail on two sides. 60" high expanded metal backing on fourth side (84" high backing to meet California OSHA specifications). Includes diamond floor plate platform and 36" long safety restraint with hook to attach platform to fork truck. The usable fork pocket size is 7-1/2"W x 2-1/2"H. Unit includes a welded steel construction with a powder coat blue finish for added toughness.

  • Elevate to overhead racks and shelving for safe and convenient access
  • Attaches to fork truck by securing platform to fork truck
  • High expanded metal backing on fourth side
  • Includes floor plate platform and long chain with hook

Model # Description Attributes Net Wt.
(lbs)
SP-175 SP-175Steel Stock Picker Work Platform 60 In. Expanded Metal Back Height 4,000 Lb. Capacity Blue / YellowMaximum Uniform Capacity (lb.): 4,000
Uniform Basket Capacity (lb.): 1,000		174
SP-175-84B SP-175-84BSteel Stock Picker Work Platform 84 In. Expanded Metal Back Height 4,000 Lb. Capacity Blue / YellowMaximum Uniform Capacity (lb.): 4,000
Uniform Basket Capacity (lb.): 1,000		210

Options


Lanyard with Safety Harness or Safety Belt
Model Image PDF Description Capacity
(lbs)		 Length of Lanyard Wt.
(lbs)
WP-LH-S Warranty PDFCompliance Certificate Harness Small 350 6ft. 5
WP-LH-M Warranty PDFCompliance Certificate Harness Medium 350 6ft. 5
WP-LH-L Warranty PDFCompliance Certificate Harness Large 350 6ft. 5
WP-LH-XL Warranty PDFCompliance Certificate Harness X-Large 350 6ft. 5
WP-LH-XXL Warranty PDFCompliance Certificate Harness XX-Large 350 6ft. 5
WP-LH-XXXL Warranty PDFCompliance Certificate

Harness XXX-Large

*Note: Customer's Completion of this waiver form mandatory for this item

 350 6ft. 7
Harness Sizing Chart
Height - 34"-36" 38"-40" 42"-44" 46"-48" 50"-54" 56"-60"
Small (5'4-5'7") - Small Small Medium Large X-Large XX-Large
Reg (5'8"-5'11") - Small Medium Large X-Large XX-Large XXX-Large
Tall (6'0"- 6'3") - Medium Medium Large X-Large XX-Large XXX-Large
X-Tall (6'3"-Plus) - Large Large X-Large X-Large XX-Large XXX-Large
