Product Family Overview


Lift & Tilt Carts with Sequence Select
SERIES: CART-*-LT

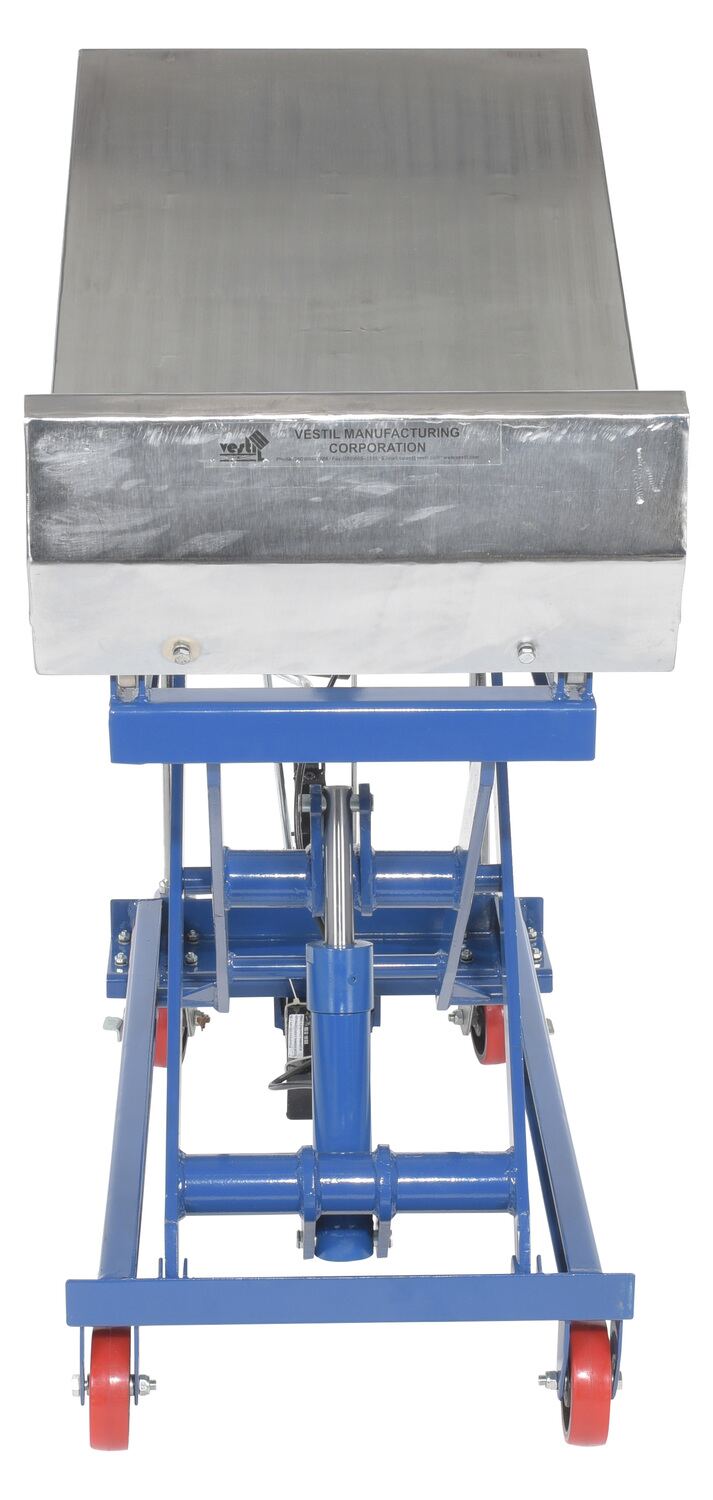

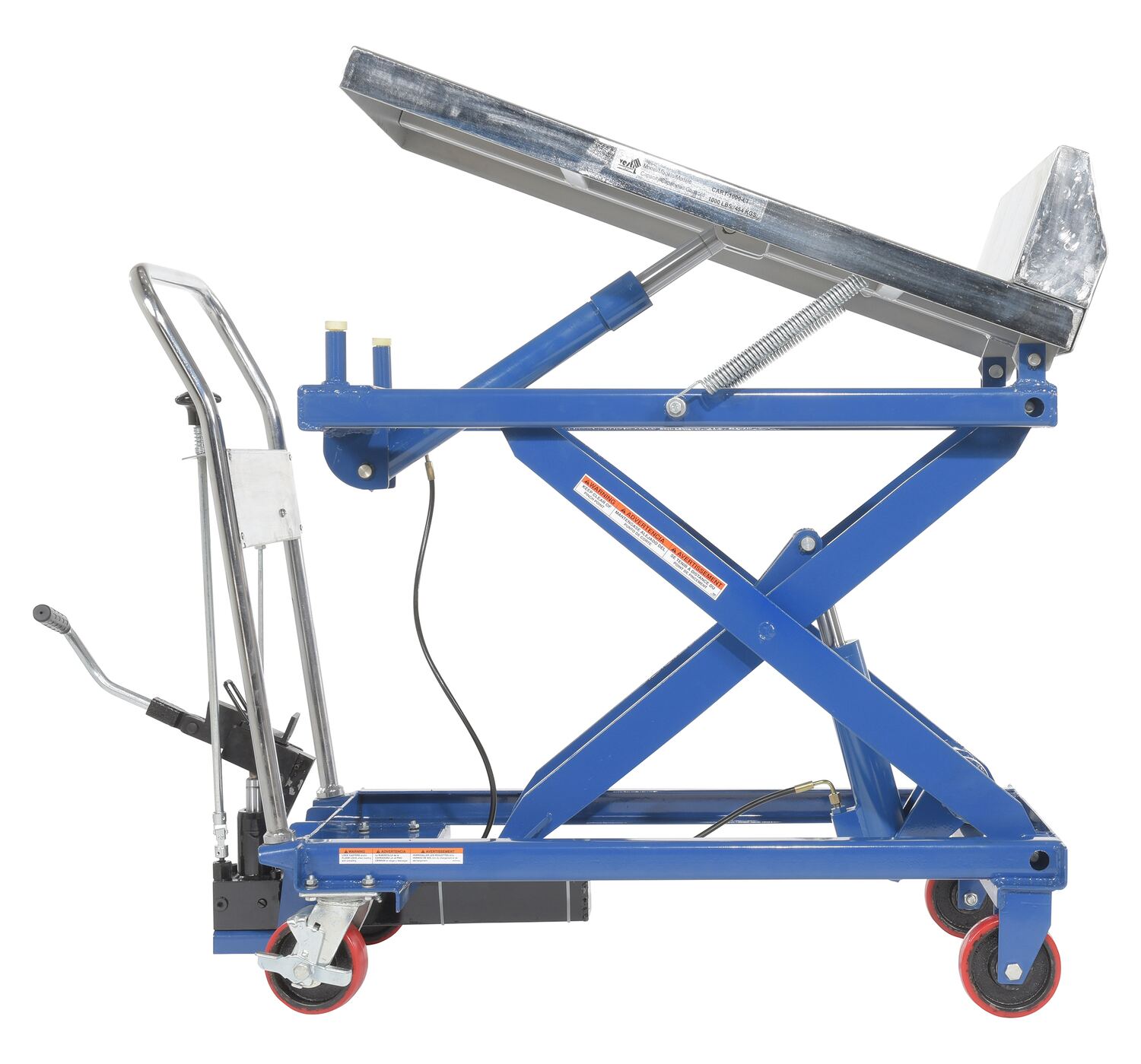

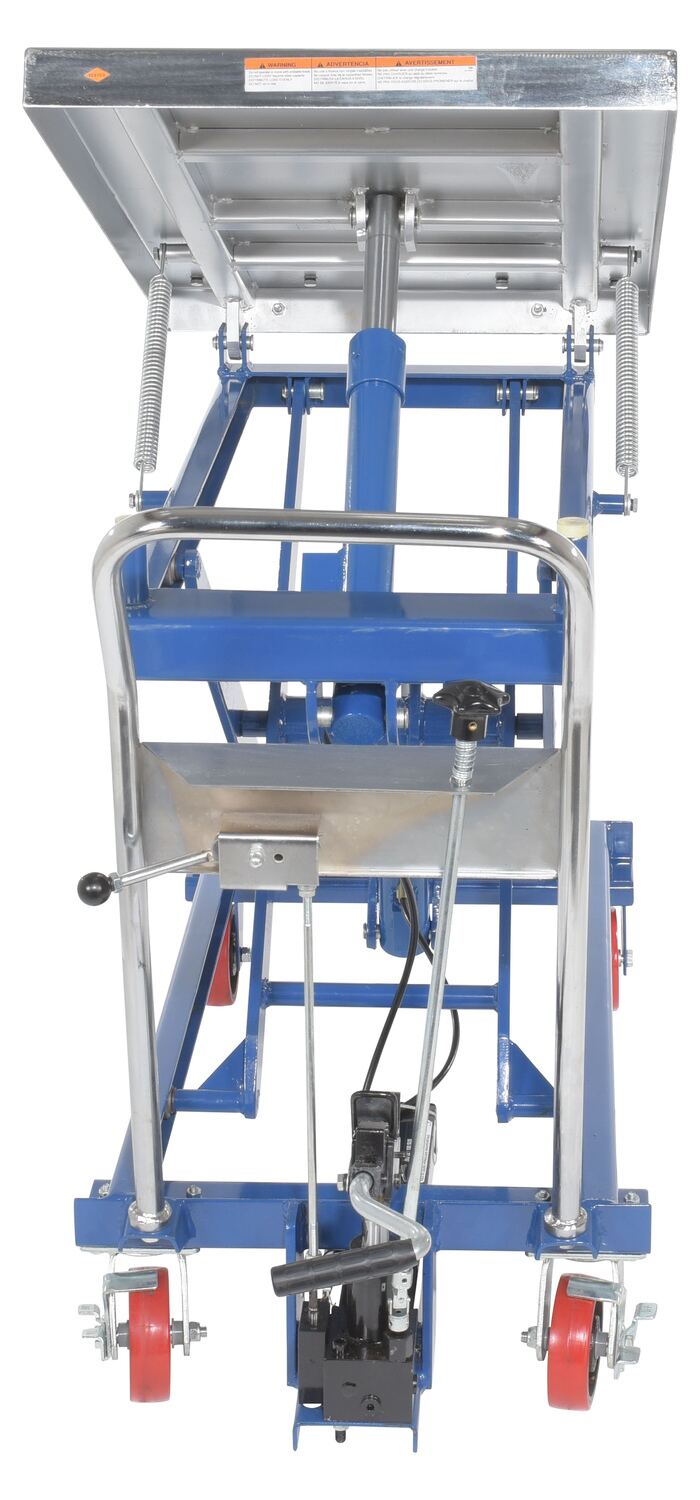

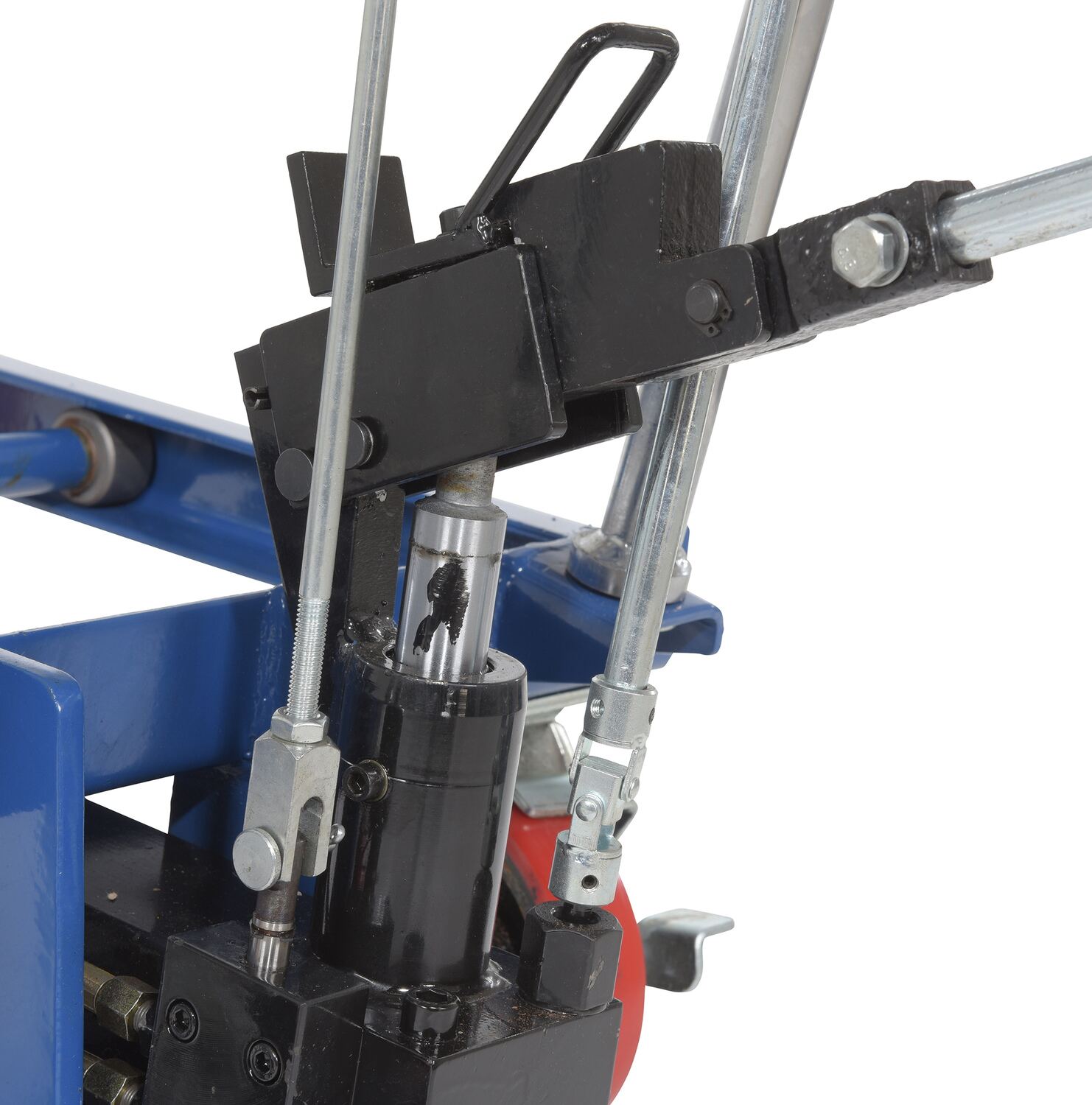

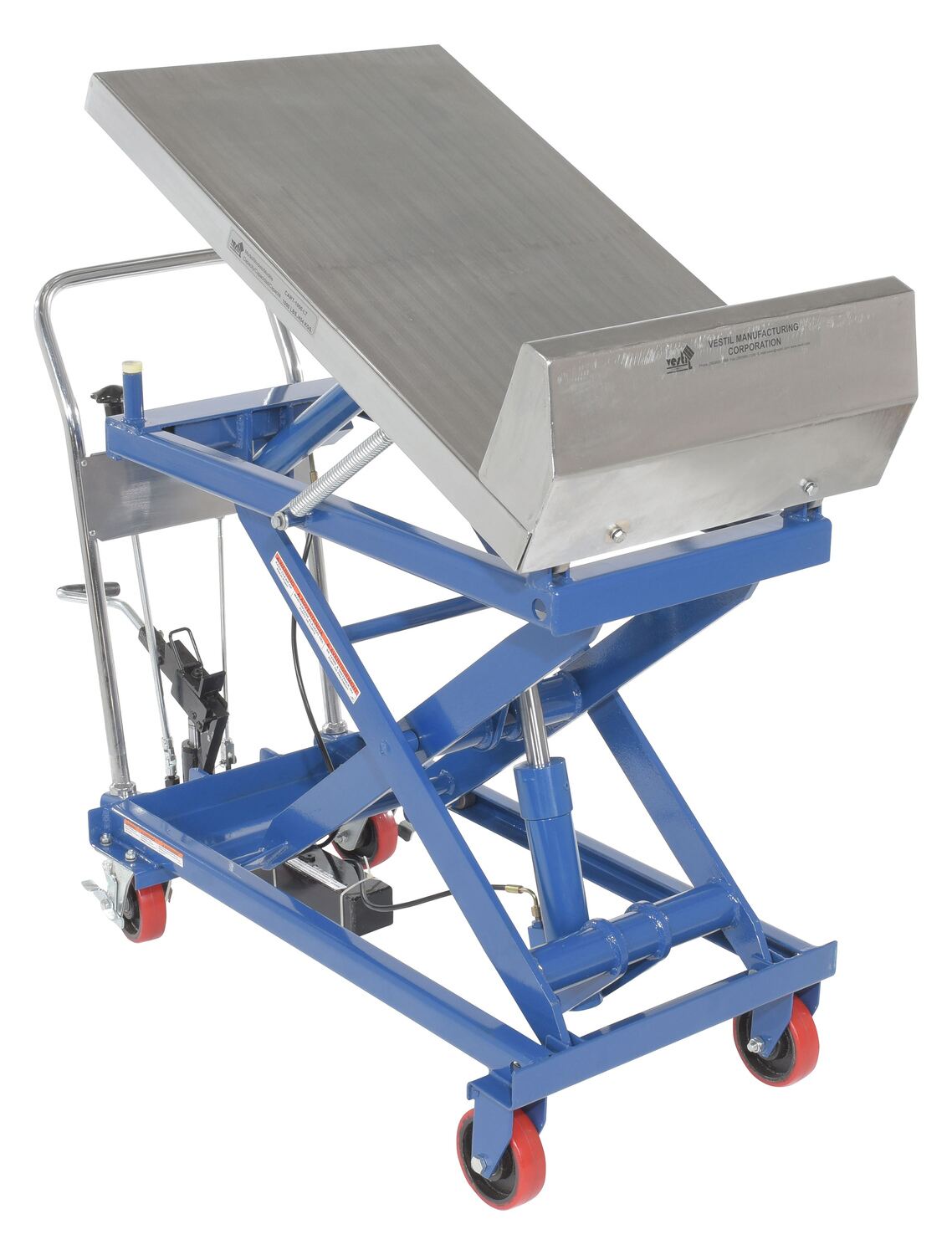

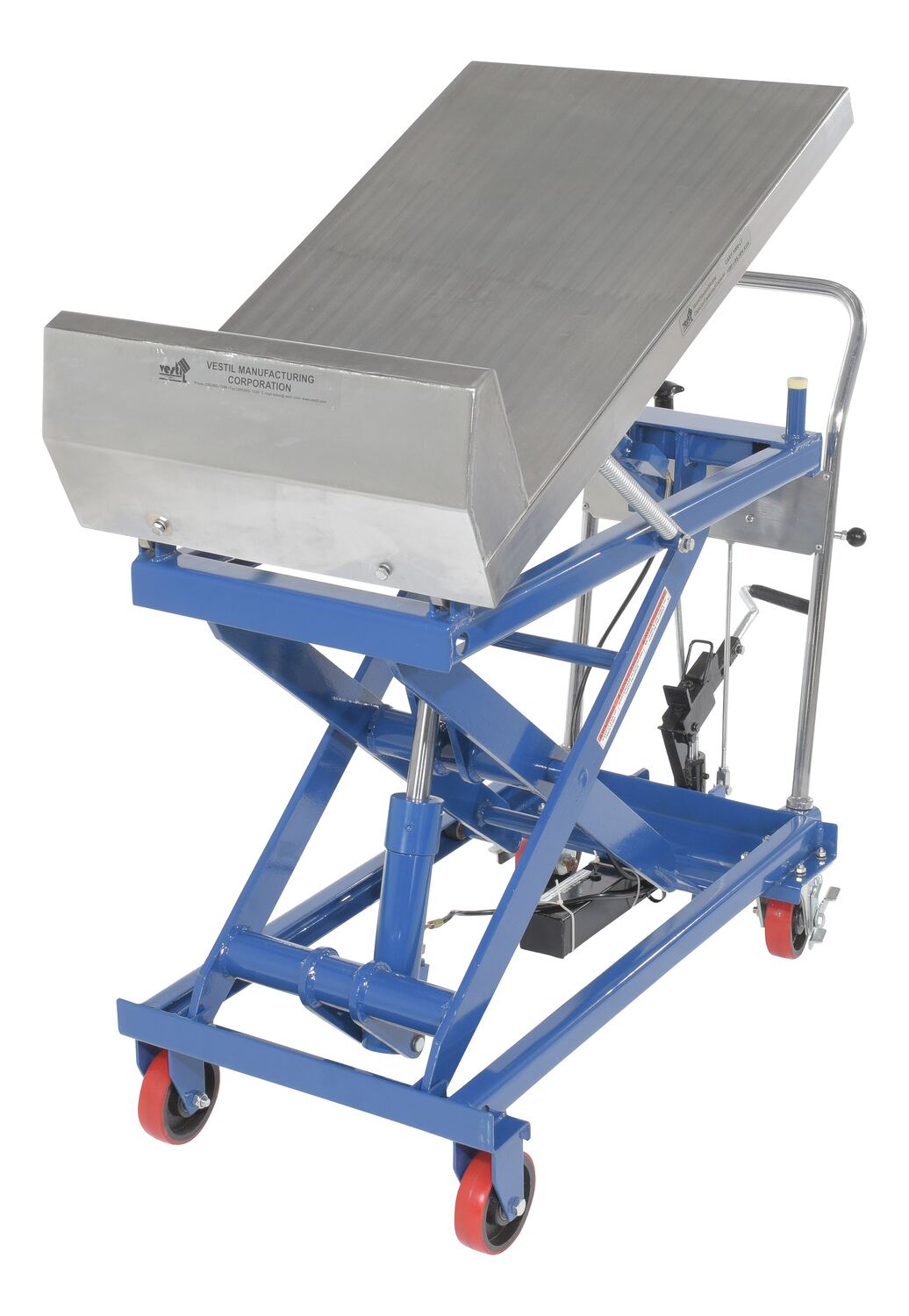

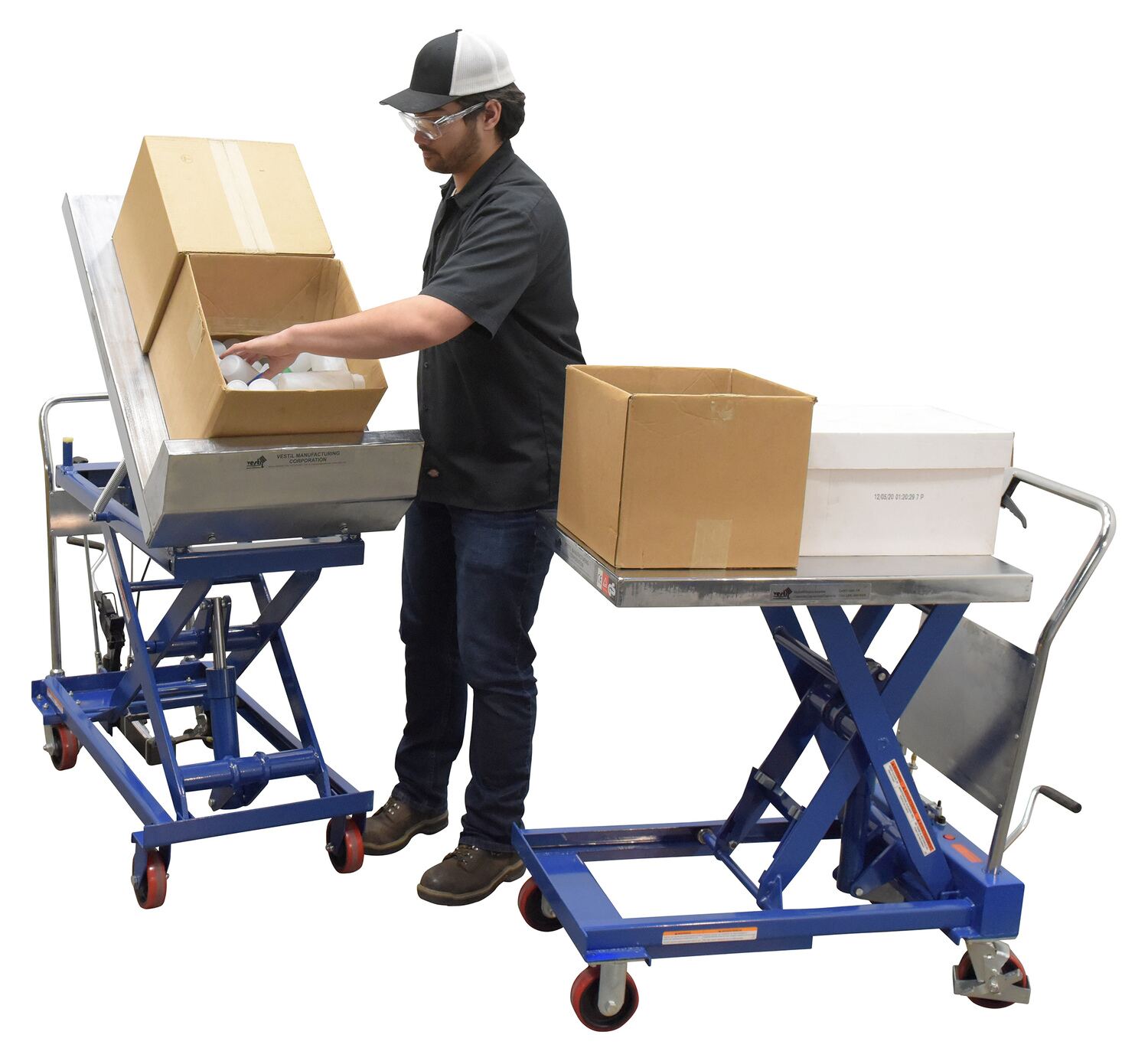

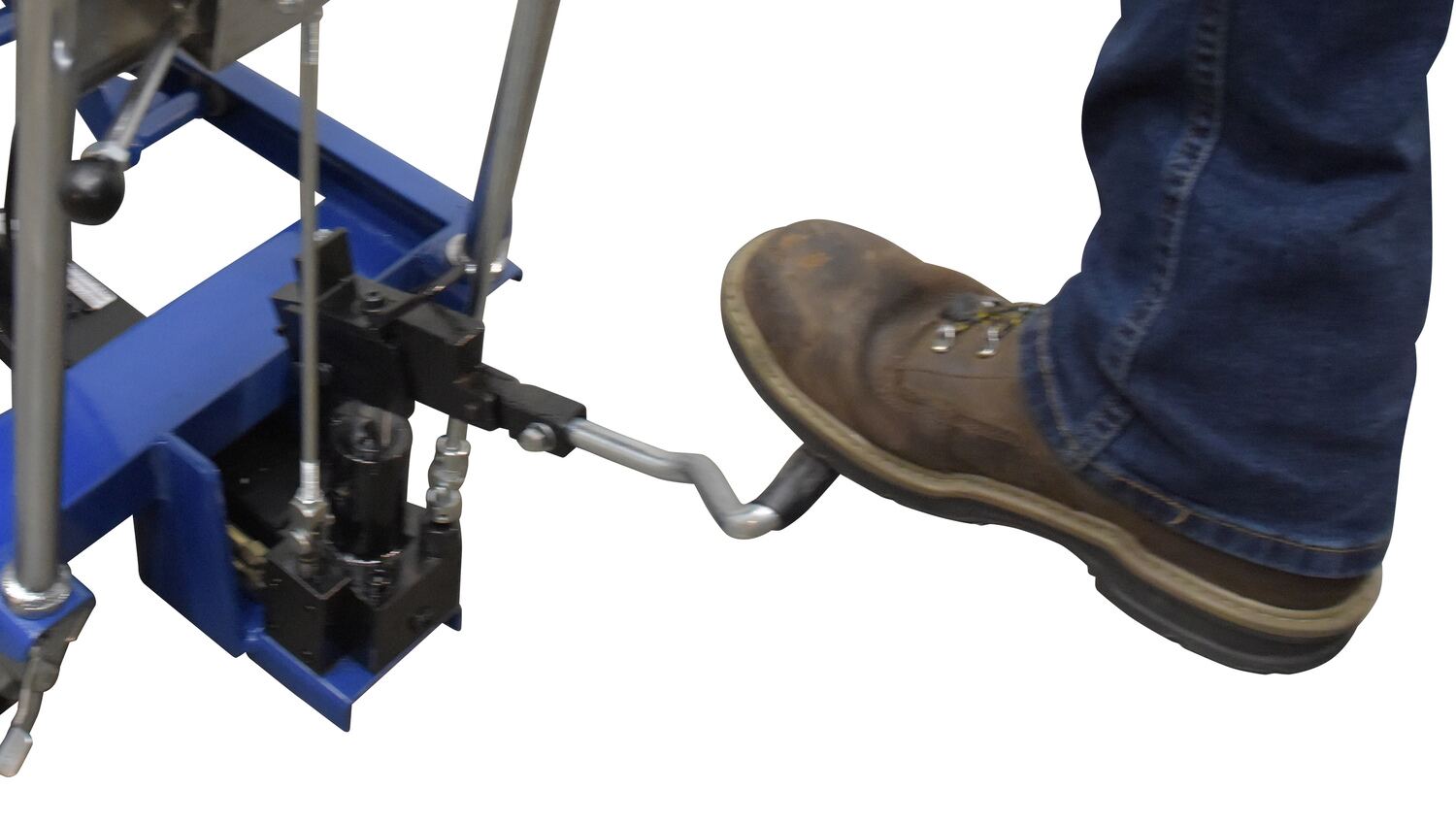

Models CART-500-LT, CART-1000-LT, and CART-1000-LT-PSS have a unique design which allows the user to RAISE and TILT materials to an ergonomic position for better posture and operator comfort. The manual hydraulic foot pump controls the platform lift, lower, and tilt. A manual selector valve is used to control the lift/lower sequence independently from the tilt sequence. The platform includes a 6-1/2" high retaining lip on model CART-500-LT and 7" high on CART-1000-LT series. Rolls on two (2) rigid and two (2) swivel 5" poly casters.

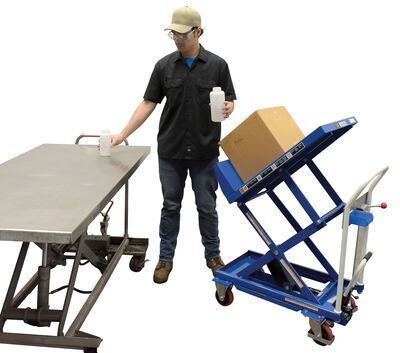

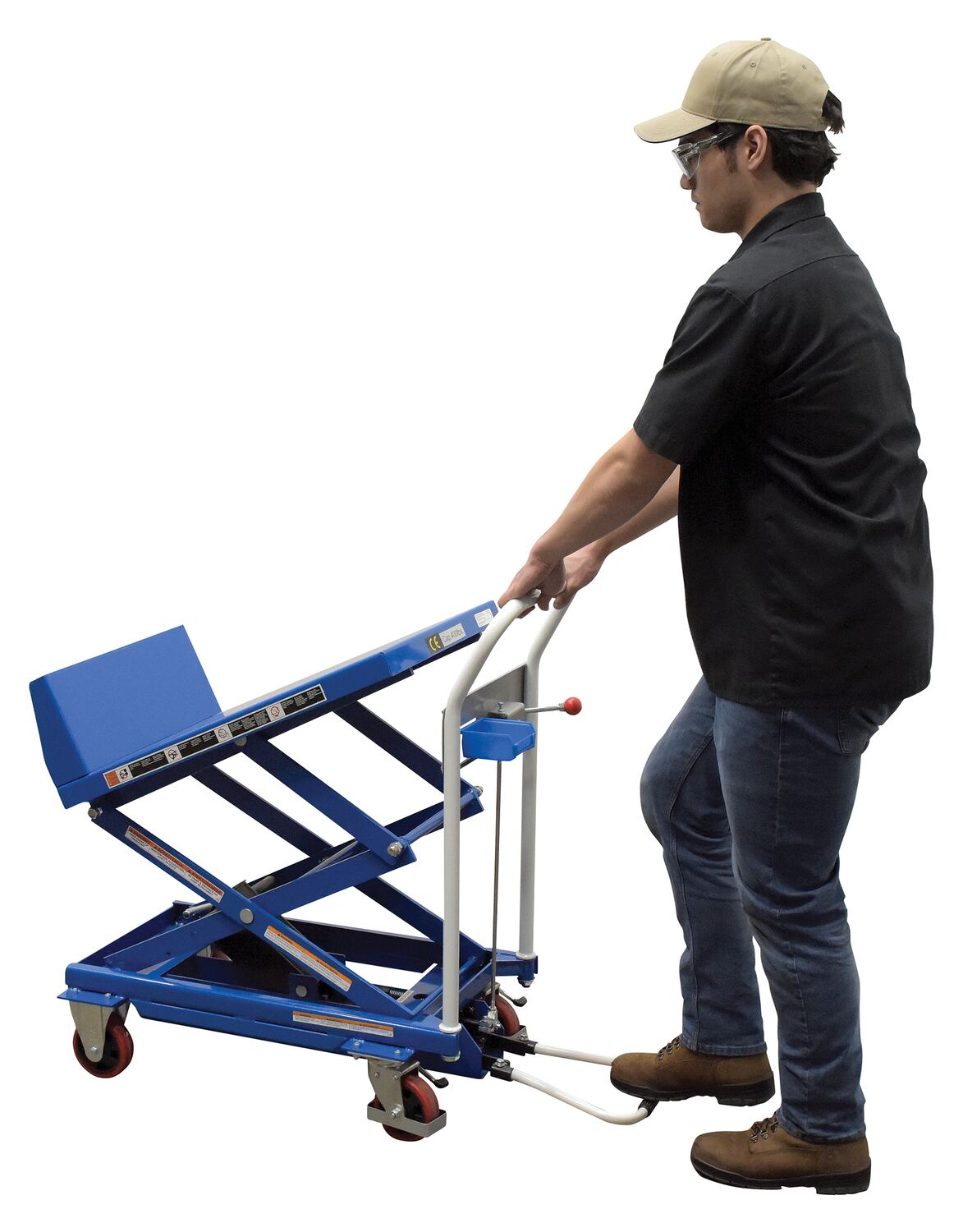

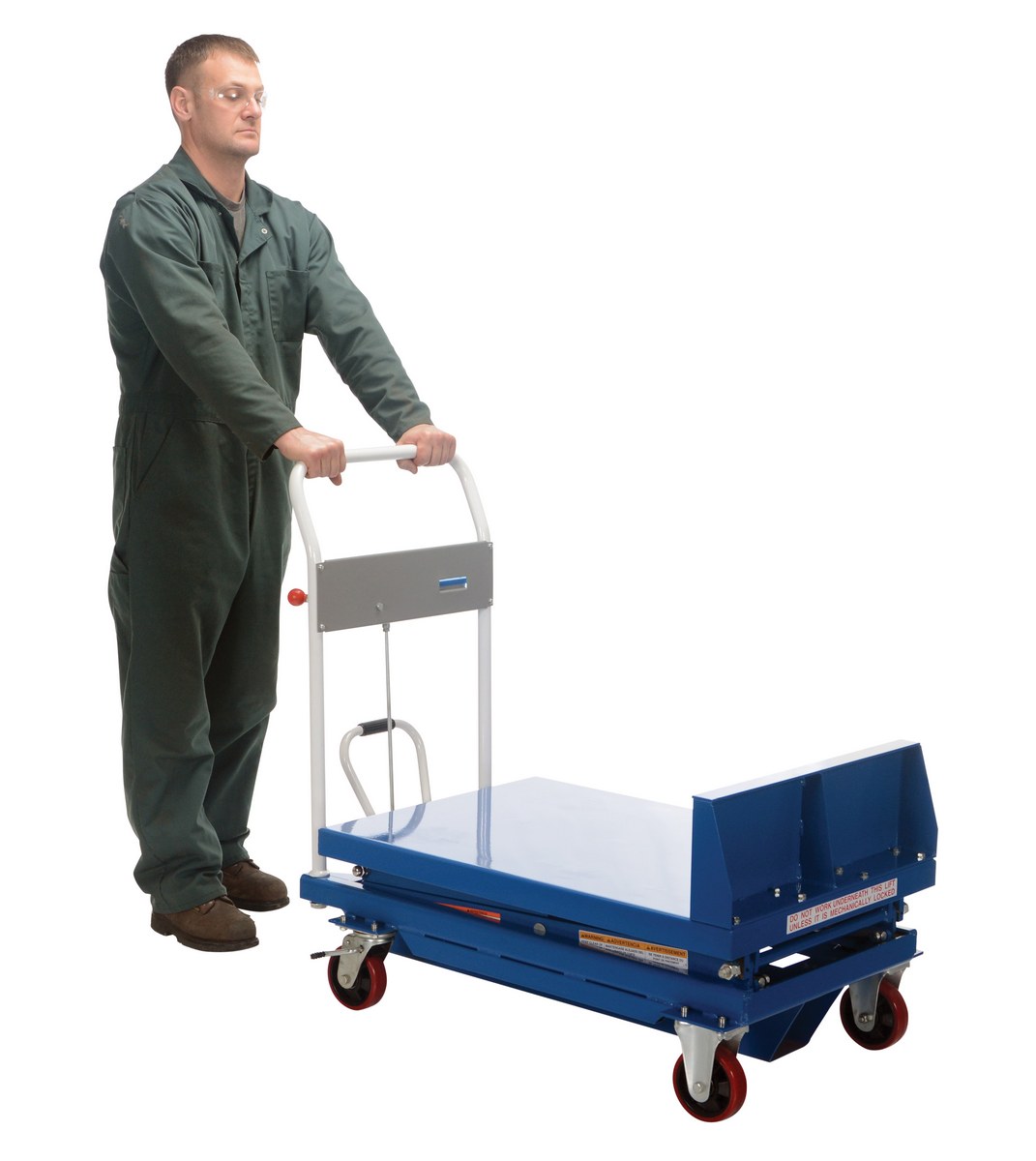

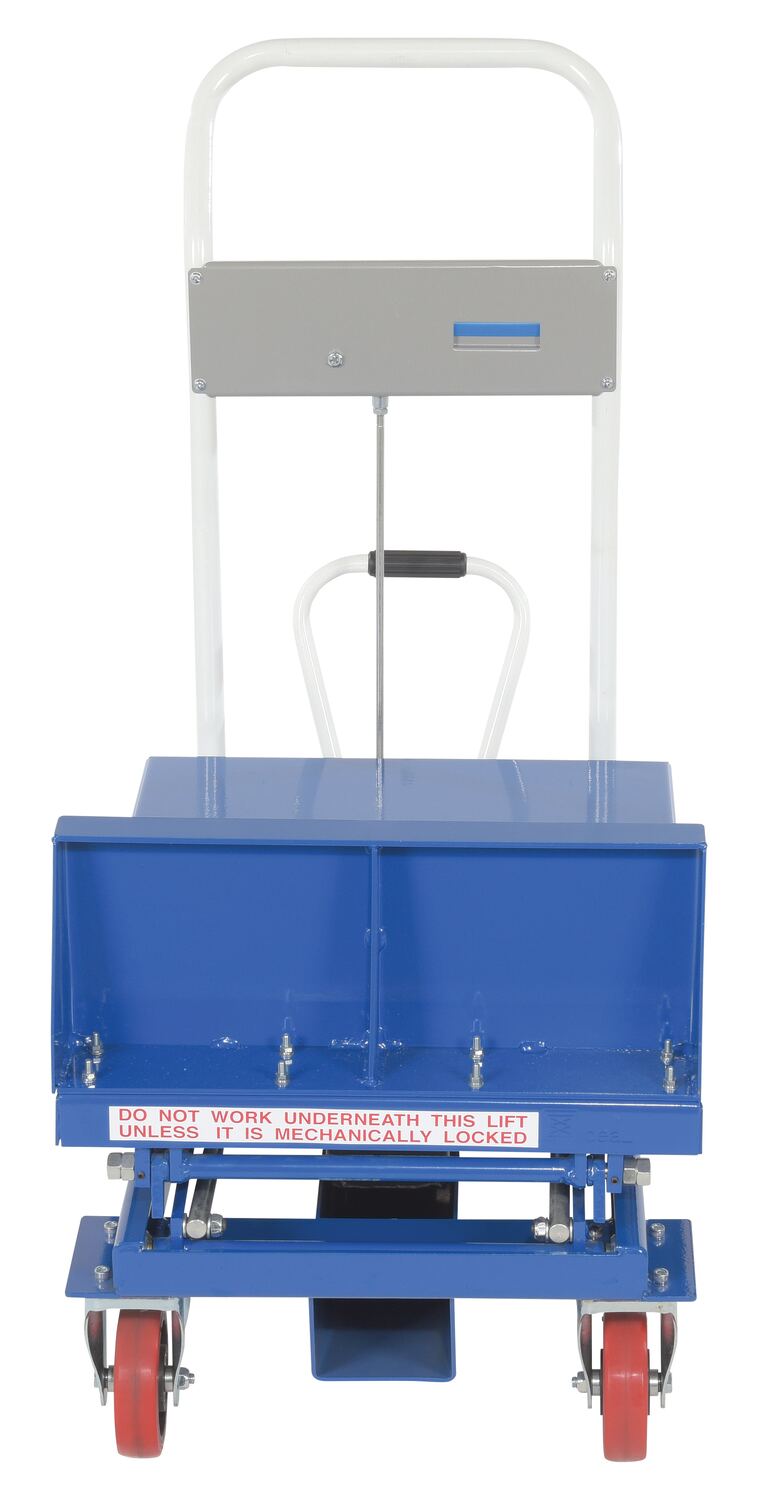

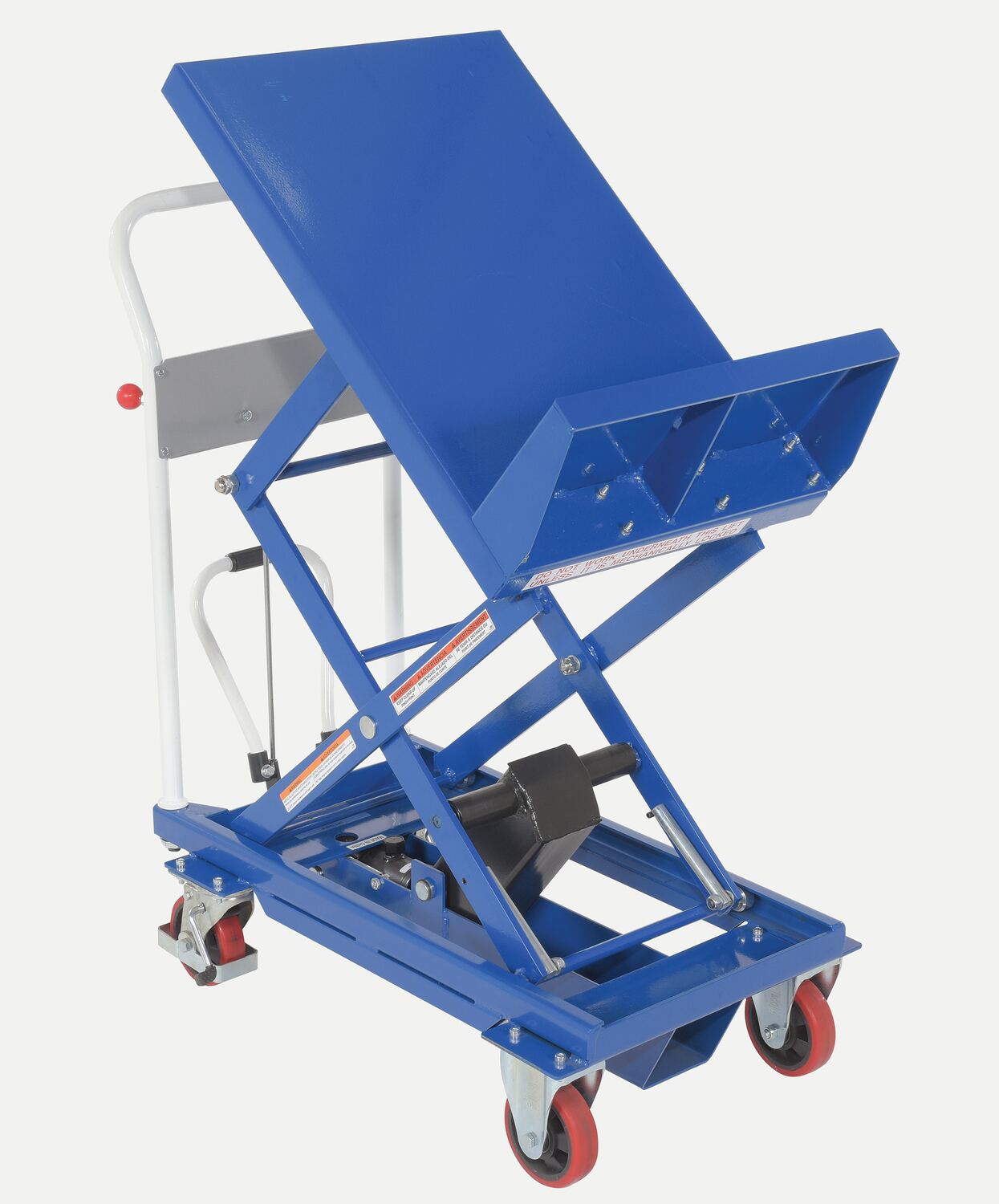

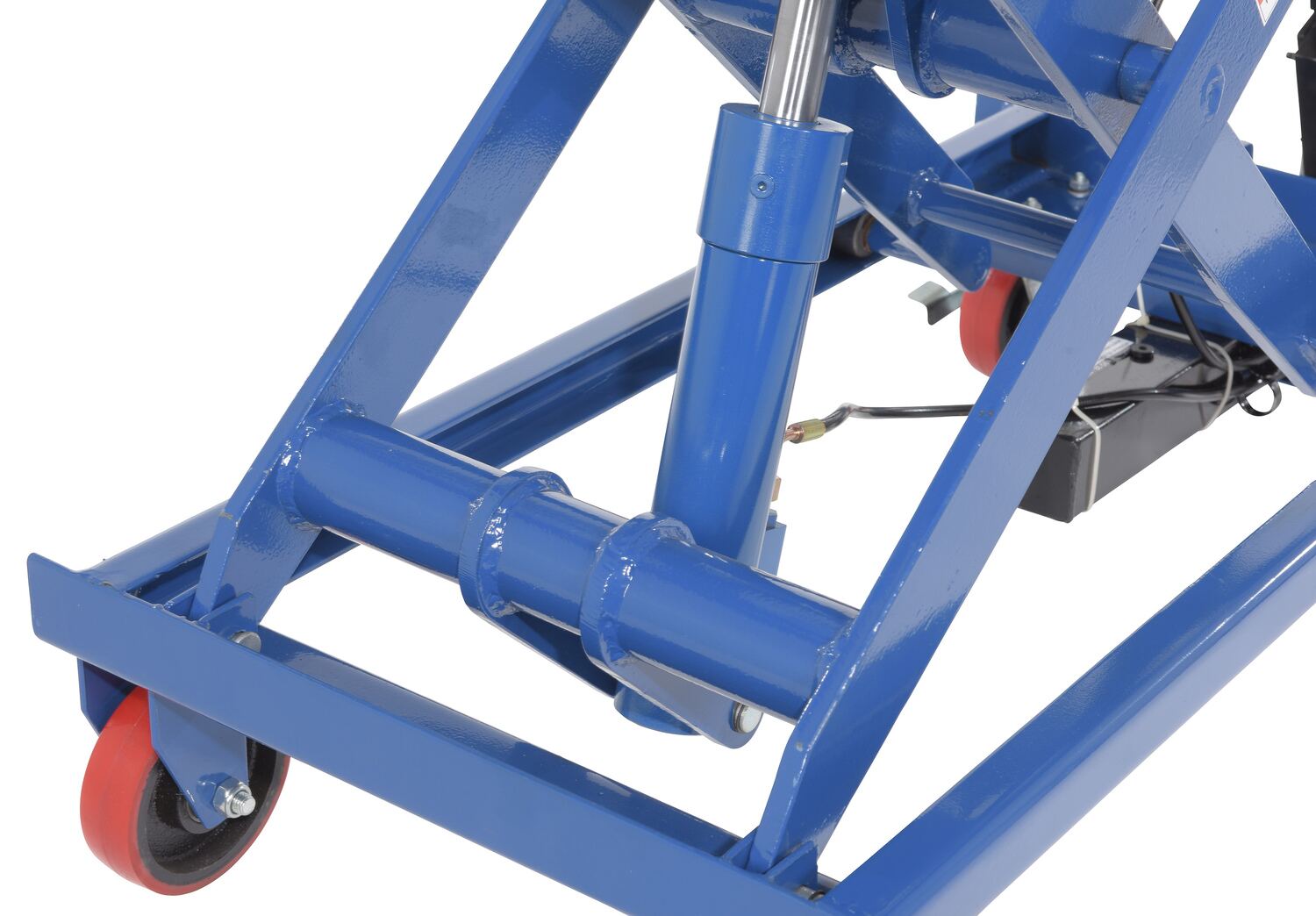

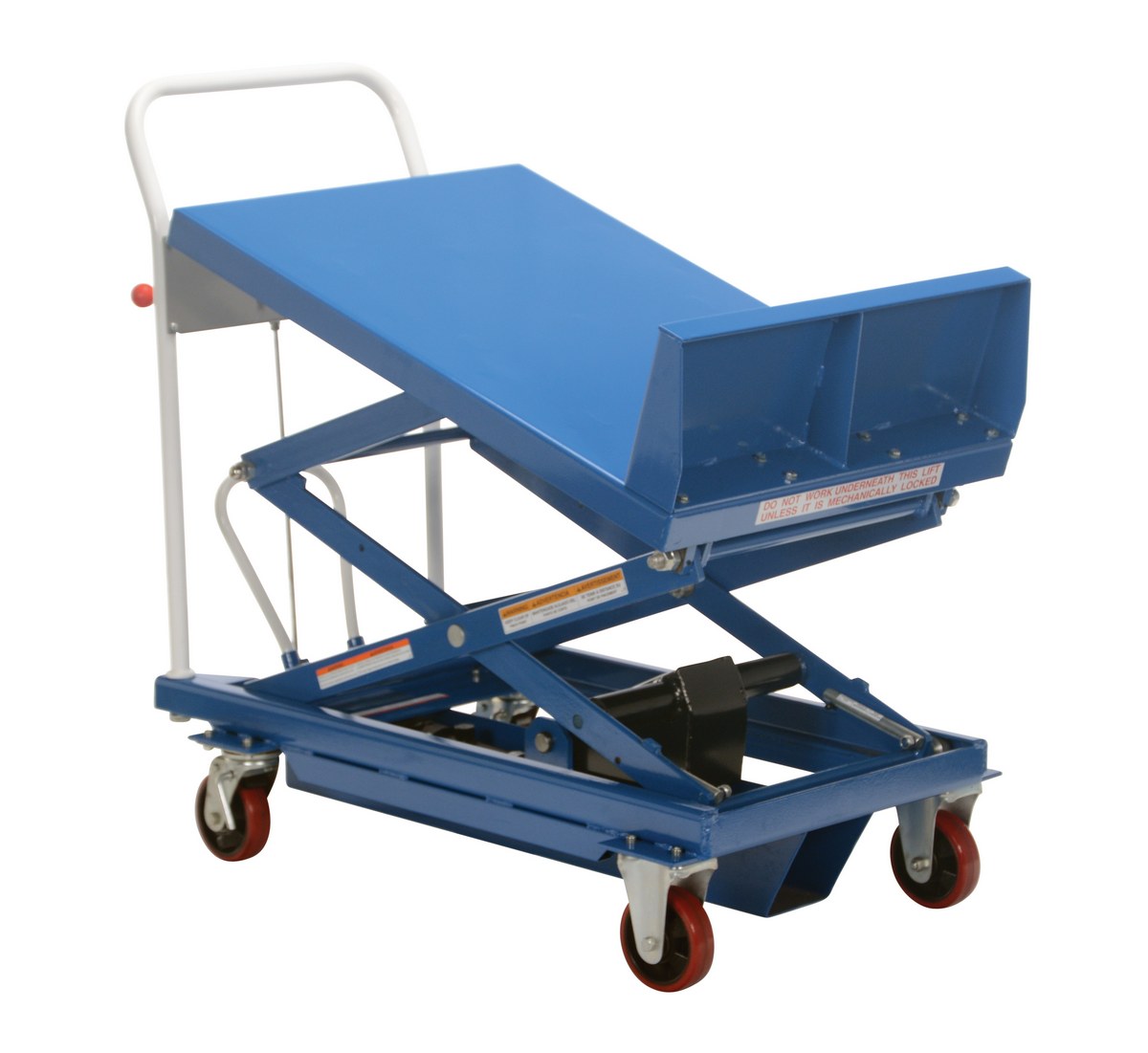

Models CART-400-LT and CART-600-LT are elevated by means of a foot actuated hydraulic cylinder. As the table is raised, it simultaneously tilts to an angle of 45 degrees at full elevation. Builtin retaining lip keeps containers in place. Units roll on 5" polyurethane casters, two (2) rigid and two (2) swivel with brakes.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

Models CART-500-LT, CART-1000-LT, and CART-1000-LT-PSS have a unique design which allows the user to RAISE and TILT materials to an ergonomic position for better posture and operator comfort. The manual hydraulic foot pump controls the platform lift, lower, and tilt. A manual selector valve is used to control the lift/lower sequence independently from the tilt sequence. The platform includes a 6-1/2" high retaining lip on model CART-500-LT and 7" high on CART-1000-LT series. Rolls on two (2) rigid and two (2) swivel 5" poly casters.

Models CART-400-LT and CART-600-LT are elevated by means of a foot actuated hydraulic cylinder. As the table is raised, it simultaneously tilts to an angle of 45 degrees at full elevation. Builtin retaining lip keeps containers in place. Units roll on 5" polyurethane casters, two (2) rigid and two (2) swivel with brakes.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
CART-1000-LT CART-1000-LT1 Year Limited WarrantySteel Lift and Tilt Carts with Sequence Select 22 In. x 33-1/2 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 22
340
CART-1000-LT-PSS CART-1000-LT-PSS1 Year Limited WarrantyPartially Stainless Steel Lift and Tilt Carts with Sequence Select 22 In. x 33-1/2 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 22
323
CART-400-LT CART-400-LT1 Year Limited WarrantySteel Lift and Tilt Carts with Sequence Select 19-1/2 In. x 30 In. 400 Lb. Capacity BlueUniform Capacity (lb.): 400
Platform Width (in.): 19-1/2
245
CART-500-LT CART-500-LT1 Year Limited WarrantySteel Lift and Tilt Cart with Sequence Select 21-1/2 In. x 40 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 21-1/2
294
CART-600-LT CART-600-LT1 Year Limited WarrantySteel Lift and Tilt Cart with Sequence Select 24 In. x 36 In. 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Platform Width (in.): 24
355

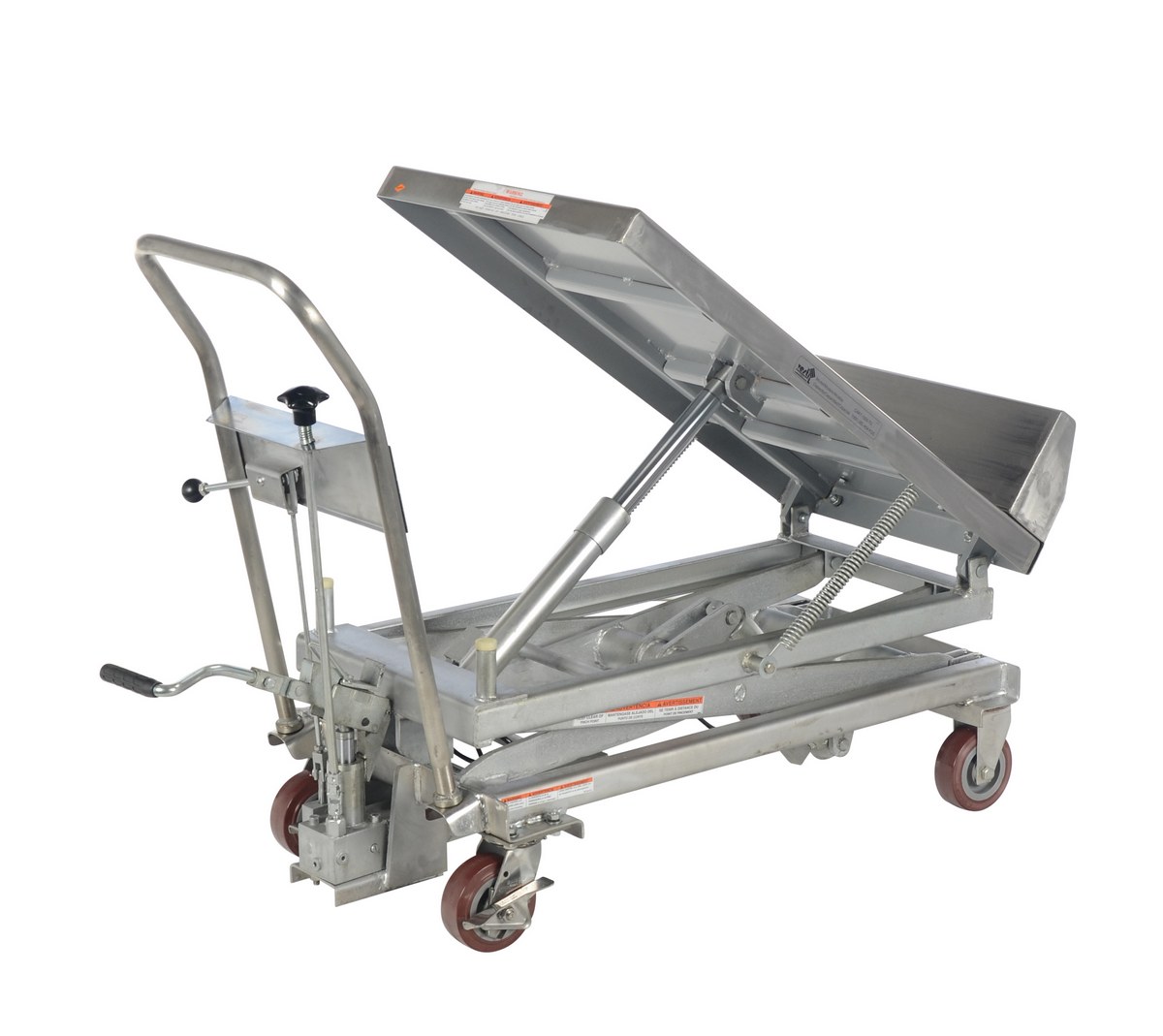

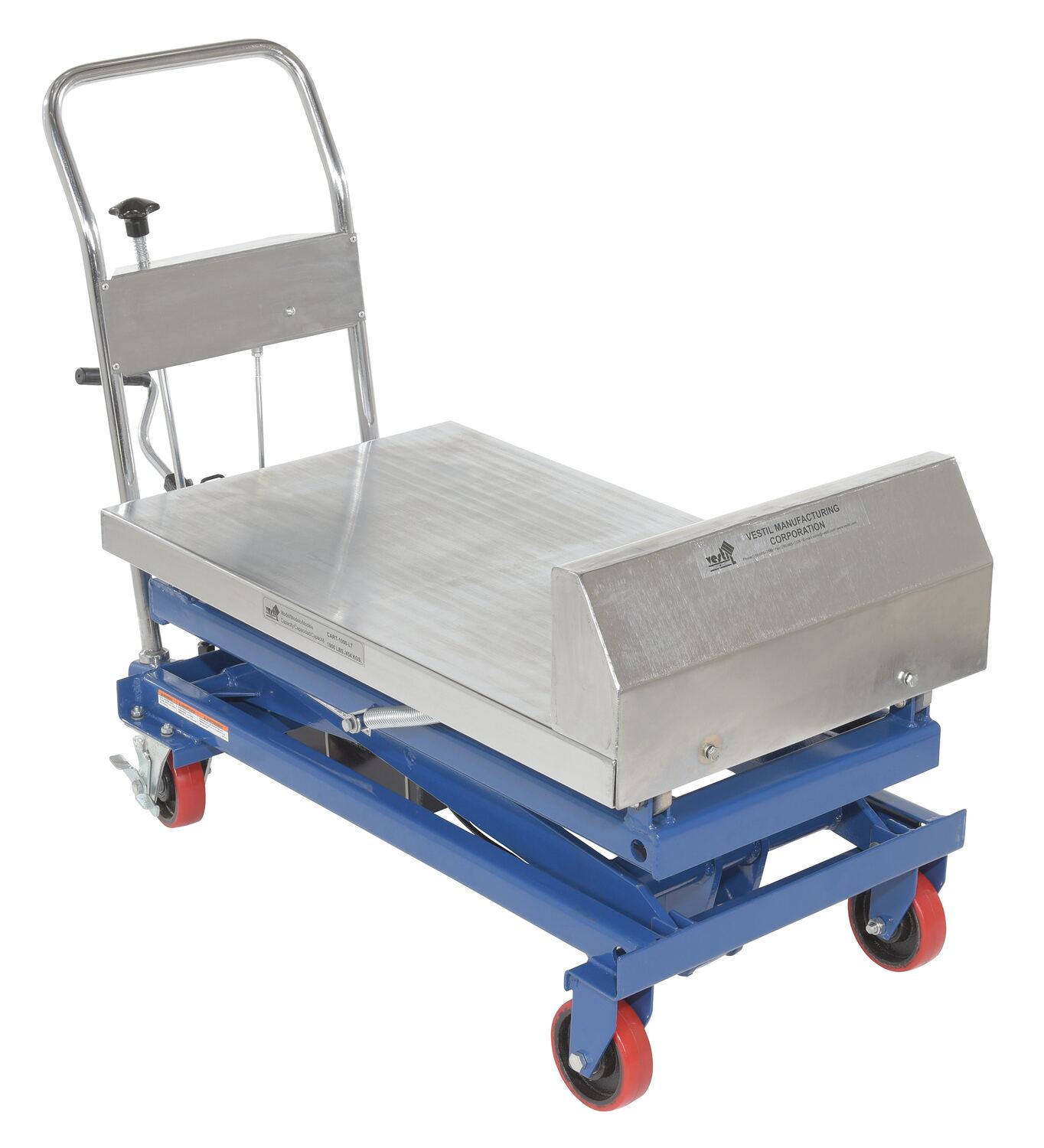

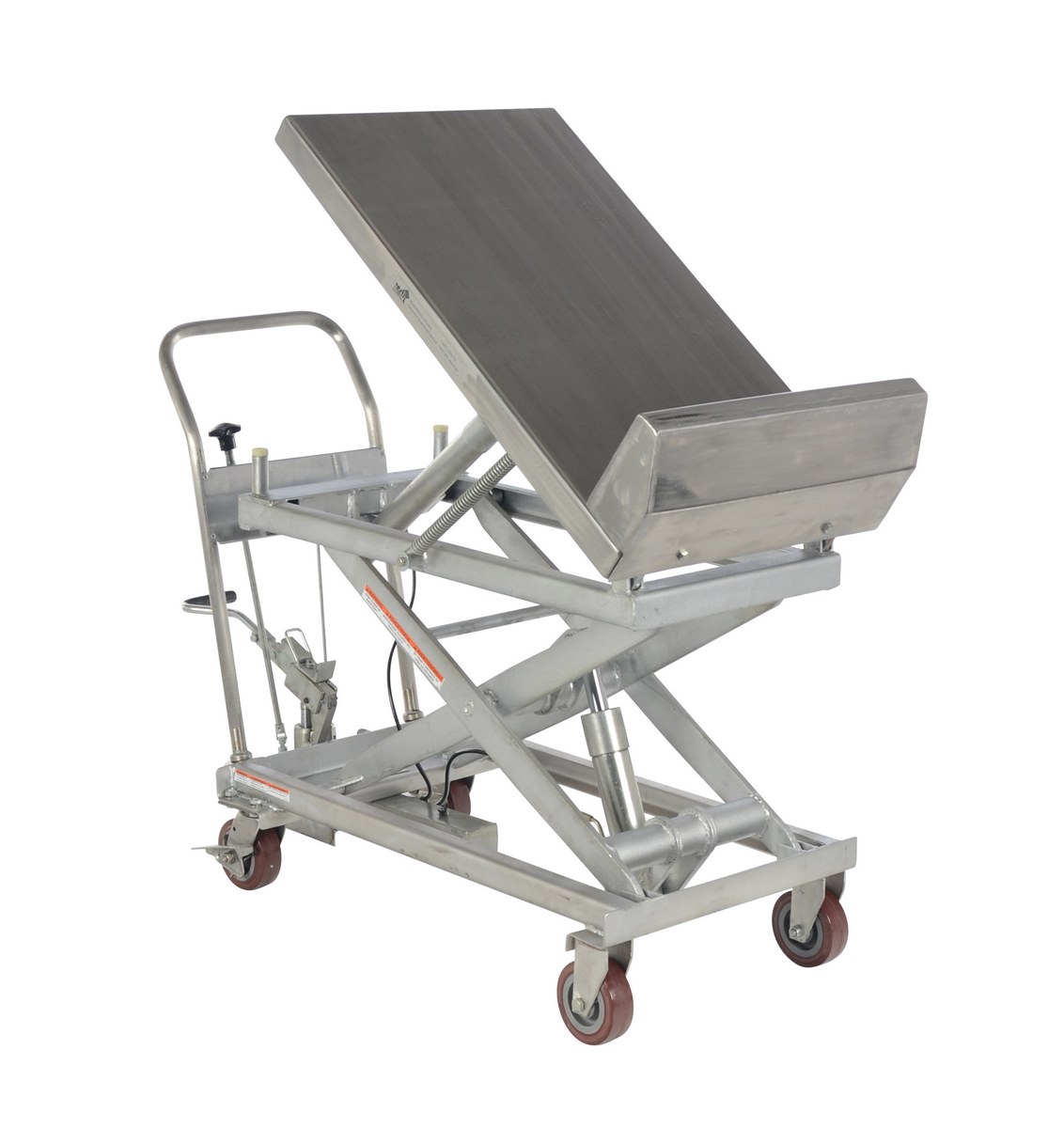

* CART-1000-LT-PSS: Platform, Handle, Caster Brackets & Hardware are all stainless steel. Pump assembly, Scissor Legs, and Foot Pedal are zinc plated.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

CART-1000-LT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 22
Uniform Capacity (lb.): 1000
Platform Width (in.): 22

CART-1000-LT-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 22
Uniform Capacity (lb.): 1000
Platform Width (in.): 22

CART-400-LT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 400
Platform Width (in.): 19-1/2
Uniform Capacity (lb.): 400
Platform Width (in.): 19-1/2

CART-500-LT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 21-1/2
Uniform Capacity (lb.): 500
Platform Width (in.): 21-1/2

CART-600-LT
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Platform Width (in.): 24
Uniform Capacity (lb.): 600
Platform Width (in.): 24

Lift & Tilt Carts with Sequence Select PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


CART-1000-LT

CART-1000-LT-PSS

CART-400-LT

CART-500-LT

CART-600-LT

SDS Sheets

Hydraulic Oil SDS Sheet for: CART-1000-LT
Hydraulic Oil SDS Sheet for: CART-400-LT
Hydraulic Oil SDS Sheet for: CART-500-LT
Hydraulic Oil SDS Sheet for: CART-600-LT

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What are the dimensions of the caster mounting plate?

A: The caster mounting plate for the CART-400-LT is 4 3/8" x 4 3/8".


Q: Does the CART-1000-LT have a velocity fuse?

A: Yes.
