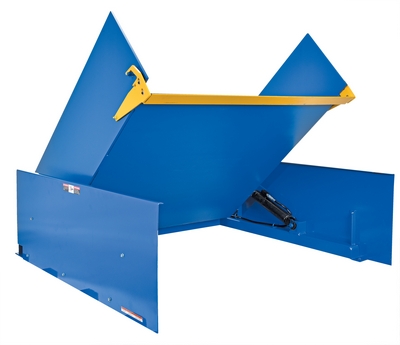

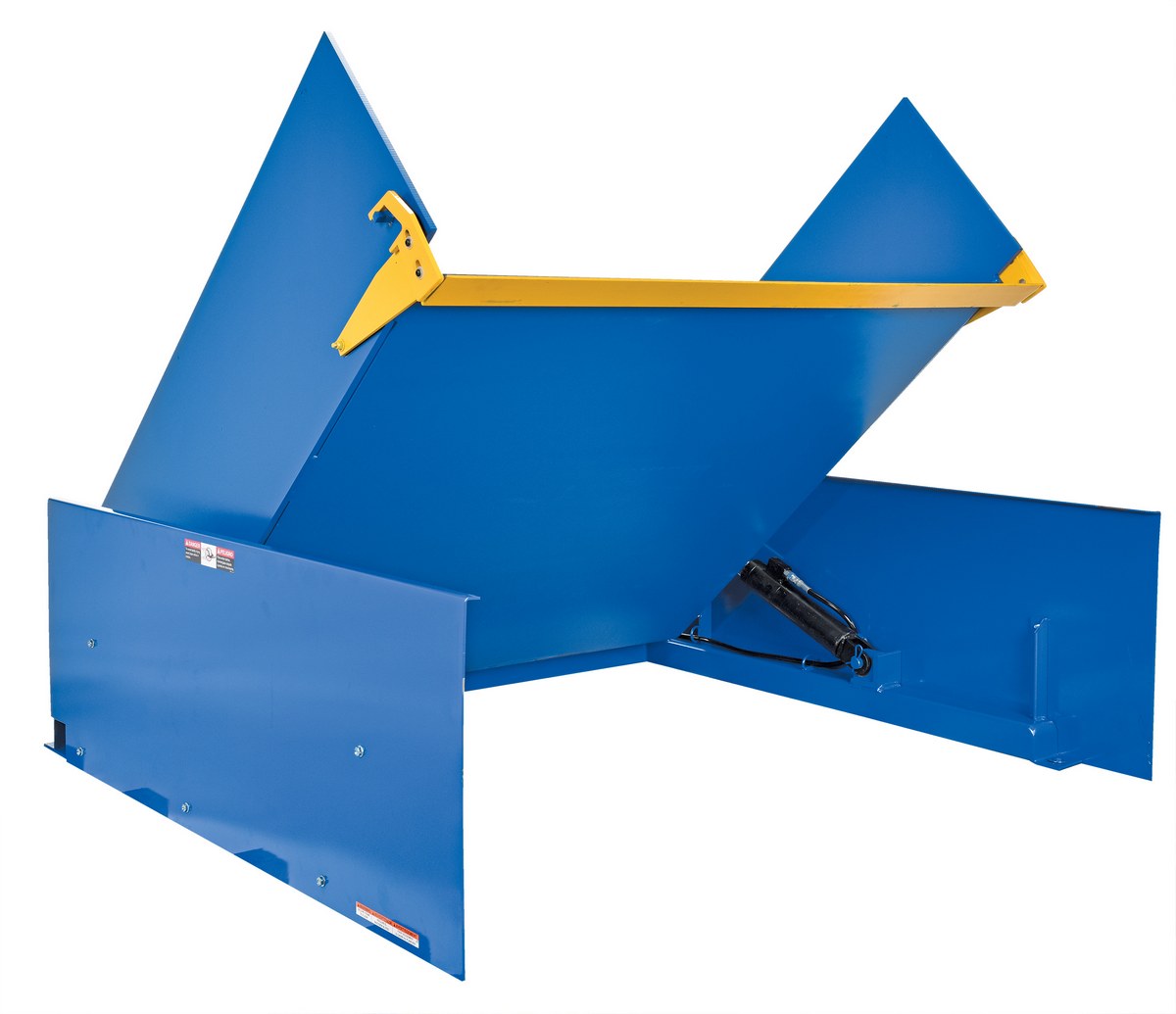

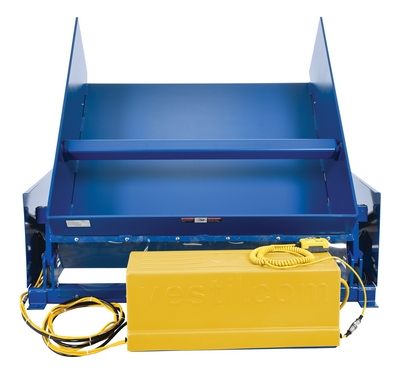

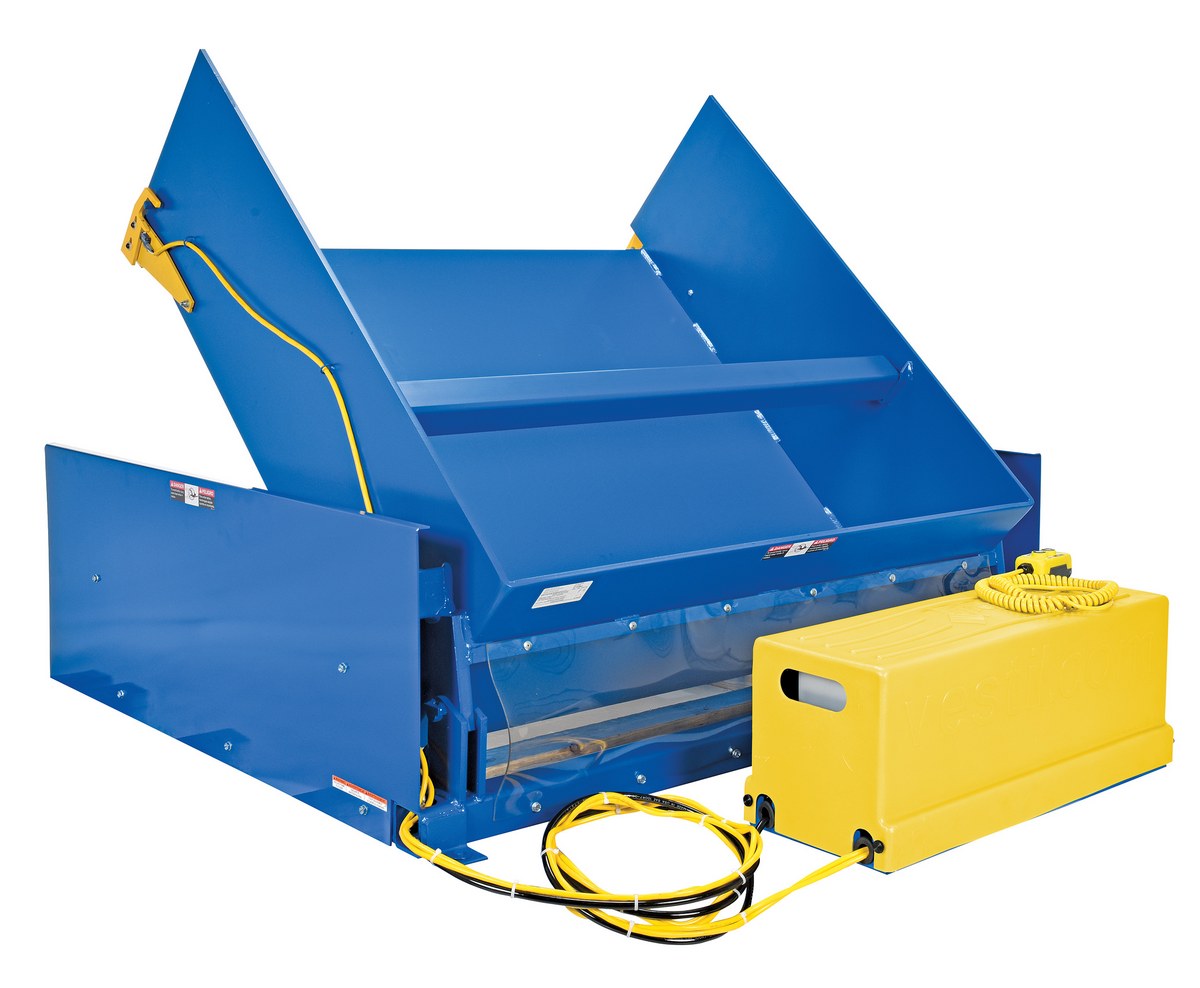

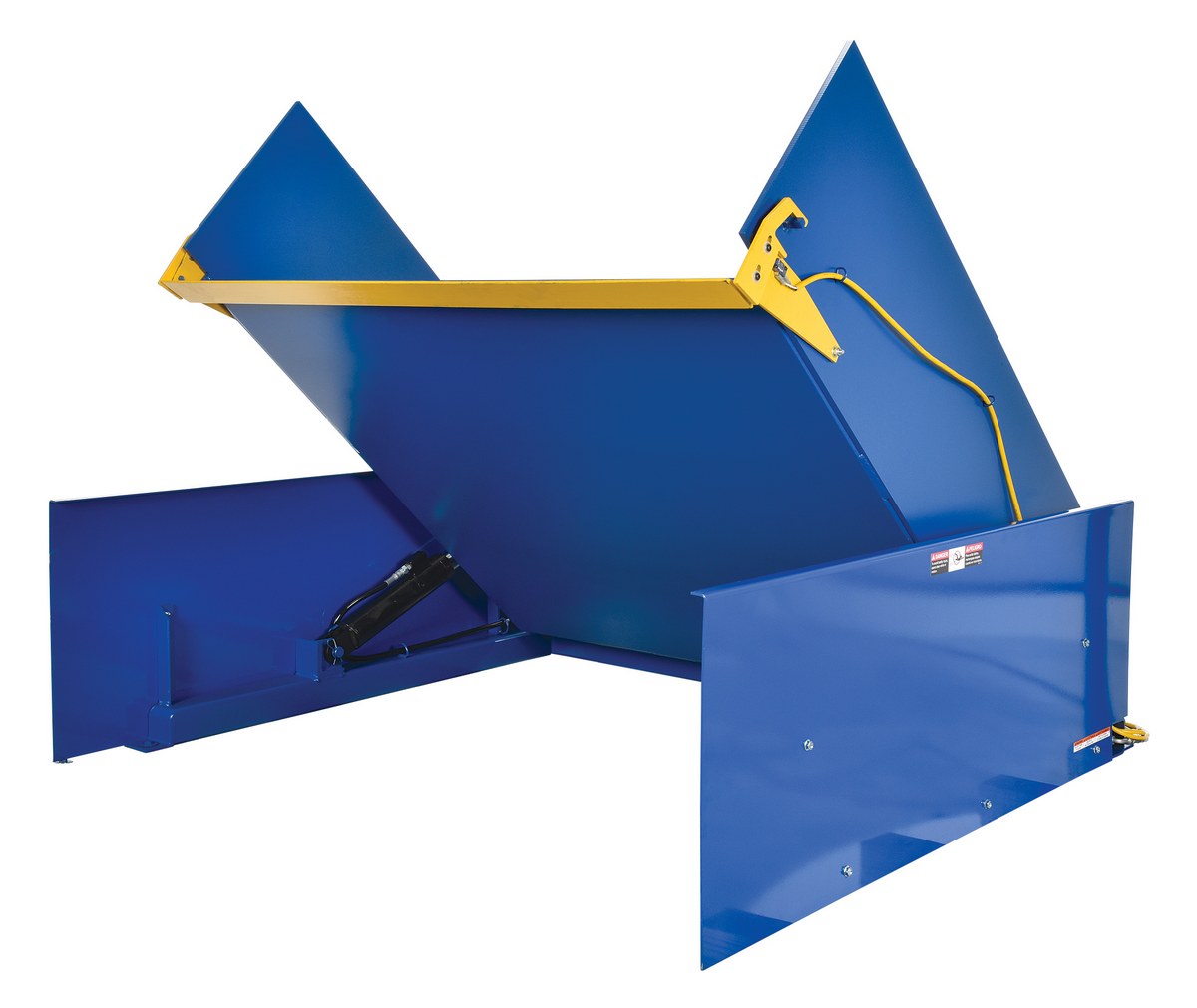

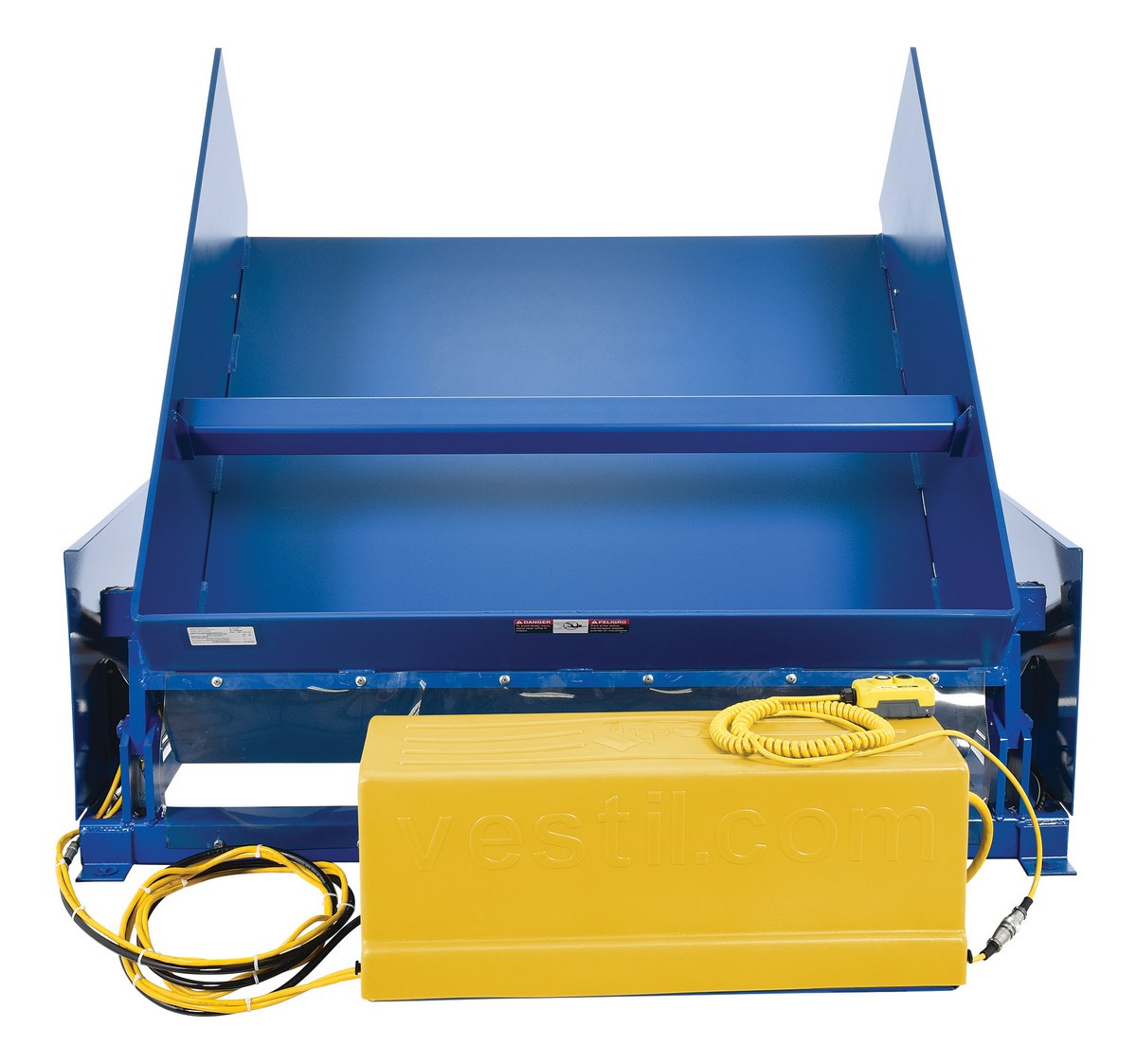

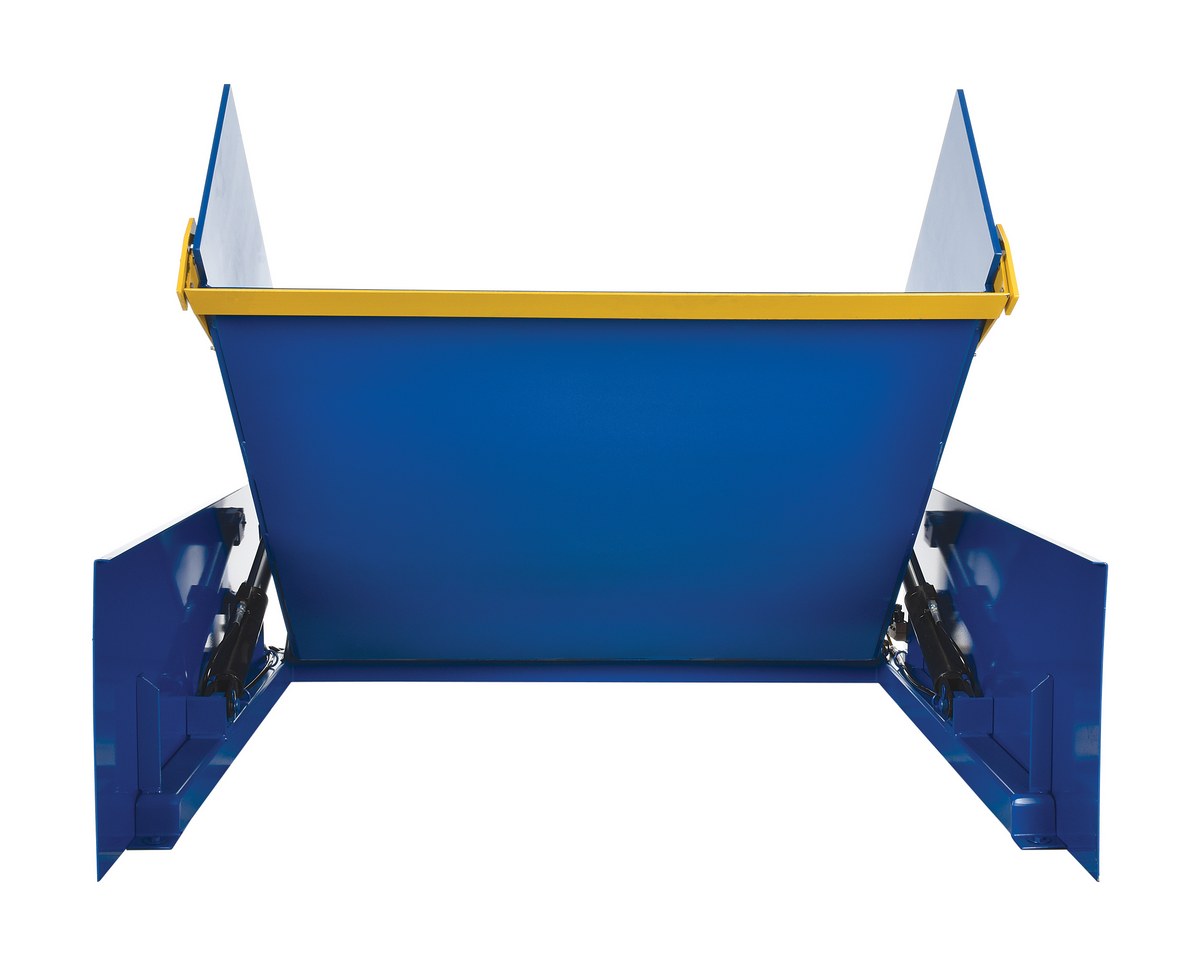

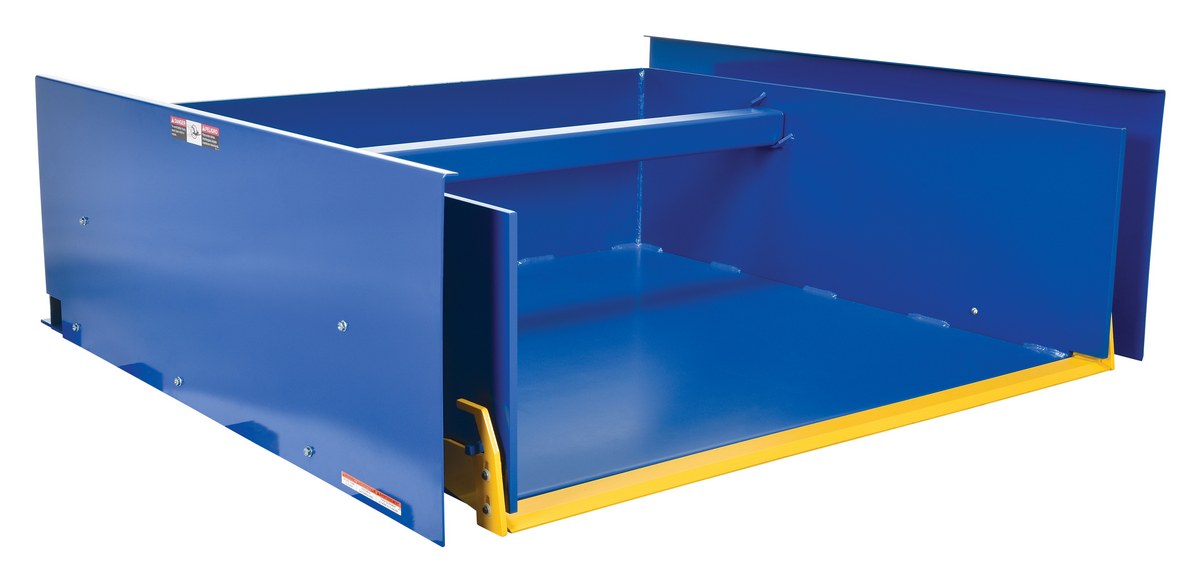

GLT-4000_E.jpg GLT-4000_A.jpg GLT-4000_B.jpg GLT-4000_C.jpg
GLT-4000_D.jpg GLT-4000_F.jpg
Ground Tilter

model: GLT-4000



Featured Ergonomic Solutions


DC Powered Tilt Master
Counter Balanced Lite Load Lift
DC Powered Hefti-Lifts
Pallet Inverters
Lift & Tilt Tables
Hydraulic Elevating Carts (partially stainless steel)
Stackers with Powered Drive and Powered Lift
Scissor Carts with Built-In Scale
Hand Control Pedestal
model chart

Product Family Overview

Print Friendly
Ground Tilter
SERIES: GLT

The Ground Tilter, model GLT-4000, is the best product for tilting applications which require the use of a pallet truck for loading and unloading. Rotate containers up to 45 degrees from floor level to provide better access to parts in containers. Platform includes a 17-1/2" high lip on tilt side. A removable positioning bar is provided for use with smaller containers. Designed with worker safety in mind, pinch point guards are provided on loading side of the unit. 2HP 460V, 3-phase motor standard, other voltages available. Remote power unit with a protective cover measures 12"W x 32-1/2"L x 12-1/2"H. Hand pendant control standard. Optional foot control available model FC-2.

  • Rotate containers from floor level to provide better access to containers
  • Includes high lip and removable positioning bar used for smaller containers
  • Pinch point guards are provided on loading side for worker safety
  • Remote power unit comes with protective cover and hand pendant control

The Ground Tilter, model GLT-4000, is the best product for tilting applications which require the use of a pallet truck for loading and unloading. Rotate containers up to 45 degrees from floor level to provide better access to parts in containers. Platform includes a 17-1/2" high lip on tilt side. A removable positioning bar is provided for use with smaller containers. Designed with worker safety in mind, pinch point guards are provided on loading side of the unit. 2HP 460V, 3-phase motor standard, other voltages available. Remote power unit with a protective cover measures 12"W x 32-1/2"L x 12-1/2"H. Hand pendant control standard. Optional foot control available model FC-2.

  • Rotate containers from floor level to provide better access to containers
  • Includes high lip and removable positioning bar used for smaller containers
  • Pinch point guards are provided on loading side for worker safety
  • Remote power unit comes with protective cover and hand pendant control

Other Lift & Tilt Tables

 Rotary Air/Hydraulic Scissor Lift Tables Low Profile Electric Lift Tables Economical Powered Lift Table Narrow Scissor Lift Tables

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
GLT-4000
GLT-40001 Year Limited WarrantySteel Ground Lift Tilter 59-1/4 In. x 64-1/2 In. x 20-5/8 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 50		1342

* 1/2" Lowered Height for Pallet Truck Access

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

GLT-4000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 50
Uniform Capacity (lb.): 4000
Platform Width (in.): 50
For More Details of the Option Click the Red Model Button
Model Description   Wt. (lbs)
HCP-2642 HCP-2642 Optional Hand Control Pedestal
FC-2 Optional 2-Pedal Foot Control w/ 8ft Cord   10
ADDL-HH-25-10 Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
ADDL-HH-25-20 Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Ground Tilter PDF's will open in a new window when clicked.

Manuals


GLT
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


GLT-4000

Testing Certificates


GLT-4000

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the standard voltage and phase? Can the voltage and phase be changed?

A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.
