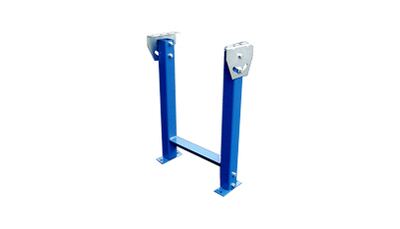

CONV-0324-120_A.jpg CONV-0630-120_A.jpg CONVL-18-2430_A.jpg CONV_application.jpg
Gravity Roller Conveyor System

model: CONV-0324-120



Featured Ergonomic Solutions


Fork Truck Jacks
Gravity Roller Conveyor System
Ergonomic Matting
High Rise Lift Trucks
Cold Room Hand Pallet Truck
Hand Control Pedestal
Full Featured Pallet Trucks
Electric Adjustable-Height Work Benches
Traction Drive Electric Hydraulic Elevating Carts
model chart

Product Family Overview

Print Friendly
Gravity Roller Conveyor System
SERIES: CONV, CONVL

CONV Roller DiagramAre you drained from constantly lifting heavy boxes? Are you looking for a simple transition from workstation to workstation? Is that a Yes? Then check out our roller conveyors! With a conveyor, the hard work is done by the individual rollers. The lightest of touch or push will simply assist the item to glide over the rollers and down the conveyor. Rollers are secured to a steel channel border. This conveyor is to be permanently installed into each work area. Conventional conveyors often sit on already available table tops. But, with the assistance of a conveyor stand, that much needed workspace can be made available again. You might think that a stand is just a way for a conveyor to be upheld, but it's so much more than that. The stand can and does fundamentally change the angle of the conveyor to best fit the users' preference. With a double legged design, the stand provides side to side support to an attached conveyor. Conveyors are available separately.

  • Welded cross bracing on Conveyors
  • Legs have Pre-drilled mounting holes for permanent installation

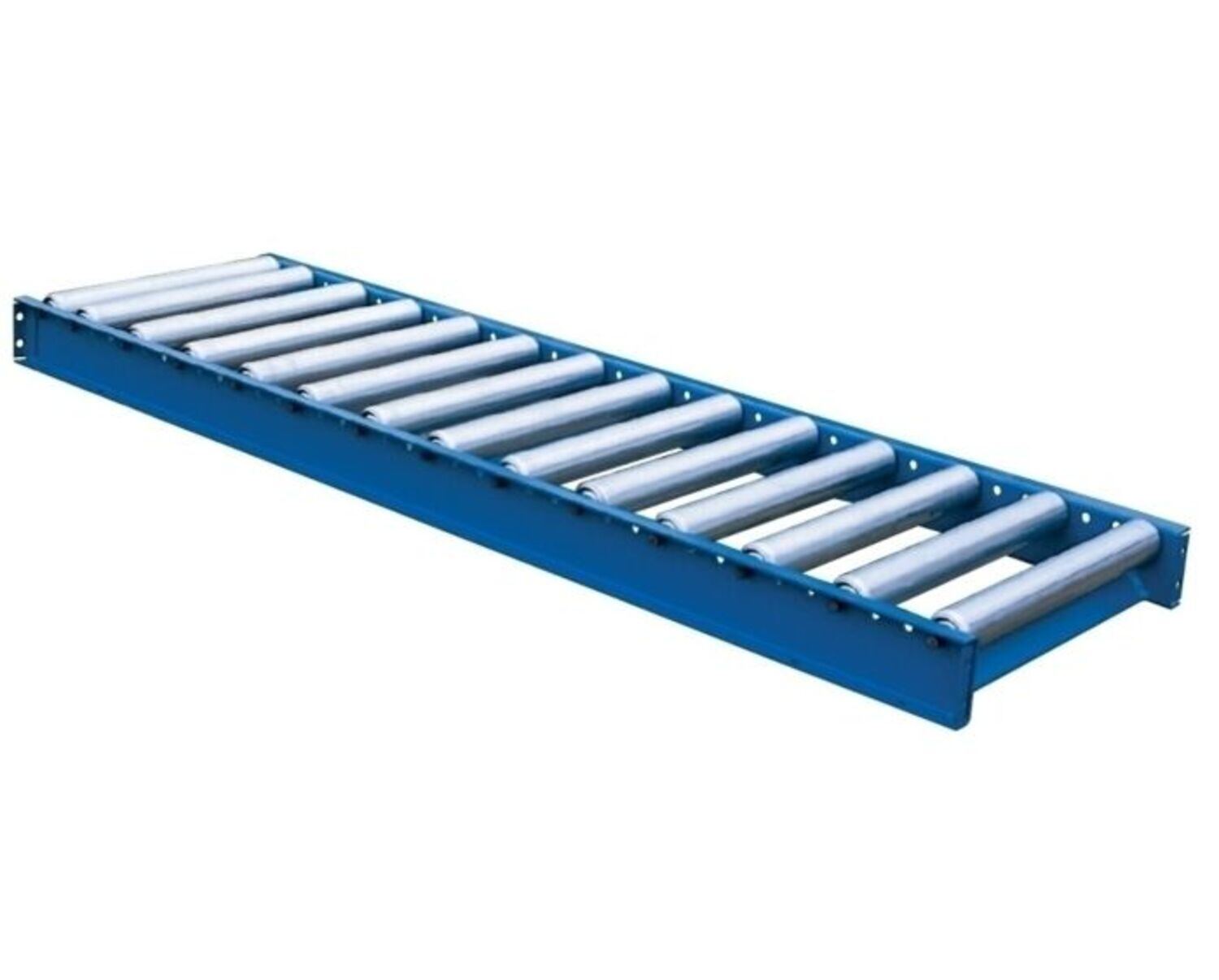

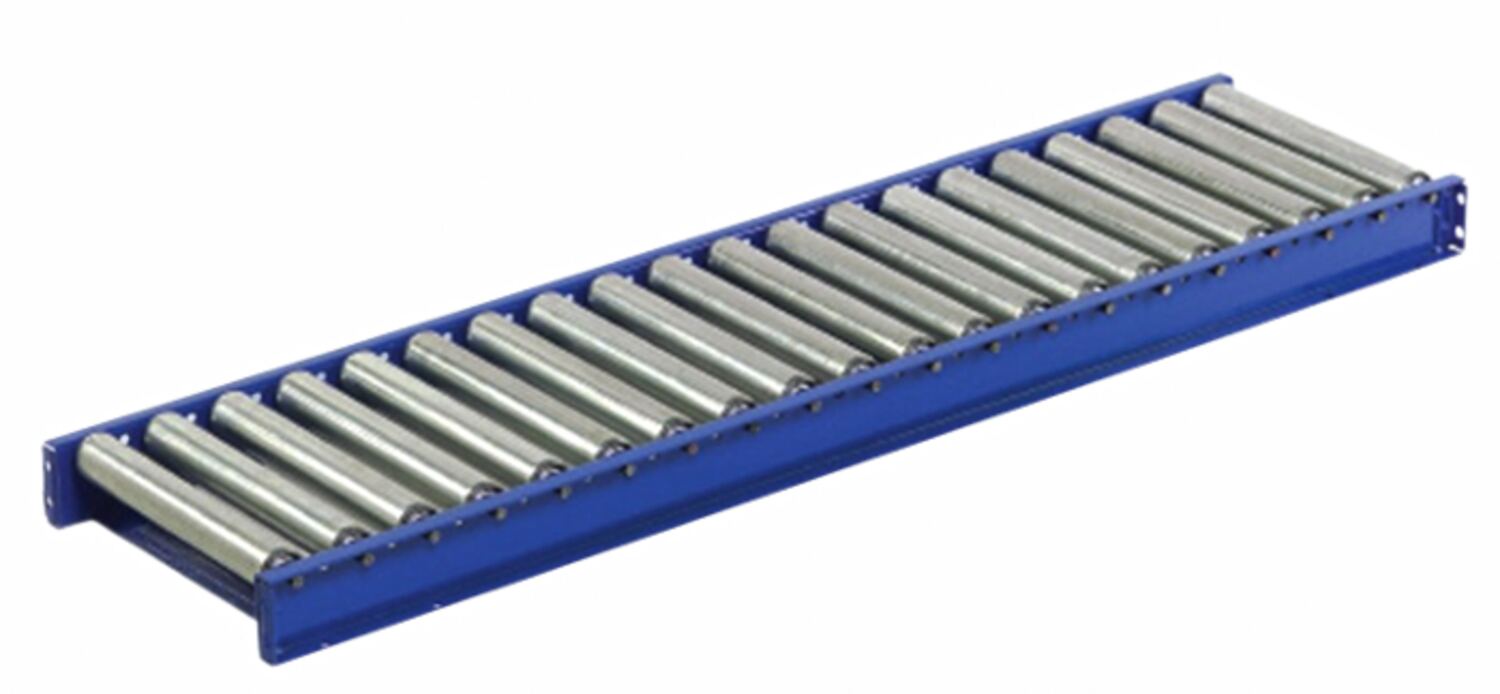

  • Conveyor Frame built of 10 gauge steel

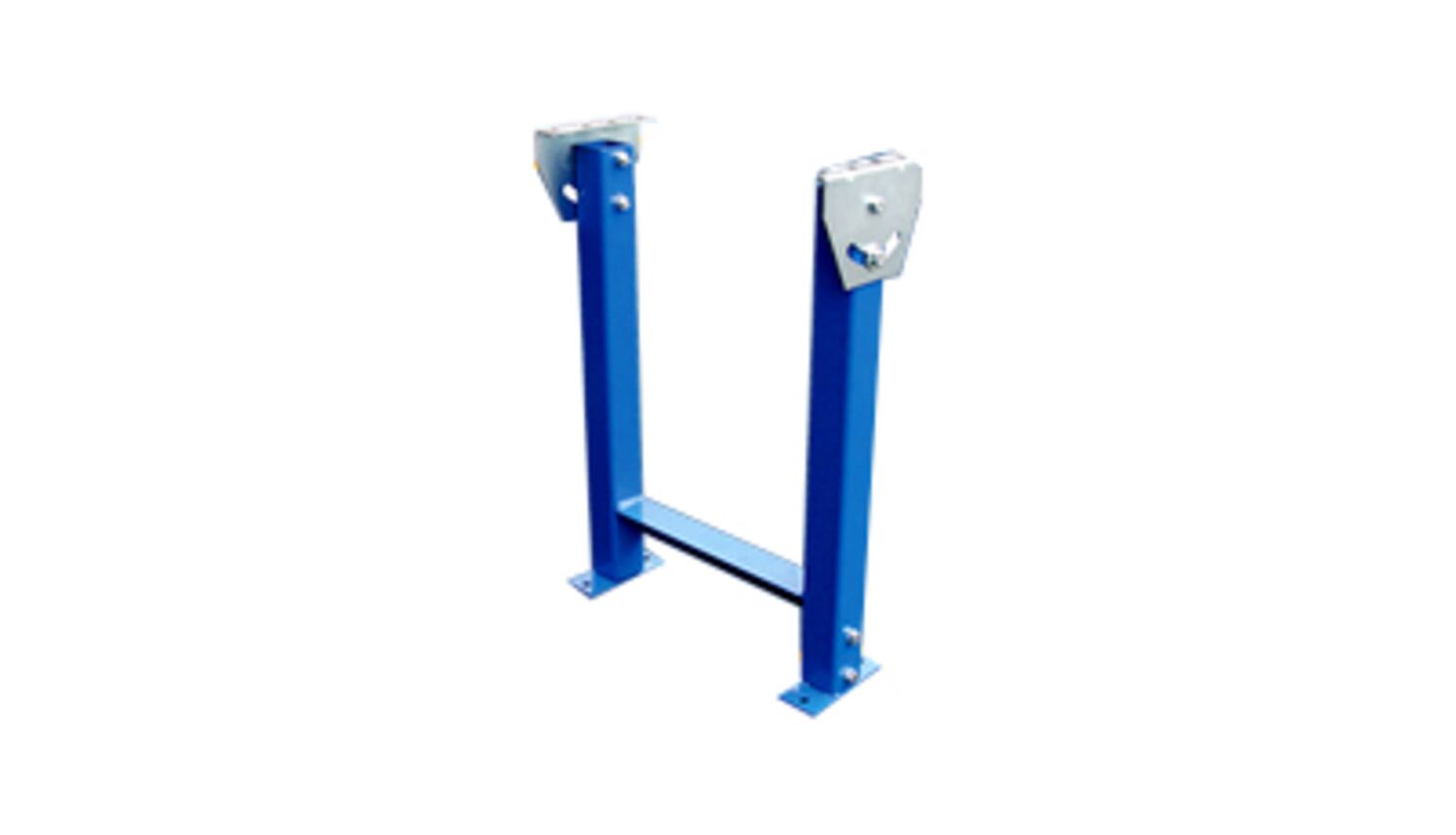

  • Legs are 2" square tubing with adjustable incline and decline

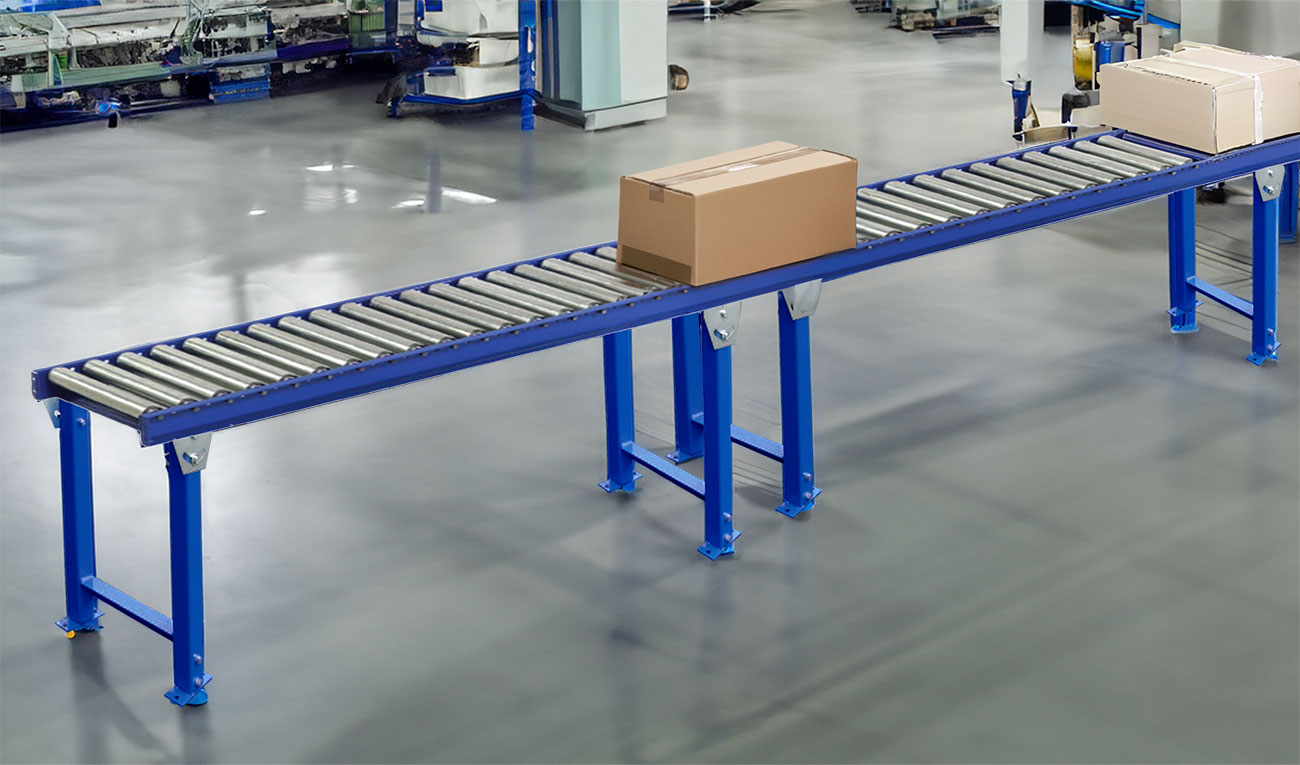

Shown with 2 Conveyor Tops and 4 Conveyor Legs
SPECIFICATIONS:
Rollers: 2" 12 gauge plain steel
Axles: 7/16" Hex, Spring Loaded
Frame: 3-1/2" x 1" x1", 10 Ga. Powder Coaded Blue Steel Formed Channel
Welded Cross Braces -
Butt Couplers Standard -
10' Frame Capacity: 140 lbs/ft.
5' Frame Capacity: 500 lbs/ft.
Roller Capacity: 300 lbs.

CONV Roller DiagramAre you drained from constantly lifting heavy boxes? Are you looking for a simple transition from workstation to workstation? Is that a Yes? Then check out our roller conveyors! With a conveyor, the hard work is done by the individual rollers. The lightest of touch or push will simply assist the item to glide over the rollers and down the conveyor. Rollers are secured to a steel channel border. This conveyor is to be permanently installed into each work area. Conventional conveyors often sit on already available table tops. But, with the assistance of a conveyor stand, that much needed workspace can be made available again. You might think that a stand is just a way for a conveyor to be upheld, but it's so much more than that. The stand can and does fundamentally change the angle of the conveyor to best fit the users' preference. With a double legged design, the stand provides side to side support to an attached conveyor. Conveyors are available separately.

  • Welded cross bracing on Conveyors
  • Legs have Pre-drilled mounting holes for permanent installation
  • Conveyor Frame built of 10 gauge steel
  • Legs are 2" square tubing with adjustable incline and decline
Shown with 2 Conveyor Tops and 4 Conveyor Legs
SPECIFICATIONS:
Rollers: 2" 12 gauge plain steel
Axles: 7/16" Hex, Spring Loaded
Frame: 3-1/2" x 1" x1", 10 Ga. Powder Coaded Blue Steel Formed Channel
Welded Cross Braces -
Butt Couplers Standard -
10' Frame Capacity: 140 lbs/ft.
5' Frame Capacity: 500 lbs/ft.
Roller Capacity: 300 lbs.

Other Roller & Ball Conveyors

 Roller Conveyors Expandable Roller Conveyors Conveyor with Retractable End Stops Ball Transfer Platforms

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
CONV-0312-120 NEW CONV-0312-1206 Months Limited WarrantySteel Conveyor 3" Roller Center 12 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		150
CONV-0318-120 NEW CONV-0318-1206 Months Limited WarrantySteel Conveyor 3" Roller Center 18 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		196
CONV-0324-120 NEW CONV-0324-1206 Months Limited WarrantySteel Conveyor 3" Roller Center 24 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		230
CONV-0330-120 NEW CONV-0330-1206 Months Limited WarrantySteel Conveyor 3" Roller Center 30 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		289
CONV-0336-120 NEW CONV-0336-1206 Months Limited WarrantySteel Conveyor 3" Roller Center 36 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		335
CONV-0342-120 NEW CONV-0342-1206 Months Limited WarrantySteel Conveyor 3" Roller Center 42 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		380
CONV-0612-120 NEW CONV-0612-1206 Months Limited WarrantySteel Conveyor 6" Roller Center 12 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		101
CONV-0618-120 NEW CONV-0618-1206 Months Limited WarrantySteel Conveyor 6" Roller Center 18 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		141
CONV-0624-120 NEW CONV-0624-1206 Months Limited WarrantySteel Conveyor 6" Roller Center 24 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		167
CONV-0630-120 NEW CONV-0630-1206 Months Limited WarrantySteel Conveyor 6" Roller Center 30 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		193
CONV-0636-120 NEW CONV-0636-1206 Months Limited WarrantySteel Conveyor 6" Roller Center 36 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 14		219
CONV-0642-120 NEW CONV-0642-1206 Months Limited WarrantySteel Conveyor 6" Roller Center 42 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		346
CONVL-12-1723 NEW CONVL-12-17236 Months Limited WarrantySteel Conveyor Legs 12 In. Wide 17 In. to 23 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		17
CONVL-12-2430 NEW CONVL-12-24306 Months Limited WarrantySteel Conveyor Legs 12 In. Wide 24 In. to 30 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		20
CONVL-12-3137 NEW CONVL-12-31376 Months Limited WarrantySteel Conveyor Legs 12 In. Wide 31 In. to 37 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		23
CONVL-12-3844 NEW CONVL-12-38446 Months Limited WarrantySteel Conveyor Legs 12 In. Wide 38 In. to 44 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		25
CONVL-18-1723 NEW CONVL-18-17236 Months Limited WarrantySteel Conveyor Legs 18 In. Wide 17 In. to 23 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		17
CONVL-18-2430 NEW CONVL-18-24306 Months Limited WarrantySteel Conveyor Legs 18 In. Wide 24 In. to 30 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity: 2000
Overall Length (in.): 5		21
CONVL-18-3137 NEW CONVL-18-31376 Months Limited WarrantySteel Conveyor Legs 18 In .Wide 31 In. to 37 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		24
CONVL-18-3844 NEW CONVL-18-38446 Months Limited WarrantySteel Conveyor Legs 18 In. Wide 38 In. to 44 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		26
CONVL-24-1723 NEW CONVL-24-17236 Months Limited WarrantySteel Conveyor Legs 24 In .Wide 17 In. to 23 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		18
CONVL-24-2430 NEW CONVL-24-24306 Months Limited WarrantySteel Conveyor Legs 24 In. Wide 24 In. to 30 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		22
CONVL-24-3137 NEW CONVL-24-31376 Months Limited WarrantySteel Conveyor Legs 24 In. Wide 31 In. to 37 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		24
CONVL-24-3844 NEW CONVL-24-38446 Months Limited WarrantySteel Conveyor Legs 24 In. Wide 38 In. to 44 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		27
CONVL-30-1723 NEW CONVL-30-17236 Months Limited WarrantySteel Conveyor Legs 30 In. Wide 17 In. to 23 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		19
CONVL-30-2430 NEW CONVL-30-24306 Months Limited WarrantySteel Conveyor Legs 30 In. Wide 24 In. to 30 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		23
CONVL-30-3137 NEW CONVL-30-31376 Months Limited WarrantySteel Conveyor Legs 30 In. Wide 31 In. to 37 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		25
CONVL-30-3844 NEW CONVL-30-38446 Months Limited WarrantySteel Conveyor Legs 30 In. Wide 38 In. to 44 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		28
CONVL-36-1723 NEW CONVL-36-17236 Months Limited WarrantySteel Conveyor Legs 36 In. Wide 17 In. to 23 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		20
CONVL-36-2430 NEW CONVL-36-24306 Months Limited WarrantySteel Conveyor Legs 36 In. Wide 24 In. to 30 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		24
CONVL-36-3137 NEW CONVL-36-31376 Months Limited WarrantySteel Conveyor Legs 36 In. Wide 31 In. to 37 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		27
CONVL-36-3844 NEW CONVL-36-38446 Months Limited WarrantySteel Conveyor Legs 36 In. Wide 38 In. to 44 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		29
CONVL-42-1723 NEW CONVL-42-17236 Months Limited WarrantySteel Conveyor Legs 42 In. Wide 17 In. to 23 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		22
CONVL-42-2430 NEW CONVL-42-24306 Months Limited WarrantySteel Conveyor Legs 42 In.Wide 24 In. to 30 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		25
CONVL-42-3137 NEW CONVL-42-31376 Months Limited WarrantySteel Conveyor Legs 42 In. Wide 31 In. to 37 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		28
CONVL-42-3844 NEW CONVL-42-38446 Months Limited WarrantySteel Conveyor Legs 42 In. Wide 38 In. to 44 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		31

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

CONV-0312-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140

CONV-0318-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140

CONV-0324-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140

CONV-0330-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140

CONV-0336-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140

CONV-0342-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140

CONV-0612-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140

CONV-0618-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140

CONV-0624-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140

CONV-0630-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140

CONV-0636-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 14
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 14

CONV-0642-120
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140
Uniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140

CONVL-12-1723
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-12-2430
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-12-3137
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-12-3844
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-18-1723
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-18-2430
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity: 2000
Overall Length (in.): 5
Uniform Capacity: 2000
Overall Length (in.): 5

CONVL-18-3137
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-18-3844
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-24-1723
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-24-2430
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-24-3137
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-24-3844
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-30-1723
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-30-2430
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-30-3137
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-30-3844
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-36-1723
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-36-2430
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-36-3137
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-36-3844
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-42-1723
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-42-2430
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-42-3137
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5

CONVL-42-3844
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Uniform Capacity (lb.): 2000
Overall Length (in.): 5
Gravity Roller Conveyor System PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Related or Similar Products:

Conveyor with Retractable End Stops
Product

Conveyor with Retractable End Stops

Ball Transfer Strips & Single Ball Transfers
Product

Ball Transfer Strips & Single Ball Transfers

Pop-Up Ball Transfer Platforms
Product

Pop-Up Ball Transfer Platforms

Ball Transfer Platforms
Product

Ball Transfer Platforms

Expandable Roller Conveyors
Product

Expandable Roller Conveyors

Roller Conveyors
Product

Roller Conveyors

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Gravity Roller Conveyor System




CONV Roller DiagramAre you drained from constantly lifting heavy boxes? Are you looking for a simple transition from workstation to workstation? Is that a Yes? Then check out our roller conveyors! With a conveyor, the hard work is done by the individual rollers. The lightest of touch or push will simply assist the item to glide over the rollers and down the conveyor. Rollers are secured to a steel channel border. This conveyor is to be permanently installed into each work area. Conventional conveyors often sit on already available table tops. But, with the assistance of a conveyor stand, that much needed workspace can be made available again. You might think that a stand is just a way for a conveyor to be upheld, but it's so much more than that. The stand can and does fundamentally change the angle of the conveyor to best fit the users' preference. With a double legged design, the stand provides side to side support to an attached conveyor. Conveyors are available separately.

  • Welded cross bracing on Conveyors
  • Legs have Pre-drilled mounting holes for permanent installation
  • Conveyor Frame built of 10 gauge steel
  • Legs are 2" square tubing with adjustable incline and decline
Shown with 2 Conveyor Tops and 4 Conveyor Legs
SPECIFICATIONS:
Rollers: 2" 12 gauge plain steel
Axles: 7/16" Hex, Spring Loaded
Frame: 3-1/2" x 1" x1", 10 Ga. Powder Coaded Blue Steel Formed Channel
Welded Cross Braces -
Butt Couplers Standard -
10' Frame Capacity: 140 lbs/ft.
5' Frame Capacity: 500 lbs/ft.
Roller Capacity: 300 lbs.

Model # Description Attributes Net Wt.
(lbs)
CONV-0312-120 CONV-0312-120Steel Conveyor 3" Roller Center 12 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		150
CONV-0318-120 CONV-0318-120Steel Conveyor 3" Roller Center 18 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		196
CONV-0324-120 CONV-0324-120Steel Conveyor 3" Roller Center 24 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		230
CONV-0330-120 CONV-0330-120Steel Conveyor 3" Roller Center 30 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		289
CONV-0336-120 CONV-0336-120Steel Conveyor 3" Roller Center 36 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		335
CONV-0342-120 CONV-0342-120Steel Conveyor 3" Roller Center 42 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		380
CONV-0612-120 CONV-0612-120Steel Conveyor 6" Roller Center 12 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		101
CONV-0618-120 CONV-0618-120Steel Conveyor 6" Roller Center 18 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		141
CONV-0624-120 CONV-0624-120Steel Conveyor 6" Roller Center 24 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		167
CONV-0630-120 CONV-0630-120Steel Conveyor 6" Roller Center 30 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		193
CONV-0636-120 CONV-0636-120Steel Conveyor 6" Roller Center 36 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 14		219
CONV-0642-120 CONV-0642-120Steel Conveyor 6" Roller Center 42 In. x 120 In. 1400 Lb. Capacity BlueUniform Capacity (lb.): 1400
Capacity per Foot (lb.): 140		346
CONVL-12-1723 CONVL-12-1723Steel Conveyor Legs 12 In. Wide 17 In. to 23 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		17
CONVL-12-2430 CONVL-12-2430Steel Conveyor Legs 12 In. Wide 24 In. to 30 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		20
CONVL-12-3137 CONVL-12-3137Steel Conveyor Legs 12 In. Wide 31 In. to 37 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		23
CONVL-12-3844 CONVL-12-3844Steel Conveyor Legs 12 In. Wide 38 In. to 44 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		25
CONVL-18-1723 CONVL-18-1723Steel Conveyor Legs 18 In. Wide 17 In. to 23 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		17
CONVL-18-2430 CONVL-18-2430Steel Conveyor Legs 18 In. Wide 24 In. to 30 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity: 2000
Overall Length (in.): 5		21
CONVL-18-3137 CONVL-18-3137Steel Conveyor Legs 18 In .Wide 31 In. to 37 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		24
CONVL-18-3844 CONVL-18-3844Steel Conveyor Legs 18 In. Wide 38 In. to 44 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		26
CONVL-24-1723 CONVL-24-1723Steel Conveyor Legs 24 In .Wide 17 In. to 23 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		18
CONVL-24-2430 CONVL-24-2430Steel Conveyor Legs 24 In. Wide 24 In. to 30 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		22
CONVL-24-3137 CONVL-24-3137Steel Conveyor Legs 24 In. Wide 31 In. to 37 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		24
CONVL-24-3844 CONVL-24-3844Steel Conveyor Legs 24 In. Wide 38 In. to 44 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		27
CONVL-30-1723 CONVL-30-1723Steel Conveyor Legs 30 In. Wide 17 In. to 23 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		19
CONVL-30-2430 CONVL-30-2430Steel Conveyor Legs 30 In. Wide 24 In. to 30 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		23
CONVL-30-3137 CONVL-30-3137Steel Conveyor Legs 30 In. Wide 31 In. to 37 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		25
CONVL-30-3844 CONVL-30-3844Steel Conveyor Legs 30 In. Wide 38 In. to 44 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		28
CONVL-36-1723 CONVL-36-1723Steel Conveyor Legs 36 In. Wide 17 In. to 23 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		20
CONVL-36-2430 CONVL-36-2430Steel Conveyor Legs 36 In. Wide 24 In. to 30 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		24
CONVL-36-3137 CONVL-36-3137Steel Conveyor Legs 36 In. Wide 31 In. to 37 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		27
CONVL-36-3844 CONVL-36-3844Steel Conveyor Legs 36 In. Wide 38 In. to 44 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		29
CONVL-42-1723 CONVL-42-1723Steel Conveyor Legs 42 In. Wide 17 In. to 23 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		22
CONVL-42-2430 CONVL-42-2430Steel Conveyor Legs 42 In.Wide 24 In. to 30 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		25
CONVL-42-3137 CONVL-42-3137Steel Conveyor Legs 42 In. Wide 31 In. to 37 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		28
CONVL-42-3844 CONVL-42-3844Steel Conveyor Legs 42 In. Wide 38 In. to 44 In. Adjustable Height 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Overall Length (in.): 5		31

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
