Adjustable Steel Gantry Cranes with Pneumatic Casters

model: AHS-4-15-10-PNU

AHS-4-15-10-PNU_A.jpg AHS-4-15-12-PNU_A.jpg AHS-PNU-DT-RF_A.jpg AHS-PNU-DT4-RF_A.jpg More Images +
Adjustable Steel Gantry Cranes with Pneumatic Casters
SERIES: AHS-PNU
Best Seller Quick Ship Custom Fabrication

The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Do not move units while loaded. A painted blue finish protects the unit from. Designed for semi-permanent or permanent applications. Hoists & Trollies can be ordered seperately.

  • Incremental height adjustment
  • Pinned connections for quick set up and take down
  • Easily adjustable height with fork truck or other overhead lifting device
  • Smooth rolling with four swivel pneumatic casters

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option

Adjustable Steel Gantry Cranes with Pneumatic Casters

model: AHS-4-15-10-PNU

Model # Description Attributes Net Wt.
(lbs)

* Usable Distance Between Uprights is Overall Beam Length Minus 12" * Usable Trolley Travel Length is Overall Beam Length Minus 30"

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
AHS-4-10-12-PNU
AHS-4-10-14-PNU
AHS-4-10-16-PNU
AHS-4-15-10-PNU
AHS-4-15-12-PNU
AHS-4-15-14-PNU
AHS-4-15-16-PNU
AHS-4-15-7-PNU
AHS-4-15-9-PNU
AHS-4-20-12-PNU
AHS-4-20-14-PNU
AHS-4-20-16-PNU
AHS-PNU-DT-RF
AHS-PNU-DT4-RF
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

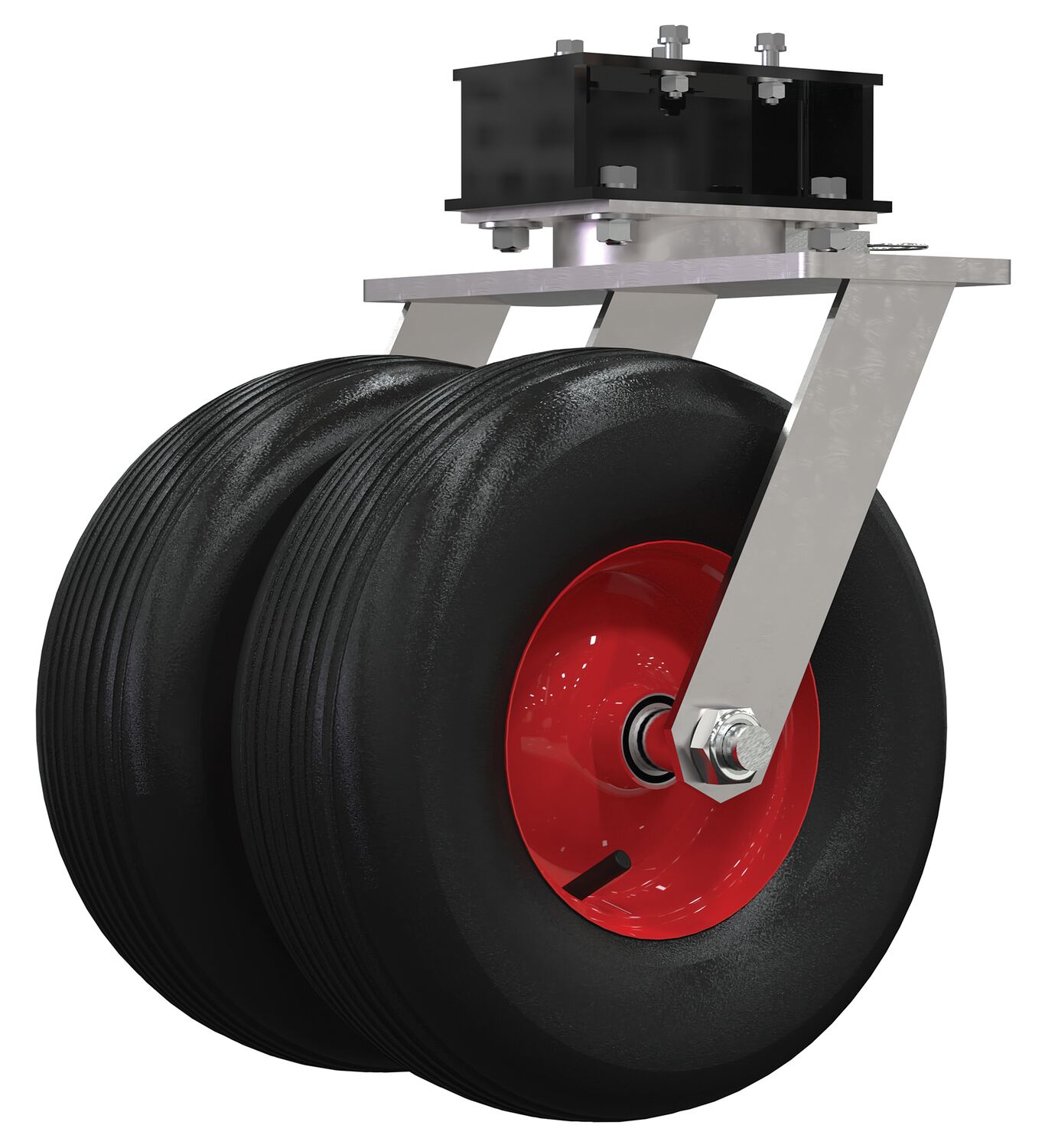

AHS-PNU-DT-RF AHS-PNU-DT-RF Pneumatic Rubber Dual Tire 15-1/2 In. x 5-7/8 In. Wheel For … 90 Days Limited Warranty 59

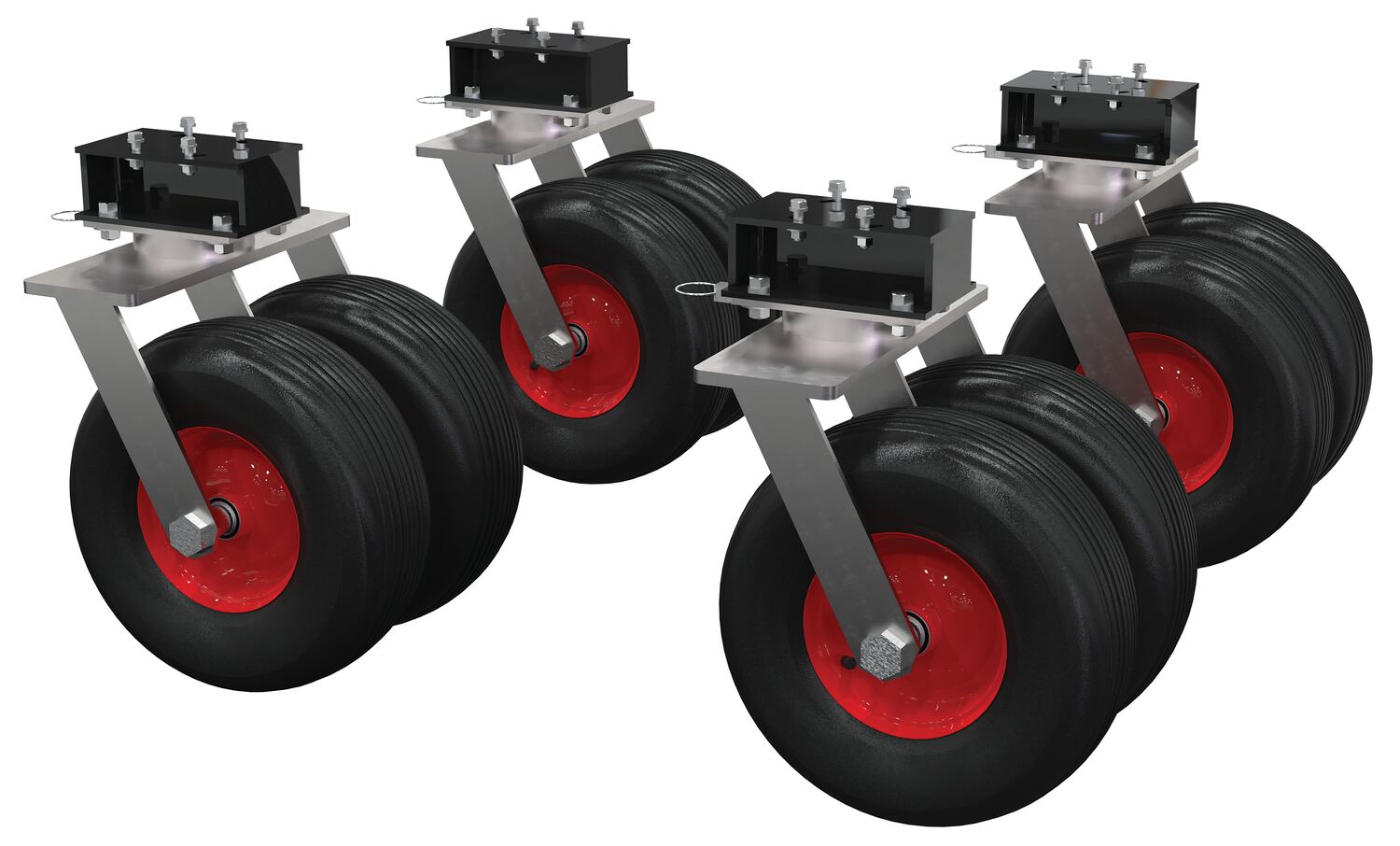

AHS-PNU-DT4-RF AHS-PNU-DT4-RF Pneumatic Rubber Dual Tire Kit 15-1/2 In. x 5-7/8 In. Wheel … 90 Days Limited Warranty 271
Model Image PDFs Description
AHS-KIT icon_approvaldrawings.jpg (2) Come-A-Longs for height adjustment (Not for lifting)
AHS-STLO icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (factory installed) *Not compatible with ASH-10-15-10*
AHS-STLO-RF icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (field installed) *Not compatible with ASH-10-15-10*
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Manuals

AHS

AHS-KIT

Survey Sheets

AHS

Engineering Drawings

AHS-4-10-12-PNU

AHS-4-10-14-PNU

AHS-4-10-16-PNU

AHS-4-15-10-PNU

AHS-4-15-12-PNU

AHS-4-15-14-PNU

AHS-4-15-16-PNU

AHS-4-15-7-PNU

AHS-4-15-9-PNU

AHS-4-20-12-PNU

AHS-4-20-14-PNU

AHS-4-20-16-PNU

AHS-PNU-DT-RF

AHS-PNU-DT4-RF

Testing Certificates

AHS-4-10-12-PNU

AHS-4-10-14-PNU

AHS-4-10-16-PNU

AHS-4-15-10-PNU

AHS-4-15-12-PNU

AHS-4-15-14-PNU

AHS-4-15-16-PNU

AHS-4-15-7-PNU

AHS-4-15-9-PNU

AHS-4-20-12-PNU

AHS-4-20-14-PNU

AHS-4-20-16-PNU

AHS-PNU-DT-RF

AHS-PNU-DT4-RF

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product

Related or Similar Products:

More From Gantry Cranes





Adjustable Steel Gantry Cranes...




The adjustable height steel gantry crane is designed for transporting and positioning materials along the beams length. The cranes beam height can be adjusted to better conform to the working conditions making it both ergonomically friendly and cost effective. Do not move units while loaded. A painted blue finish protects the unit from. Designed for semi-permanent or permanent applications. Hoists & Trollies can be ordered seperately.

  • Incremental height adjustment
  • Pinned connections for quick set up and take down
  • Easily adjustable height with fork truck or other overhead lifting device
  • Smooth rolling with four swivel pneumatic casters

Check Out Vestil's Other Gantry Crane Styles:
Adj. Height Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Adj. Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Adj. Height Aluminum Gantry Cranes w/ V-Groove Casters | Adj. Height Aluminum Gantry Cranes w/ Total Locking Casters | Adj. Height Aluminum Gantry Cranes w/ Pneumatic Casters | Adj. Height Aluminum Gantry Cranes w/ Adj. Leveling Option | Fixed Height Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Steel Gantry Cranes w/ Pneumatic Casters | Fixed Height Knockdown Steel Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Knockdown Steel Gantry Cranes w/ V-Groove Casters | Fixed Height Knockdown Steel Gantry Cranes w/ Total Locking Casters | Fixed Height Aluminum Gantry Cranes w/ 4-Position Locking Casters | Fixed Height Aluminum Gantry Cranes w/ Adj. Leveling Option


Model # Description Attributes Net Wt.
(lbs)

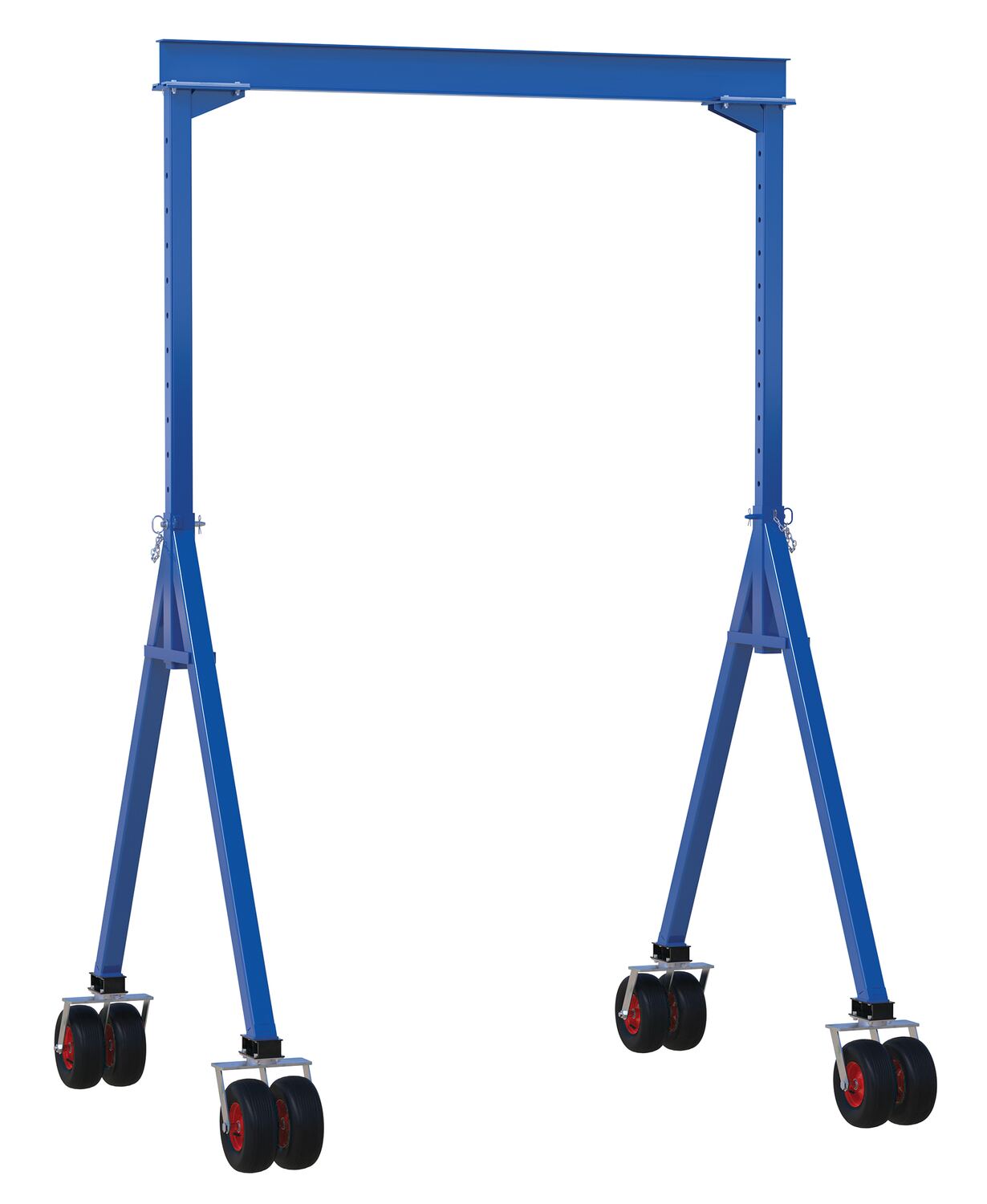

AHS-4-10-12-PNU AHS-4-10-12-PNUSteel Adjustable Height Gantry Crane with Pneumatic Rubber Casters 10 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 99 to 153		890
AHS-4-10-14-PNU AHS-4-10-14-PNUSteel Adjustable Height Gantry Crane with Pneumatic Rubber Casters 10 Ft. Wide x 14 Ft. Max Usable Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 111 to 177		955
AHS-4-10-16-PNU AHS-4-10-16-PNUSteel Adjustable Height Gantry Crane with Pneumatic Rubber Casters 10 Ft. Wide x 16 Ft. Max Usable Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 135 to 201		990

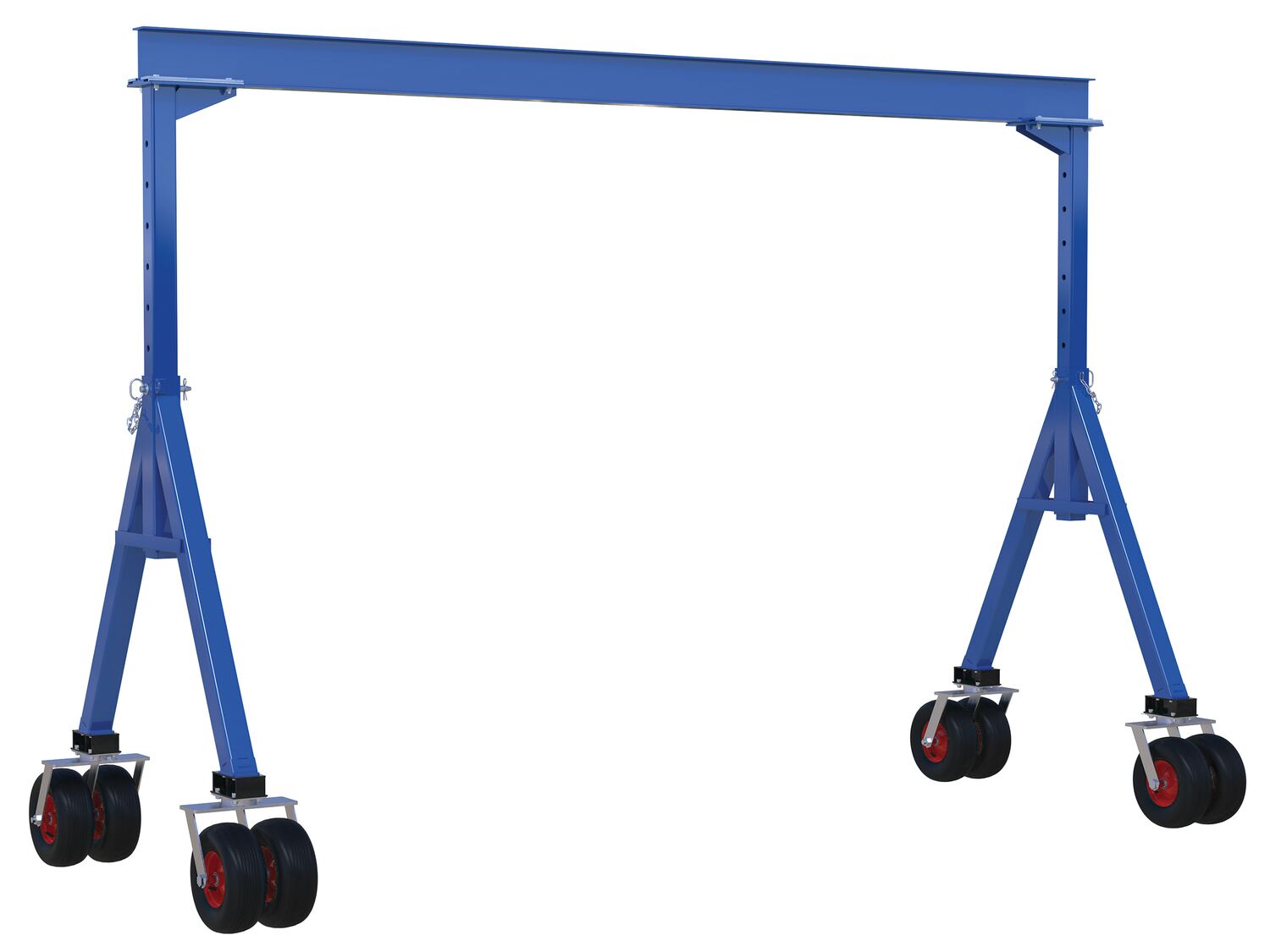

AHS-4-15-10-PNU AHS-4-15-10-PNUSteel Adjustable Height Gantry Crane with Pneumatic Rubber Casters 15 Ft. Wide x 10 Ft. Max Usable Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 87 to 129		800
AHS-4-15-12-PNU AHS-4-15-12-PNUSteel Adjustable Height Gantry Crane with Pneumatic Rubber Casters 15 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 99 to 153		880
AHS-4-15-14-PNU AHS-4-15-14-PNUSteel Adjustable Height Gantry Crane with Pneumatic Rubber Casters 15 Ft. Wide x 14 Ft. Max Usable Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 99 to 177		1010
AHS-4-15-16-PNU AHS-4-15-16-PNUSteel Adjustable Height Gantry Crane with Pneumatic Rubber Casters 15 Ft. Wide x 16 Ft. Max Usable Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 133 to 201		1040
AHS-4-15-7-PNU AHS-4-15-7-PNUSteel Adjustable Height Gantry Crane with Pneumatic Rubber Casters 15 Ft. Wide x 7 Ft. Max Usable Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 69 to 93		690
AHS-4-15-9-PNU AHS-4-15-9-PNUSteel Adjustable Height Gantry Crane with Pneumatic Rubber Casters 15 Ft. Wide x 9 Ft. Max Usable Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 81 to 117		770
AHS-4-20-12-PNU AHS-4-20-12-PNUSteel Adjustable Height Gantry Crane with Pneumatic Rubber Casters 20 Ft. Wide x 12 Ft. Max Usable Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 99 to 153		775
AHS-4-20-14-PNU AHS-4-20-14-PNUSteel Adjustable Height Gantry Crane with Pneumatic Rubber Casters 20 Ft. Wide x 14 Ft. Max Usable Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 111 to 177		855

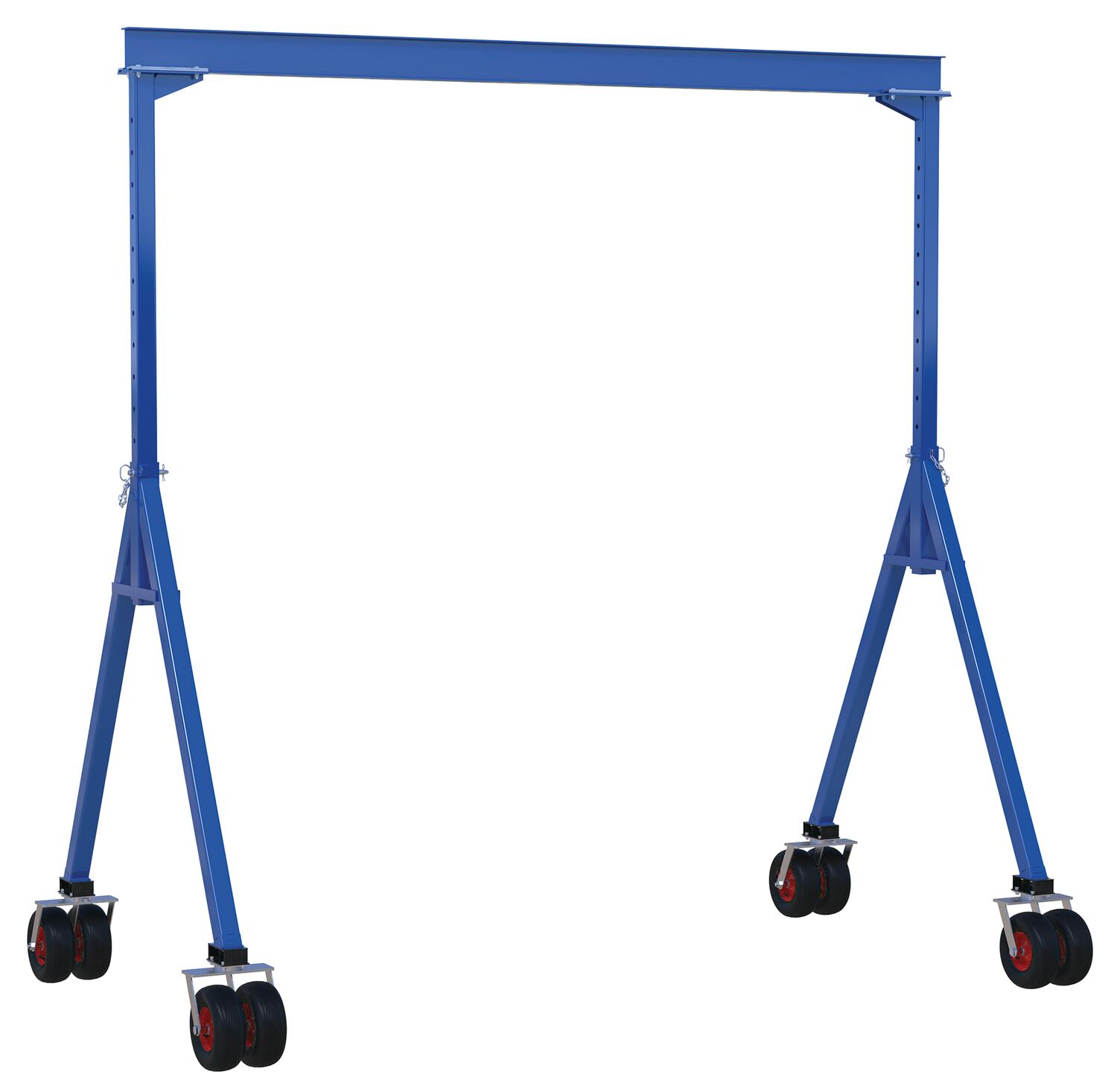

AHS-4-20-16-PNU AHS-4-20-16-PNUSteel Adjustable Height Gantry Crane with Pneumatic Rubber Casters 20 Ft. Wide x 16 Ft. Max Usable Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4,000
Adjustable Clearance Range (in.): 135 to 201		905

Options


Model Image PDFs Description
AHS-KIT icon_approvaldrawings.jpg (2) Come-A-Longs for height adjustment (Not for lifting)
AHS-STLO icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (factory installed) *Not compatible with ASH-10-15-10*
AHS-STLO-RF icon_approvaldrawings.jpg STATIONARY LEG OPTION, set of 4 (field installed) *Not compatible with ASH-10-15-10*
