Product Family Overview


Machinery Lifts
SERIES: MFM

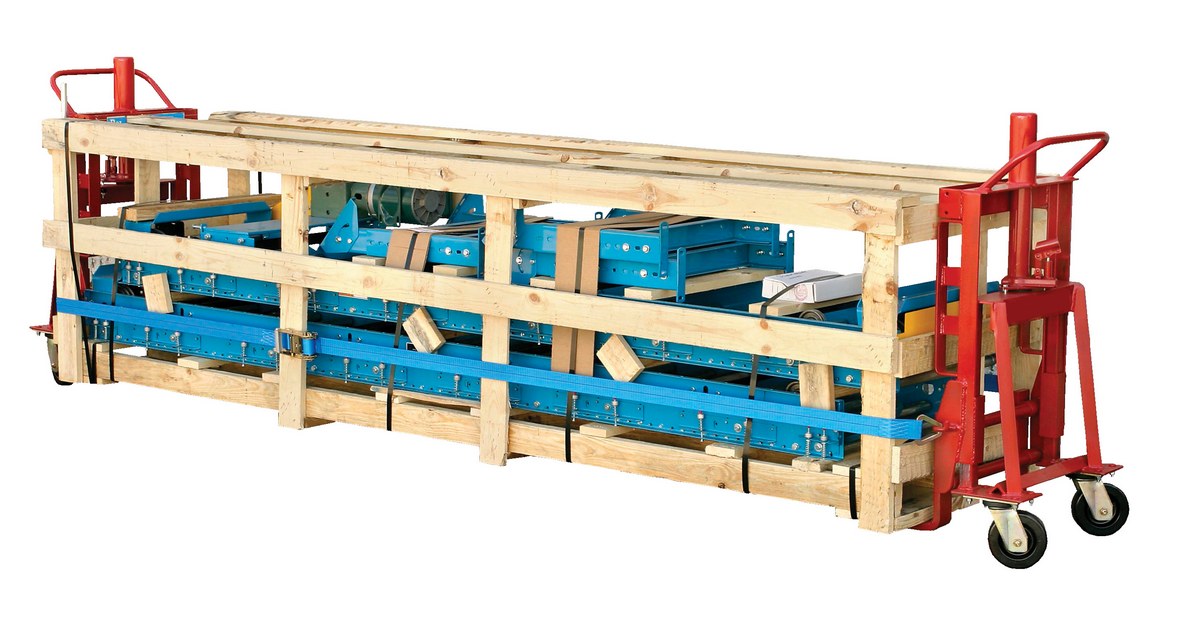

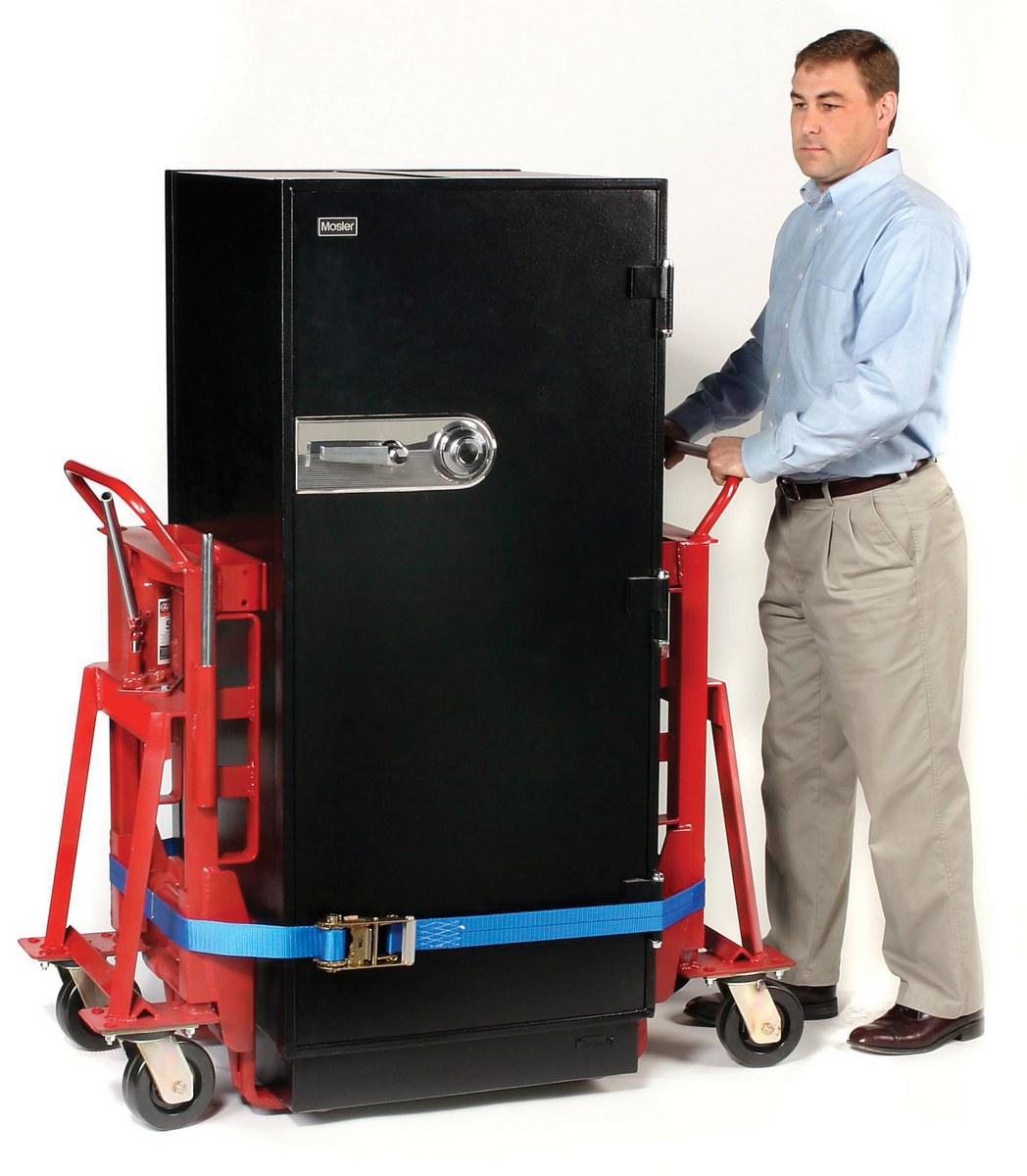

These machinery and vending machine lifts are the ideal method to move bulky and hard to handle loads. Move large, awkward objects or heavy equipment that is difficult to maneuver or position like refrigerators, safes, furniture, or machines. Yet they are versatile enough to safely handle fragile, sensitive equipment like glass, and computers. Lift height is 6" (model MFM-2-RAL has a 5-1/8" lift height). Optional side straps secure loads for stable moving. Large wheels allow smooth movement over bumps and cracks of factory floors. Forks are adjustable with mounting pegs to allow for positioning of forks to accommodate different width loads. Priced and sold in pairs.

These machinery and vending machine lifts are the ideal method to move bulky and hard to handle loads. Move large, awkward objects or heavy equipment that is difficult to maneuver or position like refrigerators, safes, furniture, or machines. Yet they are versatile enough to safely handle fragile, sensitive equipment like glass, and computers. Lift height is 6" (model MFM-2-RAL has a 5-1/8" lift height). Optional side straps secure loads for stable moving. Large wheels allow smooth movement over bumps and cracks of factory floors. Forks are adjustable with mounting pegs to allow for positioning of forks to accommodate different width loads. Priced and sold in pairs.

Additional Models In This Family

MFM-2-RAL

model MFM-2-RAL

MFM-4-RAL

model MFM-4-RAL

MFM-10-RAL

model MFM-10-RAL

MFM-BELT-12

model MFM-BELT-12

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
MFM-10-RAL MFM-10-RAL90 Days Limited WarrantySteel Machinery/Vending Machine Lifts 18 In. x 24 In. x 45-1/2 In. 10000 Lb. Capacity RedUniform Capacity (lb.): 10,000
Forts Adjustable (in. to in.): 9-1/4 to 19-1/2
438
MFM-12-RAL MFM-12-RAL90 Days Limited WarrantySteel Machinery/Vending Machine Lifts 18 In. x 24 In. x 45-1/2 In. 12000 Lb. Capacity RedUniform Capacity (lb.): 12,000
Forts Adjustable (in. to in.): 9-1/4 to 19-1/2
470
MFM-2-RAL MFM-2-RAL90 Days Limited WarrantySteel Machinery/Vending Machine Lifts 12-1/2 In. x 22 In. x 47-1/2 In. 2000 Lb. Capacity RedUniform Capacity (lb.): 2,000
Forts Adjustable (in. to in.): 7-1/4 to 17-1/2
250
MFM-4-RAL MFM-4-RAL90 Days Limited WarrantySteel Machinery/Vending Machine Lifts 16-1/2 In. x 23 In. x 49-3/4 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4,000
Forts Adjustable (in. to in.): 5 to 19-1/2
500
MFM-6-RAL MFM-6-RAL90 Days Limited WarrantySteel Machinery/Vending Machine Lifts 16-3/4 In. x 23 In. x 49-3/4 In. 6000 Lb. Capacity RedUniform Capacity (lb.): 6,000
Forts Adjustable (in. to in.): 6 to 19-1/2
365
MFM-8-RAL MFM-8-RAL90 Days Limited WarrantySteel Machinery/Vending Machine Lifts 17-1/4 In. x 23-1/8 In. x 45-1/2 In. 8000 Lb. Capacity RedUniform Capacity (lb.): 8,000
Forks Adjustable (in. to in.): 7-1/4 to 19-1/2
400

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

MFM-10-RAL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 10,000
Forts Adjustable (in. to in.): 9-1/4 to 19-1/2
Uniform Capacity (lb.): 10,000
Forts Adjustable (in. to in.): 9-1/4 to 19-1/2

MFM-12-RAL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 12,000
Forts Adjustable (in. to in.): 9-1/4 to 19-1/2
Uniform Capacity (lb.): 12,000
Forts Adjustable (in. to in.): 9-1/4 to 19-1/2

MFM-2-RAL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Forts Adjustable (in. to in.): 7-1/4 to 17-1/2
Uniform Capacity (lb.): 2,000
Forts Adjustable (in. to in.): 7-1/4 to 17-1/2

MFM-4-RAL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Forts Adjustable (in. to in.): 5 to 19-1/2
Uniform Capacity (lb.): 4,000
Forts Adjustable (in. to in.): 5 to 19-1/2

MFM-6-RAL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 6,000
Forts Adjustable (in. to in.): 6 to 19-1/2
Uniform Capacity (lb.): 6,000
Forts Adjustable (in. to in.): 6 to 19-1/2

MFM-8-RAL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 8,000
Forks Adjustable (in. to in.): 7-1/4 to 19-1/2
Uniform Capacity (lb.): 8,000
Forks Adjustable (in. to in.): 7-1/4 to 19-1/2
For More Details of the Option Click the Red Model Button

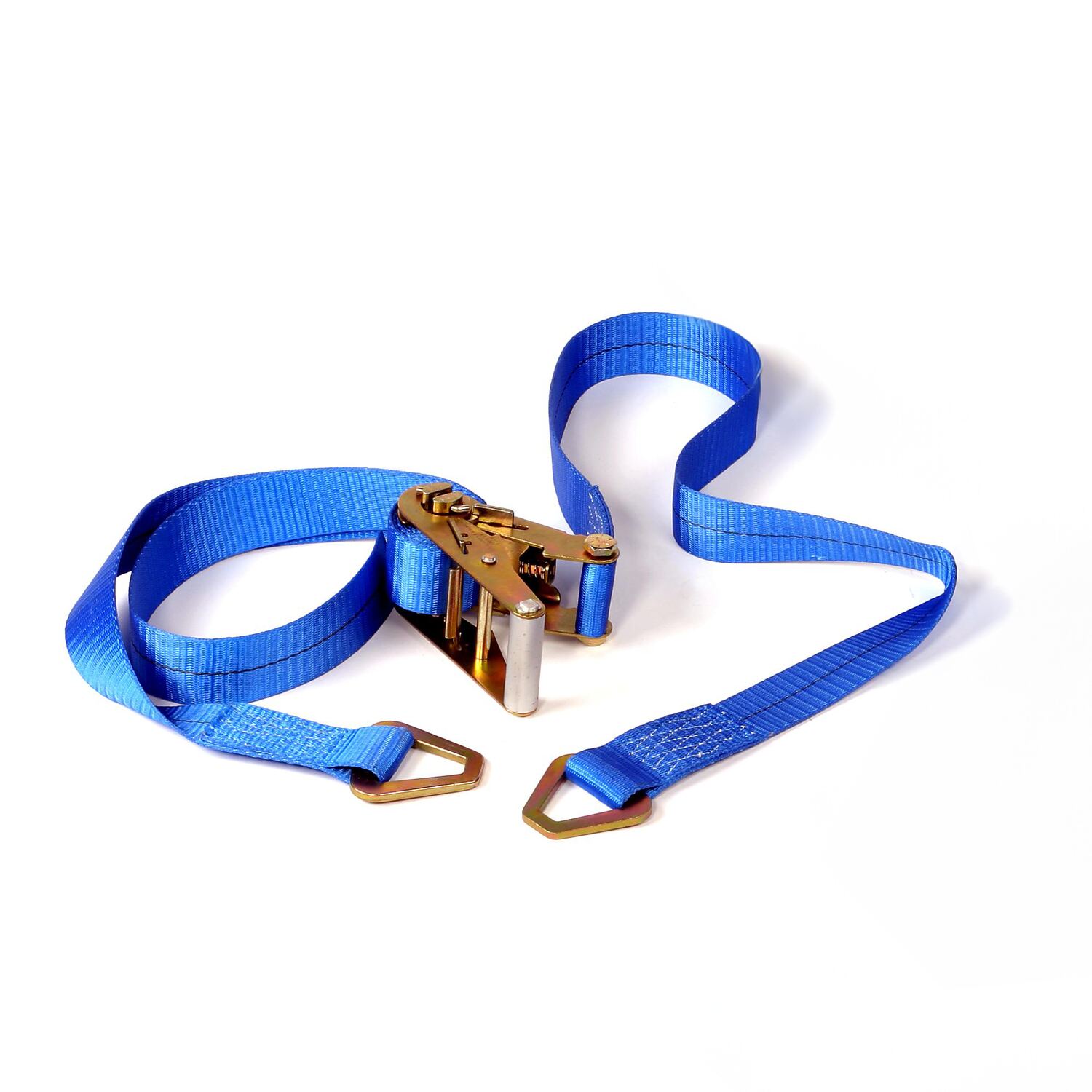

MFM-BELT-12 MFM-BELT-1290 Days Limited WarrantyNylon Ratchet Strap/Belt With D-Ring For Machinery/Vending Machine Lift Models 12 Ft. BlueBelt Length (ft.): 12
Material: Polyester
10
MFM-BELT-16 MFM-BELT-1690 Days Limited WarrantyNylon Ratchet Strap/Belt With D-Ring For Machinery/Vending Machine Lift Models 16 Ft. BlueBelt Length (ft.): 16
Material: Polyester
12
MFM-BELT-20 MFM-BELT-2090 Days Limited WarrantyNylon Ratchet Strap/Belt With D-Ring For Machinery/Vending Machine Lift Models 20 Ft. BlueBelt Length (ft.): 20
Material: Polyester
14

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Machinery Lifts PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Machinery Lifts




These machinery and vending machine lifts are the ideal method to move bulky and hard to handle loads. Move large, awkward objects or heavy equipment that is difficult to maneuver or position like refrigerators, safes, furniture, or machines. Yet they are versatile enough to safely handle fragile, sensitive equipment like glass, and computers. Lift height is 6" (model MFM-2-RAL has a 5-1/8" lift height). Optional side straps secure loads for stable moving. Large wheels allow smooth movement over bumps and cracks of factory floors. Forks are adjustable with mounting pegs to allow for positioning of forks to accommodate different width loads. Priced and sold in pairs.



Model # Description Attributes Net Wt.
(lbs)
MFM-10-RAL MFM-10-RALSteel Machinery/Vending Machine Lifts 18 In. x 24 In. x 45-1/2 In. 10000 Lb. Capacity RedUniform Capacity (lb.): 10,000
Forts Adjustable (in. to in.): 9-1/4 to 19-1/2
438

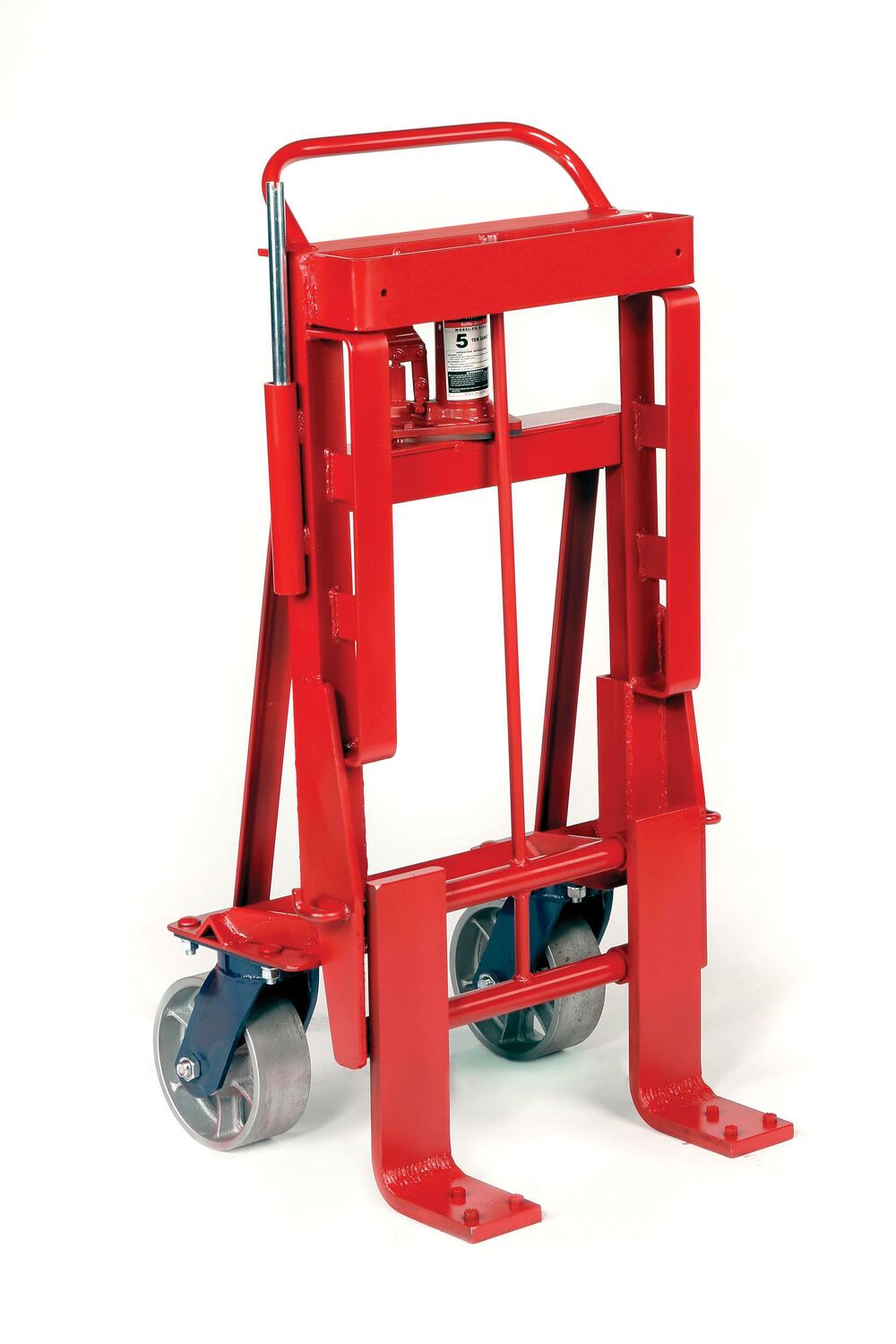

MFM-12-RAL MFM-12-RALSteel Machinery/Vending Machine Lifts 18 In. x 24 In. x 45-1/2 In. 12000 Lb. Capacity RedUniform Capacity (lb.): 12,000
Forts Adjustable (in. to in.): 9-1/4 to 19-1/2
470

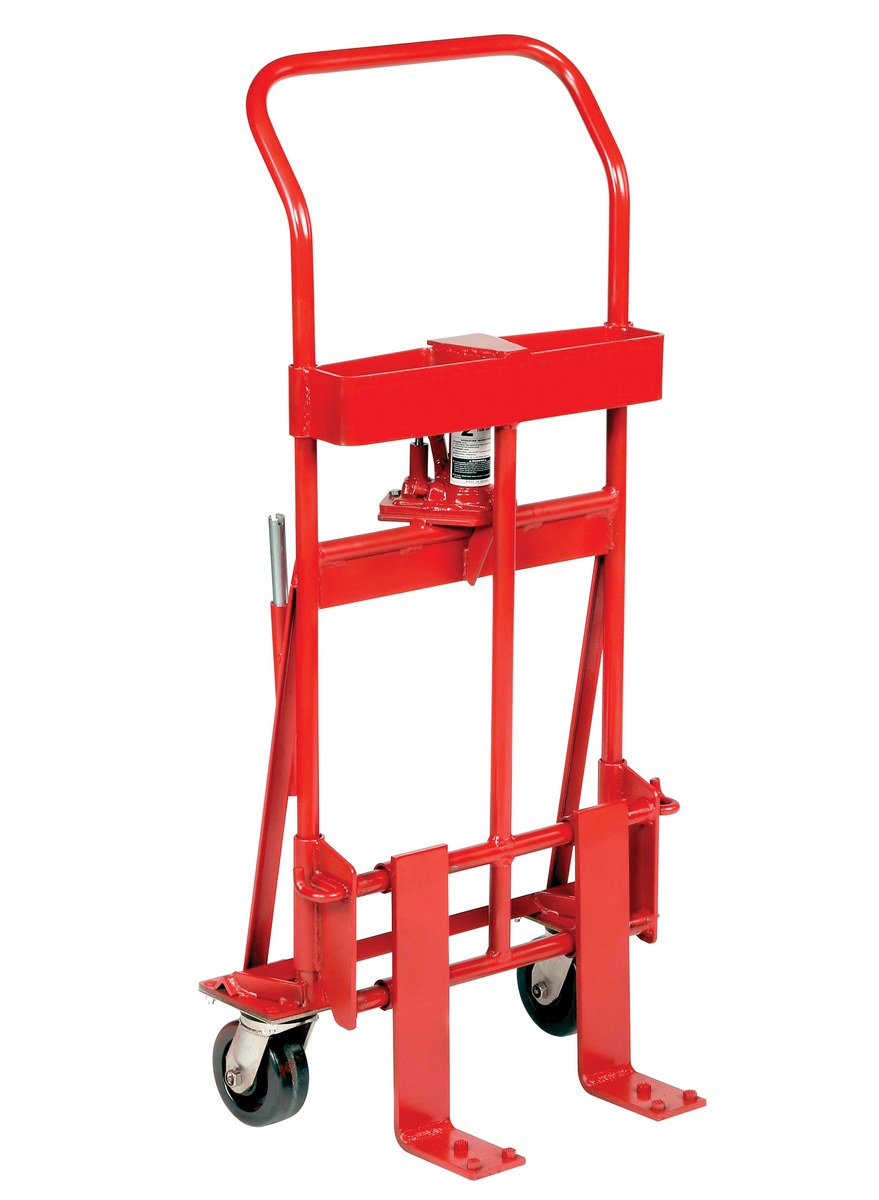

MFM-2-RAL MFM-2-RALSteel Machinery/Vending Machine Lifts 12-1/2 In. x 22 In. x 47-1/2 In. 2000 Lb. Capacity RedUniform Capacity (lb.): 2,000
Forts Adjustable (in. to in.): 7-1/4 to 17-1/2
250

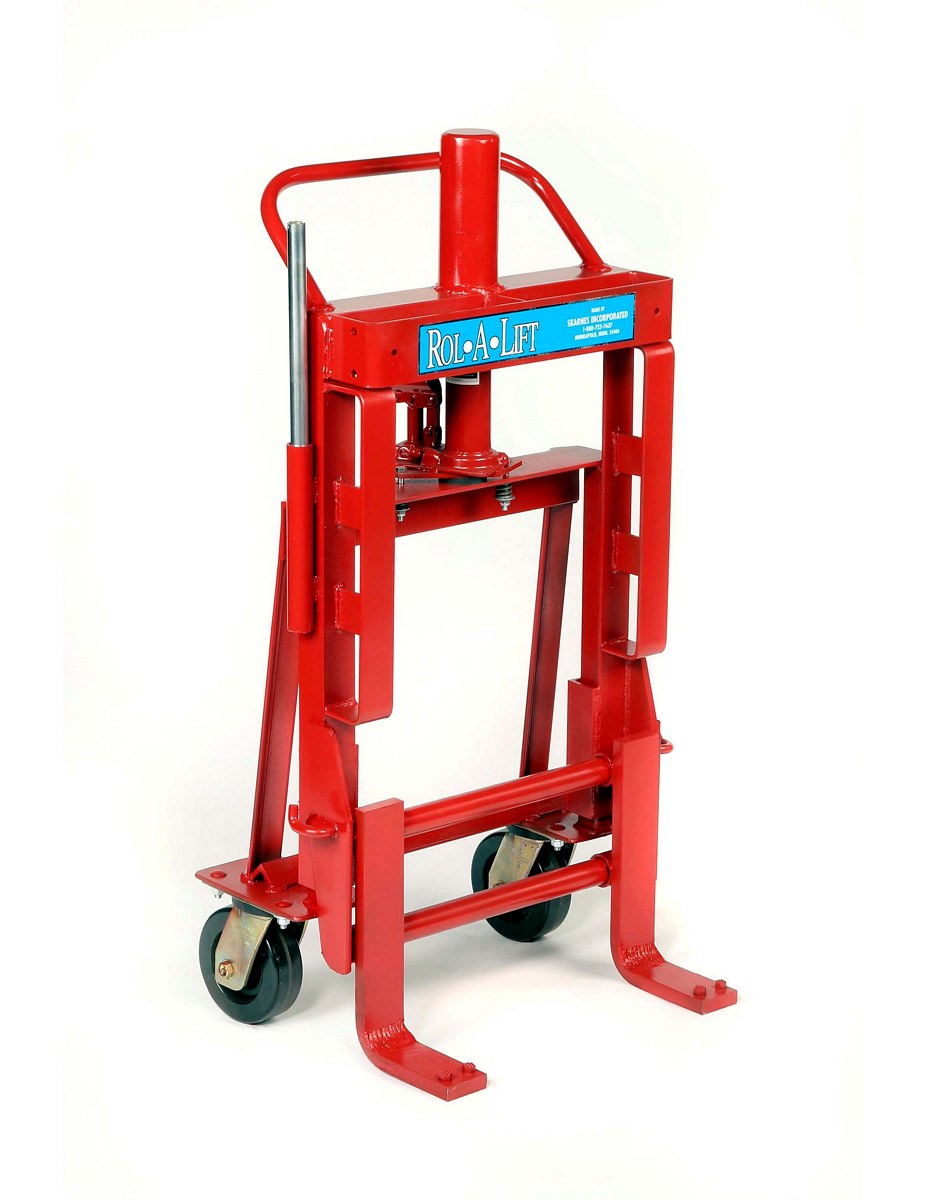

MFM-4-RAL MFM-4-RALSteel Machinery/Vending Machine Lifts 16-1/2 In. x 23 In. x 49-3/4 In. 4000 Lb. Capacity RedUniform Capacity (lb.): 4,000
Forts Adjustable (in. to in.): 5 to 19-1/2
500
MFM-6-RAL MFM-6-RALSteel Machinery/Vending Machine Lifts 16-3/4 In. x 23 In. x 49-3/4 In. 6000 Lb. Capacity RedUniform Capacity (lb.): 6,000
Forts Adjustable (in. to in.): 6 to 19-1/2
365
MFM-8-RAL MFM-8-RALSteel Machinery/Vending Machine Lifts 17-1/4 In. x 23-1/8 In. x 45-1/2 In. 8000 Lb. Capacity RedUniform Capacity (lb.): 8,000
Forks Adjustable (in. to in.): 7-1/4 to 19-1/2
400
